Magellan®eXplorist™GPS Receiver

Using MapSend™

This manual provides basic

operation instructions for

the MapSend line of

Magellan software with your

eXplorist GPS receiver.

eXplorist are trademarks of Thales.

Using MapSend

What is MapSend?

MapSend is the Magellan line of detailed digital maps for Magellan hand-held GPS

receivers. The core MapSend product line includes street maps for driving, topographic

maps for hiking, camping, and hunting, and fresh and salt water maps for fishing and

boating. MapSend maps will transform your eXplorist into an amazingly powerful

solution for outdoor recreation and travel.

You can find out much more about the growing range of MapSend products through a

Magellan dealer or on-line at www.magellangps.com under Products/Maps and

Software.

• Most MapSend products are provided on CD-ROM.

• Typically cover very large areas, allowing the user to cut smaller regions of the big

map to load to the GPS receiver.

• Offer useful trip planning and map analysis functions, such as the ability to easily

create and store lots of waypoints, routes, map regions, etc.

• Some maps regions are available as pre-loaded map regions on SD cards.

• Plug and play in the eXplorist, but are limited in geographic area.

Using MapSend maps with eXplorist

The Magellan eXplorist uses a USB port to transfer data, and provides a file

management system much like Windows folders, so users can work with multiple maps

and personal data files.

To prepare map regions for eXplorist, you MUST first save the map region on your hard

drive using the MapSend software, and then transfer it to an SD card (either by using

an SD card reader/writer or transferring to an SD card installed in the eXplorist) or the

internal memory in the eXplorist.

Map region size considerations

MapSend products have typically limited the amount of map data that could be

uploaded into the receiver, mostly because of performance limitations. The eXplorist

can handle large maps, and the file system utilized makes it easier to manage multiple

maps. If you make multiple, smaller map regions with existing MapSend products, you

can load them all at once to eXplorist, and easily switch maps on the eXplorist as

needed.

Next you will see this dialog box:

Disregard the “Settings” and “Connect” options.

The first time you use any MapSend product, you

need to type in the software serial number for your

eXplorist in the Target GPS Unit serial number

field.

SD cards offer many advantages when working with maps

Before you get started, you may want to purchase an SD memory card from your

Magellan dealer or from any consumer electronics retailer. It is possible to store small

maps to eXplorist internal memory, but with SD cards you can save larger maps or more

maps – limited only by the size of SD card you choose. For reference, a MapSend Topo

map of the State of Washington will fit on a 64MB SD card, and a MapSend DirectRoute

routable street map of Southern California should also fit in 64MB.

Preparing and storing MapSend map regions on the PC

All MapSend CD-ROM products include a Quick Start Guide that explains the basics of

defining map regions on the PC. Except for saving and moving maps over to your

eXplorist, MapSend PC applications work the same way for eXplorist as for any other

compatible Magellan GPS receivers. Only the basics of storing a map region for eXplorist

are covered in this section.

When you have used MapSend to define a region

and are ready to upload, click the map upload

button on the MapSend toolbar. You will see this

dialog box:

Select Store on Hard Drive and then the Next

button. Do not choose “Upload to GPS Unit” or

“Upload to SD Card Programmer” for eXplorist.

Using MapSend

To locate the serial number of your eXplorist:

On the eXplorist, push the Menu key and select

About from the menu list. The following screen

will appear on the unit:

This is the number you will type as the serial

number in the “Target GPS…” input field in

MapSend.

Click the Next button in the MapSend upload screen. MapSend will then prepare the

map(s) and save them in a folder on your hard disk. It may take some time to format

and save if you are creating large map regions. Part of the reason is that MapSend is

compressing the map so it performs well on the eXplorist.

Use the Magellan Conversion Manager to Copy Maps to eXplorist Storage

Media

Now that you have your map regions saved on the PC hard drive, you need to transfer

maps to eXplorist storage media. The easiest way is to use the Magellan Conversion

Manager. This program can be installed from your eXplorist welcome disk or you can

download it from the eXplorist support section of the Magellan Web site.

To transfer stored map regions to SD cards

or eXplorist memory, click the Conversion

Manager icon on your desktop. You will see

this dialog box on the PC:

Select Transfer Map Regions and click Next.

The next window in the Conversion Manager

will ask you to insert the SD card into the

card reader or connect the eXplorist unit to

the PC. If you wish to transfer maps to the

eXplorist, make sure it is connected, turn it

on, and set it to File Transfer mode.

When you’re ready, click Next again in the Conversion Manager. The PC will search for

stored map files.

NOTE: MapSend programs store saved map files in this location on the PC hard drive:

C:\Programs\Magellan\[Mapsend Product Name] \Export\Images\*.imi

Using MapSend

Serial Number

Map files for eXplorist always have the .imi or .mgi file extension plus the name you

chose for the region when you defined the map region. For example, if you made a region

named "Rockies", the saved map file will be Rockies.imi or Rockies.mgi depending on

the MapSend product you used.Important note: files created from MapSend Worldwide

Basemap must have a .mgi extension to be compatible with eXplorist.

If you are using a version of MapSend Worldwide Basemap, that produces .img files,

check the Magellan website for the software patch v.1.30 or higher that is needed to

create .mgi files.

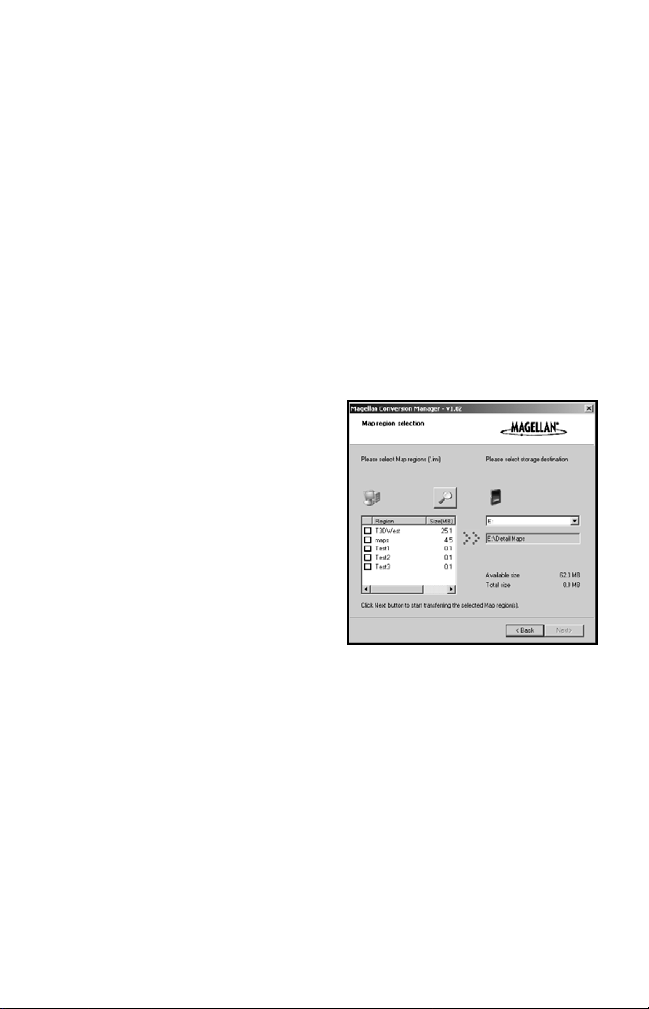

The Magellan Conversion Manager searches for any .imi files in the Programs\Magellan

path on your hard drive. It shows the maps it found and any viable storage media

connected to the PC on the next screen, like this:

If you don’t see the map you want to use in the list box on the left of this screen, you

can click the magnifying glass button to

search for maps elsewhere on your PC.

Click the checkbox next to any map image(s)

you wish to copy to eXplorist storage media,

and then choose the storage destination from

the drop down list on the right. At the lower

right of this dialog is shown how much data

you’ve chosen to transfer and how much

storage space is available. Click Next to start

the map transfer. Please allow plenty of time

for the file to write to an SD card before

removing the card from the card writer.

Using MapSend

Activating and Switching MapSend Maps on your eXplorist

Now you are ready to use your maps on your eXplorist. You can store

many detail map regions, but only one detail region can be active at

once. To activate a detail map, push the Menu button on the

eXplorist, then select Preferences on the Main Menu, followed by

Active Setup. You will now see the following screen:

To make your detail map active, select the Detail Maps line and

press Enter. You will be shown the “Detail Maps” folder containing

your maps. If you decided to place your maps in a subdirectory, or another directory

entirely, move through the directories until you locate your map file. Once you select your

file, the eXplorist will ask you to confirm your selection, after which it will load your map

selection. You can go back to “Active Setup” and change the active map any time you

wish to change to another map you have stored in the eXplorist.

Summary

Following these instructions you will be able to expand the capabilities of your eXplorist

to new levels of detail. Not only will you be able to view highly detailed mapping

information, you will have the flexibility of switching to different maps, either stored

internally or on SD cards. This provides your Magellan eXplorist the ability to display and

navigate using highly detailed maps, limited only by the amount of memory you have at

your disposal and the MapSend products you are using.

Thales Consumer Products

960 Overland Court

San Dimas, California USA

91773

Tel: 909 394 5000

Fax: 909 394 7050

www.magellangps.com

A product of Thales

631180-01 B
