Service Manual
After Service Department
Version: V2.0
Date: 2022.01.12
Crisp
Service Manual Contents
• Exploding View 1
• Wiring diagram 11
• Circuitry of The PCB 12
After Service Department 1
Item No.
Struture
Name
Date Version

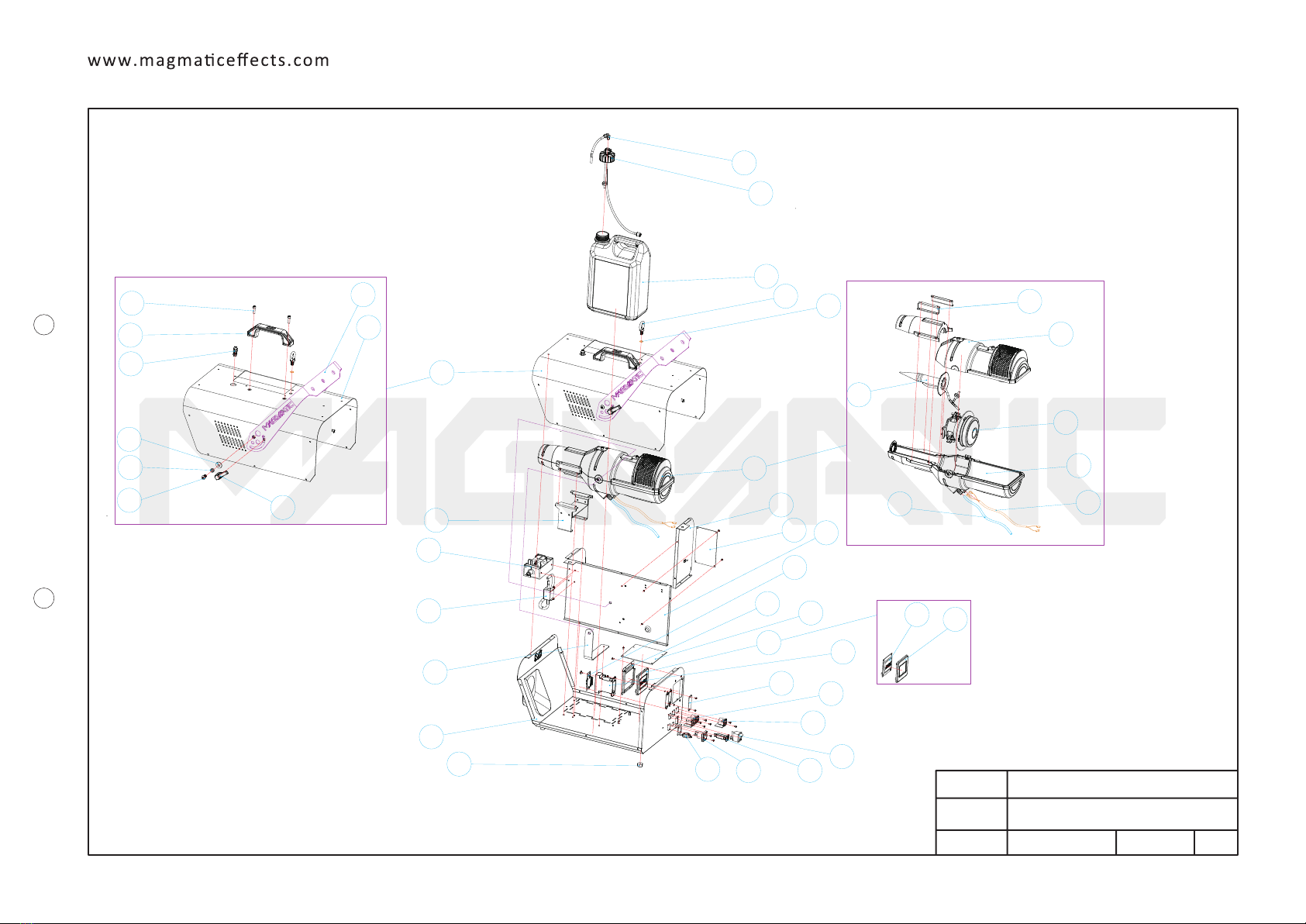

Exploding View # FN22-E005
2.0
2021.08.10
Crisp
1
2
3
4
5
67
8
9
10
11
12
13 14
15
16
17
18
19
20
21
22
23 24
25
26
27 28
1A
1B
16A
16B
16E
16D
16C
16G
16F
21C
21B 21D
21A
21E
21F
21G
21H
21I
After Service Department 2
ET item no. ET2 item no.
Exploded
drawing
number
photo Item no. Description
1 AAXFN22XZZZZ Display board assembly for Crisp
1A FBXFZ22XPXZZ Touch screen holder for Crisp
1B APXFN22XLCDZ Finished display board for Crisp
2 EXFN22XA013Z Screen mount for Crisp
3 EXFN22XA010Z Wireless slot cover panel for Crisp
4 APXFN22X110Z 4Pin Female XLR Connector PCB for Crisp
After Service Department 3
ET item no. ET2 item no.
Exploded
drawing
number
photo Item no. Description

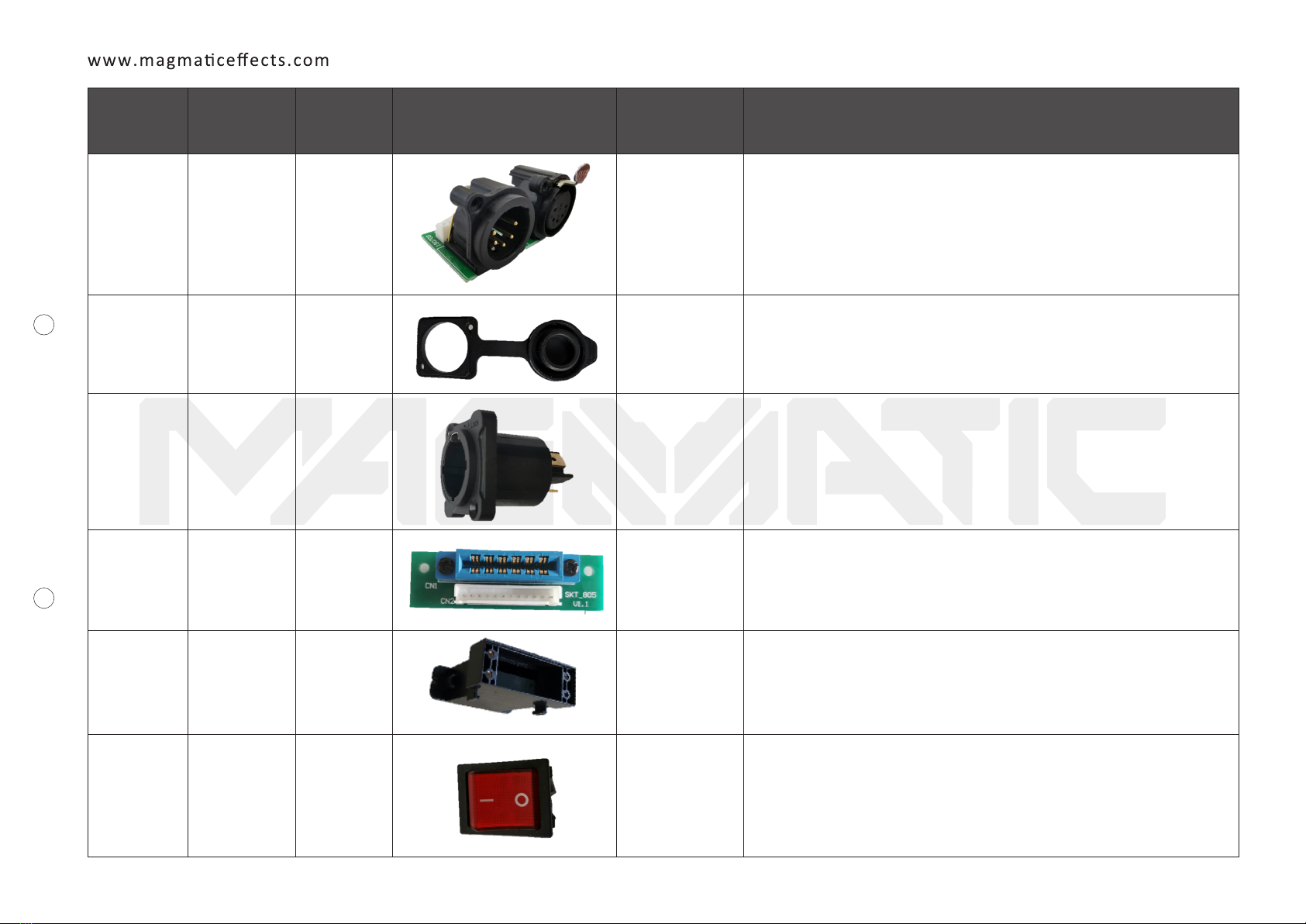

5 APXFN22DMXBZ 5Pin Male/Female Connector PCB for Crisp
6 WHXFZ22XCNAC Waterproof pad for Crisp
7 EAXSAC3MPLYZ TRUPOWERCON female TRUE1 waterproof power plug socket for Crisp
8 APXSKT805XBZ Connector PCB(#SKT_805) for Crisp
9 EXFN22D007ZZ Wireless slot base for Crisp
10 SAX16AZZZZZZ Double pole red illuminated switch 16A for Crisp
After Service Department 4
ET item no. ET2 item no.
Exploded
drawing
number
photo Item no. Description
11
SKX15AX250VZ 120V-non-fuse fuse 15A for Crisp
SKX09AX250VZ 230V-non-fuse fuse 9A for Crisp
12
AAXFN22CCBMG 120V Pump assembly for Crisp
AAXFN22CCBOG 230V Pump assembly for Crisp
13 AAXFN22XYJQZ Oil inspection board assembly for Crisp

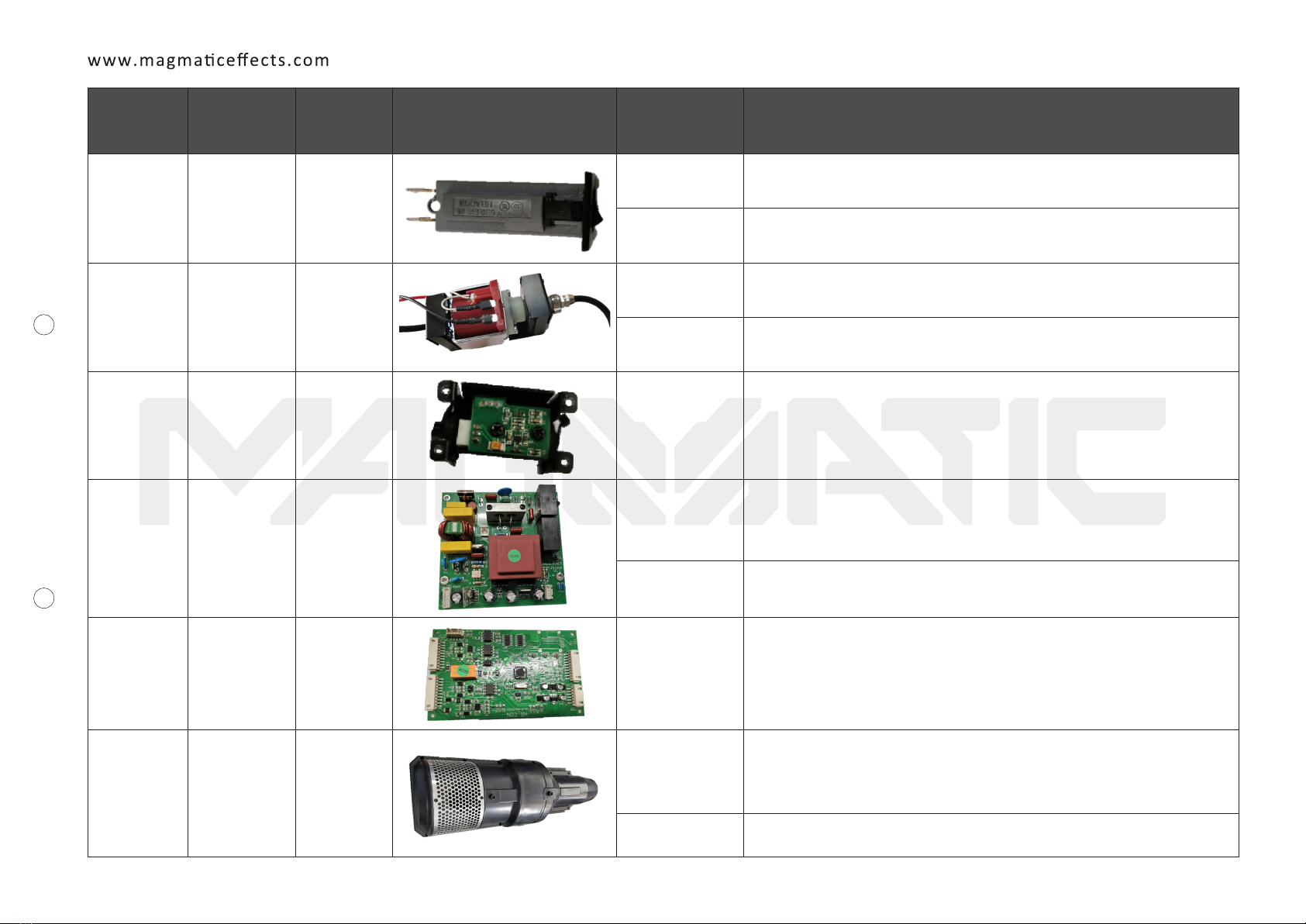

14
APXFN22120VZ Power supply board for Crisp (120V)
APXFN22230VZ Power supply board for Crisp (230V)
15 APXFN22XZZZZ Finished main control board for Crisp
16
AAXFN22XHPTZ Barrel assembly for Crisp (120V)
AAXFN22XHPZZ Barrel assembly for Crisp (230V)
After Service Department 5
ET item no. ET2 item no.
Exploded
drawing
number
photo Item no. Description
11
SKX15AX250VZ 120V-non-fuse fuse 15A for Crisp
SKX09AX250VZ 230V-non-fuse fuse 9A for Crisp
12
AAXFN22CCBMG 120V Pump assembly for Crisp
AAXFN22CCBOG 230V Pump assembly for Crisp
13 AAXFN22XYJQZ Oil inspection board assembly for Crisp
14
APXFN22120VZ Power supply board for Crisp (120V)
APXFN22230VZ Power supply board for Crisp (230V)
15 APXFN22XZZZZ Finished main control board for Crisp
16
AAXFN22XHPTZ Barrel assembly for Crisp (120V)
AAXFN22XHPZZ Barrel assembly for Crisp (230V)
After Service Department 6
ET item no. ET2 item no.
Exploded
drawing
number
photo Item no. Description
16A
AAXFN22XZZZZ Motor component for Crisp (120V)
AAXFN22XZZZZ Motor component for Crisp (230V)
16B AAXFN22CHPHZ Barrel cover A assembly for Crisp
16C AAXFN22XHPHZ Barrel cover C assembly for Crisp
16D AAXFN22PKZJZ Nozzle assembly for Crisp
16E FBXFN22A017Z Front motor bracket xing piece for Crisp
16F WIXFNX6X30BZ Black hose for Crisp
16G
PBXFN22E005B Fan power cord B 630mm for Crisp (EU-230V)
PBXFN22E005A Fan power cord A 340mm for Crisp (US-120V)
After Service Department 7
ET item no. ET2 item no.
Exploded
drawing
number
photo Item no. Description

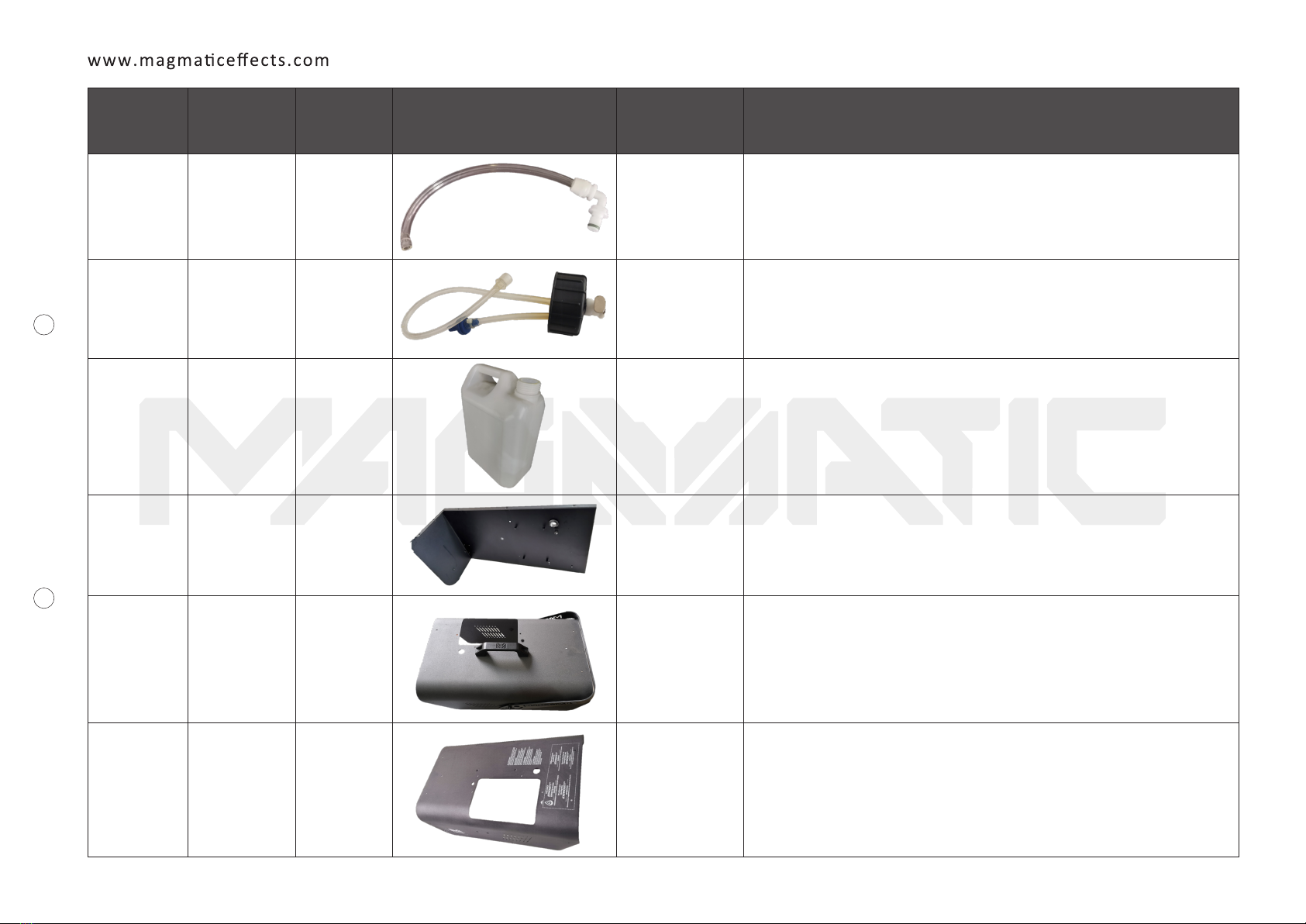

17 AAXFN22YGJTZ Fluid hose for Crisp
18 AAXFN22YTGJZ Tnak cap assembly for Crisp
19 YCXFN22XYTZZ Oil tank for Crisp
20 EXFN22XA003Z Partition for Crisp
21 AAXFN22ZYZJZ Top Cover Set for Crisp
21A EXFN22XA001Z Top Cover for Crisp
After Service Department 8
ET item no. ET2 item no.
Exploded
drawing
number
photo Item no. Description

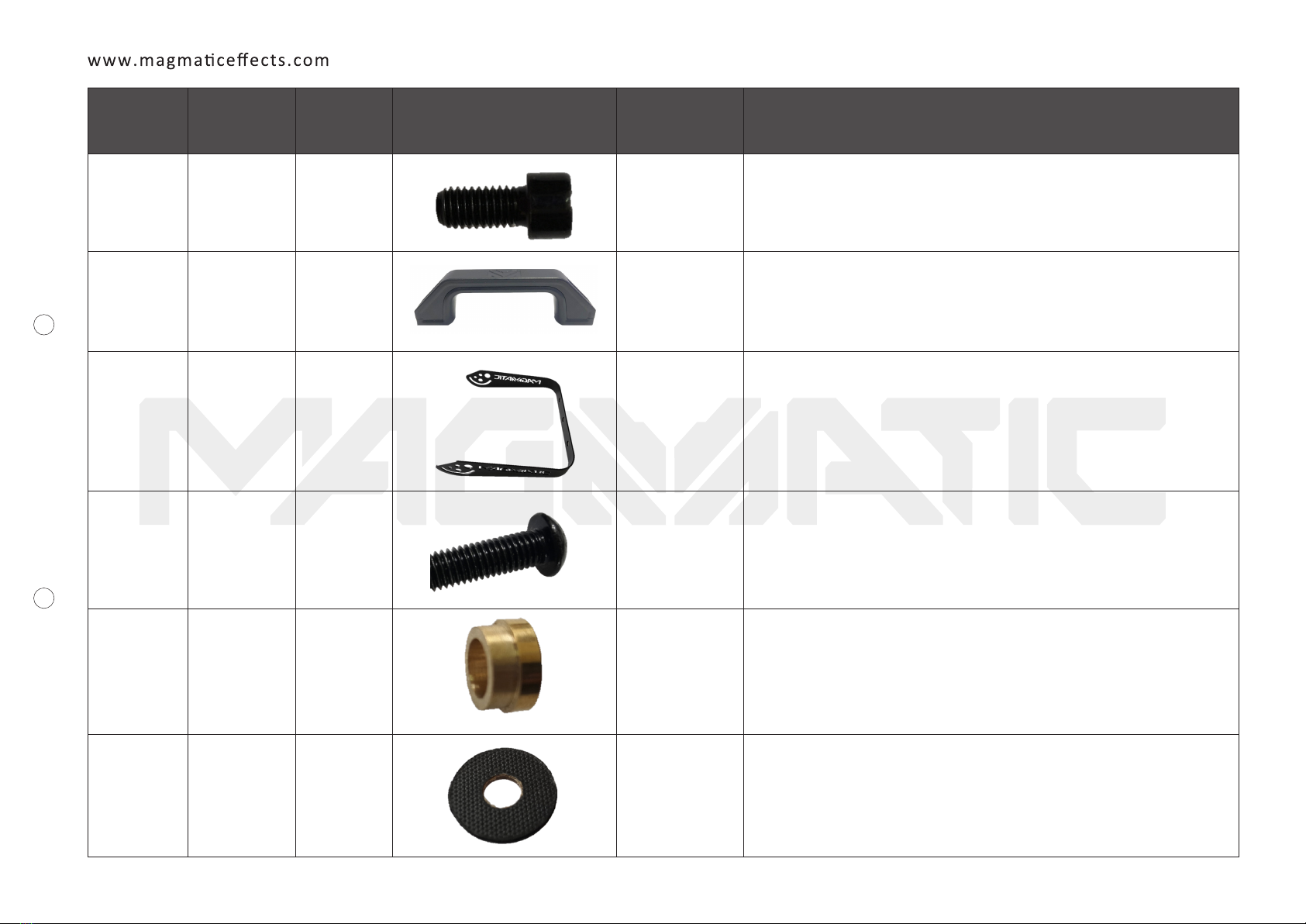

21B QF1XM6X20ZZZ Screw for Crisp
21C AAXFN62WBBMG Handle for Crisp
21D EXFN22XA014Z bracket for Crisp
21E QDOXM8X16ZZZ Screw for Crisp
21F WHXSK50XC14Z Handle xing copper sleeve for Crisp
21G QGXM8X22X2ZZ Washer for Crisp
