Makeblock MScara-Laser Version Manuale utente

mScara User Guide-Laser Version

Contents

I、Equipment necessary before .................................................................................i

II、mScara........................................................................................................................ 2

III、Mechanical assembly (see document mDrawBot instruction V1.1 20150704)......... 2

Mechanical assembly steps for Laser Upgrade Pack............................................... 3

IV、Recommended wiring diagram (Bluetooth communication for Bluetooth version) . 4

V、Definition of electronic wiring of mScara laser upgrade mode ................................. 4

VI、mDraw software......................................................................................................... 5

1. Description of mDraw functions............................................................................. 5

2. Software installation,............................................................................................... 5

3. Button function of main software interface.......................................................... 5

4. Use of mScara laser version.................................................................................. 9

VII、Example of completely using mDraw software.................................................... 13

VIII、See “How to use inkscape+corelDRAW software” for generator of SVG graph. . 15

IX、Please refer to mDrawBot FAQs - V1.3(English) for FAQs. ............................ 15

X、Contact us: ............................................................................................................... 15

mScara User Guide-Laser Version

（1）Use instruction of mScara laser upgrade pack

As laser energy has higher density, make sure that corresponding protection

measure is taken during use. Don’t look at the laser light path by naked eye, don’t irradiate

others by the laser to prevent growing blind or injury to others.

The laser for this product is 405nm, 500mW blue-violet light semiconductor laser.

Operating voltage DC 12V, operating temperature 0℃-50℃, and storage and transport

temperature -40℃-85℃

Material applicable for engraving and cutting: Wood board, non-transparent

ACRYL, paper (color paper and paperboard), foam paper, dark color cloth (jean

cloth, cotton cloth and linen), leather and other materials with higher absorbancy

and low melting point.

Materials not applicable for engraving: Metal such as aluminum, stainless

steel, mirror, glass, ceramic, and other transmissivity maternal with high melting

point and high reflectivity

mScara User Guide-Laser Version

Warning

Wavelengthγ= 405nm blue-violet diode laser

Don’t directly irradiate eye or skin by the laser beam

Note:

When the laser is used, take eye protecting measure. When a specific material is cut

by the laser, it is possible to produce toxic smoke, so take ventilation measure. The

children or the person unfamiliar with the laser are not allowed to independently touch or

use the laser device.

mScara User Guide-Laser Version

I、Equipment necessary before

1. Hardware:

①.mDrawBot kit

②. Assemble Instruction V1.1 20150704

2. Software:

a. Necessary software

mDraw

Inksape

B. Software possibly required

Arduino IDE

Makeblock main board drive

(Note: If Mac OS system is used, click hyperlink to

load and install the drive)

3. Download software and detained information package

http://learn.makeblock.cc/mdrawbot/

Hint 1

4 assembly modes are used for mDrawBot, the assembly of all movable parts has

assembly accuracy requirement, install and finely adjust the robot strictly as required by the

assembly description, especially adjustment of shaft and rotating part, steering engine and

rudder arm, machine levelness.

Hint 2

The material object may differ from the picture provided in the specification, so the

specification is only for reference, and specification and software may be changed without

prior notice. Please assess the website for detailed change:

http://learn.makeblock.cc/mdrawbot/

mScara User Guide-Laser Version

2/ 15

II、mScara

Scara is the abbreviation of selective compliance assembly robot arm. It is a

circular cylindrical coordinates drawing robot. mScara has optional two structure

a. Standard mode The end is pen lift mechanism. （Pen lift mechanism）

b. Upgrade mode The end is 405nm, 500mW blue-violet diode laser

III、Mechanical assembly (see document mDrawBot

instruction V1.1 20150704)

mScara User Guide-Laser Version

3/ 15

Mechanical assembly steps for Laser Upgrade Pack

×Screw M4 8

Nut M4

×Screw M3 8

Plastic Ring

4x7x3mm

①

②

③

mScara User Guide-Laser Version

4/ 15

IV、Recommended wiring diagram (Bluetooth

communication for Bluetooth version)

( Note: When Bluetooth is used as serial port, connect Bluetooth with port 5 OF

Makeblock Orion board.)

V、Definition of electronic wiring of mScara laser upgrade

mode

6P6C RJ25 cable-35cm

Connect to Port 7

6P6C RJ25 cable-20cm

Connect to Port 1

6P6C RJ25 cable-20cm

Connect to Port 2

Stepper motor A

Stepper motor B

6P6C RJ25 cable-20cm

Connect to Port 5

mScara User Guide-Laser Version

5/ 15

VI、mDraw software

1. Description of mDraw functions

mDraw is open source cross-platform software produced by Makeblock and support

Windows system, Mac system and Linux system, and perfectly supports four types of

mDrawBot such as mSpider, mScara, mEggBot and mCar, and supports the steering

engine mode and laser mode of Makeblock XY drawing robot kit V2.0.

Support SVG format, Change BMP to SVG

2. Software installation,

Unzip the downloaded file pack, find and double click the file as show in the figure.

3. Button function of main software interface

mScara User Guide-Laser Version

6/ 15

（2）Main interface

（3）Button function

: Open the file

: Delete SVG file

: Begin/ suspend

: Stop

: Up and down mirror image

: Left and right mirror image

: Clockwise rotate at 90°

:Anticlockwise rotate at 90°

: Help link

Back to

origin point

Drop-down box of

robot configuration

Update firm

ware for a

new

Laser mode

Wire map

Servo mode

Indice

Altri manuali Makeblock Robotica

Makeblock

Makeblock mEggBot Manuale utente

Makeblock

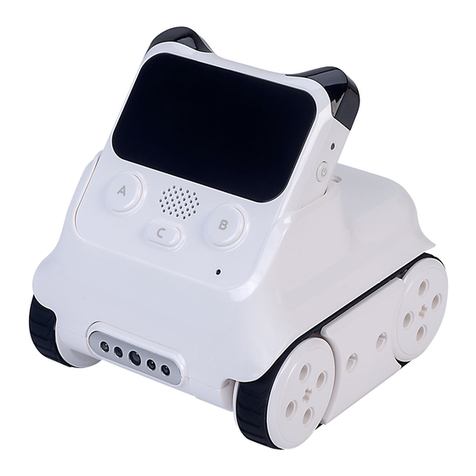

Makeblock Codey Rocky Manuale utente
