MAKELSAN 1K Manuale utente
-1-
MAKELSANUPS
1 BRIEF INTRODUCTION
1.1Prolegomenon
The product is designed specially aiming at the requirement of MINI and MICRO
level computer with exquisite quality and excellent function, easy to operate. With the
development of customer office automatism and computerism, considering the bulk and
the position of positing space, the noise disturbance to personnel in office, the light,
thin, short and small product is our design direction, and we stress low noise. So this
product is optimum supply power partner for office and makes you can attain optimal
clean power quality.
1.2 Five design points
1. Small bulk and no occupation space
2. Light weight and convenience to transit
3. Beauty and nature, easy to install
4. Convenient to maintain and easy to operate
5. Package material with environment protection and no pollution to environment
1.3 Note
The manual makes you can operate and maintain the system easily. To normally exert
all functions of the system, please note the following:
1. Read the manual carefully before use
2. Perform the operation strictly according to operating process
3. Place the equipment carefully and lightly when moving the equipment
4. Install the power according to illumination in the manual
5. Please do not open the cover to avoid injury caused by electrical shock
6. Please charge batteries once every a period if no used for long time
7. Do not use UPS on the condition of overload to avoid UPS fault
8. Please carefully keep the manual for the future reference
9. Please handle the system according to "ABNORMITY HANDLING PROCESS" if
there presents any abnormal phenomenon in machine.
10. Please keep UPS neatness and cleanness
BRIEFINTRODUCTION
-2-
MAKELSANUPS
2 CONFIGURATION AND FUNCTION

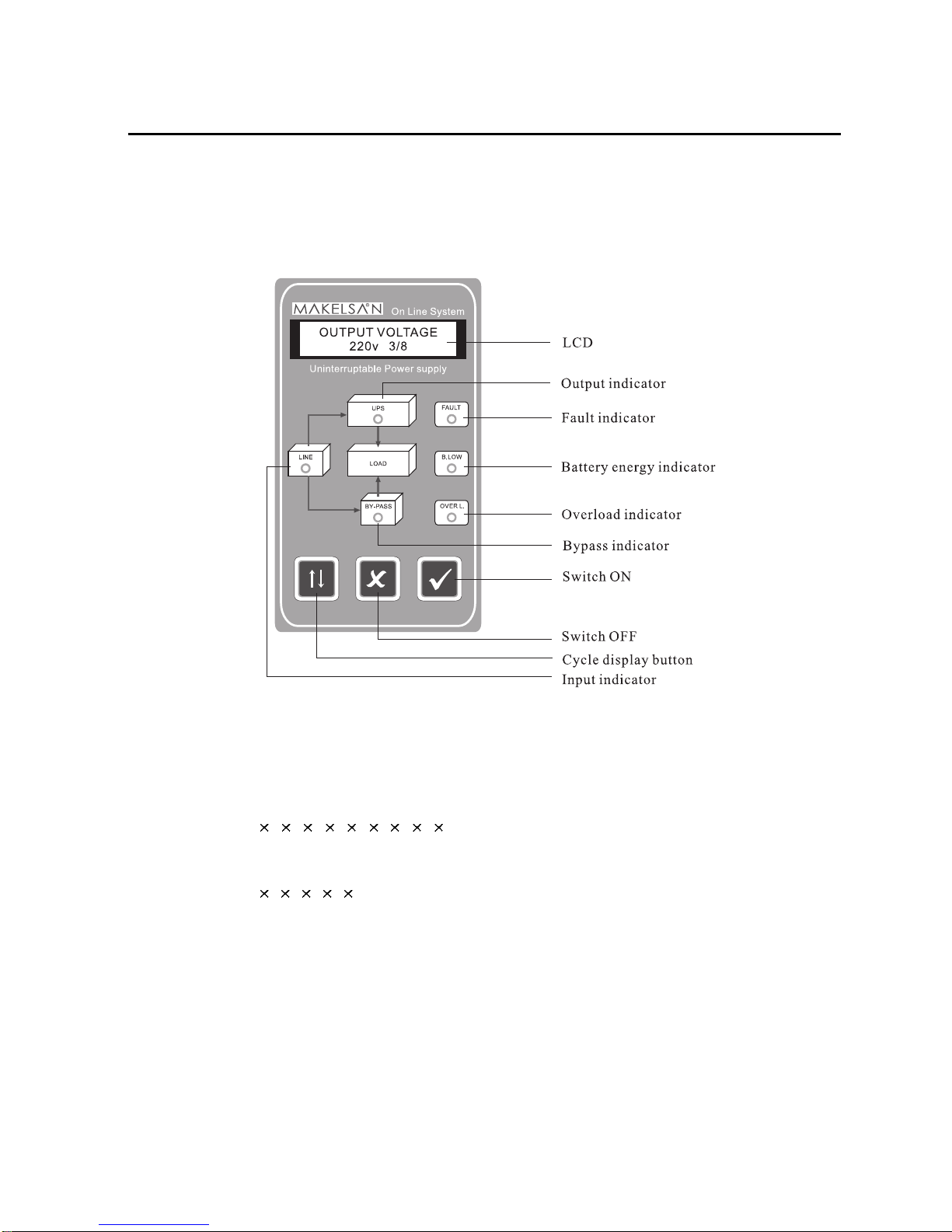

2.1 Frontpanel
CONFIGURATIONANDFUNCTION
1) Welcome screen
WELCOME TO
2) Display of system status
_Pro
AC: IN BAT: OK
Note: AC indicates utility; BAT indicates battery;
AC: IN indicates utility power is normal;
AC: LOSS indicates utility power is abnormal;
BAT: OK indicates battery is normal;
BAT: LOW indicates battery capacity isn't enough.
-3-
MAKELSANUPS
3) Display of input voltage value
INPUT VOLTAGE
220V 2/8
4) Display of output voltage value
OUTPUT VOLTAGE
220V 3/8
5) Display of input frequency value
INPUT FREQUENCY
50HZ 4/8
6) Display of output frequency value
OUTPUT FREQUENCY
50HZ 5/8
7) Display of battery voltage value
BATTERY VOLTAGE
220V 6/8
8) Display of output power percent
CURRENT LOAD
100% 7/8
9) Temperature display in machine
TEMPERATURE
33 8/8
*These parameters vary with machine model.
CONFIGURATIONANDFUNCTION
-4-
MAKELSANUPS
2.2 Appearance
8 LCD cycle display switch button: digital signal display items switch button.
9 UPS switch button: UPS general switch button.
(1) Turn on UPS inverter by pressing the "ON" key. UPS convert to UPS inverter
power output 20s later, UPS pure AC output power is supplied by UPS internal
power supply equipment.
(2) Turn off UPS inverter by pressing the "OFF" button. UPS convert to utility
bypass.
The button acts as general switch mainly.
10 Emission heat ventilation hole:
The ventilation hole and other small long elliptic ventilation holes should be kept
good ventilation.
CONFIGURATIONANDFUNCTION
-5-
MAKELSANUPS
11 Wiring inlet/outlet hole:
Wiring inlet/outlet hole of input, output and battery pack.
12 DB-9 communication interface receptacle
Standard communication interface between UPS and computer.
13 Power switch:
Power switch controls input, output and battery power switch at the same time.
14 Wiring terminal support
Power wiring terminal support of input, output and battery.
15 Active wheel:
There are four hidden movement wheel, in favor to move.
-6-
MAKELSANUPS
MOVEMENTHANDLING
3 PLACEMENT NOTES
3.1Transit or move
1. Please dismantle all barge connection firstly. (First turn off before performing)
2. Place lightly and carefully, forbid to hit.
3. Please do not move UPS inverted.
3.2 Placement
1. Do not place the UPS on the slope or scraggy land. (Figure 4)
2. Please place the UPS in the place where keeps good ventilation, rear panel of UPS
and two side faces should keep more than 10cm away from the wall. (Figure 5)
-7-
MAKELSANUPS
3. Do not install UPS under sunlight, drain and damp place. (Figure 6, 7)
4. Please keep away from fire source and high temperature to avoid over-high
temperature. (Figure 8)
5. Do not lay goods on the UPS. (Figure 9)
6. Do not install UPS in the place where contains caustic gas. (Figure 10)
PLACEMENTNOTES
-8-
MAKELSANUPS
7. Running environment temperature:
INSTALLATION
4 INSTALLATION
4.1 Input
1. Prohibit using general household socket, because the Max. current of general
socket is 15A, the socket may be burned down because of overload.
-9-
MAKELSANUPS
2. Please connect UPS input terminal to utility power in nearby switchboard. Figure
11.
3. Position and way of connect

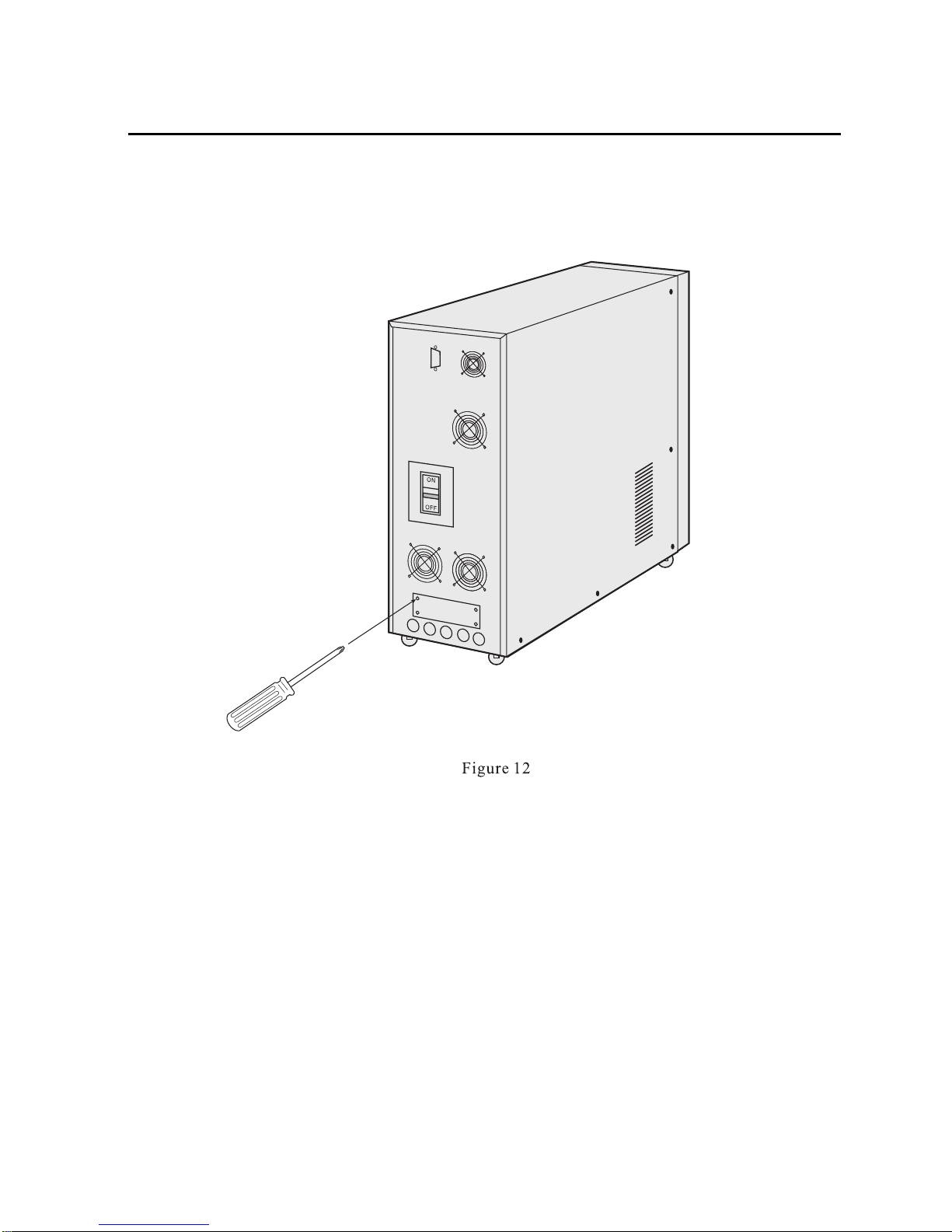

(1) Remove two screws with "+" screw-driver (Figure 12)
(2) Open the back panel and inspect the wiring terminal below the power switch.
(Figure13)
4. Relock the special cover after completing connection.
5. Please first fetch in the power cables of input, output and batteries pack through
inlet/outlet hole of distribution electricity and then barge connect to terminal
plate.
INSTALLATION
-10-
MAKELSANUPS
INSTALLATION
