UC014G

UC015G

UC016G

UC017G

EN Cordless Chain Saw INSTRUCTION MANUAL 10

ZHCN 充电式链锯使用说明书 25

ID Gergaji Mesin Nirkabel PETUNJUK PENGGUNAAN 40

MS Gergaji Rantai Tanpa Kord MANUAL ARAHAN 57

VI Máy Cưa Xích Cầm Tay Hoạt

Động Bằng Pin TÀI LIỆU HƯỚNG DẪN 73

TH   88

2

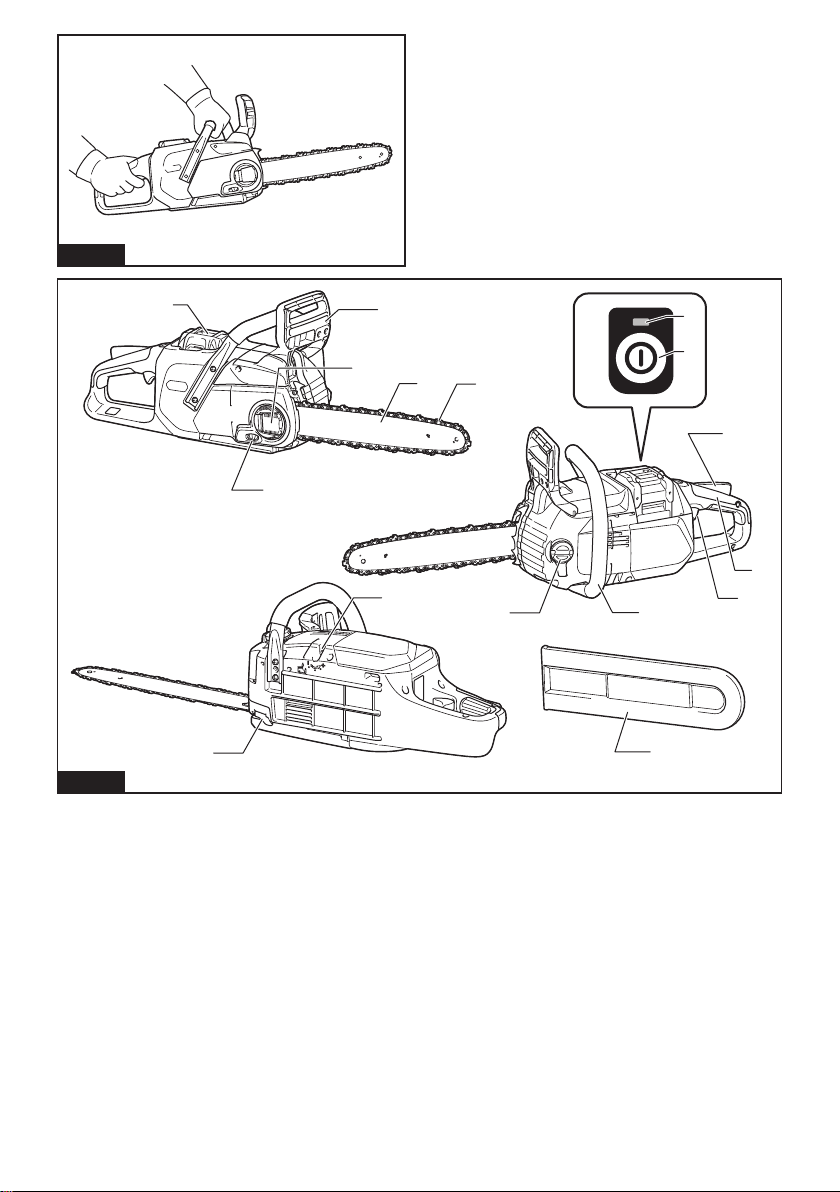

Fig.1

12

3

45

6

11

13

15

12

9

14

16

7

8

10

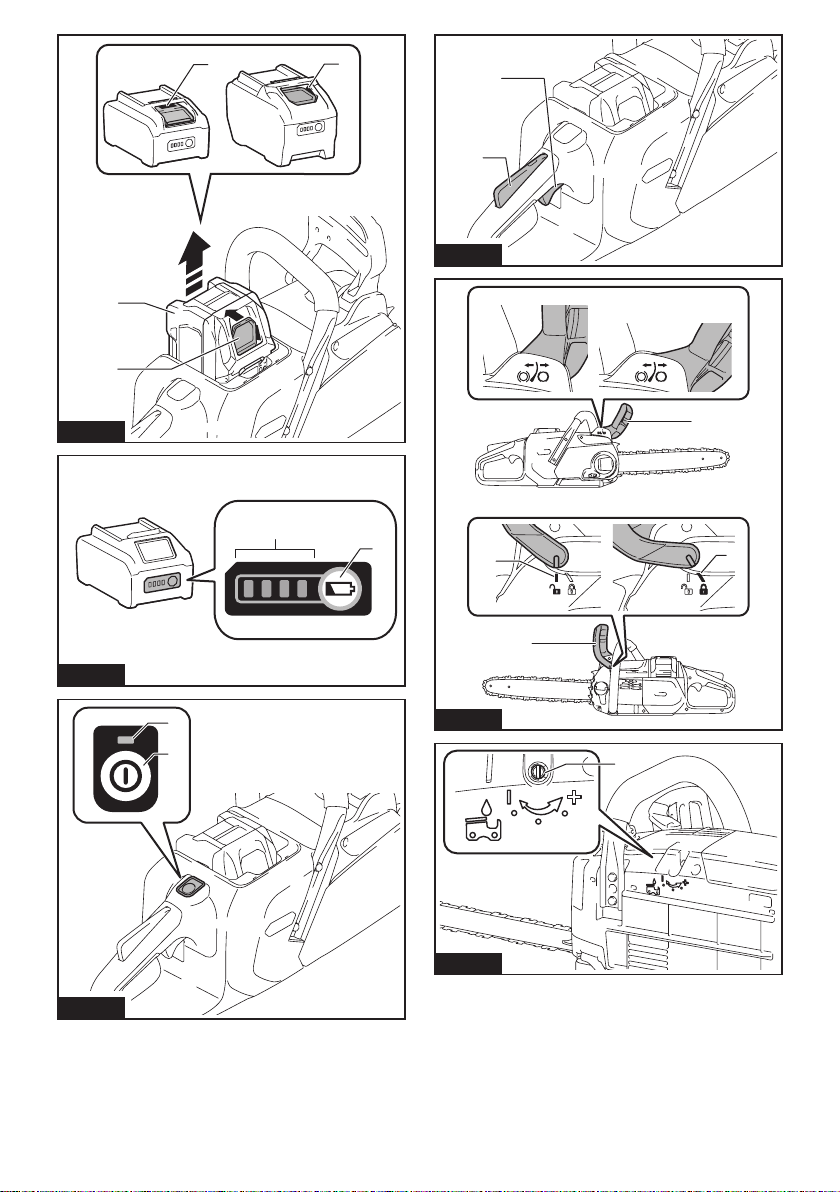

Fig.2

3

1

1

2

3

Fig.3

1

2

Fig.4

1

2

Fig.5

1

2

Fig.6

23

1

23

1

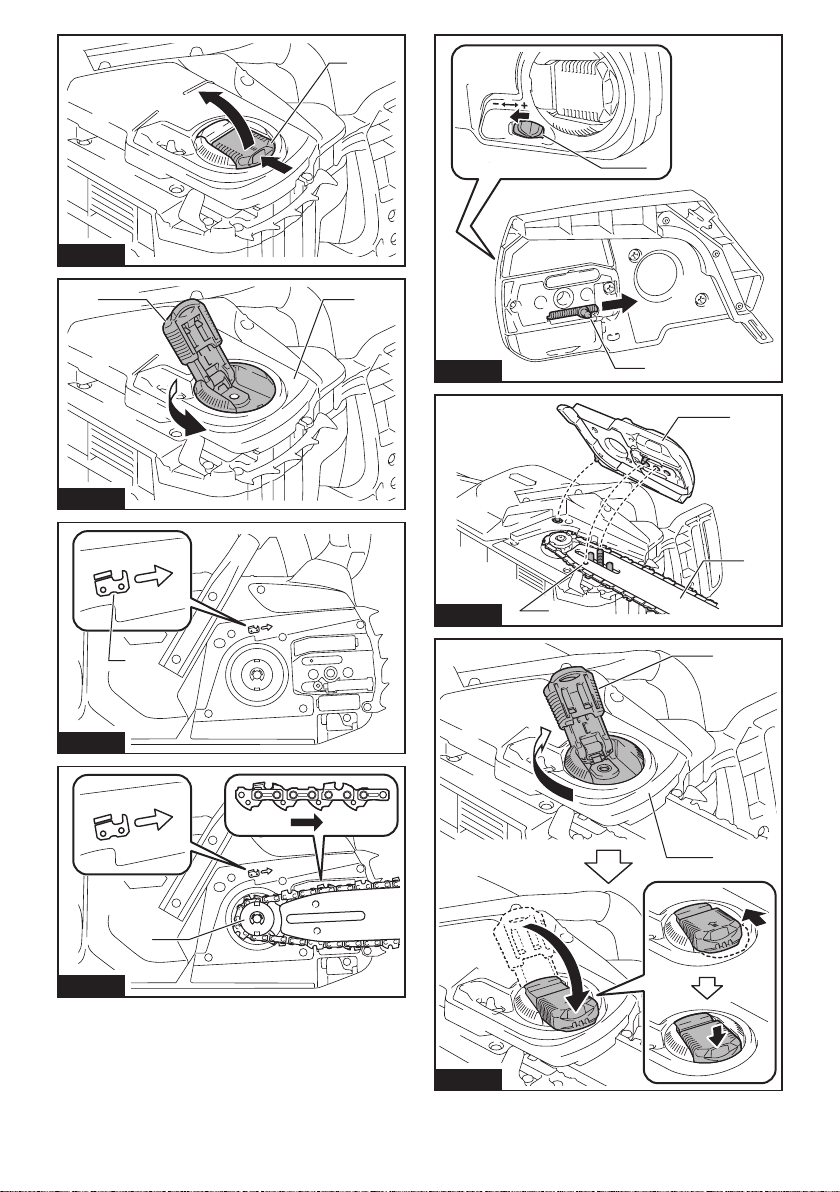

Fig.7

1

Fig.8

4

1

Fig.9

1 2

Fig.10

1

Fig.11

1

Fig.12

2

1

Fig.13

2

1

3

Fig.14

1

2

Fig.15

5

1

Fig.16

1

Fig.17

1 2

Fig.18

1

Fig.19

1 2

Fig.20

2

3

1

Fig.21

1

2

Fig.22

6

1

23

Fig.23

1

2

Fig.24

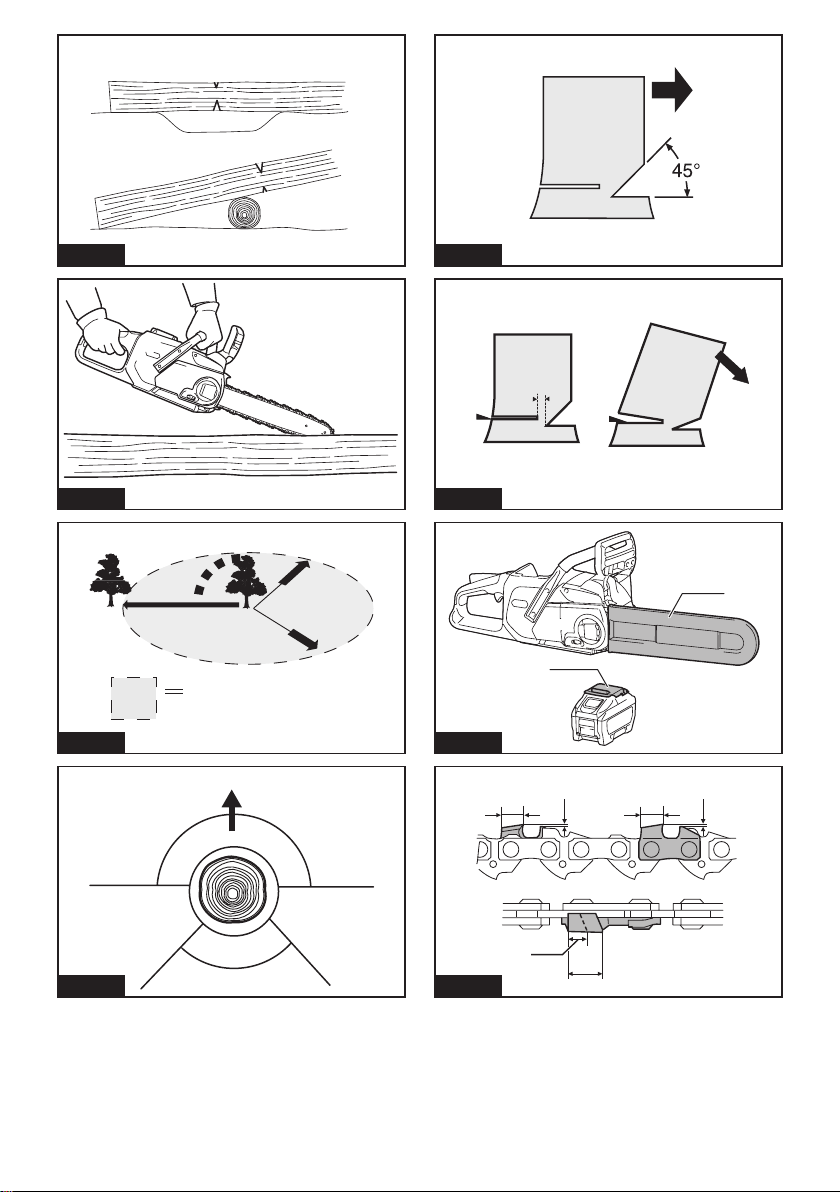

Fig.25

Fig.26

Fig.27

Fig.28

Fig.29

7

A

B

A

B

Fig.30

Fig.31

2

1

/2

45o

1

45o

Fig.32

1

2

2

33

Fig.33

Fig.34

Fig.35

2

1

Fig.36

22

11

31

Fig.37

8

30

30

55 55

Fig.38

1

2

Fig.39

30

1/5

1

Fig.40

Fig.41

Fig.42

Fig.43

12

Fig.44

1

2

Fig.45

9

12

Fig.46

10 ENGLISH

ENGLISH (Original instructions)

SPECIFICATIONS

Model: UC014G UC015G UC016G UC017G

Overall length

(without guide bar)

445 mm

Rated voltage D.C. 36 V - 40 V max

Net weight *1 4.5 kg

*2 6.2 - 6.9 kg

Standard guide bar length 300 mm 350 mm 400 mm 450 mm

Recommended guide bar length 300 - 450 mm

Applicable saw chain type

(refer to the table below)

91PX

80TXL

Sprocket

(91PX)

Number of teeth 6

Pitch 3/8"

Sprocket

(80TXL)

Number of teeth 7

Pitch 0.325"

Chain speed 0 - 25.5 m/s

(0 - 1,530 m/min)

Chain oil tank volume 260 cm3

Protection degree IPX4

• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange

without notice.

• Specicationsmaydi󰀨erfromcountrytocountry.

*1: Weight, without the saw chain, guide bar, guide bar cover, oil and battery cartridge(s).

*2:Thelightestandheaviestcombinationofweight,accordingtoEPTA-Procedure01/2014.Theweightmaydi󰀨er

depending on the attachment(s), including the battery cartridge(s).

Saw chain, guide bar, and sprocket combination

Saw chain type 91PX

Number of drive links 46 52 56 62

Guide bar Guide bar length 300 mm 350 mm 400 mm 450 mm

Cutting length 268 mm 324 mm 361 mm 418 mm

Pitch 3/8"

Gauge 1.3 mm

Type Sprocket nose bar

Sprocket Number of teeth 6

Pitch 3/8"

Saw chain type 80TXL

Number of drive links 51 59 64 70

Guide bar Guide bar length 300 mm 350 mm 400 mm 450 mm

Cutting length 259 mm 325 mm 366 mm 416 mm

Pitch 0.325"

Gauge 1.1 mm

Type Sprocket nose bar

Sprocket Number of teeth 7

Pitch 0.325"

WARNING:Useappropriatecombinationoftheguidebarandsawchain.Otherwisepersonalinjurymay

result.
