01-2003

12V GLASS & TILE CUTTER Model 4191DWA(MCA)

Model 4191DZ(MCA)

2 Model 4191DWA

2 Model 4191DZ

Item Part No.

No. No. Used Description Item Part No.

No. No. Used Description

1343530-1 1Band B

2911148-2 1P.H. Screw M4x25

3221882-9 1Spur Gear 15

4629688-3 1DC Motor 12V

5416142-4 1Motor Housing

6421198-4 1Cap

7242030-7 1Tank

8911148-2 1P.H. Screw M4x25

9163159-5A 1Tank Holder

10 261056-0 1Rubber Washer 12

11 416146-6 1Cap

12 416186-4 1Vinyl Tube 5

13 *1Nut

14 233024-3 1Compression Spring 4

15 265995-6 3Tapping Screw 4x18

16 415680-3 1Lock Off Lever

17 182850-6 1Housing Set

18 423294-4 1Rubber Sheet

19 643909-9 1BatteryHolder

20 343579-1 1Set Plate

21 423294-4 1Rubber Sheet

23 911148-2 1P.H. Screw M4x25

25 266050-7 2Tapping Screw Flange PT 4x30

26 266050-7 1Tapping Screw Flange PT 4x30

27 931202-6 1Hex Nut M5

28 265995-6 3Tapping Screw 4x18

29 651891-8 1Switch

30 931102-0 1Hex Nut M4

31 415679-8 1Switch Lever

32 214027-6 1Plane Bearing 4

33 226819-1 1Gear Com. 8-68

34 253307-5 1Thin Washer 4

35 214019-5 1Plane Bearing 4

36 961004-6 1Retaining Ring S-8

37 226448-0 1Helical Gear 33

38 253215-0 1Flat Washer 8

39 211033-2 1Ball Bearing 608LB

40 231240-1 1Compression Spring 7

41 268002-4 1Pin 5

42 152536-6 1Water Supply Cock Com. (Includes

213014-2 O Ring 3)

43 251899-8 1Screw M5x10

44 251899-8 1Screw M5x10

45 942101-7 1Spring Washer 5

46 941101-4 1Flat Washer 5

47 *1Base

48 951131-7 1Spring Pin 4-40

49 941101-4 1Flat Washer 5

50 942101-7 1Spring Washer 5

51 251899-8 1Screw M5x10

52 961011-9 1Stop Ring E-4

53 331483-6 1Nozzle

54 254031-3 1Woodruff Key 3

55 322810-8 1Spindle

56 211061-7 1Ball Bearing 6000LLB

57 416147-4 1Blade Case

58 265995-6 3Tapping Screw 4x18

59 415677-2 1Bearing Box

60 421561-1 1Packing

61 163372-5 1Retainer

62 224324-2 1Inner Flange 28

63 224177-9 1Outer Flange 28

64 922212-4 1Hex Socket Head Bolt M5x12

65 344595-6 1Angular Guide

66 268028-6 1Pin 5

67 344593-0 1Depth Guide

68 268004-0 1Pin 4

69 961017-7 2Stop Ring E-3

100 654069-2 2Receptacle

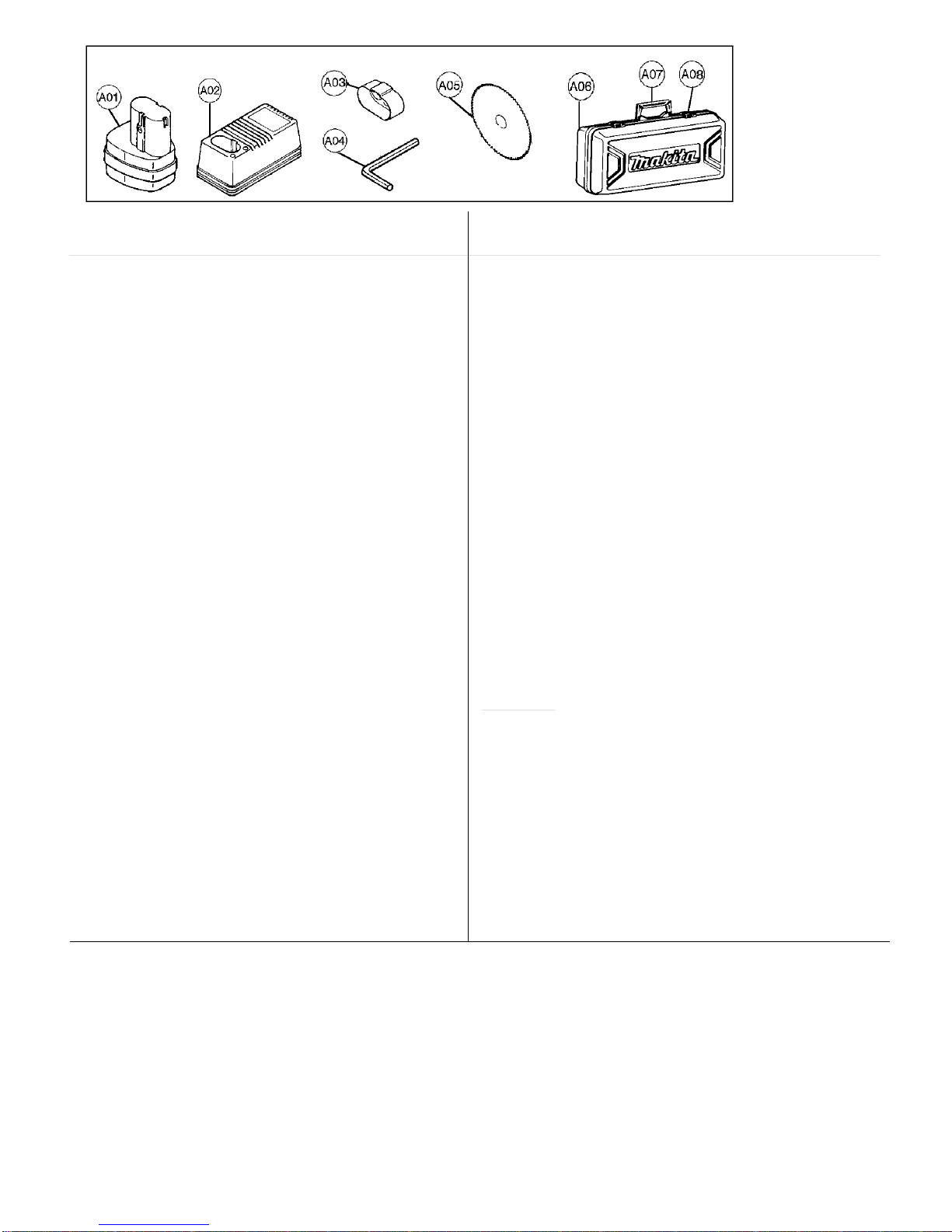

Accessories

A01 192681-5 112V Ni-Cad Battery 1220 (1.3Ah)

192296-8 112V Ni-CadBa ttery 1201 (1.7Ah)

192598-2 112V Ni-Cad Battery 1222 (2.0Ah)

A02 DC1411 1Charger For Ni-Cad & Ni-MH

7.2V ~ 14.4V, 1.3Ah ~ 3.0Ah Batteries

A03 414938-7 1Battery Cover

A04 783202-0 1Hex Wrench 4

A05 724950-8C 13-3/8" Diamond Wheel (Old A-07179)

A06 A82445-2 1Plastic Carrying Case

(Includes Items A07 & A08)

A07 A00181-7 1Black Plastic Handle

A08 A00188-3 2Snap Lock

*SEE SERVICE CHANGES

3 Model 4191DWA

3 Model 4191DZ

SERVICE CHANGES

1. Change on Method of attaching Angular Guide.

Item No. Description Type 1 Type 2

47 Base 168301-3 168318-6

65 Angular Guide - - - - - 344595-6

66 Pin 5 - - - - - 268028-6

67 Depth Guide - - - - - 344593-0

68 Pin 4 - - - - - 268004-0

69 Stop Ring E-3 - - - - - 961017-7 (2 pcs)

Above parts are completely interchangeable as a set.

2. Change on Nut, Addition of O Ring.

Item No. Description Type 1 Type 2

13 Nut 416145-8

- - - - - Space provided for O Ring

70 O Ring 7 - - - - - 213026-5

Above parts are completely interchangeable as a set.
