Makita BTD120SA Manuale utente
9

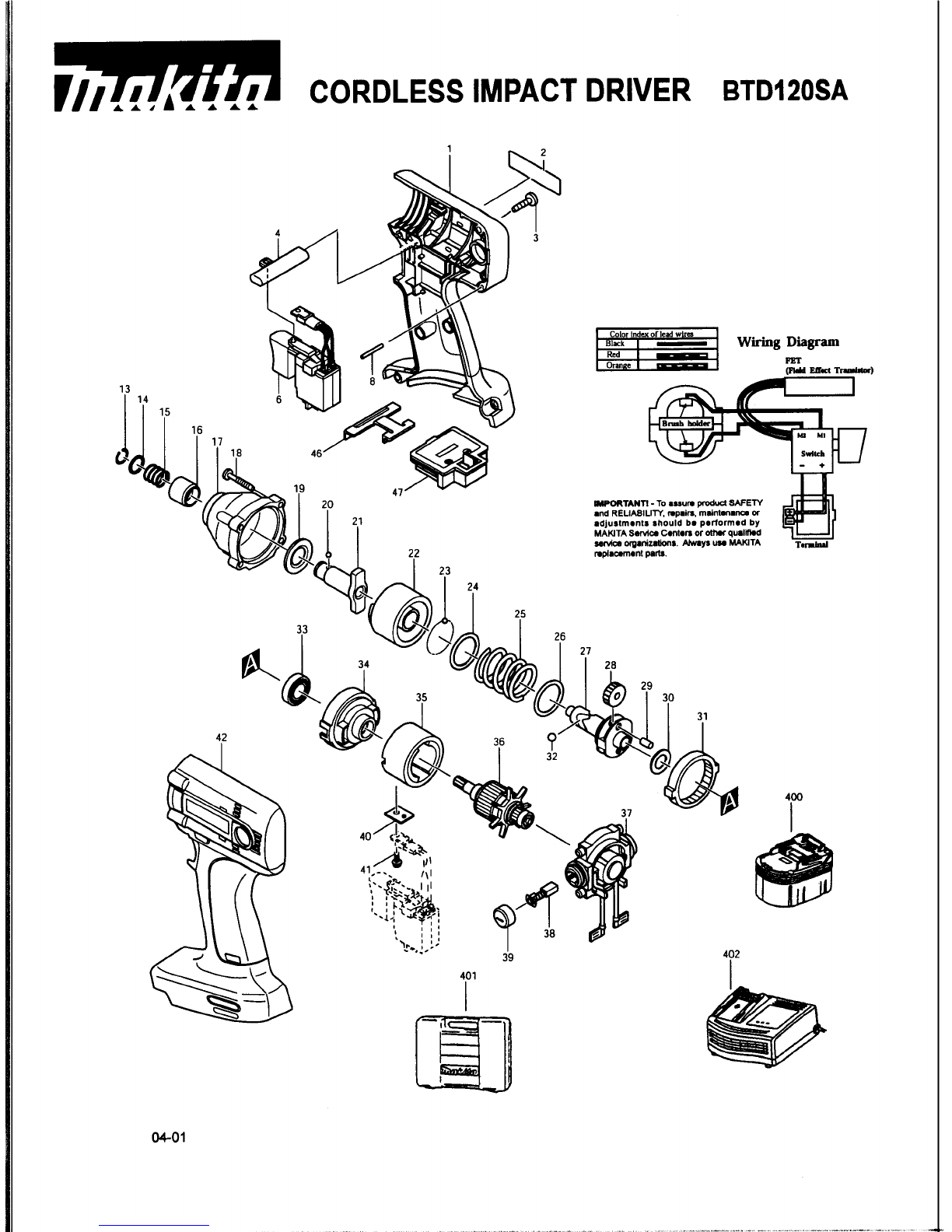

CORDLESS
IMPACT
DRIVER
BTD120SA
42
I
22
IMPORTAWTI
-To
auun
pmduct
SAFETY
and RELIABILITY,npain.maintenmnm
or
adjurtmantr should
ba
parformed
by
MAWTA
Sdw
Contan
or
0th.r
quali
aaMw
organizations.
Alwlys
uaa
WTA
nplamant
parts.
T-
402
04-01

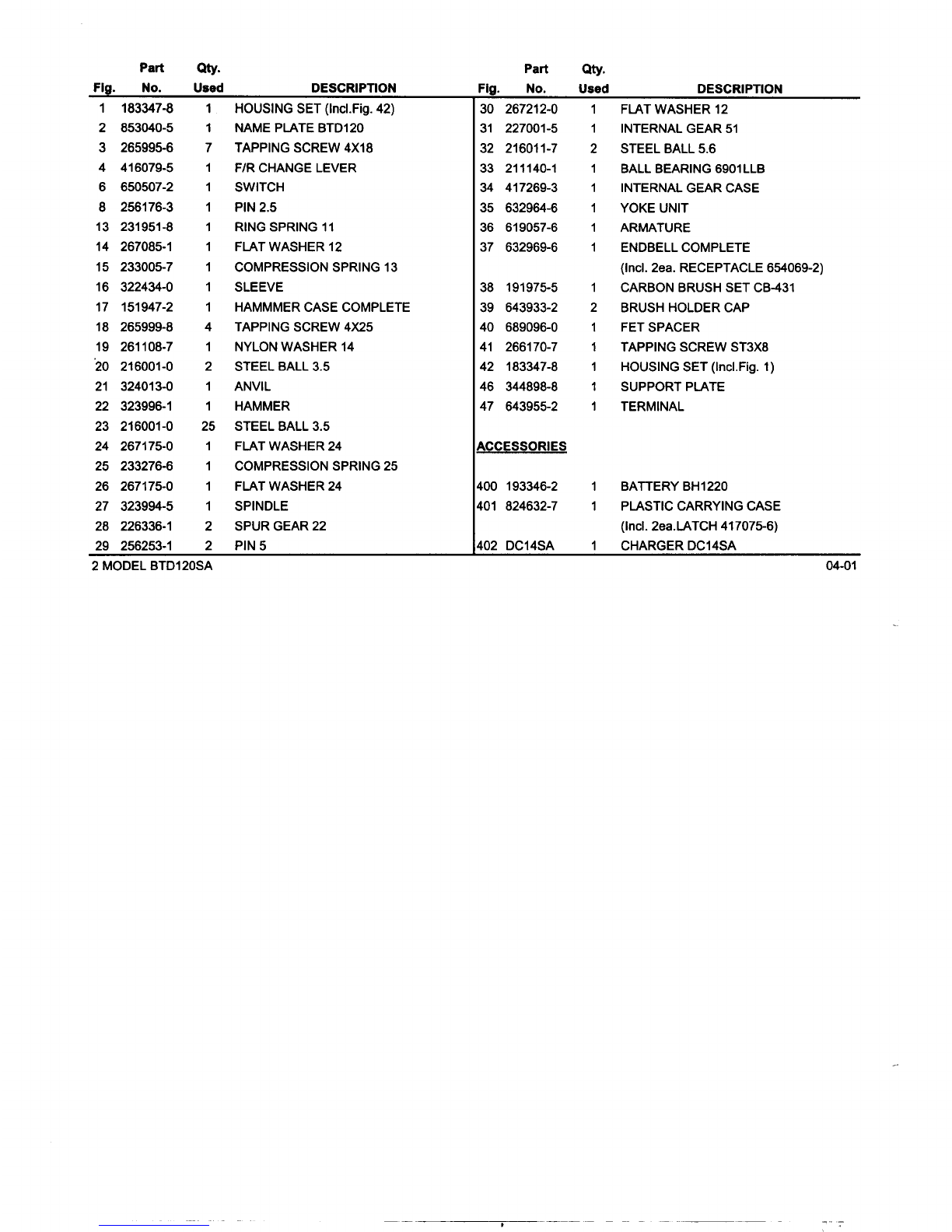

Part
Qty.
Fig. No.
Used
DESCRIPTION Part
Qty.
Fig. No.
Used
DESCRIPTION
1 183347-8
2 853040-5
3 265995-6
4 416079-5
6 650507-2
8 256176-3
13 231951-8
14 267085-1
15 233005-7
16 322434-0
17 151947-2
18 265999-8
19 261108-7
20 216001-0
21 324013-0
22 323996-1
23 216001-0
24 267175-0
25 233276-6
26 267175-0
27 323994-5
28 226336-1
29 256253-1
1
1
7
1
1
1
1
1
1
1
1
4
1
2
1
1
25
1
1
1
1
2
2
HOUSINGSET (IncLFig.42)
NAME PLATE BTDl2O
TAPPING SCREW 4x18
FIR CHANGE LEVER
SWITCH
PIN2.5
RING SPRING 11
FLATWASHER 12
COMPRESSIONSPRING 13
SLEEVE
HAMMMERCASE COMPLETE
TAPPING SCREW 4x25
NYLONWASHER 14
STEEL BALL3.5
ANVIL
HAMMER
STEEL BALL3.5
FLATWASHER 24
COMPRESSIONSPRING25
FLATWASHER 24
SPINDLE
SPUR GEAR 22
PIN
5
2 MODEL BTDl2OSA
30 267212-0
31 227001-5
32 216011-7
33 211140-1
34 417269-3
35 632964-6
36 619057-6
37 632969-6
38 191975-5
39 643933-2
40 689096-0
41 266170-7
42 183347-8
46 344898-8
47 643955-2
400 193346-2
401 824632-7
402 DC14SA
1
1
2
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
FLATWASHER 12
INTERNALGEAR 51
STEEL BALL 5.6
BALLBEARING6901LLB
INTERNALGEAR CASE
YOKE UNIT
ARMATURE
ENDBELLCOMPLETE
(Incl.2ea. RECEPTACLE654069-2)
CARBONBRUSHSET CB-431
BRUSHHOLDER CAP
FETSPACER
TAPPING SCREW ST3X8
HOUSINGSET (1ncl.Fig.
1)
SUPPORT PLATE
TERMINAL
BATTERY BH1220
PLASTIC CARRYINGCASE
(Incl.2ea.LATCH 4170756)
CHARGER DC14SA 04-01
