Makita SK102 Manuale utente

SK102

INSTRUCTION MANUAL

WARNING:

For your personal safety, READ and UNDERSTAND before using.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Self leveling alignment tool

SK102

Makita Corporation Anjo, Aichi, Japan

www.makita.com

SK102

1.5 m

1Start up

Makita SK102

FIN

RUS

User Manual

English

Congratulations on your purchase of the

Makita SK102.

The safety instructions follow the

section on how to operate the

instrument. Before starting up the

instrument for the first time, please

read through the entire User Manual paying special

attention to the section Safety Instructions .

Notice: There are drawings on the first and last page

of the User Manual. Unfold these pages while reading

through the User Manual. The letters and numbers in

{} always refer to these drawings.

Contents

Start up................................................................1

Operation.............................................................1

Technical data .....................................................5

Safety instructions .............................................5

Start up

Inserting / replacing batteries

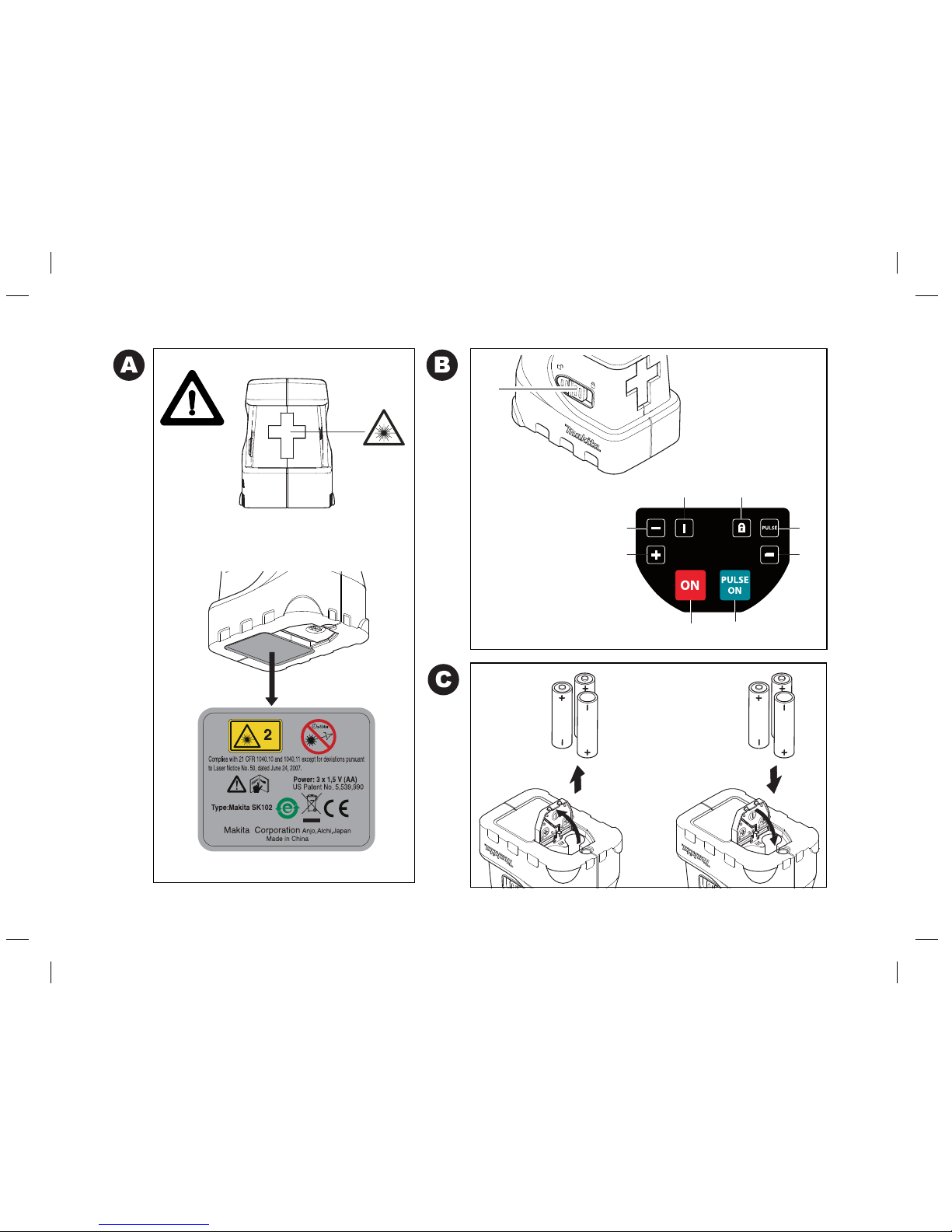

Refer to drawing {C} - slide the locking button

forward to unlatch the battery compartment. Open

the battery compartment cover and insert the

batteries true to side. Press the battery cover back

down until the lock engages.

The battery symbol {B, 9} lights up when the battery

voltage is too low. Replace the battery as soon as

possible.

• Insert the batteries true to side

• Only use Alkaline batteries

• Remove the batteries if the instrument will not be

used for a long period of time (to prevent corro-

sion)

Operation

Keypad and control elements

Refer to drawing {B }:

1LASER ON/OFF key

2PULSE/POWERSAVE MODE key

3Lock switch

Operation Makita SK102

FIN

RUS

Display

Refer to drawing {B}

4 Laser crosshairs

5 Laser line horizontal

6 Laser line vertical

7LockON

8 Pulse/Powersave mode ON

9 Battery voltage too low

Switching on/off

ON: Briefly press the ON - key {B,1}.

OFF: Press and hold down the OFF- key {B,1}.

Laser functions

Pressing the ON-key {B,1} activates the following

laser functions:

By pressing the ON-key {B,1} again, the previous

function status is repeated.

Self leveling and Lock-functions

The instrument automatically levels itself within the

specified grade range (Refer to "Technical data") .

Press the Lock switch {B, 3} in order to transport and

tilt the instrument beyond the self-leveling range.

When locked, the pendulum is fixed and the self-

leveling function is deactivated.

Pulse/Power mode

The instrument is equipped with a Power mode.

Switching on the instrument activates the Power

mode and the laser lines are bright and highly visible.

If the high visibility of the laser lines is not required

and if in addition energy should be saved, then

pressing the Pulse key {B, 2} activates the Pulse

mode.

To be able to detect the laser lines over long

distances (> 20 m) or in unfavorable lighting condi-

tions, a laser detector can be used. In Pulse mode,

the laser beam is also recognized over large distances

by the detector.

(Laser detector refer to accessories)

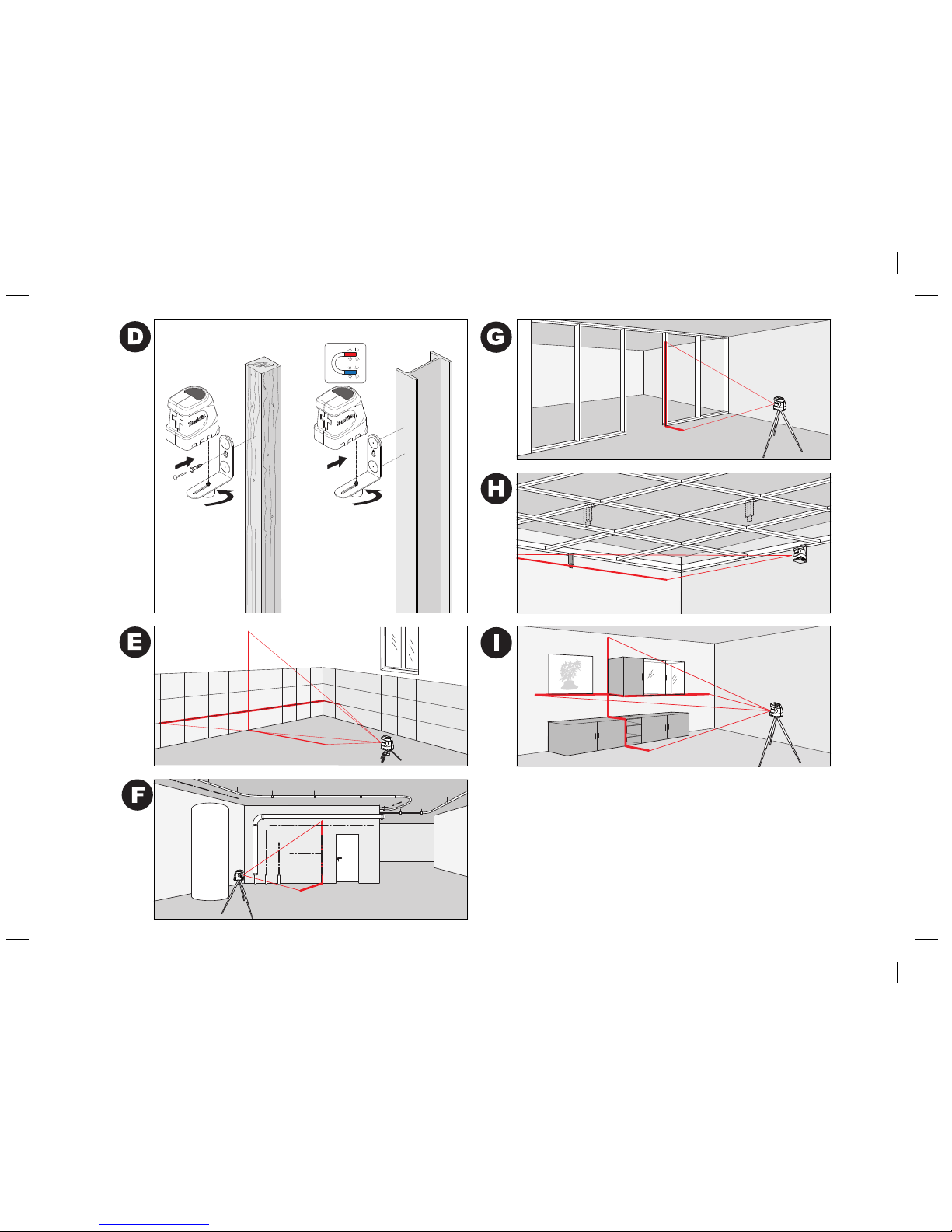

Applications

Examples of applications can be found on the outside

of the back cover of this User Manual.

Pressing the ON -

key {B, 1} activates

1 x laser crosshairs (horizontal

and vertical laser line)

2 x horizontal laser line

3 x vertical laser line
