INSTRUCTION MANUAL
WARNING:
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
www.makitatools.com
Trimmer
1/4”
MODEL 3708F
002000
DOUBLE
INSULATION
2
SPECIFICATIONS
• Manufacturer reserves the right to change specifications without notice.
• Specifications may differ from country to country.
GENERAL SAFETY RULES USA002-2
(For All Tools)
WARNING:
Read and understand all instructions. Failure to follow all
instructions listed below, may result in electric shock, fire and/or
serious personal injury.
SAVE THESE INSTRUCTIONS
Work Area
1. Keep your work area clean and well lit.
Cluttered benches and dark areas invite acci-
dents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power
tools create sparks which may ignite the dust
or fumes.
3. Keep bystanders, children, and visitors
away while operating a power tool. Distrac-
tions can cause you to lose control.
Electrical Safety
4. Double insulated tools are equipped with
a polarized plug (one blade is wider than
the other.) This plug will fit in a polarized
outlet only one way. If the plug does not fit
fully in the outlet, reverse the plug. If it
still does not fit, contact a qualified elec-
trician to install a polarized outlet. Do not
change the plug in any way. Double insula-
tion eliminates the need for the three wire
grounded power cord and grounded power
supply system.
Model 3708F
Collet chuck capacity 1/4”
No load speed (RPM) 35,000/min.
Overall length 308 mm (12-1/8”)
Net weight 1.3 kg (2.9 lbs)
3
5. Avoid body contact with grounded sur-
faces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of
electric shock if your body is grounded.
6. Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
7. Do not abuse the cord. Never use the cord
to carry the tools or pull the plug from an
outlet. Keep cord away from heat, oil,
sharp edges or moving parts. Replace
damaged cords immediately. Damaged
cords increase the risk of electric shock.
8. When operating a power tool outside, use
an outdoor extension cord marked “W-A”
or “W”. These cords are rated for outdoor
use and reduce the risk of electric shock.
Personal Safety
9. Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use tool while tired or
under the influence of drugs, alcohol, or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
10. Dress properly. Do not wear loose cloth-
ing or jewelry. Contain long hair. Keep
your hair, clothing, and gloves away from
moving parts. Loose clothes, jewelry, or long
hair can be caught in moving parts.
11. Avoid accidental starting. Be sure switch
is off before plugging in. Carrying tools with
your finger on the switch or plugging in tools
that have the switch on invites accidents.
12. Remove adjusting keys or wrenches
before turning the tool on. A wrench or a
key that is left attached to a rotating part of
the tool may result in personal injury.
13. Do not overreach. Keep proper footing
and balance at all times. Proper footing and
balance enables better control of the tool in
unexpected situations.
14. Use safety equipment. Always wear eye
protection. Dust mask, non-skid safety
shoes, hard hat, or hearing protection must
be used for appropriate conditions. Ordinary
eye or sun glasses are NOT eye protection.
Tool Use and Care
15. Use clamps or other practical way to
secure and support the workpiece to a
stable platform. Holding the work by hand or
against your body is unstable and may lead
to loss of control.
16. Do not force tool. Use the correct tool for
your application. The correct tool will do the
job better and safer at the rate for which it is
designed.
17. Do not use tool if switch does not turn it
on or off. Any tool that cannot be controlled
with the switch is dangerous and must be
repaired.
18. Disconnect the plug from the power
source before making any adjustments,
changing accessories, or storing the tool.
Such preventive safety measures reduce the
risk of starting the tool accidentally.
19. Store idle tools out of reach of children
and other untrained persons. To o l s a r e
dangerous in the hands of untrained users.
20. Maintain tools with care. Keep cutting
tools sharp and clean. Properly maintained
tools with sharp cutting edges are less likely
to bind and are easier to control.
21. Check for misalignment or binding of
moving parts, breakage of parts, and any
other condition that may affect the tools
operation. If damaged, have the tool ser-
viced before using. Many accidents are
caused by poorly maintained tools.
22. Use only accessories that are recom-
mended by the manufacturer for your
model. Accessories that may be suitable for
one tool, may become hazardous when used
on another tool.
4
SERVICE
23. Tool service must be performed only by
qualified repair personnel. Service or main-
tenance performed by unqualified personnel
could result in a risk of injury.
24. When servicing a tool, use only identical
replacement parts. Follow instructions in
the Maintenance section of this manual.
Use of unauthorized parts or failure to follow
Maintenance instructions may create a risk of
electric shock or injury.
USE PROPER EXTENSION CORD: Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one heavy enough to carry the current your
product will draw. An undersized cord will cause a drop in line voltage resulting in loss of
power and overheating. Table 1 shows the correct size to use depending on cord length and
nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage num-
ber, the heavier the cord.
SPECIFIC SAFETY RULES USB052-2
DO NOT let comfort or familiarity with product (gained from
repeated use) replace strict adherence to trimmer safety rules. If
you use this tool unsafely or incorrectly, you can suffer serious
personal injury.
1. Hold tool by insulated gripping surfaces
when performing an operation where the
cutting tool may contact hidden wiring or
its own cord. Contact with a “live” wire will
make exposed metal parts of the tool “live”
and shock the operator.
2. Wear hearing protection during extended
period of operation.
3. Handle the bits very carefully.
4. Check the bit carefully for cracks or dam-
age before operation. Replace cracked or
damaged bit immediately.
5. Avoid cutting nails. Inspect for and
remove all nails from the workpiece
before operation.
6. Hold the tool firmly.
7. Keep hands away from rotating parts.
8. Make sure the bit is not contacting the
workpiece before the switch is turned on.
Table 1: Minimum gage for cord
Ampere Rating Volts Total length of cord in feet
120 V 25 ft. 50 ft. 100 ft. 150 ft.
More Than Not More Than AWG
0 6 18 16 16 14
6 10 18161412
10 12 16 16 14 12
12 16 14 12 Not Recommended
5
9. Before using the tool on an actual work-
piece, let it run for a while. Watch for
vibration or wobbling that could indicate
improperly installed bit.
10. Be careful of the bit rotating direction and
the feed direction.
11. Do not leave the tool running. Operate the
tool only when hand-held.
12. Always switch off and wait for the bit to
come to a complete stop before removing
the tool from workpiece.
13. Do not touch the bit immediately after
operation; it may be extremely hot and
could burn your skin.
14. Always lead the power supply cord away
from the tool towards the rear.
15. Do not smear the tool base carelessly with
thinner, gasoline, oil or the like. They may
cause cracks in the tool base.
16. Draw attention to the need to use cutters
of the correct shank diameter and suitable
for the speed of the tool.
17. Some material contains chemicals which
may be toxic. Take caution to prevent
working dust inhalation and skin contact.
Follow material supplier safety data.
SAVE THESE INSTRUCTIONS
WARNING:
MISUSE or failure to follow the safety rules stated in this
instruction manual may cause serious personal injury.
SYMBOLS USD201-2
The followings show the symbols used for tool.
V....................... volts
A....................... amperes
Hz ..................... hertz
................ alternating current
....................no load speed
....................Class II Construction
.../min................revolutions or reciprocation per
minute
n˚
6
FUNCTIONAL
DESCRIPTION CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on the
tool.

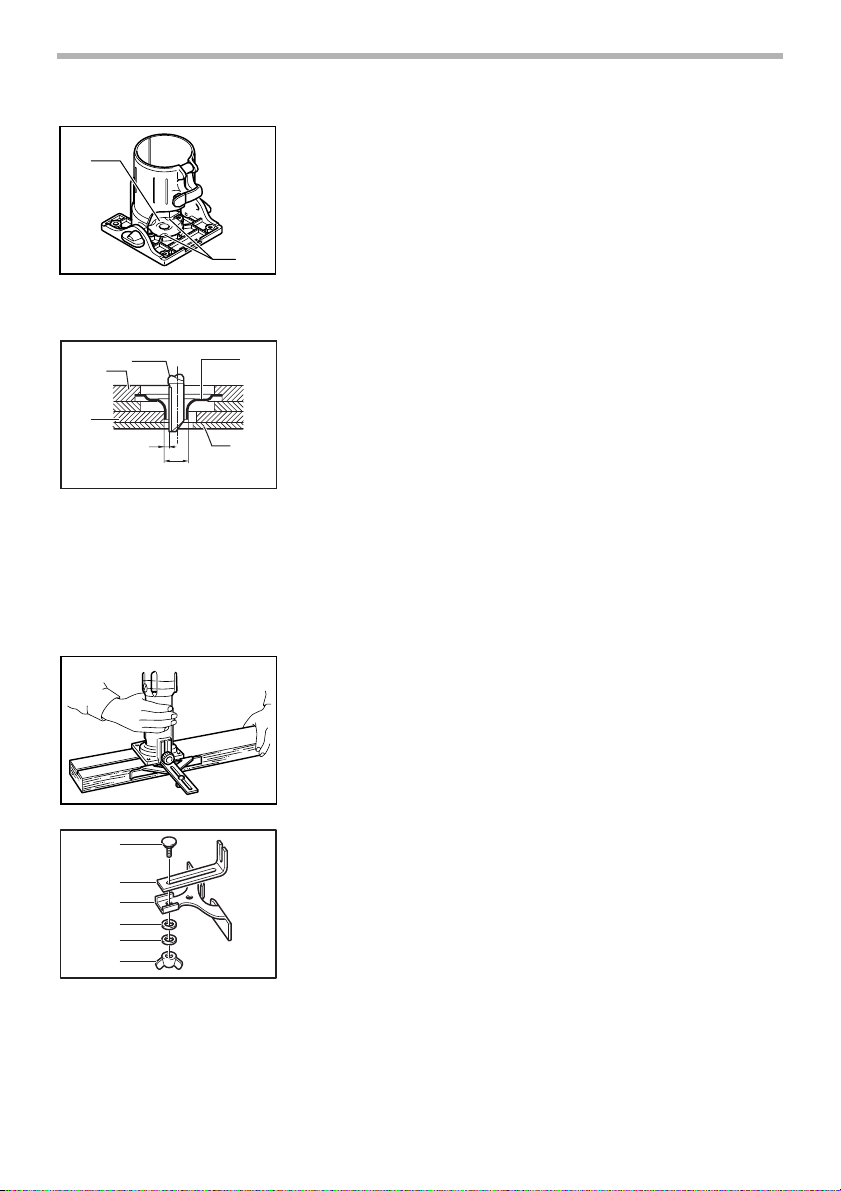

Adjusting bit protrusion
To adjust the bit protrusion, loosen the lever and move the
tool base up or down as desired by turning the adjusting
roller. After adjusting, tighten the lever firmly to secure the
tool base.
Adjusting angle of tool base
Loosen the wing bolts and adjust the angle of the tool base
(5°per graduation) to obtain the desired cutting angle.
Adjusting amount of chamfering
To adjust the amount of chamfering, loosen the wing nuts
and adjust the trimmer shoe.
CAUTION:
• With the tool unplugged and switch in the “OFF” position,
rotate the collet nut on the tool several times to be sure
that the bit turns freely and does not contact the base or
trimmer shoe in any way.
1. Lever
2. Scale
3. Bit protrusion
4. Adjusting roller
1
2
3
4
002001
1. Wing bolt
2. Graduation
3. Trimmer shoe
4. Amount of chamfering
5. Base
1
2
3
4
5
002002
7

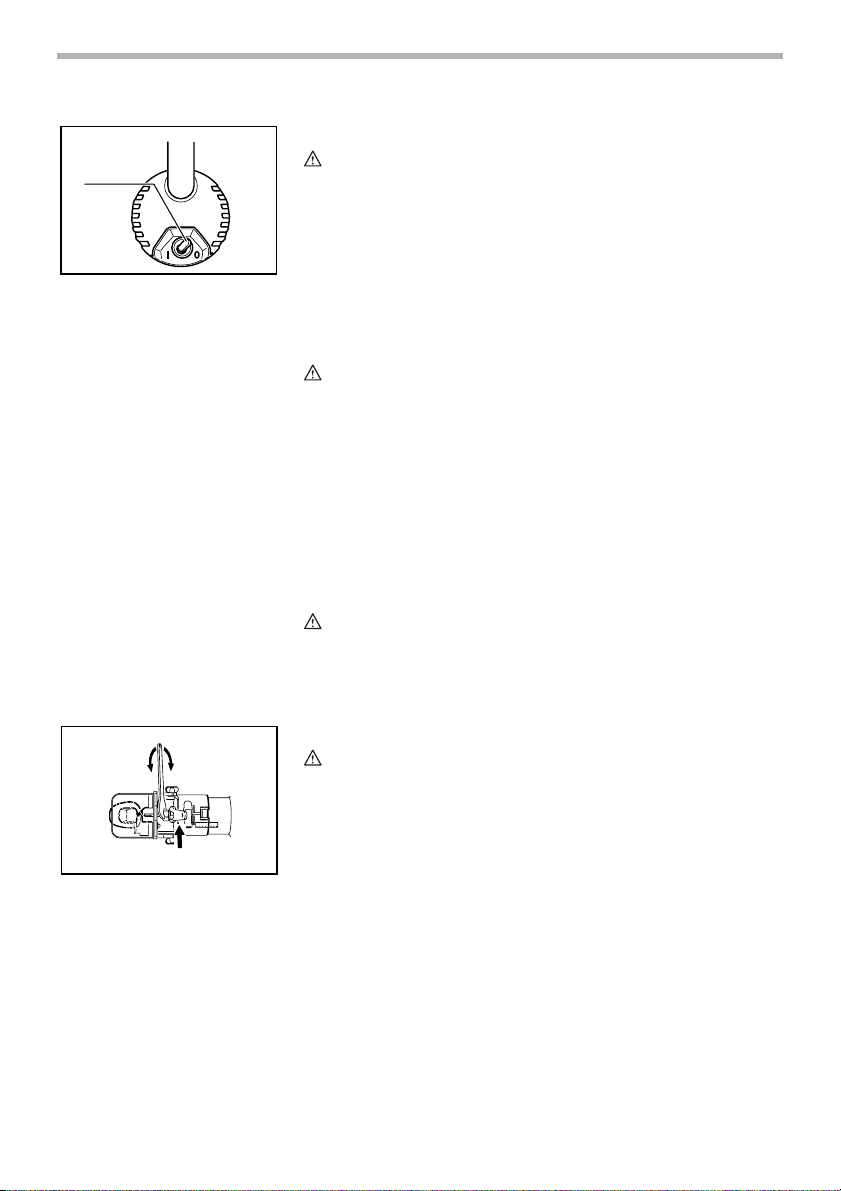

Switch action
CAUTION:
• Before plugging in the tool, always be sure that the tool
is switched off.
To start the tool, move the switch lever to the I (ON) position.
To stop the tool, move the switch lever to the O (OFF) posi-
tion.
Lighting up the lamps
CAUTION:
• Do not look in the light or see the source of light directly.
To turn on the lamp, start the tool. Then, the lamp lights up
thetopofthebit.Toturnitoff,stopthetool.
NOTE:
• Use a dry cloth to wipe the dirt off the lens of lamp. Be
careful not to scratch the lens of lamp, or it may lower the
illumination.
ASSEMBLY CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.
Installing or removing trimmer bit
CAUTION:
• Do not tighten the collet nut without inserting a bit, or the
collet cone will break.
• Useonlythewrenchesprovidedwiththetool.
Insert the bit all the way into the collet cone and tighten the
collet nut securely with the two wrenches. To remove the bit,
follow the installation procedure in reverse.
1. Switch lever
1
001982
1. Loosen
2. Tighten
3. Hold
12
3
002003
8
Installing trimmer shoe (after it has been removed
from the tool)
NOTE:
• The trimmer shoe is factory installed on the tool.
Use the bolts, wing nuts, spring washers and flat washers to
install the trimmer shoe as shown in the figure.
OPERATION
Turn the tool on without the bit making any contact with the
workpiece and wait until the bit attains full speed. Then move
the tool over the workpiece surface, keeping the tool base
and trimmer shoe flush with the sides of the workpiece.
NOTE:
• This tool can be used as a conventional trimmer when
you remove the trimmer shoe.
When doing edge cutting, the workpiece surface should be
on the left side of the bit in the feed direction.
1. Bolt 2. Flat washer (large)
3. Trimmer shoe 4. Flat washer (small)
5. Spring washer 6. Wing nut
7. Base
1
2
345
6
7
002004
1. Trimmer shoe
2. Base
1
2
002005
1. Workpiece 2. Bit revolving direction
3.Viewfromthetopofthetool 4.Feeddirection
12
3
44
2
001984
9
NOTE:
• Moving the tool forward too fast may cause a poor
quality of cut, or damage to the bit or motor. Moving the
tool forward too slowly may burn and mar the cut. The
proper feed rate will depend on the bit size, the kind of
workpiece and depth of cut. Before beginning the cut on
the actual workpiece, it is advisable to make a sample
cut on a piece of scrap lumber. This will show exactly
how the cut will look as well as enable you to check
dimensions.
CAUTION:
• Since excessive cutting may cause overload of the motor
or difficulty in controlling the tool, the depth of cut should
not be more than 3 mm (1/8”) at a pass when cutting
grooves. When you wish to cut grooves more than 3 mm
(1/8”) deep, make several passes with progressively
deeper bit settings.
Templet guide
The templet guide provides a sleeve through which the bit
passes, allowing use of the trimmer with templet patterns.
Remove the tool base from the tool. Loosen the wing bolts
and secure the tool base horizontally. Loosen the two screws
on the tool base.
001986
1. Base
2. Wing bolt
3. Screws
4. Screwdriver
1
2
3
4
002006
10
Place the templet guide on the tool base. There are four con-
vex portions on the templet guide. Secure two of the four
convex portions using the two screws. Install the tool base on
the tool.
Secure the templet to the workpiece. Place the tool on the
templet and move the tool with the templet guide sliding
along the side of the templet.
NOTE:
• The workpiece will be cut a slightly different size from the
templet. Allow for the distance (X) between the router bit
and the outside of the templet guide. The distance (X)
can be calculated by using the following equation:
Distance (X) = (outside diameter of the templet guide - router
bit diameter) / 2
Straight guide (optional accessory)
The straight guide is effectively used for straight cuts when
chamfering or grooving.
Attach the guide plate to the straight guide with the bolt, the
wave washer, the flat washer and the wing nut.
1. Templet guide
2. Convex portions
1
2
002007
1. Straight bit
2. Base
3. Templet
4. Distance (X)
5. Workpiece
6. Templet guide 10
1
2
3
45
6
10mm(3/8")
001988
001989
1. Bolt
2. Guide plate
3. Straight guide
4. Flat washer
5. Wave washer
6. Wing nut
1
2
3
4
5
6
001990
Indice
Altri manuali Makita Tagliabordi
Makita
Makita RBC225 Guida utente
Makita
Makita DUR143U Manuale utente
Makita
Makita RBC420 Guida utente
Makita
Makita DUR365U Manuale utente
Makita
Makita 3703 Manuale utente
Makita
Makita UR006G Manuale utente
Makita
Makita HRU01 Manuale utente
Makita
Makita ER2600L Guida utente
Makita
Makita DUR368A Manuale utente
Makita
Makita RBC2510 Manuale utente
Makita
Makita EH5000W Manuale utente
Makita
Makita RBC220 Manuale utente
Makita
Makita DUR141 Manuale utente
Makita
Makita 3708FC Manuale utente
Makita
Makita UH4570 Manuale utente
Makita
Makita EN7350SH Manuale di istruzioni
Makita
Makita RT0700C Manuale utente
Makita
Makita DUR188L Manuale utente
Makita
Makita BBC300L Manuale utente
Makita
Makita UM600D Manuale utente
