Makita BCM3310 Manuale utente

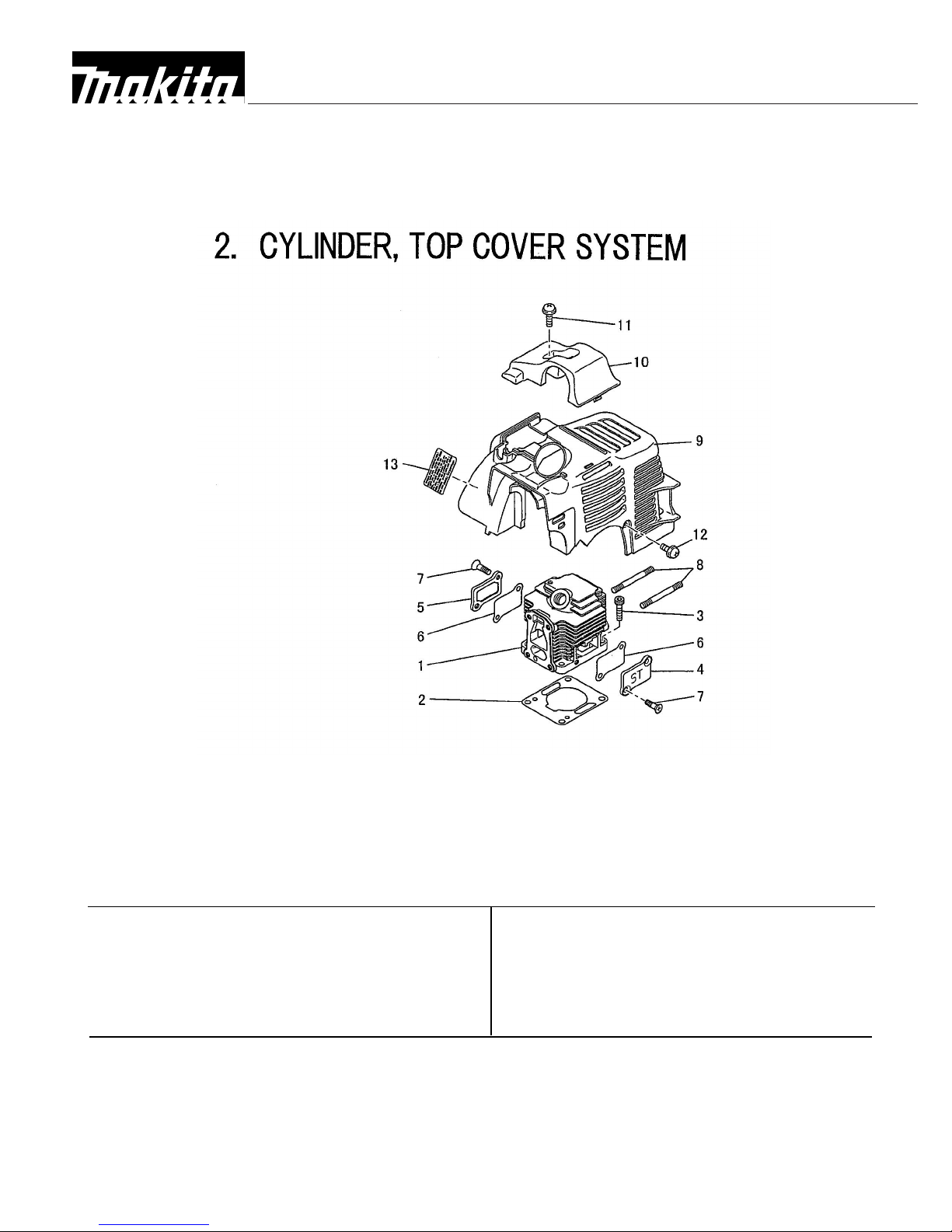

MODEL BCM3310
STRING TRIMMER
Item Part Qty. Item Part Qty.
No. No. Used Description No. No. Used Description
1 KB14010AA 1 CASE,DRIVE 7 KB90007AA 1 GUIDE
2 KB14011AA 1 CASE,STARTER 8 KB90008AA 1 GUIDE
3 110X60X010 2 BEARING,BALL #6001 9 KU40004AA 2 PIN,DOWEL
4 KW21005AA 2 OIL SEAL 10 KH30027DA 1 CASE,FAN
5 KU40003AA 2 PIN,DOWEL 11 FR64569F 4 BOLT&WASHER
6 KU12028AA 3 SCREW&WASHER 12 KW56056A
A
1 LABEL
06-05 1BCM3310
A
MODEL BCM3310
STRING TRIMMER
Item Part Qty. Item Part Qty.
No. No. Used Description No. No. Used Description
1 KC13023AA 1 CYLINDE
R
7 KU12031A
A
4 SCREW,CTSK-CRS
2 KW32016AA 1 GASKET,CYLINDER 8 151B05X050 2 BOLT,STUD
3 121C05X020 4 BOLT,SCH 9 KH40096D
A
1 COVER,TOP
4 KC90016A
A
1 COVER 10 KH70021A
A
1 GUARD,PLUG
5 KC90017A
A
1 COVER 11 71D05X020
K
1 SCREW & WASHER
6 KW39079AA 2 GASKET 12 KU12018C
A
1 SCREW & WASHER
13 KW56248AA 1 LABEL,EMISSION
06-05 2 BCM3310
MODEL BCM3310
STRING TRIMMER
Item Part Qty. Item Part Qty.
No. No. Used Description No. No. Used Description
1 KD01036A
A
1 CRANKSHAFT ASSY
4 430B03X013 1 KEY,WOODRUFF
2 KP13016A
A
1 PISTON 6 BG03488 2 CLIP,PISTON PIN
3 KP52002AA 1 PIN,PISTON 7 KW12011AA 1 BEARING,NEEDLE
8 ZZ70028C 1 NUT,CONICAL SPG
06-05 3BCM3310
5 FR66815 2 RING,TOP
MODEL BCM3310
STRING TRIMMER
Item Part Qty. Item Part Qty.
No. No. Used Description No. No. Used Description
1 KE11029AA 1 ROTOR 5 FR66751 1 CAP,PLUG
2 KE04034AA 1 COIL,IGNITION (INC.FIG.3) 6 FR64569A 2 BOLT&WASHER
3 FR64961 1 CAP,PLUG 7 KE41011A 1 PLUG,SPARK NGK BPMR8
Y
4 KE90001BA 1 GROMMET 8 KE90137AA 1 WIRE,LEAD
A
06-05 4 BCM3310
MODEL BCM3310
STRING TRIMMER
Item Part Qty. Item Part Qty.
No. No. Used Description No. No. Used Description
1 KW34066AA 1 GASKET,INSULATOR 16 21028AA006 1 DIAPHRAGM
2 KK31031AA 1 INSULATOR 17 22007AA012 1 GASKET
3 FR64960E 4 SCREW & WASHER 18 21017AA005 1 DIAPHRAGM
4 KW39091AA 1 GASKET,CARBURETOR 19 21028AA009 1 GASKET
5 KK21046AA 1 CARBURETOR(D) (INC.FIG. 6-30) 20 22057CA010 1 JET
6 22016AA002 1 BODY,PUMP (INC.FIG.7-12) 21 21017AA002 1 O-RING
7 21009AA002 1 SCREEN 22 66652XX032 1 CLIP
8 22007AA003 1 VALVE,NEEDLE 23 21024AA022 1 HOLDER,WIRE
9 23002AA005 1 SPRING 24 21017AA021 2 SCREW
10 22007AA005 1 SCREW 25 22023AA014 1 BRACKET
11 66652XX027 1 PIN 26 21017AA027 1 NUT
12 66652XX029 1 LEVER 27 22008AA016 1 SCREW,ADJUST
13 22007AA006 1 BODY 28 21028AA019 1 PACKING
14 22007AA007 1 COVER 29 22007AA019 4 SCREW
15 21017AA013 1 PRIMER PUMP ASSY 30 22004EA024 1 WASHER
06-05 5 BCM3310
MODEL BCM3310
STRING TRIMMER
Item Part Qty. Item Part Qty.
No. No. Used Description No. No. Used Description
1 KA11025AA 1 CASE,CLEANER 3 KA40080AA 1 ELEMENT,CLEANER
2 71D05X050 2 SCREW&WASHER 4 KA02032AA 1 COVER,CLEANER (INC.FIG.5)
5 FR64960D 1 SCREW&WASHER
05-05 6 BCM3310
MODEL BCM3310
STRING TRIMMER
Item Part Qty. Item Part Qty.
No. No. Used Description No. No. Used Description
1KM70062AA 1 GASKET,MUFFLER 4 KM90179AA 1 SPARK ARRESTER
2KM01082AA 1 MUFFLER ASSY
(INC.FIG. 3-5) 5 006D03X006 1 SCREW
3KM01079AA 1 MUFFLER 6 FR67566 2 NUT,FLANGE
06-05 7 BCM3310
771D05X012K 1 SCREW & WASHER
MODEL BCM3310
STRING TRIMMER
Item Part Qty. Item Part Qty.
No. No. Used Description No. No. Used Description
1 FR66843A 1 CLUTCH (INC. FIG.2,3) 4 KT14001AA 2 BOLT,CLUTCH
2 KT12002BA 2 SHOE,CLUTCH 5 FR67347A 2 WASHER
3 KU80010AA 1 SPRING 6 KU36001DA 2 WASHER
06-05 8BCM3310
MODEL BCM3310
STRING TRIMMER
Item Part Qty. Item Part Qty.
No. No. Used Description No. No. Used Description
1 KS20094AB 1 RECOIL STARTER
(INC.FIG.2-12) 9 20094AA010 1 SCREW
3 1 10 20094AB012 1 ROPE,STARTER
420021AA006 1GUIDE 11 66881XX011 1 KNOB,STARTER
5 20094AA006 1 REEL 12 20097AA010 1 STOPPER
6 20094AA007 1 SPRING 13 KS30047AA 1 PULLEY,STARTER
7 20094AA008 1 SPACER 14 KU12018CA 3 SCREW & WASHER
8 20094AA009 2 LEVER
06-05 9 BCM3310
220094AB001 1RECOIL STARTER
(INC.FIG.3)
20094AA005 SPRING,SPIRAL
MODEL BCM3310
STRING TRIMMER
Item Part Qty. Item Part Qty.
No. No. Used Description No. No. Used Description
1 KF01080A
A
1 FUEL TANK ASSY (INC.FIG.2-12) 10 KF70031B
A
1 TUBE,FUEL L=75
2 KF05019A
A
1 TANK CAP ASSY (INC.FIG.3-7) 11 01033AA007 1 BUSH
3 KF21012A
A
112 KF40004A
A
1 FILTER,FUEL
4 1 PACKING 13 KT30020A
A
1 STAND,ENGINE
5 KF09011AA 1 VALVE,BREATHER 14 KF80008A
A
3 PAD
6 1
CAP,FUEL TANK
15 KU12018B
A
2 SCREW&WASHER
7 KF90154A
A
1 SPONGE 16 KU12018D
A
1 SCREW&WASHER
8 KF90048A
A
1 PLUG 17 KW56181AA 1 LABEL
9 KF70011H
A
1 TUBE,FUEL L=220
06-05 10 BCM3310
KF90155AA
KF90050AB CAP
