SERVICE MANUAL

EM2600U,EM2600L

ER2600L

[Image: EM2600U] [Image: EM2600L]

[Image: ER2600L]

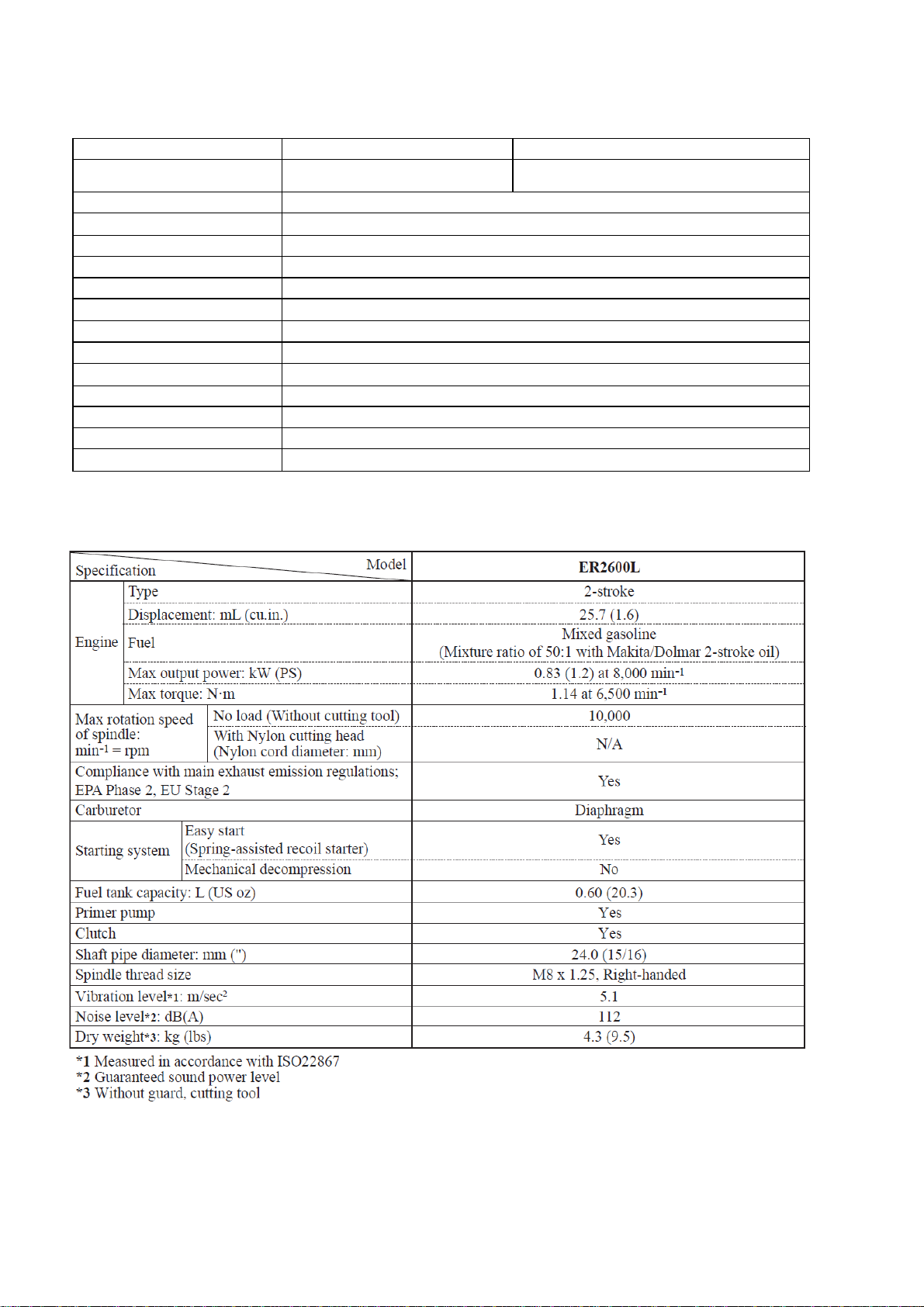

SPECIFICATIONS

Specifications

Model

EM2600U

EM2600L

Dimensions (mm)(L x W x H)

(without cutting blade)

1770x 610 x 410 1770x 330 x185

Weight (kg)

Revolution of cutter head(rpm) 4,000~6,000

Gear ratio

14/19

Clutch

Automatic centrifugal type

Engine

1E33F

Displacement (cm3

) 25.7

Power rating (kw)

0.8

Carburetor All position diaphragm type

Starting system Recoil starter

Ignition system Solid state ignition

Plug

NGK BPMR7A or equivalent

tank (l) 0.6

Fuel Mixed gas (Gasoline: Makita Genuine Two-stroke Engine Oil=50:1)

NOTE:

▪

Specifications are subject to change without notice.

Designation of parts

Disassembly of Nylon Cord Assembly for ER2600L

Unscrew 2 CROSSRECESS BOLT M6X30 (115). Insert the pin to the hole to prevent the Nylon cord assembly from rotating.

Rotate the Nylon cord assembly counter clockwise to take it out. Insert the slotted screw driver and take out the BODY CAP (139).

Now there appears Reel (137) with NYLON LINE PA66, ORANGE 2.6MX2(138), WASHER 39.5X27.2X0.8 (133), SPRING

(134) and WASHER 39.5X27.2X0.8 (135).

Assembly of Nylon Cord Assembly for ER2600L

Place WASHER 39.5X27.2X0.8 (133), SPRING (134), WASHER 39.5X27.2X0.8 (135), REEL (137) with NYLON LINE PA66,

ORANGE, 2.6MX2 (138) and BODY CAP (139). After placing Body cap, make sure that the REEL (137) is bumping up and

down by pushing red circle part of the Reel (137).

115

139

140

138

137

135

134

133

Disassembly Procedure

Unscrew 2 CROSSRECESS BOLTS M6X30 (115) and SOCKET HEAD BOLT M5X12 (116).

Using 1R311 (Retaining ring pliers with long bent nails), take out the INNER SNAP RING (120).Wrap the paper around

the bearing case (127) as illustrated below. Using water pump pliers, turn the BEARING CASE (127) counter clockwise. In order

to protect the BEARING CASE from the damage, Please use the paper before sandwiching bearing case. Using arbor press, press

fit the red circle part to take out the shaft.

115

116

1R311

127

134

135

137

133

138

137

139

Assembly Procedure

Press fit the shaft into BALL BEARING 608ZT (122) and then insert the shaft with BALL BEARING 608ZT into BEARING

CASE, WASHER 16X8.3X2.2 (128), SPRING WASHER (129) and SPOOL BASE (130).

Using 1R311(Retaining ring pliers with long bent nails), insert the inner snap ring(120).

Insert the bearing case into pipe then fix with SOCKET HEAD BOLT M5X25(126) and CROSSRECESS BOLT M6X30(115).

130

Vise

122

128

129

130

Water Pump Pliers

128

124

129

130

121

127

123

122

Insert the pin to prevent the NYLON CUTTING HEAD ASS'Y(140) from rotating.

DISASSEMBLY & ASSEMBLY PROCEDURES

(Common in EM2600U, EM2600L and ER2600L)

Precautions in Disassembly & Assembly

Disassembly

1.Handle disassembled parts with care, and clean and keep them in order.

2.Clean off mating surfaces of removed packing components.

Assembly

1.Note assembly order (and assembly direction).

2.Replace packing/gaskets as required.

3.Check operation and sound after assembling key parts.

Fig .II-1

115

126

140

120

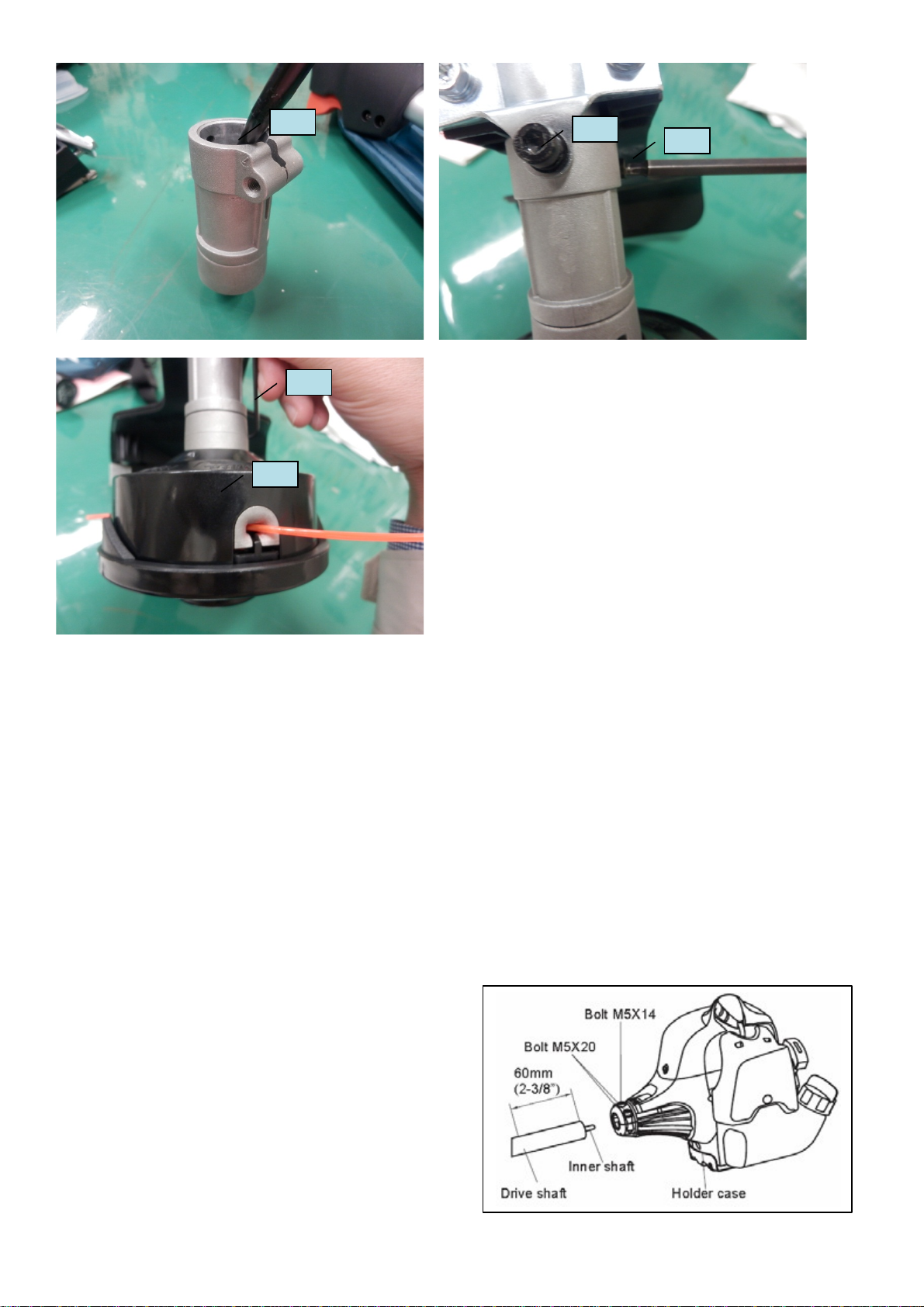

Separating/ConnectingEngine and Tool

1. Separation

Loosen the 2 bolts on holder case in order to remove drive

shaft from holder case(Fig .II-1).

2. Connection

1.Fully insert the drive shaft into the holder case

(Approximately 60 mm;2-3/8",). If the inner shaft resists full

insertion of the drive shaft, insert it again after slightly

rotating the drive shaft or the support washer on the gear case

to match the inner shaft with the hole inside the holder case.

2.After making sure that the drive shafts is installed fully and

correctly, tighten the screws M5 X 18 to secure the drive

shaft.

Connection of throttle wire

1.Connect the throttle wire (Fig .II-2)

2.Squeeze the throttle lever to make sure that the throttle

wire moves smoothly.

3.Connect the switch cords to the two cords from the

engine by inserting one into the other.

4.Wrap the waist pad around the drive shaft so that the

hanger will protrude through the slit in the waist pad and

the throttle wire and the cords will also be wrapped under

the waist pad.(Fig.II-3).

Fig .II-2

Fig .II-3

5.Insert the bullet connectors. (Fig. II- 4). Fig .II-3

Fig .II-4

Disassembly & Assembly of Tool

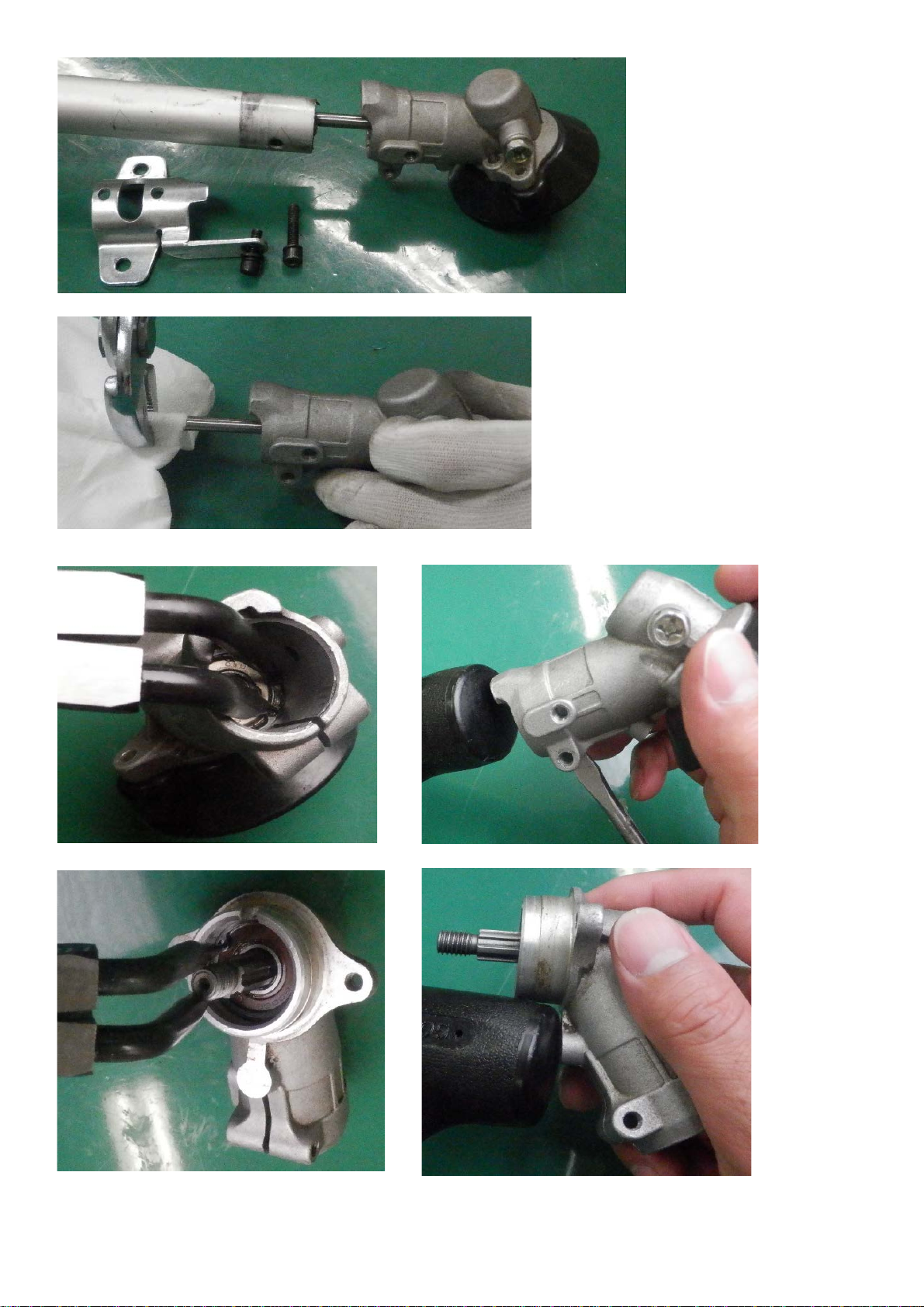

Disassembly Procedure for EM2600U and EM2600L

1.Remove clamp bolt. Take off inner snap ring.

2.Tap surface A with plastic hammer to remove

gear.

3.Take off inner snap ring.

4.Tap surface B with plastic hammer to remove cutter

shaft.

(Assembly Procedure)

Perform in reverse order of disassembly procedure.

CAUTION:

1. Apply grease as required.

2. After assembly, turn cutter shaft to check operation and sound.

A) Gear head

shield

Gear
