Maktek TYPE 3100 Guida
ELECTRICAL
PANEL RADIATOR
USING AND INSTALLATION
MANUAL
CONTENT
1- GENERAL INFORMATION…..................................................................................… 2
2- SAFETY WARNINGS ... …....................................................................................…... 3
3- MEASURES AND CAPACITIES.................................................................................. 5
4- WALL MOUNTING OF THE RADIATOR ................................................................ 6
5- BEFORE THE FIRST START ............................................................….................. 9
6- FIRST START ...........................................................................................….......... 1
7- PROBLEMS AND SOLUTIONS…………............................................................….. 12
8- SUGGESTIONS FOR ENERGY SAVING ........................................................…....… 13
9- HEAT TRANSFER LIQUID SPECIFICATIONS........................................................... 14
GENERAL INFORMATION
Preferring MAKTEK ELECTRIC PANEL RADIATOR which you would use safely
for a long time:
We are proud to inform you of the we bring latest technology and the harmony of
contemporary and aesthetic design to your homes. This product, which has been
the result of many years research, is designed in the same way as conventional hot
water radiators, the most common and widely accepted method of centrali ed
system heating in the world, and has the advantage of not having requirements
such as installation connection, pump, boiler, system water.
The radiator is heated by the heating elements in the system by heating the heat
transfer fluid between the paneLs. The heat transfer surface which is expanded by
the converters allows obtained heat to pass through the radiator and then to the
place with homogenous and maximum efficiency.
This guide is prepared for receiving the highest efficiency from this product. Read
all the warnings in this manual before using the device. Please contact only
MAKTEK AUTHORIZED SERVICE in case of any problem with the radiator.
You should take a few minutes to read the SAFETY WARNINGS section of this
manual before you use the appliance for your own safety and others' safety.
PLEASE; Carefully keep this manual in case you need it.
We are stronger with ou…
TURKISH PATENT [ ● ] INSTITUTION
2
SAFETY WARNINGS !
When using the device; it is always necessary to take the following precautions
to reduce the risk of burns, electric shock, injury of persons and to ensure that the
device is covered by the warranty.
1- Read all the information in this manual before using the appliance
2- ATTENTION: Do not attempt to open the appliance yourself or open the
appliance against the RISK OF ELECTRIC SHOCK.
3- Radiator surface is hot while it is running.. Do not touch hot surfaces with your
bare hands against the danger of burning. If possible, keep at least 50 cm away
from objects such as furniture, pillows, bedding, paper, clothes, curtains made of
fusible, fusible materials with radiator heat.
4- Pay special attention to children near the radiator. Do not leave them free.
5- If you do not use it for a long time (eg in summer), be sure that the radiator is
unplugged.
6- Never use the device with damaged plugs, electric cables. If the device is
malfunctioning for any reason, do not try to turn it on again or try to open for
repairing. Call MAKTEK AUTHORIZED SERVICES for electrical adjustment, repair,
maintenance on the mechanical side.
7- The appliance must never be placed in open areas where the rainwater can be
exposed.
8- Do not use the device in a bathroom, laundry or other moist plasec. Do not
mount the device on any water basin in a bath tub and never immerse it in water.
9- To stop the operation of the device, first set the temperature control knob to '0'
position in MECHANICAL THERMOSTATIC MODE. Then turn the on / off switches to
the closed position. DIGITAL TEMOSTATED MODEL Press "ON-OFF" button.
10- Do not interfere with the electrical connections of the device for any purpose.
11- Never use extension cables which may create a risk of burning and which may
be overheated.
12- Never hold the appliance plug with wet hands or objects.
13- Use a fuse that is at least 30% larger than the current drawn by the radiator in
the electrical installation. (see page 3, Table-1)
14- Looseness in the electrical connection points can cause overheating in the
cables. In such a case, contact the authori ed service immediately.
15- Do not use the device if it has fallen and has gotten wet.
16- Do not use the radiator with other electrical appliances in the same socket.
(the receptacle capacity may not be sufficient)
17- In case of cleaning and maintenance, the appliance must be switched off and
the appliance must be disconnected from the socket.
18- Use a dry cloth when you want to clean the appliance. Do not use abrasive
detergent etc.
19- Use the radiator only in accordance with the information in this manual. The
manufacturer is not responsible for any use that could cause personal injury or
damage to the device.
3

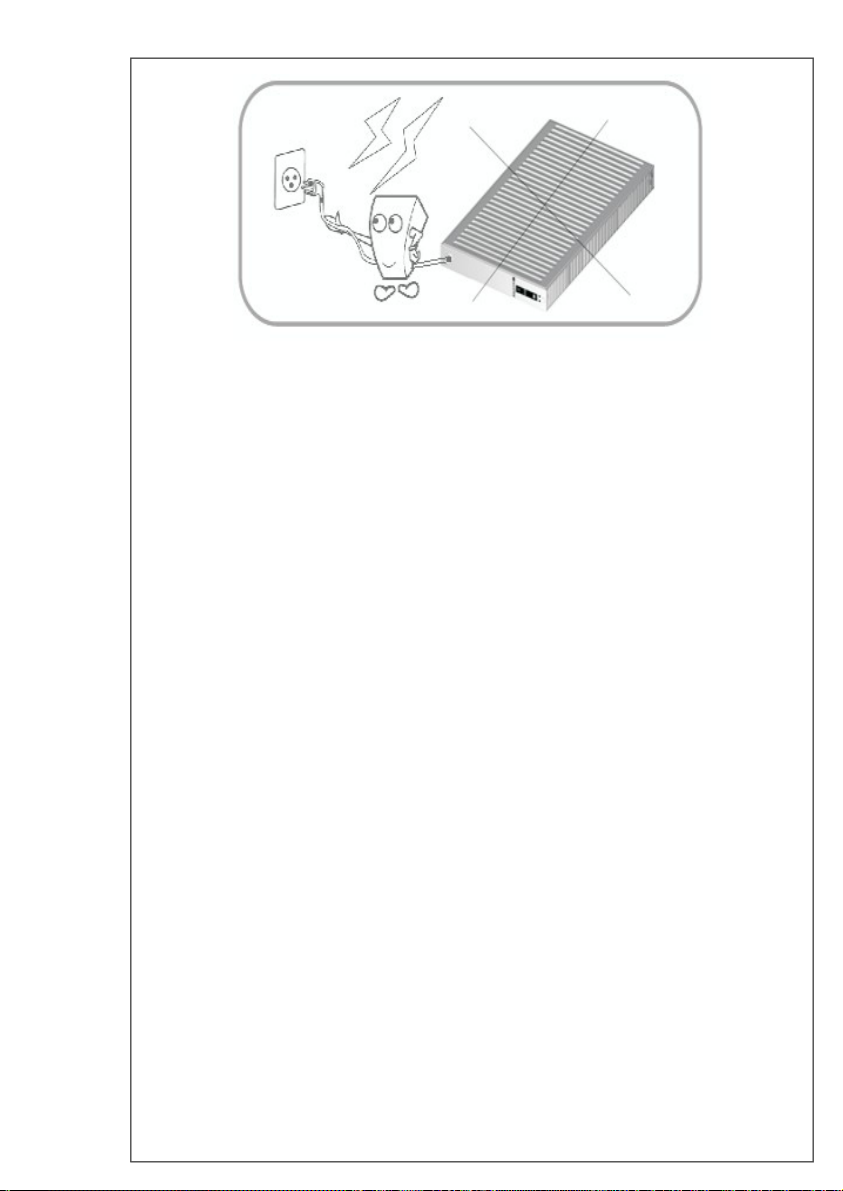

WARNING: DO NOT use the radiator NEVER in an leaning position.
IMPORTANT: Alwa s operate the radiator with a grounded socket.
4
MEASURES AND CAPACITIES
MODEL Power( kw ) Measures ( G*Y*B ) mm CURRENT DRAW ( A )
TYPE 3100 1,2 98 * 3 * 1 4,5
TYPE 3120 1,6 98 * 3 * 12 7
TYPE 3140 2, 98 * 3 * 14 9
TYPE 4100 1,4 98 * 4 * 1 6
TYPE 4120 1,6 98 * 4 * 12 7
TYPE 4140 2, 98 * 4 * 14 9
TYPE 5100 1,6 98 * 5 * 1 7
TYPE 5120 1,8 98 * 5 * 12 8
TYPE 5140 2,2 98 * 5 * 14 1
TYPE 6060 1 98 * 6 * 6 4
TYPE 6080 1,4 98 * 6 * 8 6
TYPE 6100 1,8 98 * 6 * 1 8
TYPE 6120 2,2 98 * 6 * 12 1
TYPE 6140 2,6 98 * 6 * 14 12
.
5
WALL MOUNTING OF THE RADIATOR
1- MOUNTING OF CARRIER CONSOLES ;

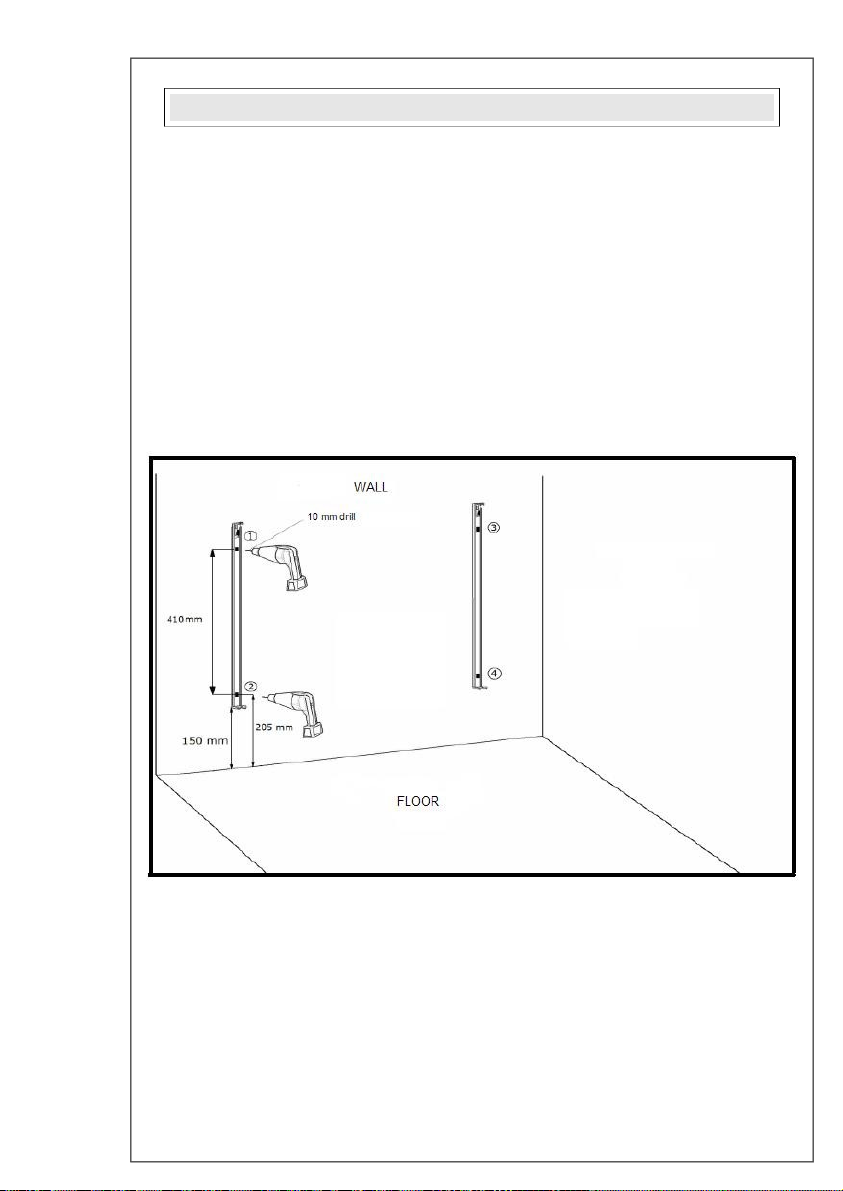

Using a 10 mm drill bit on the wall where the radiator is to be mounted, 4 holes
should be drilled with the measurements in figure-1 and indicated by 1-2-3-4
numbers.
Vertical hole distances In Figure 1,
Hori ontal distance between carrier brackets Figure 2,
The installation method of the mounting brackets are given in figure 3.
The installation of the radiators on the mounting brackets are shown in figures 4,5
and 6.
Figure - 1
6
Figure – 2
Figure- 3
7
Figure- 4
Figure- 5
8
Figure- 6
BEFORE FIRST START
Radiator works with 230 V. 50 H . alternating current. Do not connect the device
to an incorrect power source. Make sure that the mains voltage matches the
operating voltage of the radiator. Always connect the radiator to an insulated and
grounded power line.
The mains cable used in the radiator has a cross section of 3 x 2,5 mm² and has
a resistance for maximum flow 20 amperes flow. If this cable will change, please
make sure that the new cable is the suitable one. This cable can only be changed
by the manufacturer or by specialist technical staff.
9
