Manhattan 100915 Manuale utente

MAN-100915-UM-0109-03

Multi-Card

reader/Writer

uSer MaNual

MODEL 100915

Thank you for purchasing the MANHATTAN®Multi-Card Reader/Writer, Model 100915.

Convert any unused PC bay into a digital content management center that lets you access

picture ﬁles from memory cards without directly connecting a camera or other media device to

the computer. Follow the simple instructions in this user manual and enjoy the beneﬁts of these

convenient features:

• CompatiblewithCompactFlash,Microdrive,MemoryStick,MagicGate,SecureDigital,

Multimedia and XD

•SupportsAutomaticCardDetectionanddatatransferspeedsupto480Mbps

•Eliminatesneedfordirectconnectionofmediadevicetosavebatterypower

•PlugandPlay;hot-swappable—WindowsandMaccompatible

• LifetimeWarranty

NOTE: Installation images are representative of the full line of MANHATTAN®Multi-Card Reader/

Writermodels.Somedevicesordevicepartsmaynotlookexactlylikethemodelthatcorresponds

tothismanual;andsoftwarescreenimagesmayvary,dependingonyouroperatingsystem.

hardWare iNStallatioN

1. Turn off the power

to your PC and

remove the two

side panels as

shown at right.

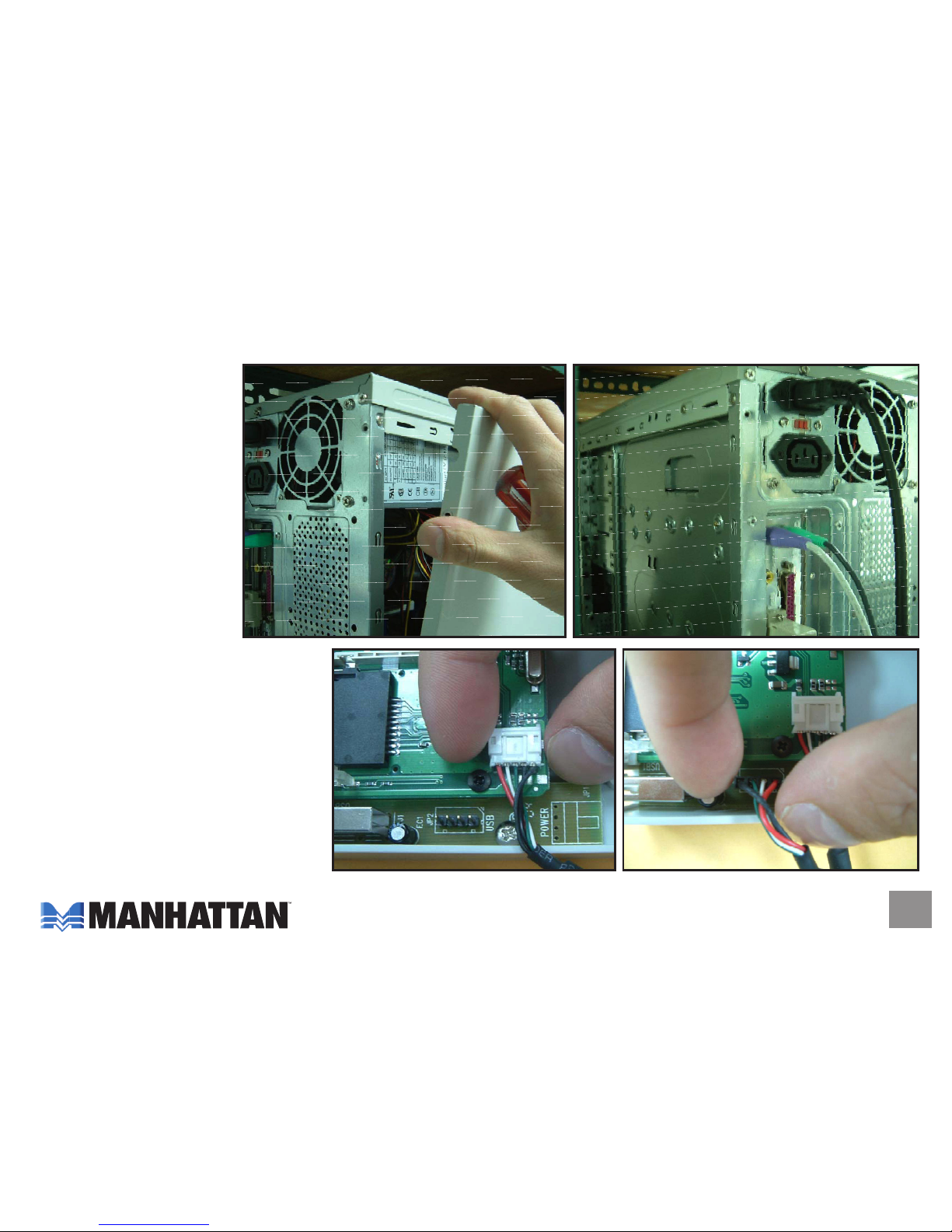

2. Using the split ("Y") end of

the internal cable, make the

connections as shown to

the Card Reader’s circuit

board (near right) and the

 USBpins(farright).

3. Insert the Multi-Card Reader/Writer

into the front panel of the PC. (As

noted above, product images such as

this one are only representative.)

4.SecuretheMulti-CardReader/Writer

in place on both sides using the

enclosed mounting screws.

Side view, showing the

approximate position of

the mounting screw holes

5. Connect the other end of the internal

 cabletotheUSBpinsonthePC’s

motherboard. NOTE: The white dot

 insidetheredhighlightboxatright

indicates the postion of Pin 1.

6. Replace the side panels on the PC.

SoftWare iNStallatioN

Windows XP:

1. With the Card Reader connected properly, turn on the PC. NOTE: It isn’t necessary to install

a driver with Windows XP. The system will automatically ﬁnd the driver.

2. Four removable disk icons will appear on the My Computer screen, indicating the device is

ready for use.

Memory Card Formatting:

XD users may need to format their memory card(s) prior to use, indicated by a "write protection"

or "read/write error" message. If this is the case, follow the steps below to use the attached

program for formatting the memory card.

1.Goto"Start"

→

"Programs"

→

"Multimedia Card Reader"

→

"Memory Card Low Level Format."

2.SelecttheXDicon,thenclick"LowLevelFormat."

3. When prompted with "Low level format is completed. Please remove the card," click "OK"

and remove the memory card.

4.Re-insertthememorycardandcontinueusingtheMulti-CardReader/Writer.

SpeCifiCatioNS

Standards and Certiﬁcations

•Hi-SpeedUSB2.0;USB1.1

•CE,FCC,WEEE

Connections

•ExternalUSBUSB2.0A-typefemale

•Internal5-pincardreader/4-pinUSB(Molex)

General

•LED:Power/Activity

•Transferrates:480Mbps/12Mbps/1.5Mbps

•Material:plastic

•Supports:CompactFlashTypeI/II,CF3.0,CF4.0,CF

 ElitePro,CFHighSpeed,CFPROI/II,ExtremeCF,

 ExtremeIIICF,UltraIICF,XS-XSCF,IBMandHitachi

 Microdrive,MagicStor,MemoryStick,MemoryStickDuo,

 MemoryStickExtremeIIIPRO,MemoryStickExtreme

 PRO,MemoryStickMicro(M2),MemoryStickPRO,

 MemoryStickPRODuo,MemoryStickPROHG,

 MemoryStickROM,MemoryStickSelect,Memory

 StickUltraIIPRO,HighSpeedMemoryStickPRO,High

 SpeedMemoryStickPRODuo,MagicGate,MagicGate

 Duo,MagicGatePRO,MagicGatePRODuo,High

 SpeedMagicGatePRO,HighSpeedMagicGatePRO

 Duo,SecureDigital(SD),EliteProSD,ExtremeSD,Extreme

 IIISD,HighSpeedminiSD*,HighSpeedSD,microSD*/

 TransFlash,miniSD,ProSD,SDHC,UltraSD,UltraIISD,

 UltraIISDPlus,UltraSpeedSD,Ultra-XSD,MMC/

 MMC4.0/MMC4.2,RS-MMC*,HighSpeedMMC/

 RS-MMC*,RS-MMC4.0*,MMCmobile*,MMCplus*,

XD / XD 1.21

* Adapter required

Environmental

•Operatingtemperature:0–70˚C(32–158˚F)

•Storagetemperature:-40–70˚C(-40–158˚F)

•Operatinghumidity:50%non-condensing

•Storagehumidity:95%non-condensing

•Dimensionsreader:90x102x17mm(3.5x4.0x1in.)

•DimensionsUSBcable:70cm(27.5in.)

•Weight:80g(2.8oz.)

System Requirements

•InternalUSBconnection

•WindowsMe/2000/Server2003/XP/VistaorMacOS

 10.4.5orhigher

Package Contents

•Multi-CardReader/Writerwith(6)mountingscrews

•Cableandusermanual

All products mentioned are trademarks or registered trademarks of their respective owners.

www.manhattan-products.com

MANHATTAN®offers a complete line of PC Components, Peripherals, Cables

and Accessories. Ask your local computer dealer for more information

or visit us online at
