Manhattan 161336 Manuale utente
Hi-Speed USB
AUdio/Video
GrABBer
USer
mAnUAl

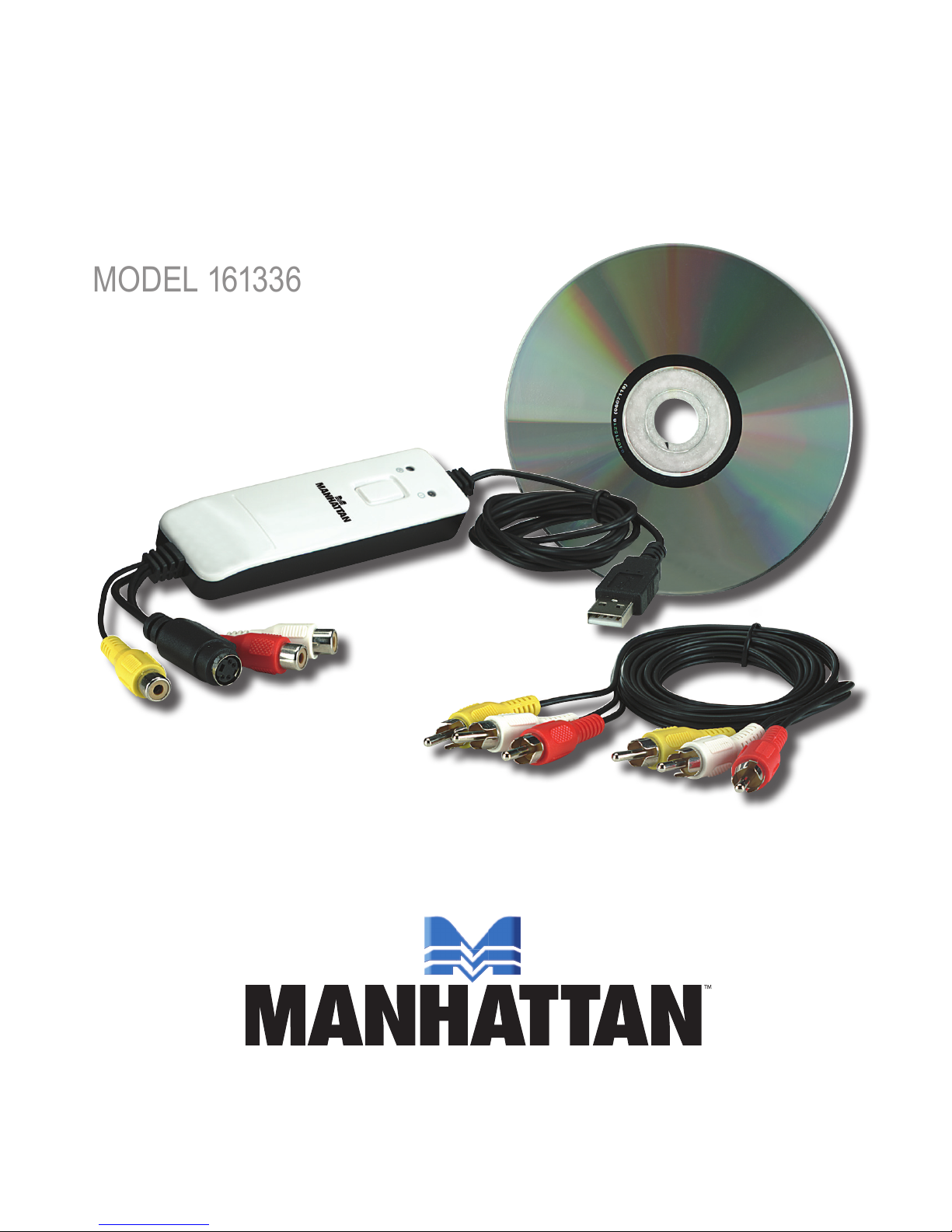

MODEL 161336
MAN-161336-UM-0111-01
2
introdUction
Thank you for purchasing the MANHATTAN®Hi-Speed USB Audio/Video Grabber,
Model 161336.
Ideal for sharing favorite video clips or “snapshots” through e-mail or on the Web,
the Hi-Speed USB Audio/Video Grabber records and processes data from your
camcorder, TV or other media device equipped with S-video or RCA outputs: Just
connect the media source to a desktop or notebook computer to capture, convert
and edit content. A single-button control with LED indicators activates a built-in
chip that encodes directly in MPEG 1/2/4 format, and a full version of the
application software is included to help get more professional results with minimal
technical prociency.
By following the instructions in this user manual — or the simpler setup procedure
in the printed quick install guide included with the product — you’ll soon be enjoying
these popular features:
• Simple, single-button video snapshot and copy-and-pause control
• Plug and Play installation – requires no batteries or external power
• Compact, lightweight design ideal for travel and notebook computers
• Lifetime Warranty (For a complete list of country-specic warranties, go to
www.manhattan-products.com/warranty.)
Package Contents
• Hi-Speed USB Audio/Video Grabber
• RCA extension cable
• Software and driver CD
• Quick install guide
Minimum Recommended System Requirements
• Hi-Speed USB equipped computer with CD-ROM (for software installation)
• 256 MB RAM, 1 GB free HD space, sound card (AC97 compatible), graphics
card (DirectX 9.0c compatible) and Pentium 4 (1 GHz) or above
• Windows XP/Vista/7 operating system
NOTE: Screen images presented in this user manual may have been modied to
t the format and can vary slightly depending on your operating system, but the
basic installation/operation steps are similar.
3
HArdwAre connectionS
Using the included RCA extension cable if needed (not depicted in the setup image
below), make the appropriate connection(s) between your computer and the media
source — camcorder, TV or whatever — through the Hi-Speed USB Audio/Video
Grabber.

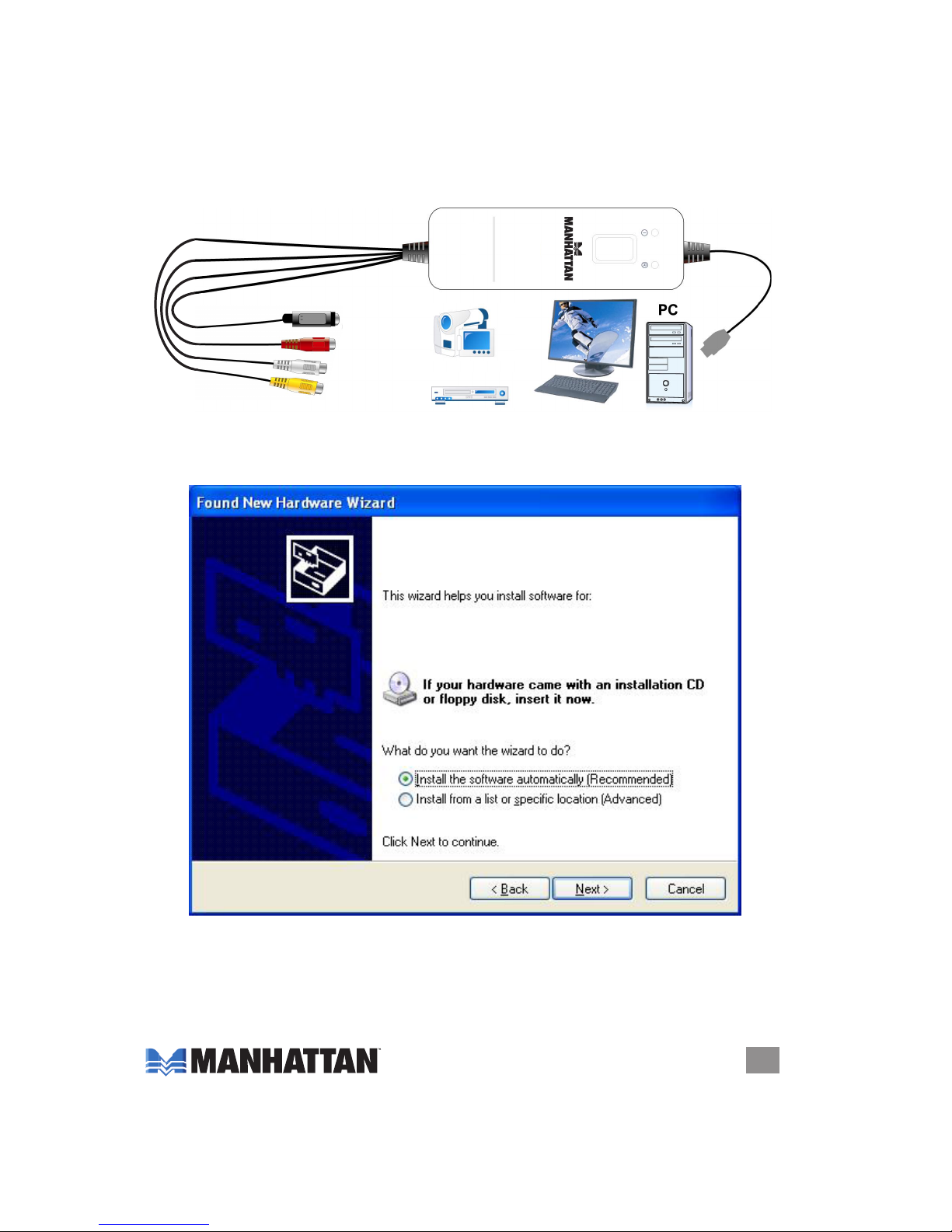

1. If the device has been connected properly, the Found New Hardware Wizard
welcome screen displays (below). Click “Cancel.”
Video In
Audio In (R)
Audio In (L)
S-video In
4
driVer inStAllAtion

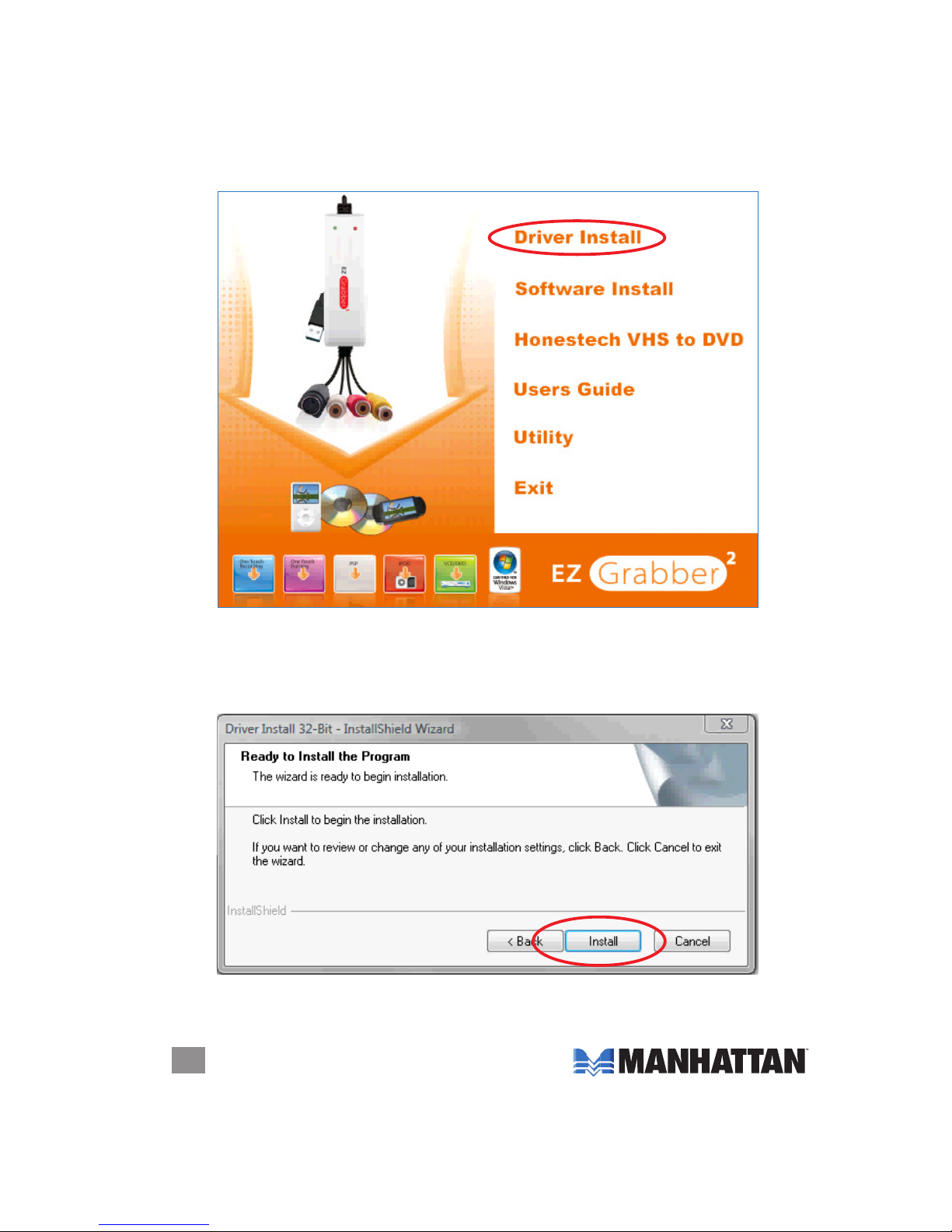

1. Insert the enclosed software CD in the CD-ROM drive to display the initial menu.
Click “Driver Install” or run Driver\Setup.exe.
2. The InstallShield Wizard’s initial Preparing to Install screen displays with a status
bar to indicate that the process is underway. When the Ready to Install the
Program screen displays, click “Install.” Click “Back” to return to the previous
screen; click “Cancel” to stop the installation.
5
3. Subsequent Status screens will indicate installation progress. If Windows Security
prompts display during installation, click “Install” or “Continue Anyway” to proceed.

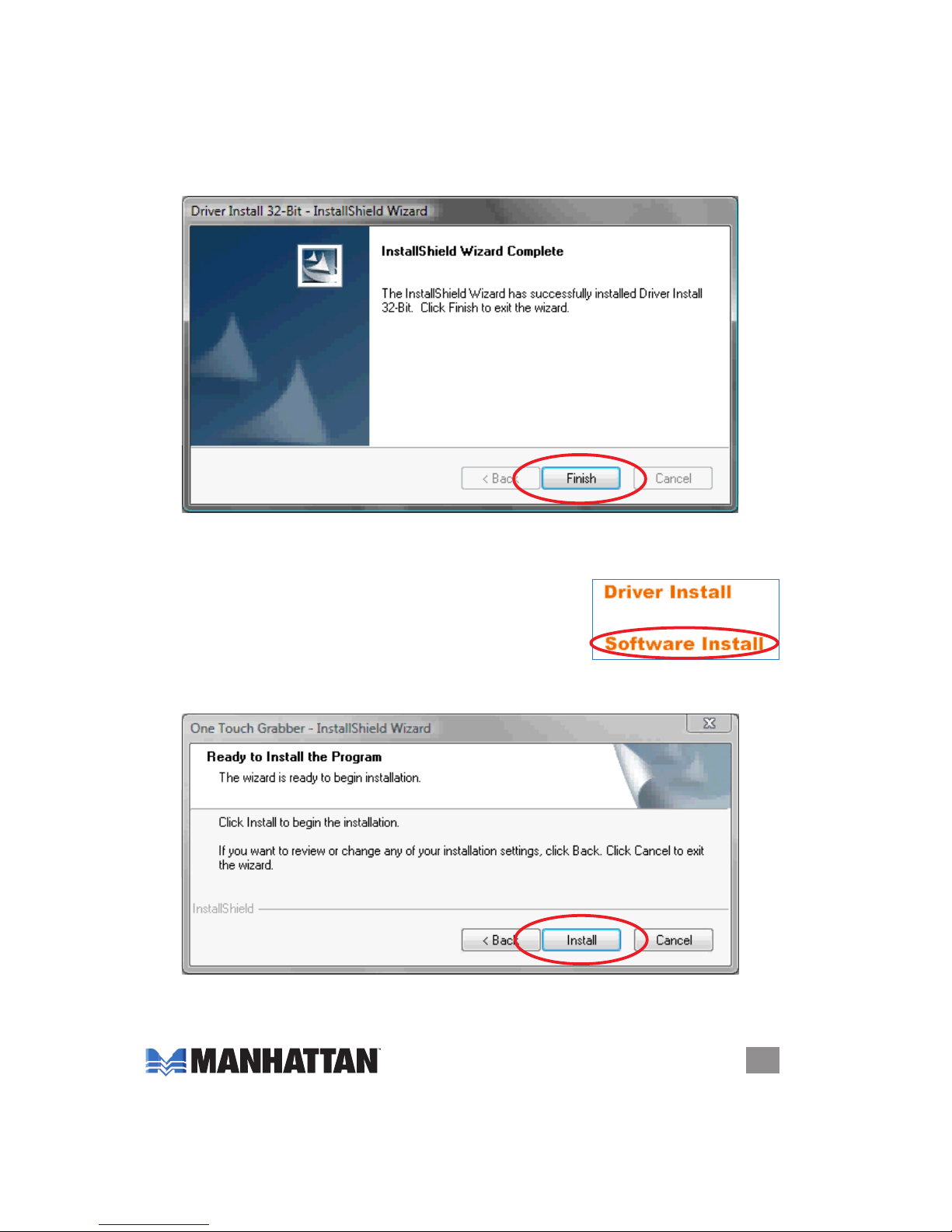

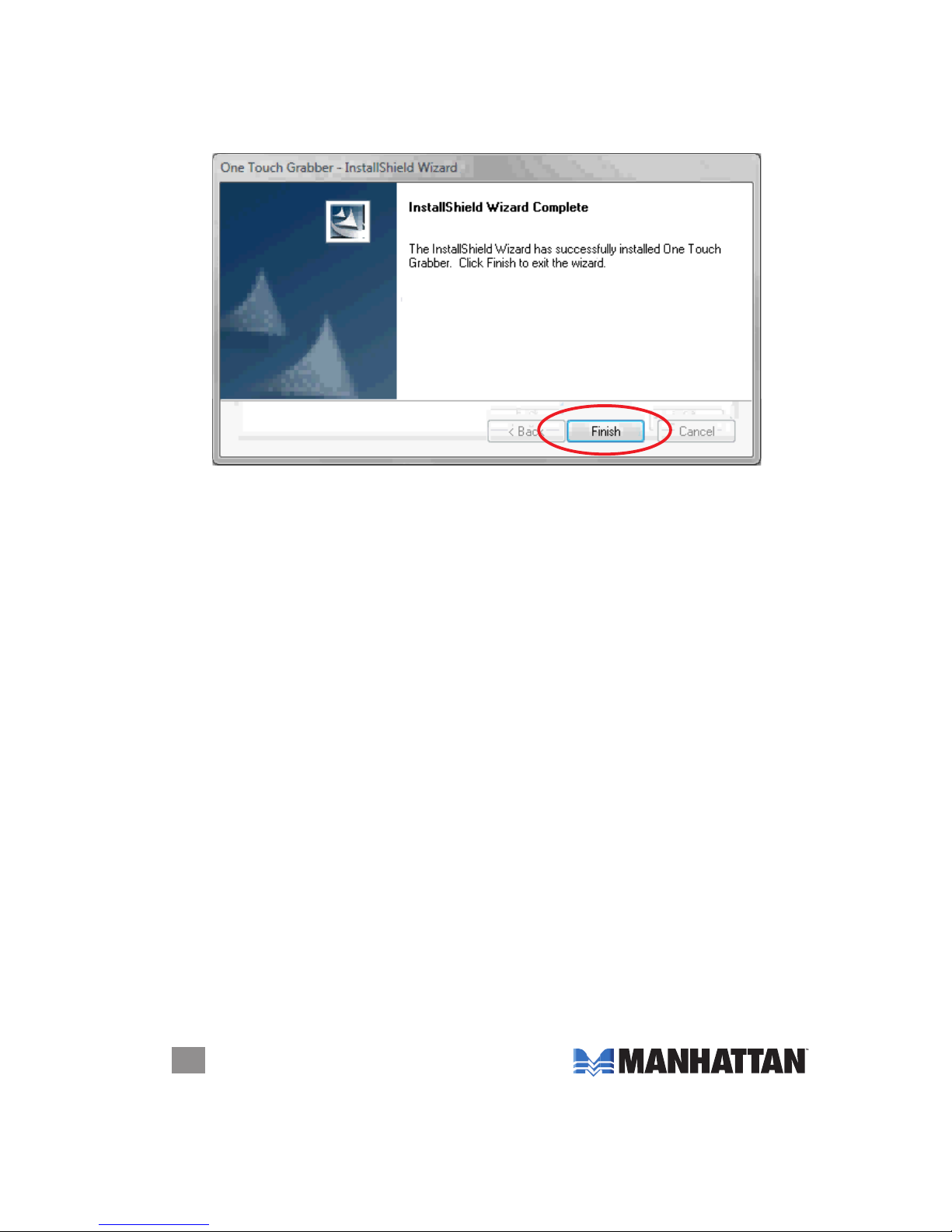

4. When the InstallShield Wizard Complete screen displays, click “Finish.” You can
now proceed with the EZ Grabber software installation, as detailed below.
ez GrABBer inStAllAtion
1. Click “Software Install” on the menu screen or run
“EZ Grabber\Setup.exe” to install the application.
2. The InstallShield Wizard’s Preparing Setup screen
displays with a status bar to indicate the process is
underway. When the Ready to Install the Program screen displays, click “Install.”
Click “Back” to return to the previous screen; click “Cancel” to stop the operation.
6
3. Subsequent Status screens may display to indicate installation progress. When
the InstallShield Wizard Complete screen displays, click “Finish.”
4. Once the EZ Grabber icon appears on your desktop, you can launch the
application to display the EZ Grabber Main User Interface (shown below).
7

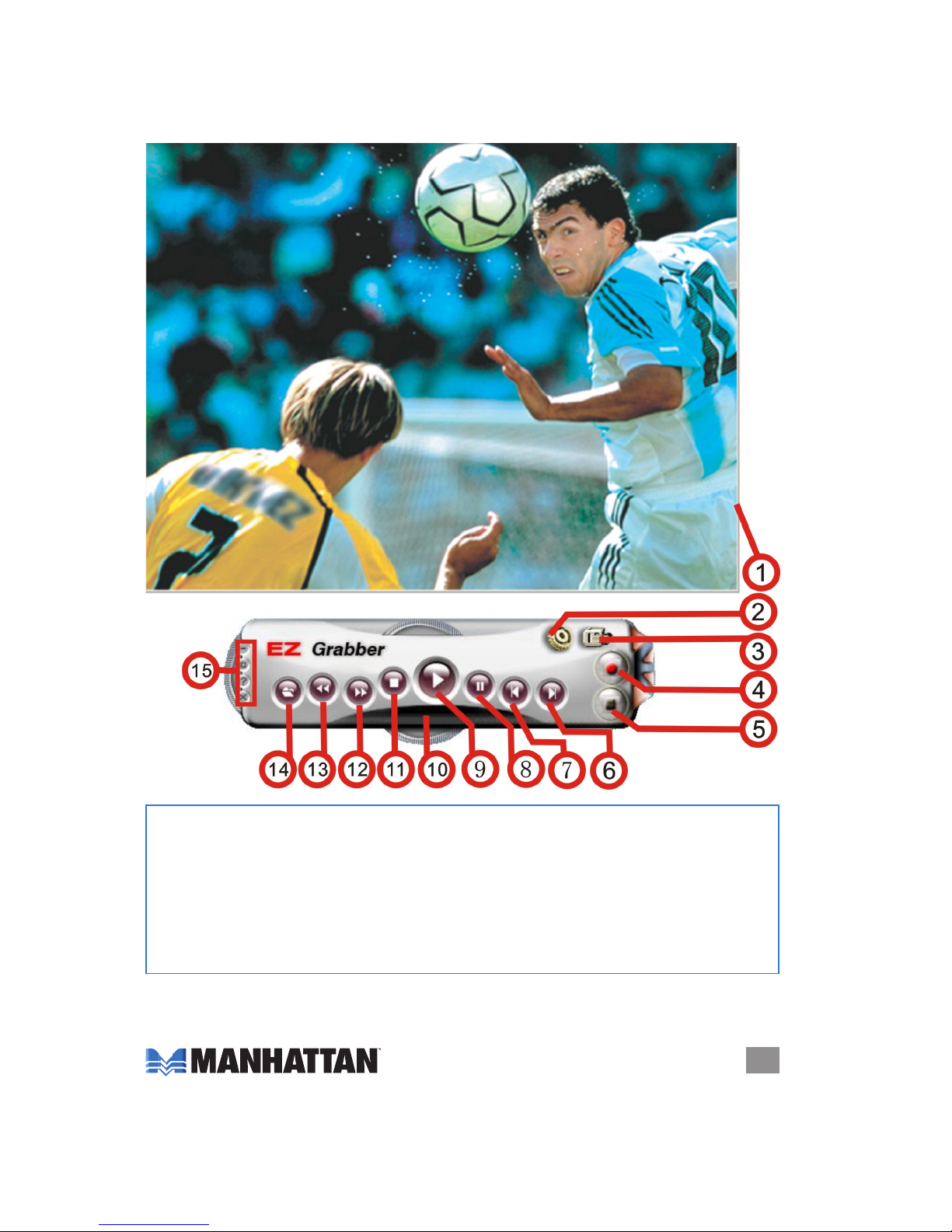

ez GrABBer mAin USer interfAce
1. Status
2. Setup menu
3. Snapshot
4. Start recording
5. Stop recording
6. Fast forward
7. Fast reverse
8. Pause
9. Playrecordedles
10. Status window
11. Stop playback
12. Next track
13. Previous track
14. Openrecordedle
15. Minimize window
& controls
Full screen window
& controls
About (version &
other details)
Exit
8
VHS to dVd SoftwAre inStAllAtion
1. Click “Honestech VHS to DVD” on the menu
screen or run “VHS2DVD\Setup.exe” to
install the editing application.

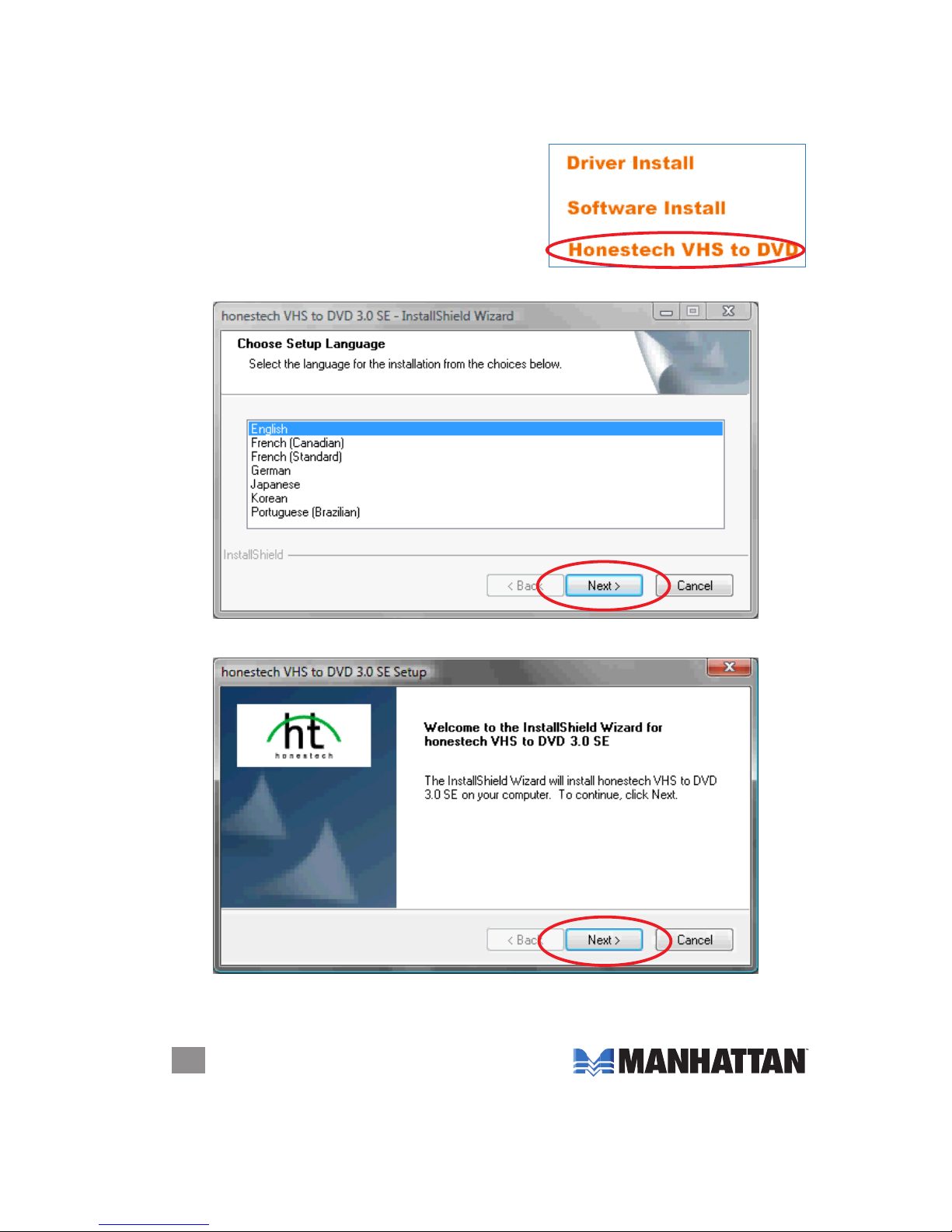

2. When the Choose Setup Language screen
of the InstallShield Wizard displays, select a
language and click “Next.” Click “Back” to
return to the previous screen; click “Cancel” to stop the installation.
3. When the InstallShield Wizard’s Welcome screen displays, click “Next.”
9

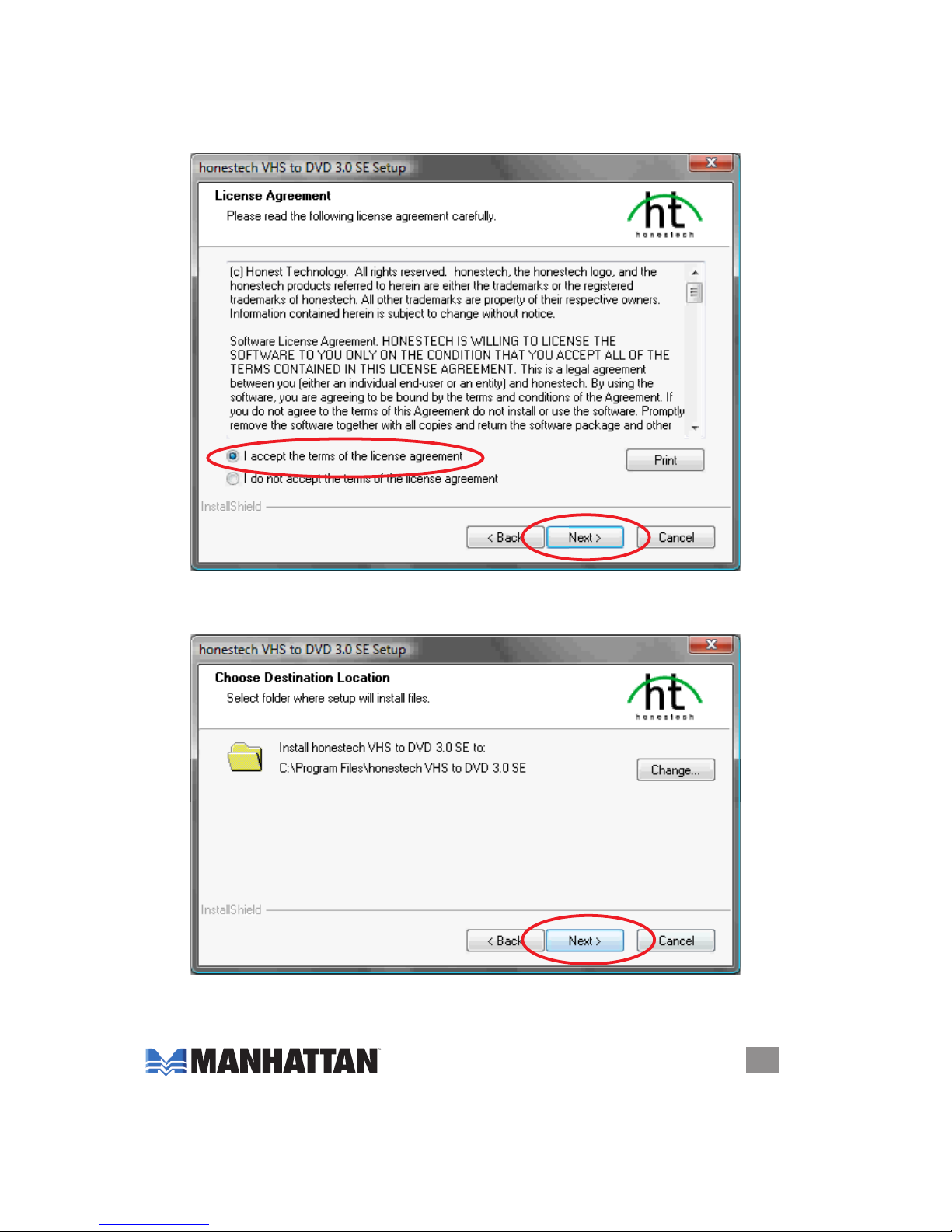

4. When the License Agreement screen displays, select “I accept...” and click
“Next” to continue.
5. When the Choose Destination Location screen displays, click “Next” to direct
the le to the default (recommended) location.
10

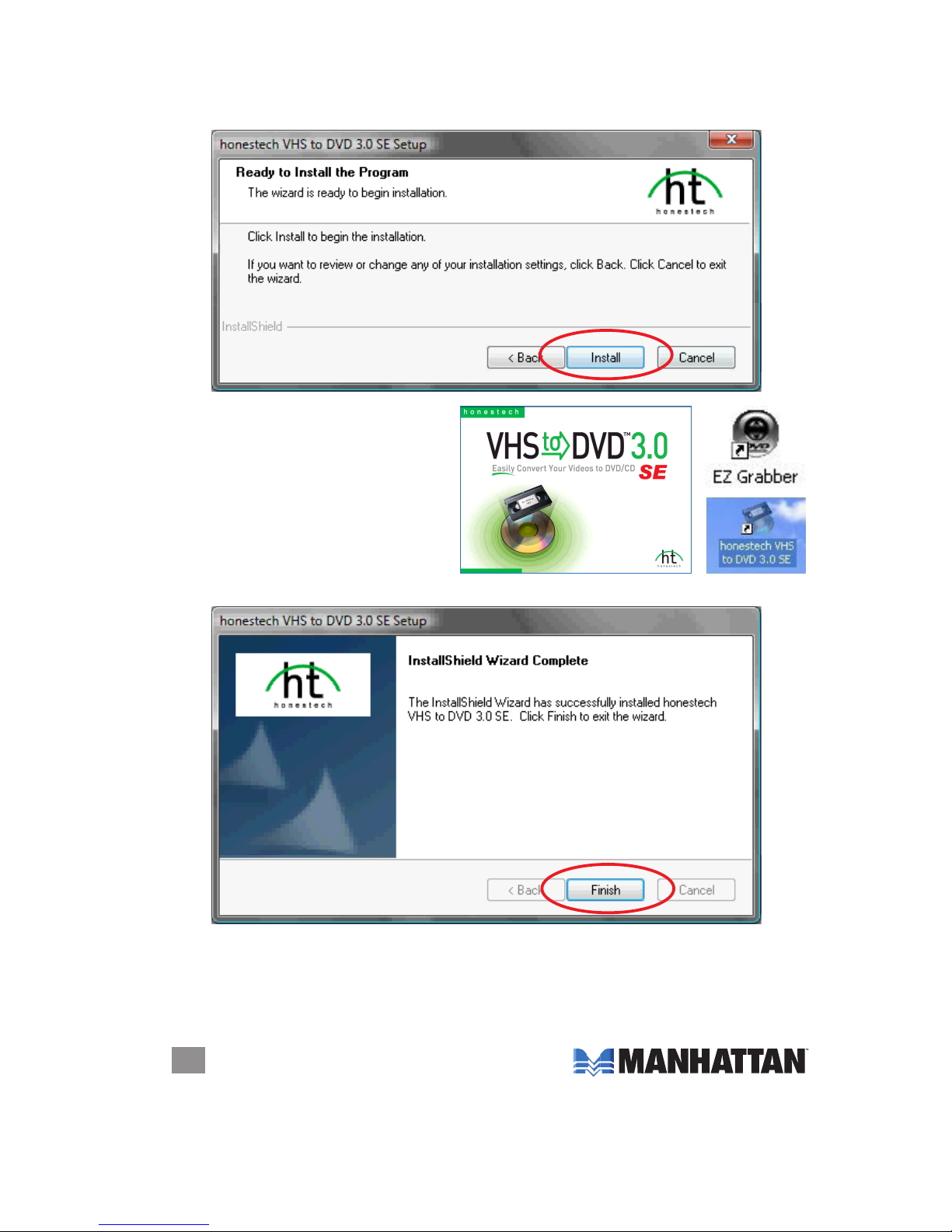

6. When the Ready to Install the Program screen displays, click “Install.”
7. The Honestech Setup screen
(right) will display while les are
loaded. When the InstallShield
Wizard Complete screen displays
(below), click “Finish.” The EZ
Grabber and Honestech icons
(far right) should appear on your
desktop. Click to launch either
application.
