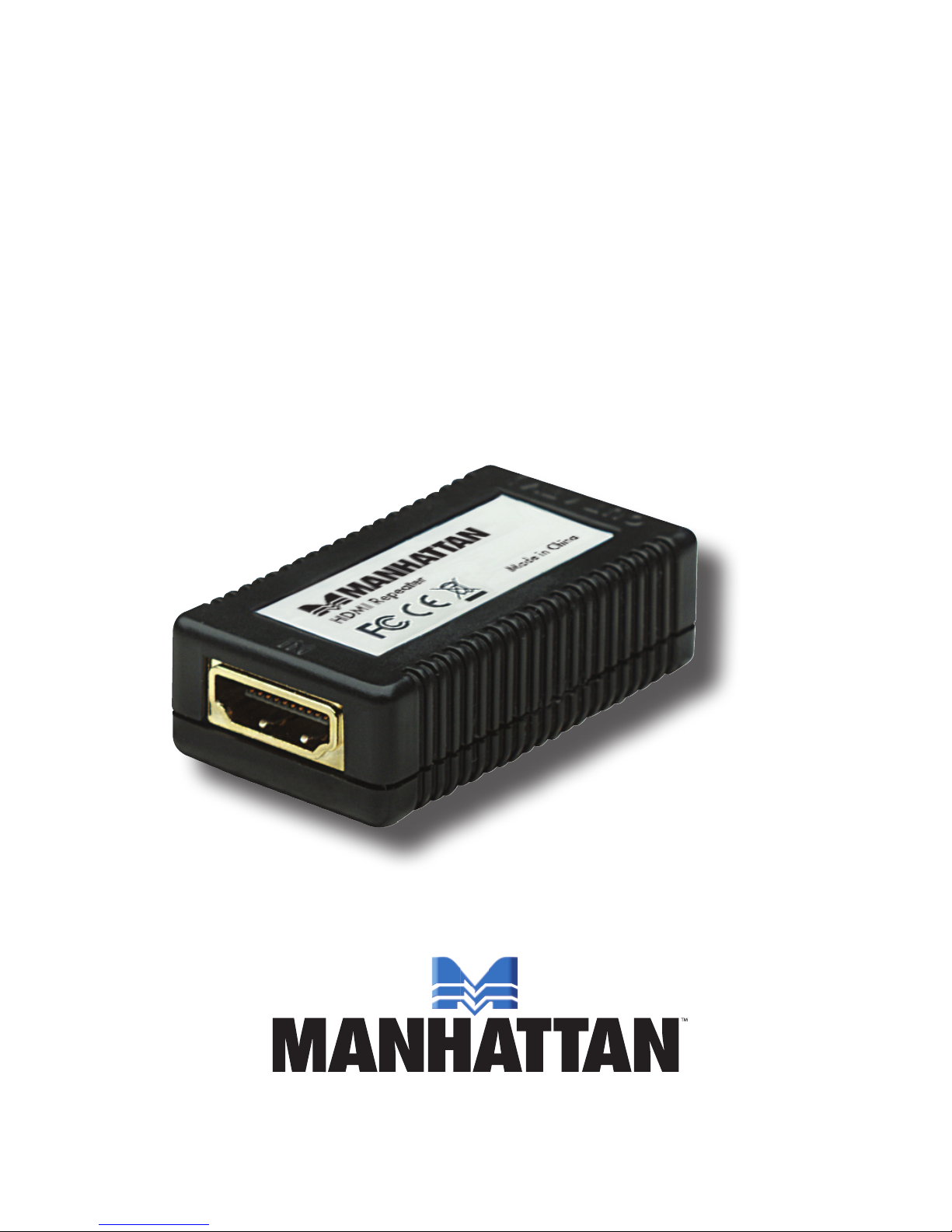

HDMI
REPEATER
USER
MANUAL
Model 177283
MAN-177283-UM-0908-02
2
Thank you for purchasing the MANHATTAN
®
HDMI Repeater,
Model 177283.
With this convenient device, you can easily extend HDMI
cable runs up to 30 m (98 ft.) for more convenient monitor
or projector placement. Using this manual for reference,
you’ll soon be enjoying the benets of these features:
• Maintains multiple HD resolutions for clear, sharp images
up to 1080p or VGA (1920 x 1200)
• Single-box extension solution boosts and equalizes digital
transmissions to help reduce “sparkles”
• Supports full HDMI 1.2 audio and video and DDWG
standards for HDMI-compliant monitors
• Easy to install — requires no conguration
• Lifetime Warranty
CONNECTIONS
1. Connect the HDMI signal source (such as HD-DVD) to
the Input jack of the HDMI Repeater.
2. Connect the HDMI display (such as HD-TV) to the Output
jack of the HDMI Repeater.
NOTE: Place the HDMI Repeater nearer the display device
to minimize signal degradation. If cascading repeaters for
increased overall cable length, connect one of the repeaters
to an A/C outlet using a 5 V DC / 2 A power adapter.
3
Operation Tips
• Always connect/remove cables gently to prevent damage.
• If a connected DVI device doesn’t work, make sure that
it’s HDCP-compliant.
SPECIFICATIONS
→
→
HDMI signal
source,
such as DVD
Display,
such as
HDMI TV
HDMI
REPEATER
Standards & Certications
• HDMI 1.2a, HDCP 1.0 / 1.1,
DVI 1.0, CE, FCC, UL
Connections
• (1) HDMI female (input)
• (2) HDMI female (output)
• Power: 5 V DC / 2 A (adapter not
included)
Signal Input/Output
• Input video signal: 0.5 – 1.0 V p-p
• Input DDC signal: 5 V p-p (TTL)
• Maximum single-link range:
1920 x 1200, 1080p
• Output video: HDMI 1.2a,
HDCP 1.0 / 1.1, DVI 1.0
• Frequency: 1.65 Gbps / 165 MHz
Video Resolutions
• VGA: 640 x 480, 800 x 600,
1024 x 768, 1920 x 1200
• DTV/HDTV: 480i/480p/576i/576p/
720p/1080i/1080p
Physical
• Dimensions: 49 x 27 x 15 mm
(2 x 1.1 x 0.6 in.)
• Weight: 17 g (0.6 oz.)
Package Contents
• HDMI Repeater
• User manual
Copyright © MANHATTAN
All products mentioned are trademarks
or registered trademarks of their respective owners.
www.manhattan-products.com
MANHATTAN®offers a complete line
of PC Components, Peripherals, Cables and Accessories.
Ask your local computer dealer for more information
or visit us online at
