Manhattan 160858 Manuale utente

MAN-160858-UM-1107-02

5100 series

5.1 multimedia

speaker system

user maNual

MODEL 160858

iNtrOduCtiON

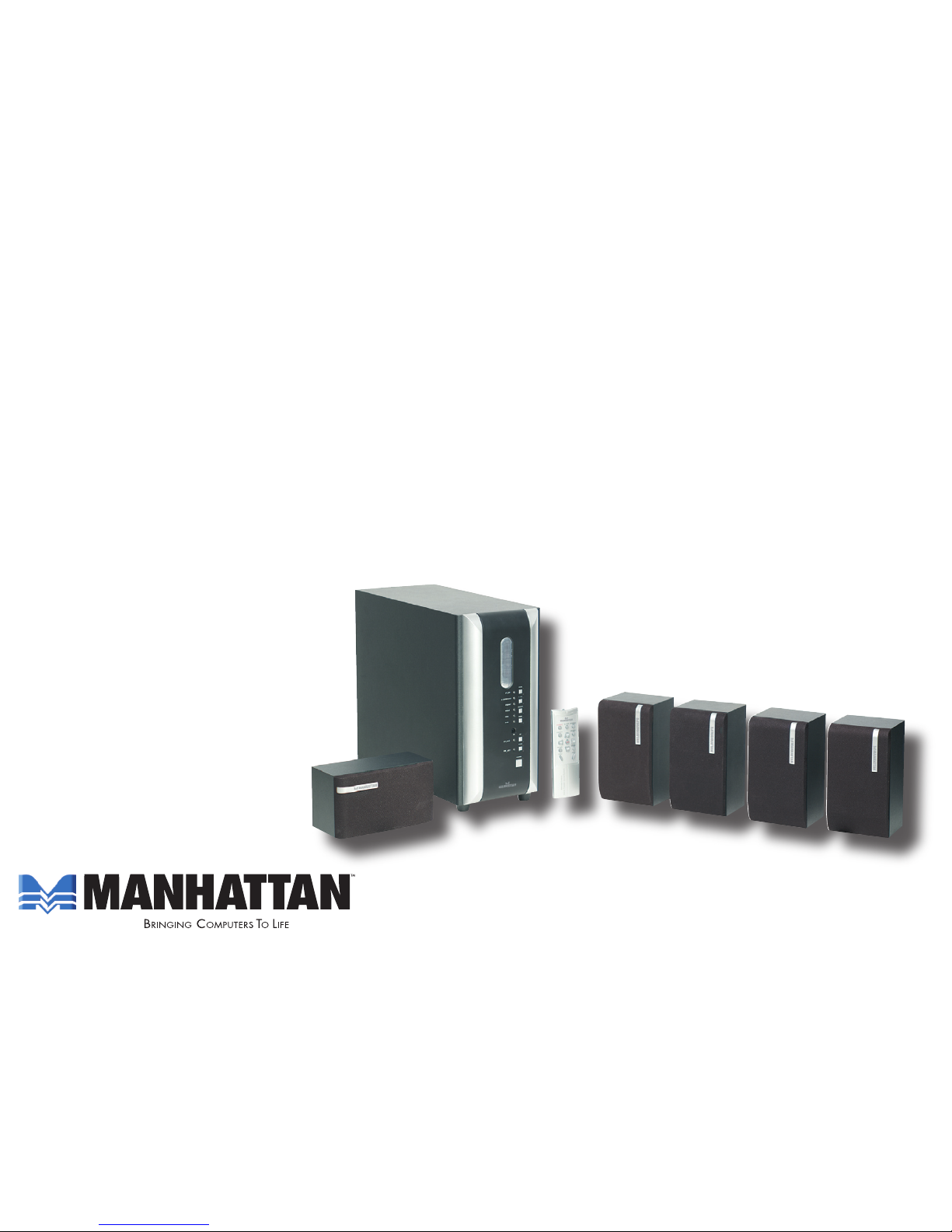

Thank you for purchasing the MANHATTAN®5100 Series 5.1 Multimedia Speaker System,

Model 160858.

These speakers feature internally powered ampliﬁers, making them compatible with computers

and CD and DVD players, including portable versions of such devices. They are also completely

shielded in terms of magnetization, and so will not interfere with the performance or operation

of your computer or TV monitor. Follow the simple setup steps, and you’ll soon be able to enjoy

these great features:

• 2-way speakers offer vivid sound reproduction — ideal for games, movies and music

• Side-ﬁring subwoofer radiates deep bass response

• Separate volume, bass and mute controls

• Distinctive styling complements ﬂat-panel monitors and decor

• Full-function remote control adjusts settings from anywhere in the room

• Shielded to prevent distortion and maintain clear, crisp sound

• RMS power 10 W + 5 W x 5

• Front-mounted volume, bass and mute controls with indicator LEDs and remote control

• Black cloth speaker grilles

• Lifetime Warranty

safety preCautiONs

Prior to the installation of your speakers, read the following safety guidelines to help prevent

damage to any electrical components or harm to users.

• Do not place this product or any of its parts near heat or potential heat sources, nor in any

moist or damp environment.

• Do not hit, drop or mishandle electrical components in such a way as to loosen, break or

otherwise render inoperative any interior or exterior parts.

• Do not remove the back panel except as directed by a qualiﬁed technician in order to minimize

the possibility of electrical shock. If in need of repair or inspection, bring the speaker(s) to a

professional repair person.

• Should liquids or other materials (including fragments of broken parts) get inside the speaker

cabinet, immediately shut power off to the speaker and have it professionally inspected and/

or repaired before further operation. NOTE: Avoid using liquid cleaners/detergents on the

cabinet surfaces, as this can damage the ﬁnish. A soft and clean damp cloth will sufﬁce for

cleaning the system exteriors.

• Turn off the power and unplug from the power source when the system is not in use.

setup

1. Carefully unpack the speakers and accessories. Do not lift or

remove the speakers from the box by the function knobs or other

attachments as this may damage the speaker unit.

2. Place the satellite speakers and subwoofer in the

desired listening location. (See the conﬁguration

example in Suggestions for Setup & Operation.)

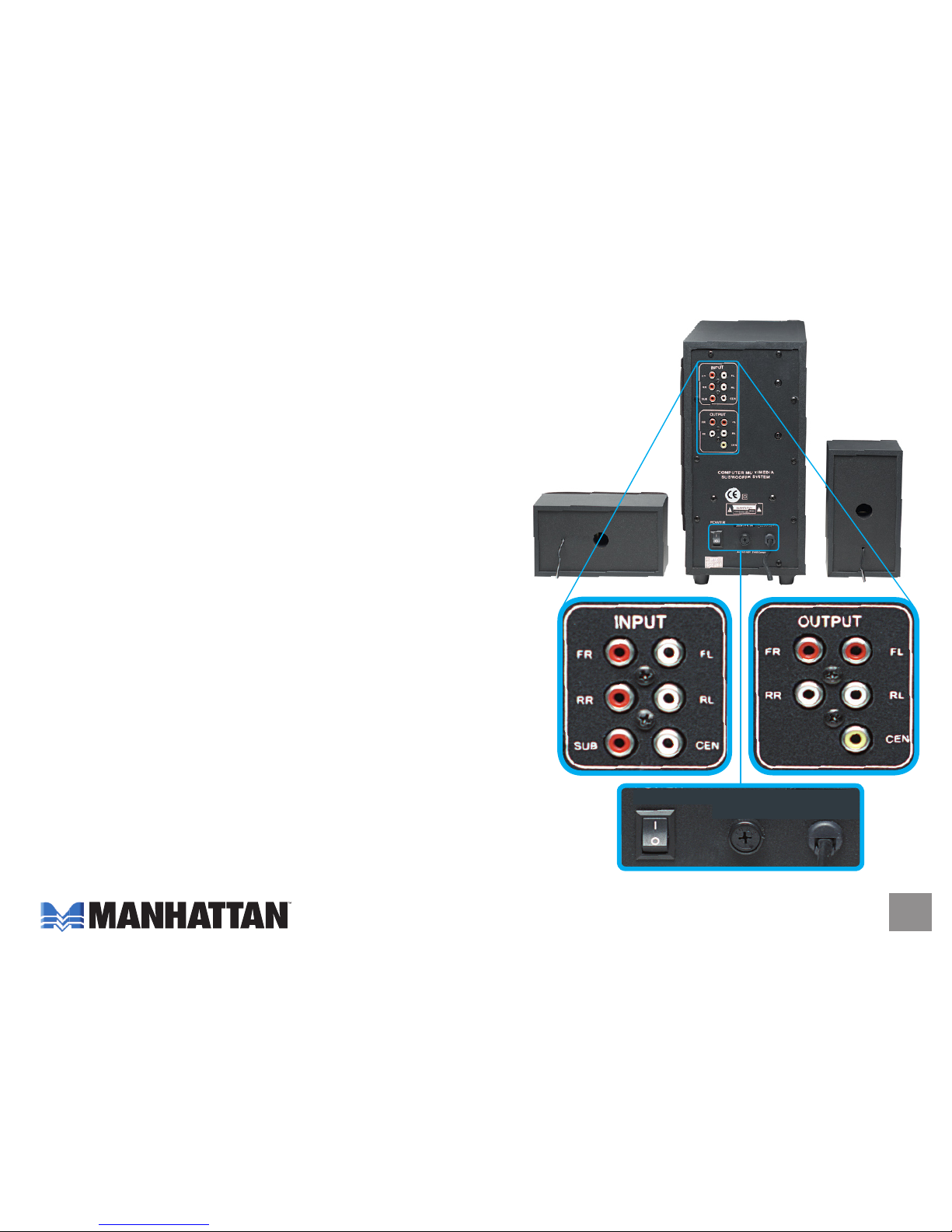

3. Attach the satellite speakers to the corresponding

output jacks on the rear panel of the subwoofer

unit: FR for front-right; FL for front-left; RR for rear-right;

RL for rear-left; CEN for center.

4. Using the included RCA cable, connect the input

jacks on the rear panel of the subwoofer unit to the

corresponding line out or audio output jack(s) of the

audio source (stereo tuner, computer, game system

or whatever). NOTE: Connect to the headphone

jack of the source if it’s the only output available.

5. Plug the AC power cord (attached to the rear of the

subwoofer unit) into an electrical outlet and set the

Subwoofer

Right/left,

front/rear

satellite

speaker

POWER AC

POWER

Center

speaker

main power button (also on the rear panel of the subwoofer) to the on position. This allows

you to then use the more convenient power buttons on the front of the subwoofer and on the

remote control to turn the speaker system on and off.

6. With the audio source turned on and generating an audio signal, adjust the volume and bass

level of the speaker system to desired levels (adjusting the volume/audio output level on the

audio source as necessary). NOTE: If connecting to a computer, you may want to conduct a

sound card test. With the speakers properly connected and turned on, ﬁnd the computer’s

sound card in the device manager and begin the test. Each channel should be able to be

tested for sound and link. With the “test” window still open, turn up the volume on each channel

(speaker). Test sound should be audible: If not, check and deactivate the mute feature (press

the mute button once) and do the test again.

OperatiON

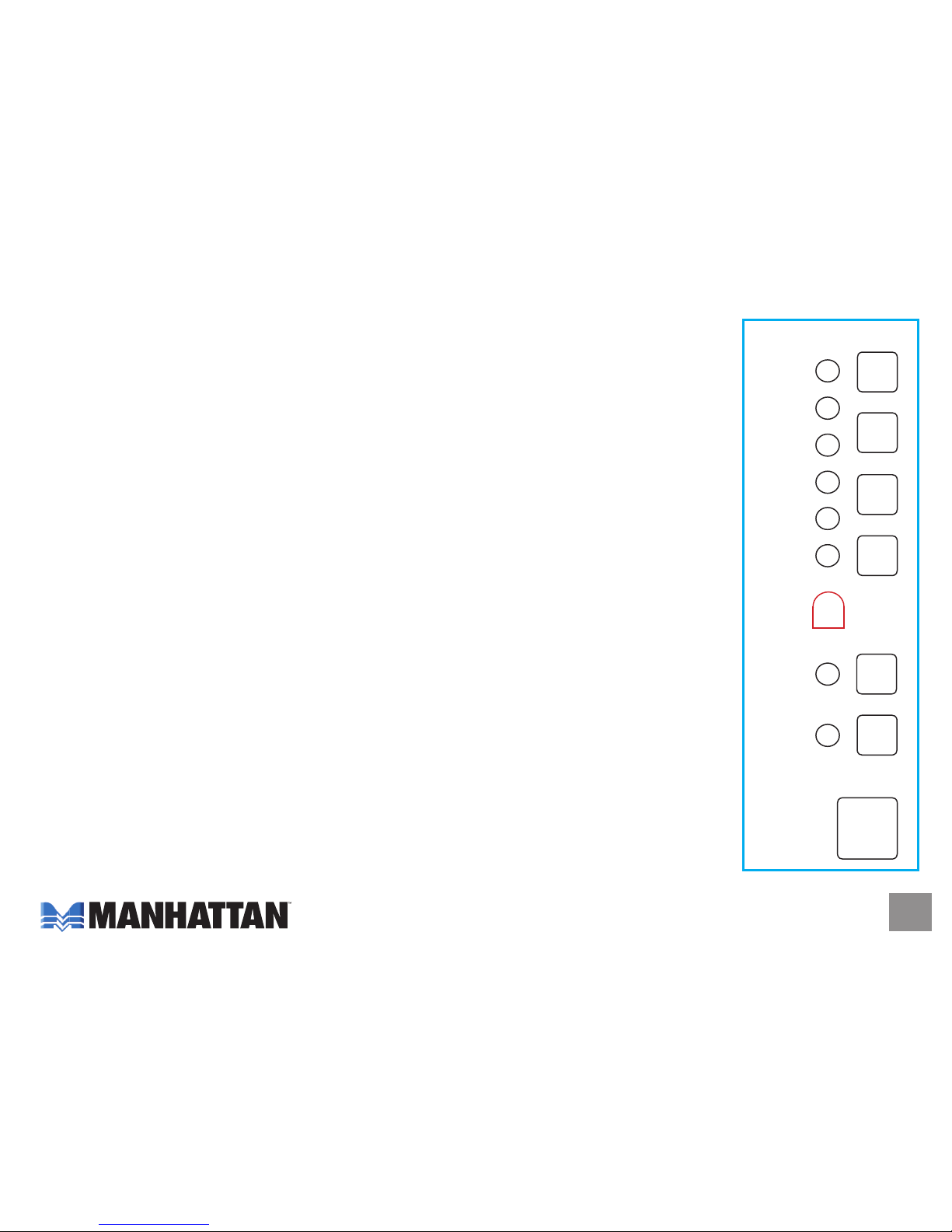

The following controls and indicators are located on the front panel of the subwoofer, with similar

controls available on the remote control (see Remote Control below).

• POWER — When the main power button (on the rear panel of the subwoofer; see Setup

Step 5) is in the on position, the ST_BY LED lights red, indicating that the controls are ready

for use. Press the power button on the front panel and the ST_BY LED lights blue or green

while all other LEDs also light.

• UP/DOWN — Volume is controlled with the UP and DOWN buttons,

with the corresponding LEDs ﬂashing during volume adjustment. If the UP

or DOWN LED doesn’t ﬂash while its volume button is pressed, the level

is at maximum. NOTE: To adjust the volume of individual and pairs of

speakers, use the UP and DOWN buttons in conjunction with the MODE

button (see below).

• STEREO/5.1 CH — Based on the current audio source, press the STEREO

button (CD mode) or the 5.1 CH button (DVD mode) to match the speakers’

output to the system’s input. In the CD mode, the 5.1 CH/STEREO LED

lights red; in the DVD mode (which is also the default), it lights blue.

• MODE — Separate volume control for the subwoofer and the front, rear

and central speakers is available through the use of the MODE button.

Press it once and the SUB LED lights to indicate that the volume of the

subwoofer can now be raised or lowered using the UP and DOWN

buttons. Pressing the MODE button again allows you to cycle through the

CEN, REAR and FRONT LEDs, each corresponding to volume control of

those individual or pairs of speakers when lighted.

• MUTE — Press the MUTE button to interrupt/pause the audio output from

the speakers, indicated by the ST_BY LED ﬂashing red. Press the MUTE

button again to resume audio.

POWER

DOWN

MODE

STEREO

5.1 CH

MUTE

5.1 CH/STEREO

ST_BY

FRONT

REAR

CEN

SUB

UP_LED

DW_LED

• IR — The infrared receiver (IR) accepts the signal from the remote control. Make sure nothing

is placed in front of the receiver (or between the receiver and the remote control) that could

interfere with the signal.

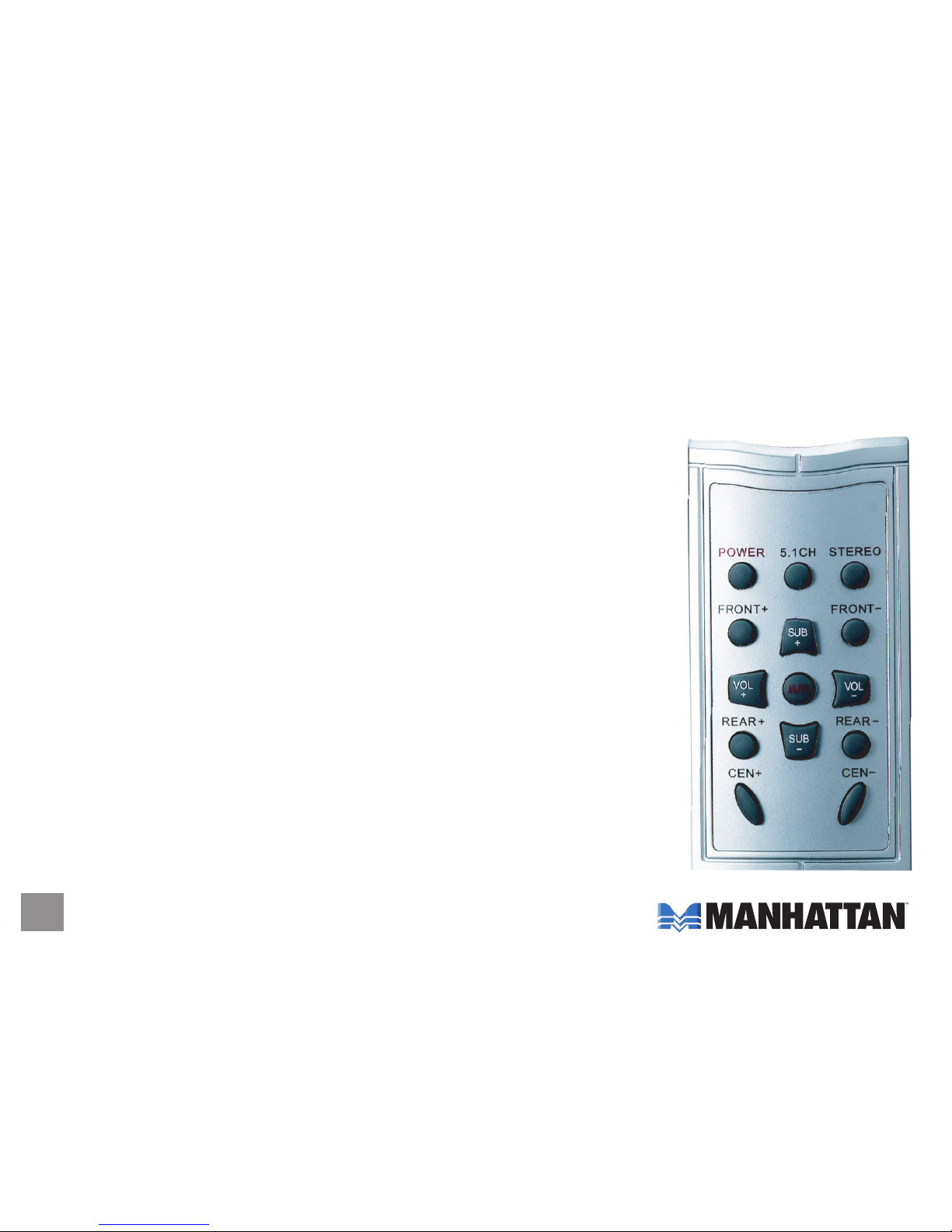

remOte CONtrOl

The buttons on the remote control unit work in a similar fashion to those

on the front panel of the subwoofer (POWER, MUTE, 5.1 CH, STEREO)

except that, instead of a MODE button that selects individual and pairs

of speakers, the remote control has separate buttons for raising and

lowering the volume levels; for example, FRONT + and FRONT –.

NOTE: Be sure that the remote control unit is pointed directly at the IR

sensor/receiver on the subwoofer (see Operation) whenever it’s used;

otherwise, the signal may not produce the desired results. Also, as

advised in Safety Precautions, avoid hitting, dropping or otherwise

mishandling the remote control, and keep it away from sources of

excessive heat or moisture.

suggestiONs fOr setup & OperatiON

• Though featuring a magnetically shielded design so the speaker system is free from interference

when placed near a monitor or TV, the subwoofer can cause interference in other components.

Position the subwoofer at least 30 cm (1 ft.) away from monitors and TVs.

• If only one speaker emits CD audio when the system is plugged into a headphone jack, it’s

because WAV ﬁles and games normally transmit only one track of audio.

• Check all appropriate connections and controls (including those on the audio source) should

one or more of the speakers not be producing sound once power is on. NOTE: If adjusting

the SUB (subwoofer) volume control doesn’t affect the

audio output, it could simply be that the signal source

doesn’t include frequencies below 300 Hz (the upper

range of the subwoofer).

• Before using the remote control, verify that the two AAA

batteries (included) are properly inserted in the unit.

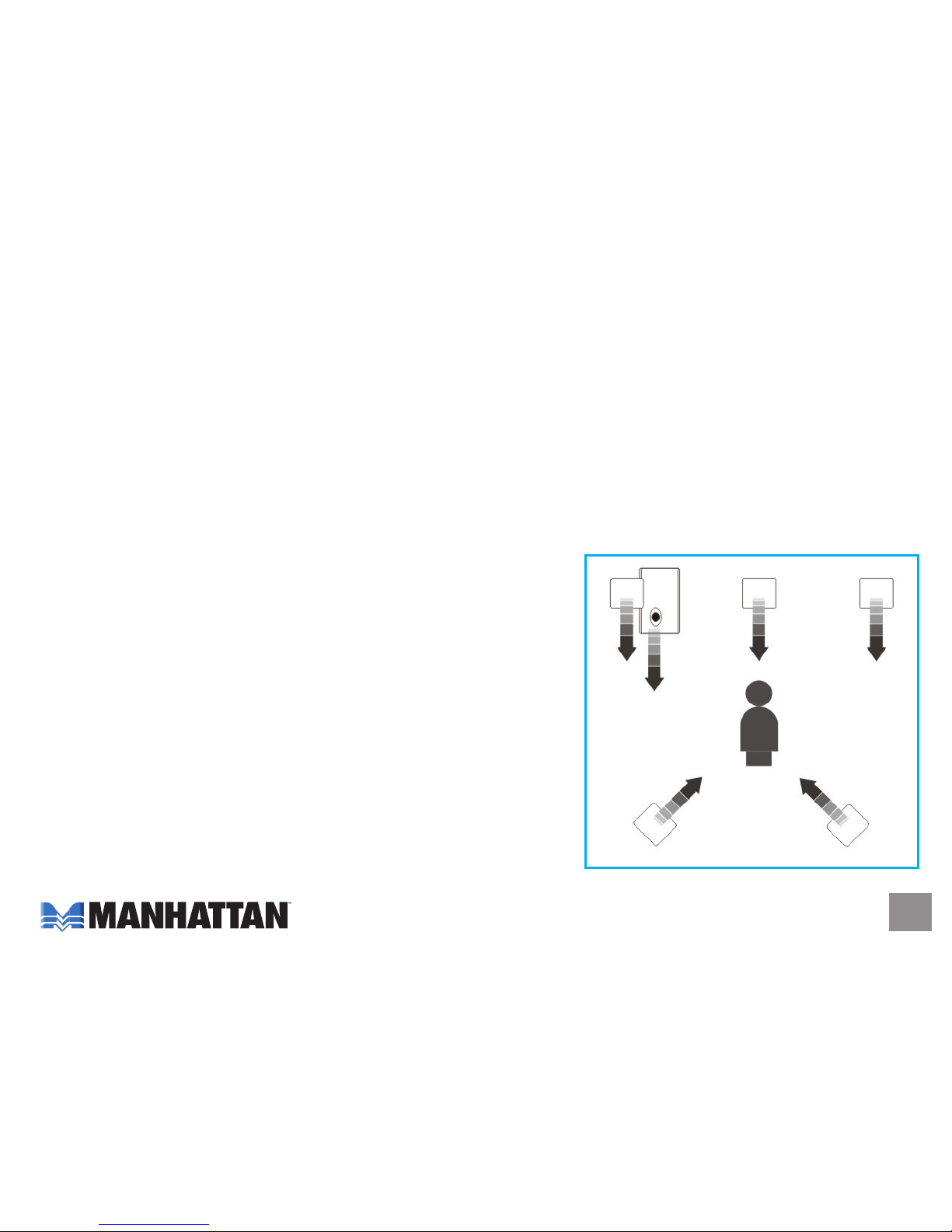

• As the subwoofer (bass) is not directional, it can be

placed on the ﬂoor. Also, placing the subwoofer in the

corner of the room or close to a wall can increase the

bass effect. A suggested speaker conﬁguration/

placement is presented at right.

speCifiCatiONs

• RMS output power: 10 W + 5 W x 5

• Frequency response:

Satellites: 200 Hz – 18 kHz

Subwoofer: 40 Hz – 300 Hz

• Signal to noise ratio (S/N): ≥ 70 dB

• Total harmonic dstortion (THD): ≤ 0.3%

• Impedance:

Satellites (front, center, rear): 4 Ohms

Subwoofer: 4 Ohms

• Dimensions:

Satellites (front, center, rear): 9 x 17 x 8.6 cm (3.5 x 6.7 x 3.4 in.)

Subwoofer: 15.7 x 29 x 28 cm (6.2 x 11.4 x 11 in.)

• Diameter, driver(s):

Satellites (front, center, rear): 7.6 cm (3 in.)

Subwoofer: 12.7 cm (5 in.)

• Power: internal power supply

• Connectors: RCA cables and adapters (included)
