Manitowoc K00349 Manuale utente

K00349 ICE DEFLECTOR KIT

Installation Instructions

The K00349, ice deflector kit, must be used with the S-1400, S-1600, and S-1800 ice machines, when the ice machine is

used on a non-Manitowoc ice storage bin.

1. Remove both front panels.

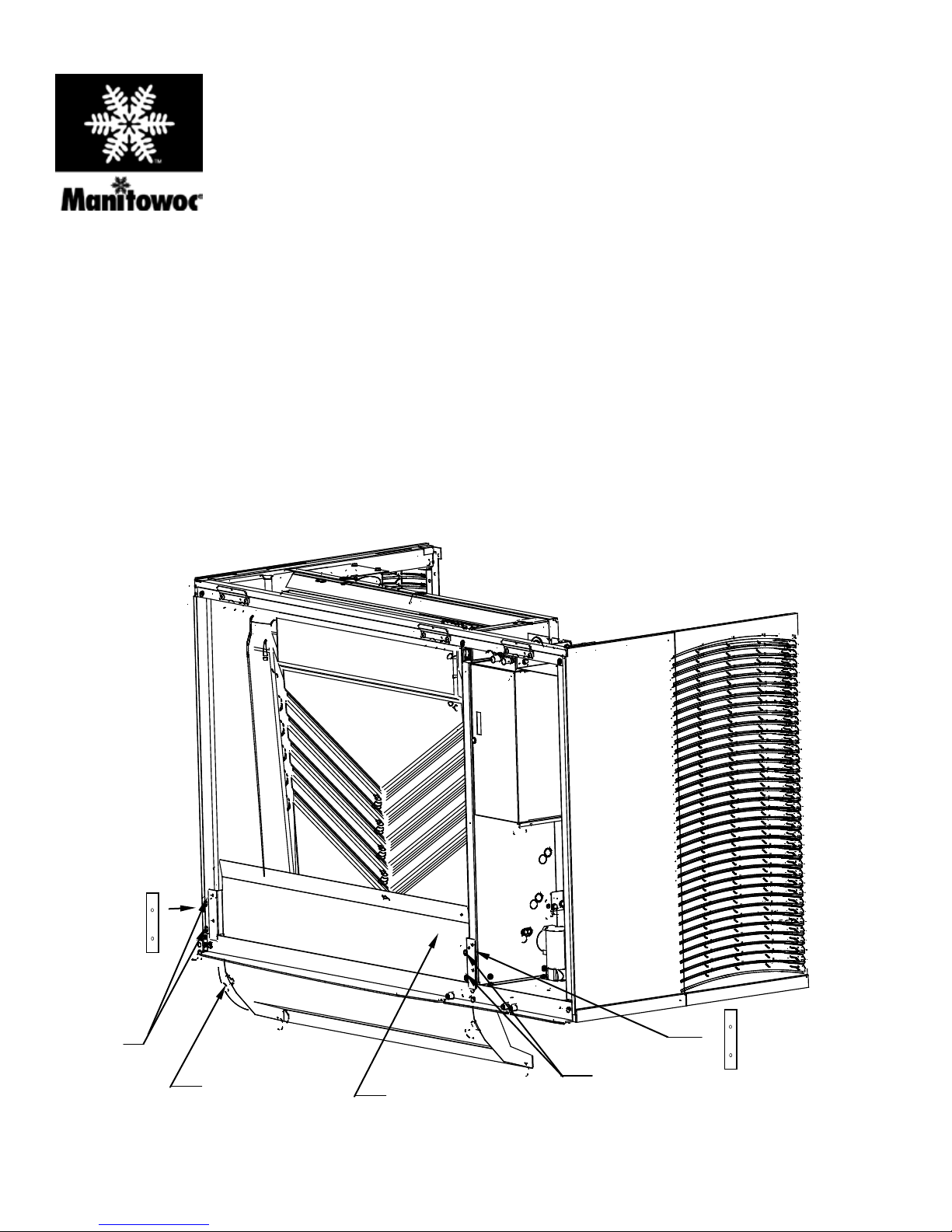

2. Examine the ice machine to see if the machine has four screws on the lower front plastic panels (see drawing).

3. If there are screws, remove them from the countersunk holes on the front surface of the machine. Save the screws.

4. Install the deflector, using the four screws that were removed in step 3. In some instances, the deflector will hit the

bin and not fit properly. Slide the ice machine back (approximately 1/2”) until the deflector fits properly.

5. Four screws and two backing plates are in the kit.

6. If there are no screws on the ice machine (step 2), pierce the thin plastic countersunk holes, install the backing

plates, and install the deflector, using the screws from the kit.

7. Replace the front panels.

Backing plate

to be inserted

into side

pocket of

bulkhead

Screws

New Ice Deflector

Screws

Backing plate to be

inserted into side

pocket of bulkhead

If deflector contacts

bin, move ice

machine back until

deflector clears.

Manitowoc Ice, Inc.

2110 South 26th Street, P.O. Box 1720, Manitowoc, WI 54221-1720 USA 8015263

Telephone 920-682-0161, Fax - Sales: 920-683-7589, Service/Parts: 920-683-7585, Other: 920-683-7879 Page 1 of 2

Web Site - www.manitowocice.com Rev. 01/16/08

Pre-installation Instructions for Removal of Existing Plastic Deflector

1. Remove the left and right side cover screws (see View A).

2. Remove the cover to expose the four screws that secure the plastic deflector (see Detail B).

3. Take out the four screws. Remove the plastic deflector, replace with a polymer spacer on each side and secure with

the four screws.

4. Reinstall the cover and proceed with the installation instructions.

Plastic Deflector

Cover

Plastic Deflector

Screws

See Detail B

Detail B

View A

Cover Screw

8015263

Sheet 2 of 2

Rev. 01/16/08
