Instruction Sheet K00523 Touchless Lever Activated Ice Chute

CONVERT PUSH FOR ICE TO TOUCHLESS

1 of 2

DocumentNumber:000016900 7/21

MANITOWOC ICE

2110 SOUTH 26TH STREET, MANITOWOC, WI 54220

800-545-5720

WWW.MANITOWOCICE.COM

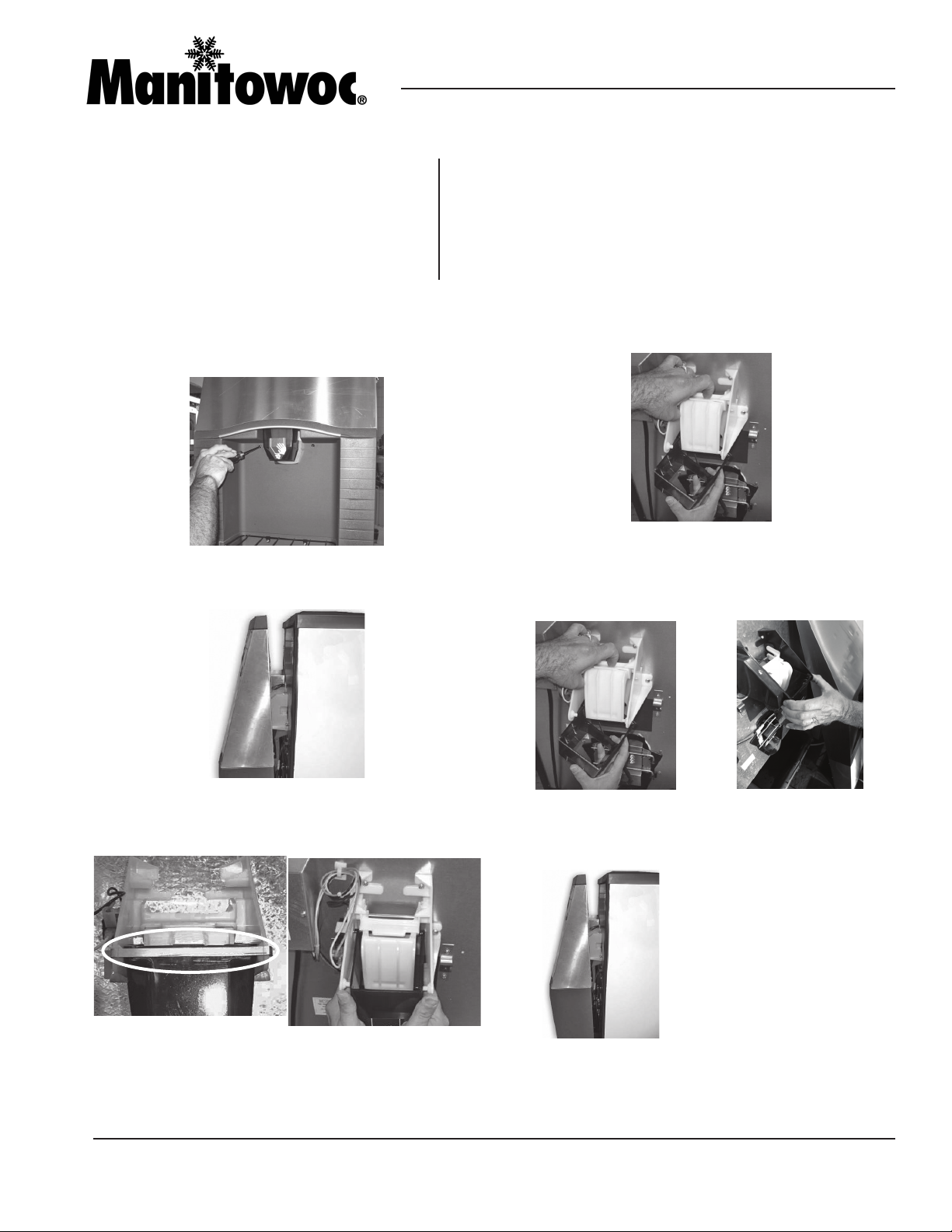

1. Disconnect the power from the dispenser by unplugging

the power cord from the electrical outlet.

2. Using a phillips head screwdriver, remove the two screws

located on both sides of the ice chute.

3. With the screws out remove the front panel by grasping

both sides and pulling towards you until it is clear of the

ice chute, then pull the panel up and out.

4. Remove the metal outer bracket clip, then use your

thumbs to spread the bracket and unhinge the ice chute

from the bracket pins.

5. Lift the door lock and rotate the ice chute clockwise

while pulling towards you in a slightly downward motion

to complete removal.

6. Put the new ice chute into place by lifting the door lock

and door lock assembly. Rotate the chute counter

clockwise in an up and away from you motion and snap

the bracket pins into place. Replace the metal bracket

clip.

7. As you lift the front panel up onto the lower brackets,

slide the chute through the opening in the front panel.

Rest the panel on the lower brackets.

2 of 2

DocumentNumber:000016900 7/21

K00523 Touchless Ice Chute

8. The Touchless ice chute is now secured. The front panel

can now be pushed all the way into place.

9. Once the front panel is pushed all the way back into it’s

final position, replace the two screws on both sides of

the Touchless ice chute.

10. Assemble the wire onto the chute - gently pinch the wire

inward and slide it up inside the ice chute until it notches

into the two side holes drilled near the top of the chute.

11. Plug unit back in for operation.

12. Test the operation of the dispenser by pushing ice chute

to dispense ice.
