QUICK START GUIDE

Power Amplier

1.AMP 10 U_ENG_QSG_220929.indd 11.AMP 10 U_ENG_QSG_220929.indd 1 2022/09/29 14:49:312022/09/29 14:49:31

Scan the QR code or visit support.marantz.com/

for setup help, technical support, warranty assistance, or

customer support contact information.

Thank you for choosing a Marantz power amplier.

Connecting a Marantz AV 10 and speakers (sold separately) to this unit enables use of a variety of surround sound systems.

This guide describes how to connect AV Preamplier and speakers to this unit.

Welcome

Please do not return this product to the store.

If you need help...

1.AMP 10 U_ENG_QSG_220929.indd 11.AMP 10 U_ENG_QSG_220929.indd 1 2022/09/29 14:49:312022/09/29 14:49:31

Before you begin

Required for setup

RCA cables

XLR cables

AV Preampli er

Speakers

Speaker cables

What’s in the box

Quick start guide Power cord

Safety instructions REMOTE CONTROL

connector cable

Warranty

(for USA and Canada)

AMP CONTROL

connector cable

Power ampli er Speaker terminal wrench

1.AMP 10 U_ENG_QSG_220929.indd 21.AMP 10 U_ENG_QSG_220929.indd 2 2022/09/29 14:49:322022/09/29 14:49:32

Setup

Connect your speakers

NOTE

Always set the NORMAL/BI-AMP/BTL selector before turning on

the power. If the setting is changed after turning on the power, the

setting will not be applied.

There are 3 modes for connecting this unit with speakers:

• Normal mode

• Bi-amp mode

• BTL mode (Bridge mode)

Set the NORMAL/BI-AMP/BTL selector on the rear panel of this unit

according to the connection mode used.

■Normal mode

Connect your speaker cables between the AMP 10 and your

speakers. This is the default setup, where you simply connect the

speakers directly to the corresponding pair of terminals.

1.AMP 10 U_ENG_QSG_220929.indd 31.AMP 10 U_ENG_QSG_220929.indd 3 2022/09/29 14:49:322022/09/29 14:49:32

Connecting separate ampli ers to the tweeter terminal and woofer

terminal of a speaker that supports bi-ampli cation enables

playback with higher sound quality.

■Bi-amp mode

■BTL mode (Bridge mode)

Using 2 ampli ers to drive 1 speaker enables more powerful

playback.

• When making bi-amp mode, be sure to remove the short-circuiting

plate or wire between the speaker’s woofer and tweeter terminals.

• For the highest power set-up, the BTL mode can convert the 2 x 200 W

at 8 ohms stereo ampli er to a 400 W mono ampli er. The two-ampli er

circuit construction guarantees an excellent signal to noise ratio and

the full control of any speaker.

1.AMP 10 U_ENG_QSG_220929.indd 41.AMP 10 U_ENG_QSG_220929.indd 4 2022/09/29 14:49:322022/09/29 14:49:32

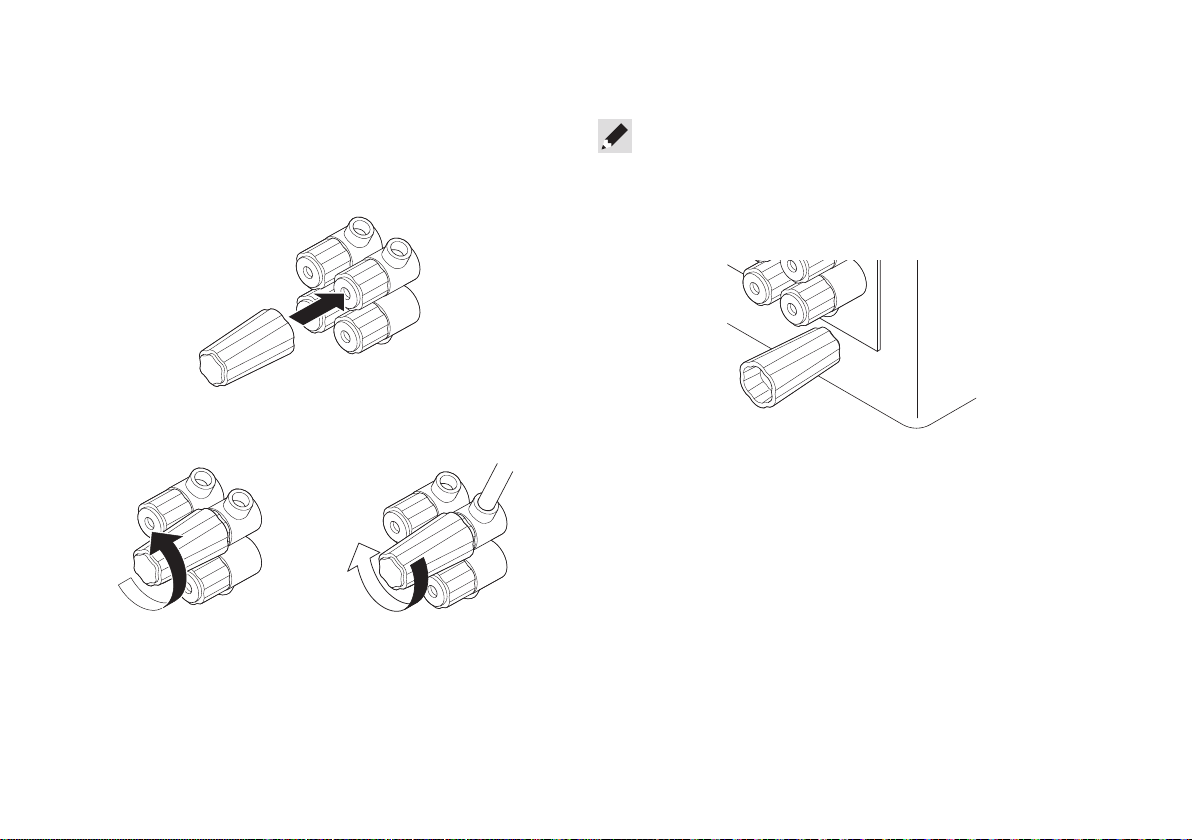

How to use the speaker terminal wrench

Use the included speaker terminal wrench to easily loosen or

tighten the speaker terminals.

Loosening Tightening

• The speaker terminal wrench contains a built-in magnet that enables

it to be attached to the rear panel. After connecting speakers, store it

in the included accessory box or in another safe place.

1.AMP 10 U_ENG_QSG_220929.indd 51.AMP 10 U_ENG_QSG_220929.indd 5 2022/09/29 14:49:332022/09/29 14:49:33

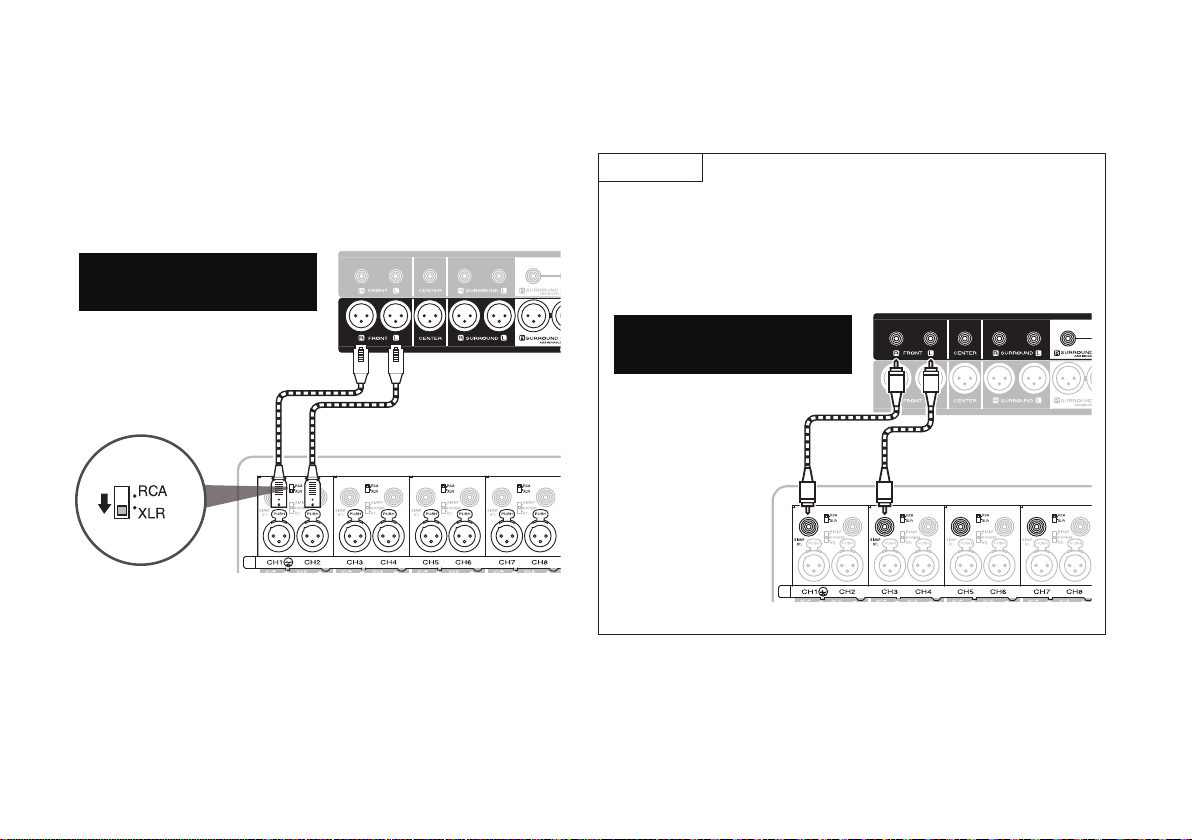

Connect your AV Preampli er ■Connect the UNBALANCED RCA INPUT

connector

Marantz

AV10

Marantz AV 10 or other

AV Preamplifier

NOTE

Always set the RCA/XLR INPUT selector before turning on the power.

If the setting is changed after turning on the power, the setting will not

be applied.

There are 2 methods for connecting this unit with an AV

Preampli er... an unbalanced connection or a balanced connection.

Set the RCA/XLR INPUT selector on the rear panel of this unit

according to the connection method used.

1.AMP 10 U_ENG_QSG_220929.indd 61.AMP 10 U_ENG_QSG_220929.indd 6 2022/09/29 14:49:332022/09/29 14:49:33

■Connect the BALANCED XLR INPUT connector

Marantz

AV10

Marantz AV 10 or other

AV Preamplifier

NOTE

When connecting speakers using a bi-amp connection or BTL

connection, connect BALANCED XLR or UNBALANCED RCA to an

odd-numbered channel (CH1, CH3, CH5, CH7...). Do not connect to

an even-numbered channel (CH2, CH4, CH6, CH8...).

Marantz

AV10

Marantz AV 10 or other

AV Preamplifier

1.AMP 10 U_ENG_QSG_220929.indd 71.AMP 10 U_ENG_QSG_220929.indd 7 2022/09/29 14:49:332022/09/29 14:49:33

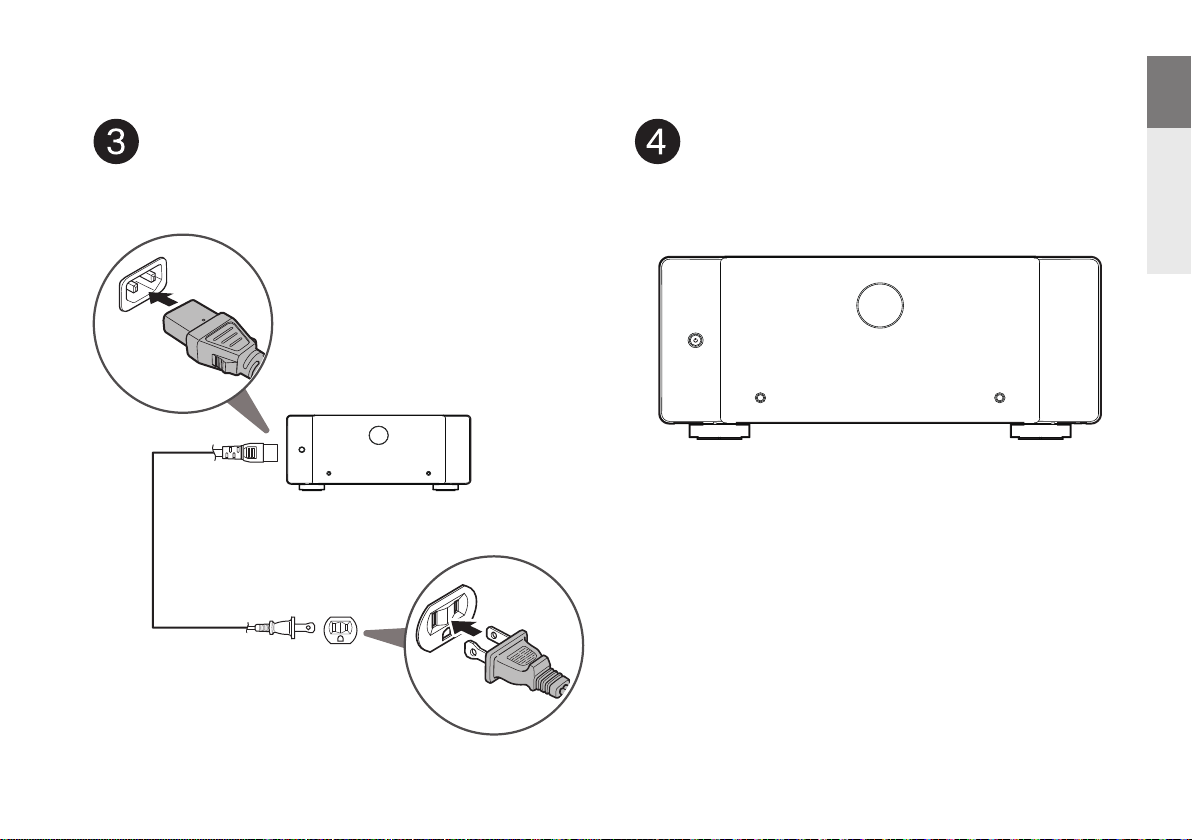

Connect the power cord

Power ampli er

Power cord

Press the X button on the power ampli er.

Turn on the power ampli er

1.AMP 10 U_ENG_QSG_220929.indd 81.AMP 10 U_ENG_QSG_220929.indd 8 2022/09/29 14:49:342022/09/29 14:49:34

Online manual

Owner’s manual

Refer to the online manual for other functions, information, and

operation procedure details.

manuals.marantz.com/AMP10/NA/EN/

For more information, visit www.marantz.com

Control cables (included)

The AMP 10 comes with the following two types of control cables.

Choose between the two to suit the type of device you are

connecting.

AMP CONTROL connector cable

When the AMP 10 is connected to a Marantz AV Preamplier with

an AMP CONTROL terminal, the following linked operations can be

performed.

• When the AV Preamplier is turned on or put on standby, the

same operation is applied to the AMP 10.

• When the display brightness setting of the AV Preamplier is

changed, the new setting is also applied to the front panel lights

of the AMP 10.

REMOTE CONTROL connector cable

When the AMP 10 is connected to a Marantz product with a

REMOTE CONTROL terminal, the following linked operations can be

performed.

• When a Marantz product is turned on or put on standby, the

same operation is applied to the AMP 10.

Refer to the owner’s manual for details such as instructions on

connecting.

1.AMP 10 U_ENG_QSG_220929.indd 91.AMP 10 U_ENG_QSG_220929.indd 9 2022/09/29 14:49:342022/09/29 14:49:34
