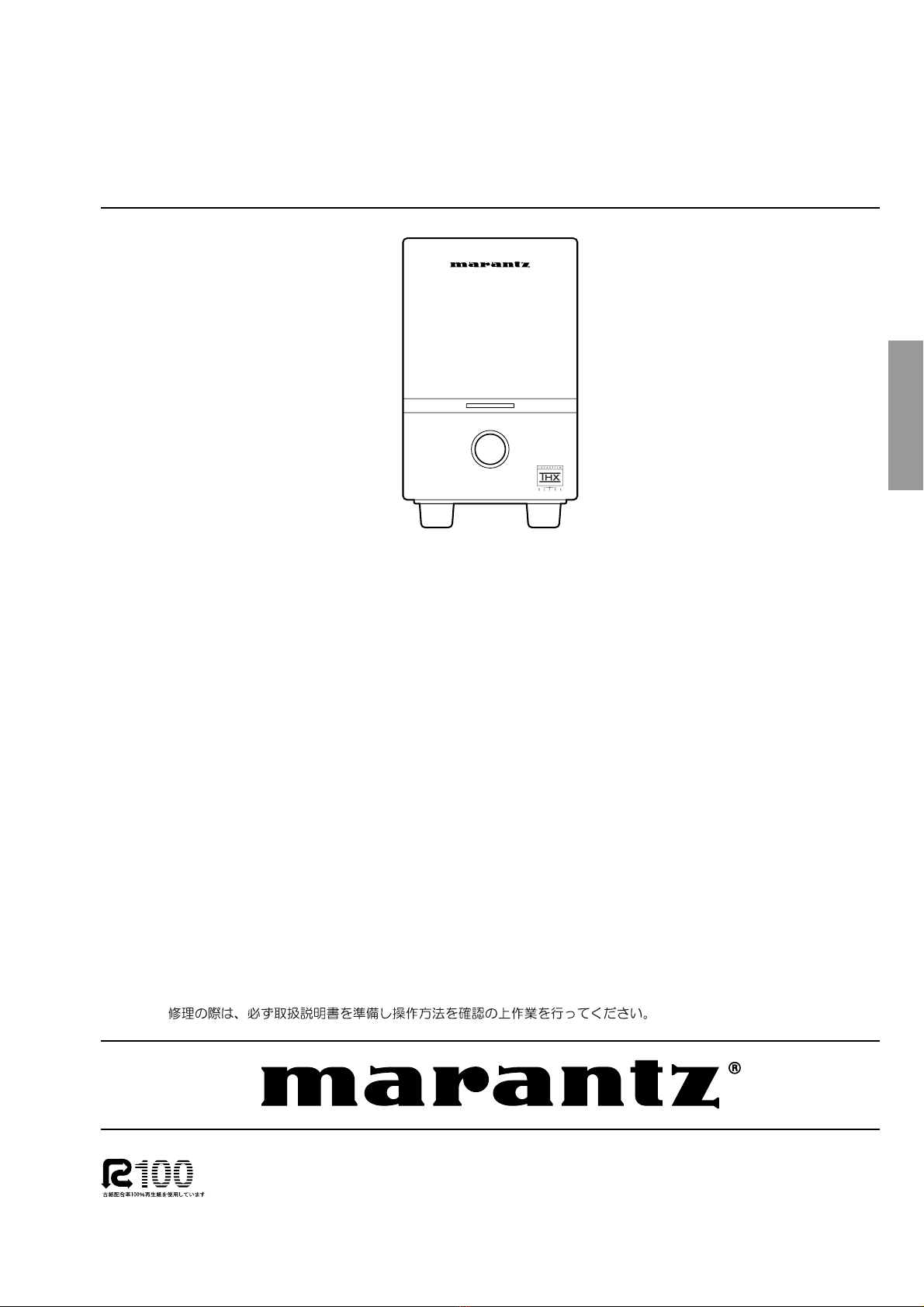

Marantz THX Ultra MA-6100 Manuale utente

Mono Power Amplifier

MA6100

MA6100 /L1G

SM-17SAAF N (SA14/F1N)

MA6100

Printed in Japan

Please use this service manual with referring to the user guide ( D.F.U. ) without fail.

Service

Manual

Printed on 100% Recycled Paper

ON/OFF

BLUE : POWER ON

RED : STANDBY

POWER

MONO POWER AMPLIFIER MA6100

REMARK :

• The model MA6100/L1G was added to the model MA6100.

• This service manual shows only the differences between the model MA6100/L1G and the

model MA6100/N1G/N1B/U1G/U1B.

All other information is described in the service manual of the model MA6100

(Part no. 329J855010).

• The dispatch of the parts for after sales service has to be referred to these service manuals,

with the first priority.

For this reason, please use this service manual with referring to the model MA6100 service

manual without fail.

Part no. 329J855020

First Issue 2003.12

ecm

POS. NO. VERS.

COLOR

PART NO.

(FOR EUR)

PART NO.

(MJI) DESCRIPTION

EXPLODED VIEW

005D /L 329J265130 INDICATOR FOR TOP COVER SIDE

901G /L/U nsp REAR PANEL

L001 /L/U TS18631010 MAINS TRANSF. 120V 60Hz

W001 /L YC01800950 MAINS CORD TAIWAN 7A 125V W/JST

PACKING

001T /L/U 329J851250 USER GUIDE MA6100

P701-MAIN/POWER SUPPLY CIRCUIT BOARD

C715 /L/N DK18473310 CER. 0.047µF Z 50V

C716 /L/N DK18103310 CER. 0.01µF Z 50V

C812 /L/N DK18103310 CER. 0.01µF Z 50V

CN06 /L/N DK18103310 CER. 0.01µF Z 50V

CS03 /L/N DD15470300 CER. 47pF J CH 50V BLK

CS08 /L/N DK16102300 CER. 1000pF K 50V

CS09 /L/N DK16471300 CER. 470pF K 50V

R801 /L/N GG05010160 1Ω±5% 1/6W

R802 /L/N GG05010160 1Ω±5% 1/6W

PB01-SUB TRANSF. CIRCUIT BOARD

FB01 /L/N FS10400850 FUSE 4A 250V BS LISTED

LB51 /L/U TS12812010 BACK UP TRANSF. 120V 60Hz

PY01-µ-COM CIRCUIT BOARD

JB73 /L/U YJ04001780 MAINS OUTLET 1P CCT1302-0202

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

The difference parts are the following. Other parts are the same.
