Marantz CD5005 Manuale utente

CD Player

CD5005

Owner’s Manual

You can print more than one page of a PDF onto a single sheet of paper.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Accessories 4

Inserting the batteries 5

Operating range of the remote control unit 5

Features 6

High quality sound 6

High performance 6

Part names and functions 7

Front panel 7

Display 9

Rear panel 10

Remote control unit 11

Connections

Connecting to a stereo audio amplifier 18

Connecting to a device with digital audio input connectors 19

Connecting devices with remote control connectors 20

Connection 20

Setting 20

Connecting the timer device 21

Connecting the power cord 22

Playback

Basic operation 24

Turning the power on 24

Switching the display’s brightness 25

Switching the sound mode 25

Playing CDs 26

Changing the playback speed (Pitch control playback) 28

A-B repeat playback 29

Playing tracks in a specific order (Program playback) 29

Skipping tracks you don’t want to hear (Delete program playback) 30

Switching the display (CD-TEXT) 31

Playing DATA CDs (MP3 and WMA files) 32

Playing files 33

Contents Connections Playback Settings Tips Appendix

Contents

Front panel Display Rear panel Remote Index

Settings

Menu map 35

Menu operation 36

Digital Out 37

Timer Play 37

Display Info 38

Auto Standby 38

Tips

Tips 40

Troubleshooting 41

Appendix

Playable media 44

Discs 44

Files 44

Playback order of MP3/WMA files 45

About discs and files 46

Cautions on using media 47

Inserting a disc 47

How to handle media 48

Cleaning discs 48

Explanation of terms 49

Specifications 50

Index 53

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Thank you for purchasing this Marantz product.

To ensure proper operation, please read this owner’s manual carefully before using the product.

After reading this manual, be sure to keep it for future reference.

Accessories

Check that the following parts are supplied with the product.

Quick Start Guide CD-ROM

(Owner’s Manual)

Safety Instructions Power cord

Remote control unit

(RC002PMCD)

R03/AAA batteries Audio cable Remote connector cable

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Inserting the batteries

1Remove the rear lid in the direction of the arrow and

remove it.

2Insert two batteries correctly into the battery

compartment as indicated.

R03/AAA batteries

3Put the rear cover back on.

NOTE

0When inserting the batteries, be sure to do so in the proper direction, following the

q and w marks in the battery compartment.

0To prevent damage or leakage of battery fluid:

0Do not use a new battery together with an old one.

0Do not use two different types of batteries.

0Remove the batteries from the remote control unit if it will not be in use for long

periods.

0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery

compartment and insert new batteries.

Operating range of the remote control

unit

Point the remote control unit at the remote sensor when operating it.

Approx. 7 m

30°

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Features

High quality sound

0Using Marantz original HDAM® SA2 circuit

The unit uses an HDAM® SA2 circuit, whose quality has been proved in

Super Audio CD players and high-end amplifiers, as a high-speed

buffer amplifier.

You can enjoy the high speed and high-quality sound like that produced

by high-end equipment.

0Incorporates a Cirrus Logic advanced D/A converter, CS4398

A D/A converter is an essential element for the audio quality of a CD

player. The CS4398 Cirrus Logic D/A Converter, which has a reputation

for high precision and has been adopted for other Marantz Super Audio

CD players, is adopted for this unit.

0Equipped with Audio EX function (v p. 25)

When digital output or the display are set to off, you can enjoy high

quality analog output sound.

0High grade headphone circuit

The high-grade headphone circuit incorporates a high-speed buffer

amplifier to enable headphone listening of high quality sound

reproduction, late at night or in other such situations.

High performance

0Equipped with pitch control function (v p. 28)

The CD playback speed (pitch) can be changed within a ±12 stage

range.

This function is useful for dancing practice, language learning, etc.

0Supports MP3 and WMA file playback (v p. 32)

MP3 and WMA files that have been recorded onto CD-R or CD-RW

discs can be played back on this CD player.

0Supports CD-TEXT display

CD-Text is an extension to the existing audio CD standard that enables

text information, such as the name of the artist, album title and song

titles to be stored on an audio CD. CDs with the following logos support

this function.

CD TEXT

TEXT

0Large 16-character / 2-line display

Text information appears on the large display during MP3 playback.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Part names and functions

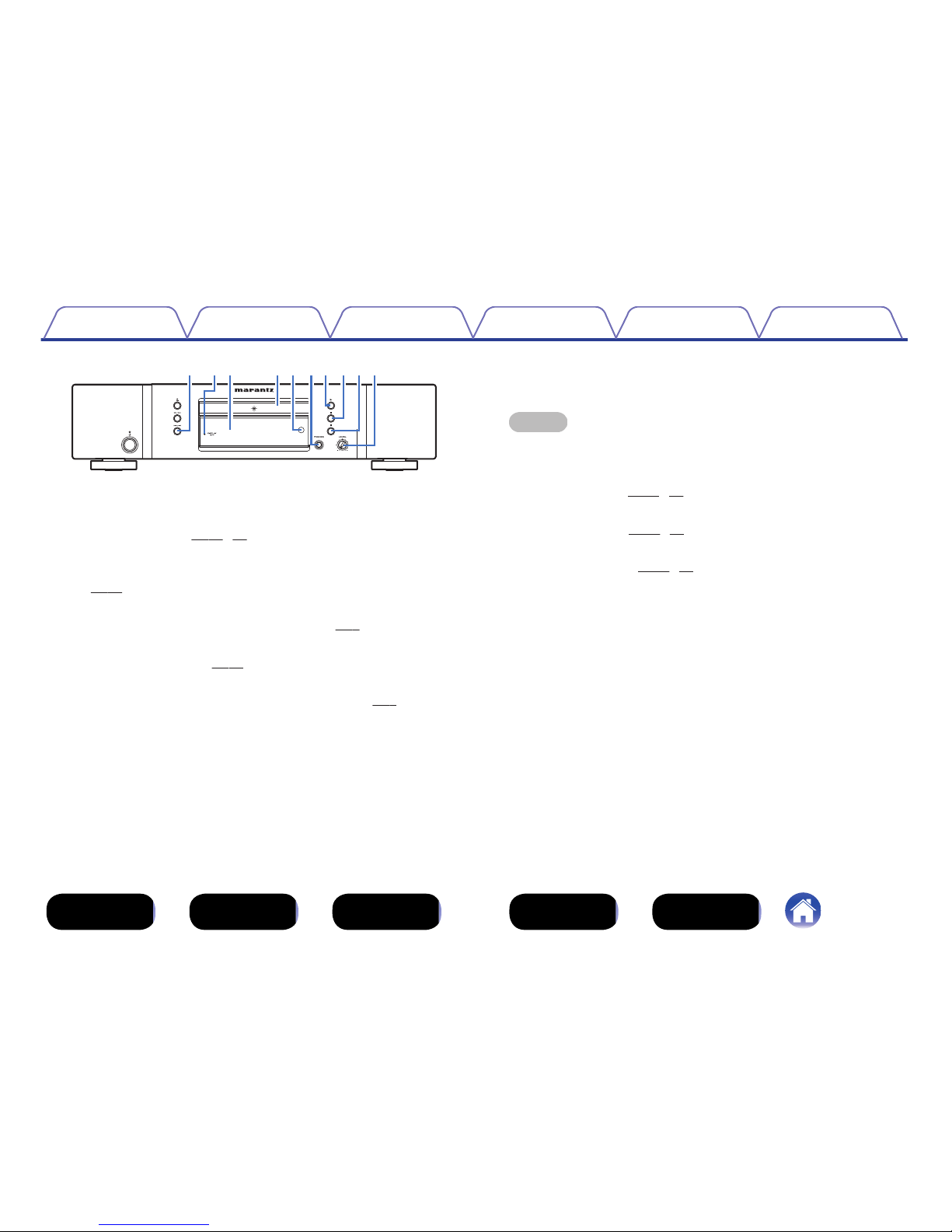

Front panel

i ouywq Q1Q0 Q22 Q3 Q4ert

APower operation button (X)

This turns the power on/off (standby). (v p. 24)

BPower indicator

This is lit as follows according to the power status:

0Power on : Off

0Standby : Red

CDisc tray open/close button (5)

Opens and closes the disc tray. (v p. 26)

DFast-forward/Forward-skip button (7/9)

Plays the next track. Press and hold to fast-forward the track.

(v p. 27, 33)

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

iouyQ1Q0 Q22Q3Q4t

EFast-reverse/Reverse-skip button (8/6)

Returns to the start of the currently playing track. Press and hold to fast-

reverse the track. (v p. 27, 33)

FDISPLAY OFF indicator

Lights when the display is off.

(v p. 25)

GDisplay

This displays various pieces of information. (v p. 9)

HDisc tray

Used to insert a disc. (v p. 26)

IRemote control sensor

This receives signals from the remote control unit. (v p. 5)

JHeadphones jack (PHONES)

Used to connect headphones.

NOTE

To prevent hearing loss, do not raise the volume level excessively when using

headphones.

KPlay button (1)

Playback starts. (v p. 27, 33)

LStop button (2)

Stops playback. (v p. 27, 33)

MPause button (3)

Pauses playback. (v p. 27, 33)

NHeadphone volume control knob (LEVEL)

Adjusts the headphone volume.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

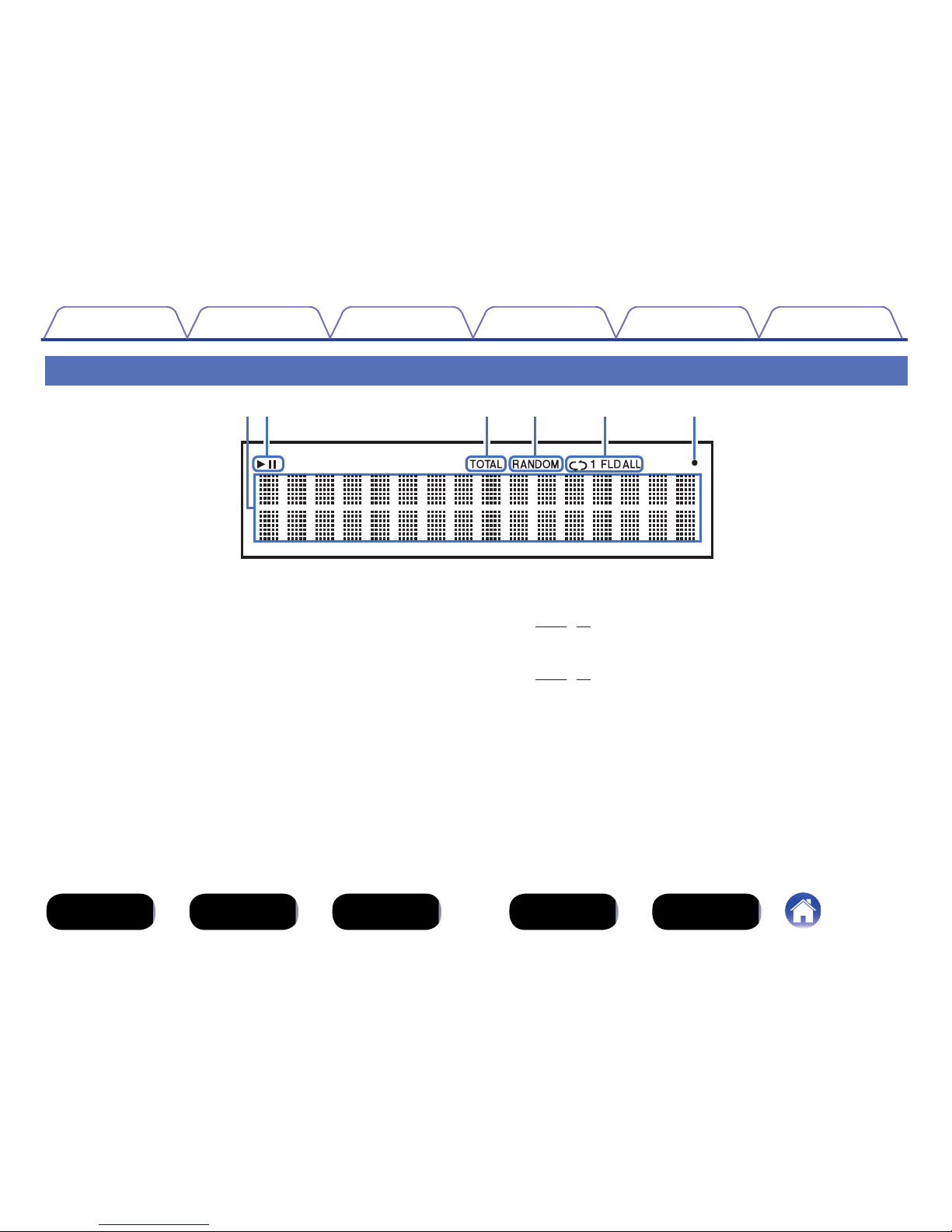

Display

wq ty

AInformation display

Displays various information or playback elapsed time and so on of the

disc.

BPlayback mode indicators

1 : Lights up during playback.

3 : Lights up during pause.

CTOTAL indicator

Lights when the total number of tracks and total time of the CD are

displayed.

DRANDOM indicator

Lights during random playback.

(v p. 27, 33)

ERepeat mode indicators

Lights to match the repeat mode settings.

(v p. 27, 33)

FRemote control signal reception indicator

Lights when a signal is received from the remote control.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Rear panel

twer

AAUDIO OUT connectors

Used to connect devices equipped with analog audio inputs connectors

or an external power amplifier. (v p. 18)

BDIGITAL AUDIO OUT connectors (COAXIAL/OPTICAL)

Used to connect an AV receiver or D/A converter that has a digital input

connectors. (v p. 19)

CREMOTE CONTROL jacks

Used to connect to a Marantz amplifier that is compatible with the

remote control function. (v p. 20)

DEXTERNAL/INTERNAL switch

Turn this switch to “EXTERNAL” to operate the unit by pointing the

remote control at the amplifier connected to this unit using the remote

control connection. (v p. 20)

EAC inlet (AC IN)

Used to connect the power cord. (v p. 22)

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index
