Thank you for purchasing this Marantz product.

To ensure proper operation, please read this owner’s manual carefully before using the product.

After reading this manual, be sure to keep it for future reference.

Accessories

Check that the following parts are supplied with the product.

Cable labelsWarranty

(for USA/for CANADA)

Notes on radio

Safety Instructions

Quick Start Guide

Sound calibration

microphone stand

Sound calibration

microphone

AM loop antennaFM indoor antennaPower cord

External antennas for

Bluetooth/wireless

connectivity

R03/AAA batteriesRemote control unit

(RC042SR)

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Inserting the batteries

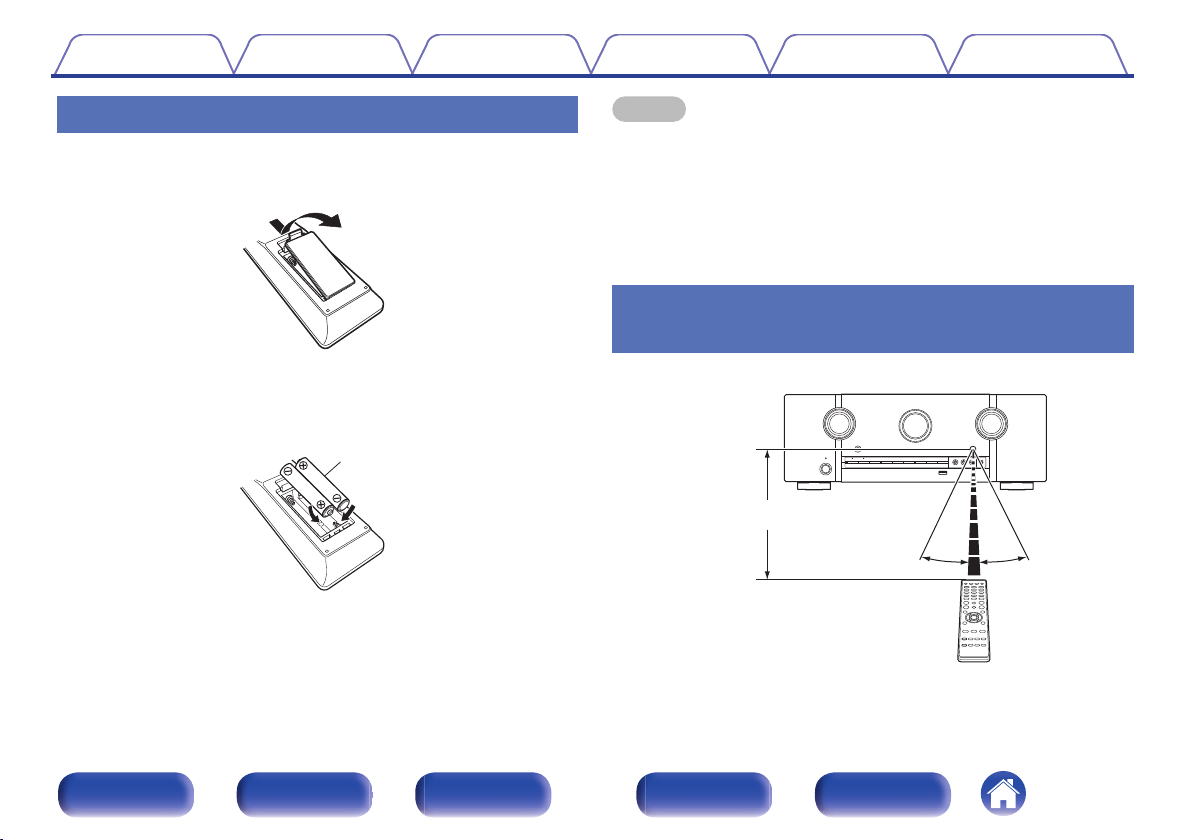

1Remove the rear lid in the direction of the arrow and

remove it.

2Insert two batteries correctly into the battery

compartment as indicated.

Batteries

3Put the rear cover back on.

NOTE

0To prevent damage or leakage of battery fluid:

0Do not use a new battery together with an old one.

0Do not use two different types of batteries.

0Remove the batteries from the remote control unit if it will not be in use for long

periods.

0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery

compartment and insert new batteries.

Operating range of the remote control

unit

Point the remote control unit at the remote sensor when operating it.

30°

Approx. 23 ft/7 m

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Features

High quality sound

0Powerful 7-Channel Discrete Amplifier

Featuring discrete high-current power amplifiers on all channels, this

unit delivers 100 W of power per channel (8 Ω/ohms, 20 Hz - 20 kHz,

T.H.D.: 0.08 %, 2ch drive). With low impedance driver capability, it

offers operational stability with a wide range of speakers for balanced,

quality sound.

Auto Eco Mode adjusts power output to speakers based on volume

level and on-screen eco meter, providing power consumption reduction

in real-time without sacrificing superb Marantz sound.

0Current feedback amplifier

This unit uses a high-speed current feedback amplifier circuit for its

preamplifier so that signals from a Blu-ray Disc player and other

equipment that support high-definition audio formats can be amplified

with high fidelity. The high-speed current feedback amplifier also

reproduces a natural sound space.

0Dolby Atmos (v p. 265)

This unit is equipped with a decoder that supports Dolby Atmos audio

format. The placement or movement of sound is accurately reproduced

by the addition of overhead speakers, enabling you to experience an

incredibly natural and realistic surround sound field.

0Speaker Virtualizer (v p. 157)

Speaker Virtualizer enables you to access a more immersive

entertainment experience from traditional channel based speaker

layouts through digital signal processing including Dolby Atmos height

virtualization and surround virtualization.

0Speaker Virtualizer is not for use when both height speakers and surround

speakers are connected.

0Height Virtualization may be applied when surround speakers are connected.

0DTS:X (v p. 268)

This unit is equipped with the DTS:X decoder technology. DTS:X brings

the home theater experience to new heights with its immersive object

based audio technology which removes the bounds of channels. The

flexibility of objects allows for sound to be scaled large or small and

moved around the room with greater accuracy than ever before leading

to a richer immersive audio experience.

0DTS Virtual:X (v p. 268)

DTS Virtual:X technology features DTS’s proprietary virtual height and

virtual surround processing to deliver an immersive sound experience

from any type of input source (stereo to 7.1.4 channel) and speaker

configuration.

0DTS Virtual:X is not for use when Height speakers are connected.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Marantz Ricevitore stereo

Marantz

Marantz 2238B Manuale utente

Marantz

Marantz SR7013 Manuale utente

Marantz

Marantz NR1710 Manuale utente

Marantz

Marantz NR1606/U1B Manuale utente

Marantz

Marantz SR6009/U1B Manuale utente

Marantz

Marantz SR5003 Manuale utente

Marantz

Marantz SR4003 Manuale utente

Marantz

Marantz R3001 Manuale utente

Marantz

Marantz 2325 Manuale utente

Marantz

Marantz SR7002 Manuale utente

Marantz

Marantz SR6005/N1SG Manuale utente

Marantz

Marantz SR-8001 Manuale utente

Marantz

Marantz SR8300 Manuale utente

Marantz

Marantz SR9000G Manuale utente

Marantz

Marantz SR5200 Manuale utente

Marantz

Marantz SR7002 Guida rapida

Marantz

Marantz SR5006 Manuale utente

Marantz

Marantz SR-3000 Manuale utente

Marantz

Marantz NR1609 Manuale utente

Marantz

Marantz NR1711 Manuale utente

Marantz

Marantz SR5015 Manuale utente

Marantz

Marantz SR5300 Manuale utente

Marantz

Marantz SR-4001 Manuale utente

Marantz

Marantz SR4500 Manuale utente

Manuali Ricevitore stereo popolari di altre marche

Kenwood

Kenwood KMDX92 Manuale utente

Yamaha

Yamaha RX-830 Manuale utente

Pioneer

Pioneer AVH-Z7250BT Manuale utente

Yamaha

Yamaha RX-750 Manuale utente

Denon

Denon AVR-1311 Manuale utente

Denon

Denon AVR-S760H Manuale utente

Denon

Denon AVR-X7200W Manuale utente

Pioneer

Pioneer SC-LX904 Manuale

Sony

Sony XAV-1500 Manuale utente

Radio Shack

Radio Shack DX-399 Manuale utente

Sony

Sony STR-DE535 - Fm Stereo/fm-am Receiver Manuale utente

Pioneer

Pioneer SX-1000TA Manuale utente

Yamaha

Yamaha MusicCast TSR-5B3D Manuale utente

Sony

Sony STR-DE335 - Fm Stereo/fm-am Receiver Manuale utente

Sony

Sony STR-DG500 - Multi Channel Av Receiver Manuale utente

Panasonic

Panasonic AJSD955B - DVCPRO50 STUDIO DECK Manuale utente

Pioneer

Pioneer SX-838 Manuale utente

Sherwood

Sherwood S-2660CP Manuale tecnico
