Marley DH1021C Istruzioni per l'installazione e il funzionamento

DH Series

Portable Industrial Unit

Blower Air Heaters

Dear Owner,

Congratulations! Thank you for purchasing this new heater by Marley Engineered Products. You have made a wise invest-

ment selecting the highest quality product in the heating industry. Please carefully read the installation and maintenance

instructions shown in this manual. You should enjoy years of efficient heating comfort with this product from Marley

Engineered Products... the industry’s leader in design, manufacturing, quality and service.

... The Employees of Marley Engineered Products

Installation & Maintenance Instructions

When using electrical appliances, basic precautions should

always be followed to reduce the risk of fire, electric shock

and injury to persons, including the following:

1. Read all instructions before using this heater.

2. This heater is hot when in use. To avoid burns, do not let

bare skin touch hot surfaces. If provided, use handles

when moving this heater. Keep combustible materials,

such as furniture, pillows, bedding, papers, clothes, and

curtains at least 3 feet (0.9 m) from the front of the heater

and keep them away from the sides and rear.

3. Extreme caution is necessary when any heater is used by

or near children or handicapped individuals and whenev-

er the heater is left operating and unattended.

4. Always disconnect heater when not in use.

5. Do not operate any heater with a damaged cord or plug

or after the heater malfunctions, has been dropped or

damaged in any manner. Return heater to authorized ser-

vice facility for examination, electrical or mechanical

adjustments, or repair.

6. Do not use outdoors.

7. This heater is not intended for use in bathrooms, laundry

areas and similar indoor locations. Never locate heater

where it may fall into a bathtub or other water container.

8. Do not run cord under carpeting. Do not cover cord with

throw rugs, runners or the like. Arrange cord away from

traffic area and where it will not be tripped over.

9. To disconnect heater, turn thermostat off, then remove

plug from outlet.

10.Connect to properly grounded outlets only.

11. Do not insert or allow foreign objects to enter any ventila-

tion or exhaust opening as this may cause an electric

shock, fire or damage the heater.

12.To prevent a possible fire, do not block air intakes or

exhaust in any manner. Do not use on soft surfaces, like

a bed, where opening may become blocked.

13.A heater has hot and arcing or sparking parts inside.Do

not use it in areas where gasoline, paint or flammable liq-

uids are used or stored.

14.Use this heater only as described in this manual. Any

other use not recommended by the manufacturer may

cause fire, electric shock or injury to persons.

15.This heater is not intended for use with an extension cord.

16. Save these instructions.

SAVE THESE INSTRUCTIONS

WARNING !

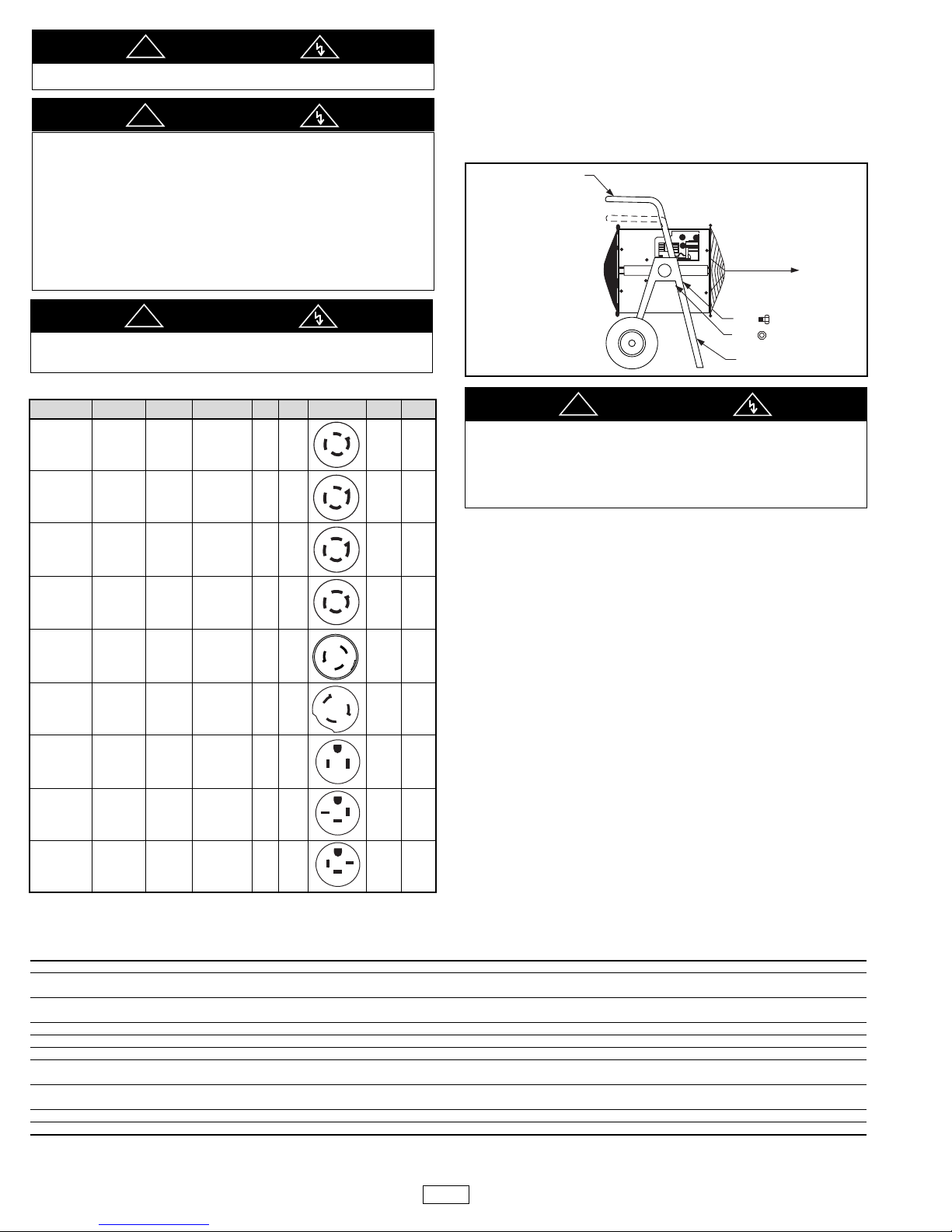

ASSEMBLY INSTRUCTIONS

The DH is shipped fully assembled. The handle is assembled in

the lower position (dotted line Fig. 1). To position handle in the

upright position, remove bolts securing the handle to the support

legs, lift handle until the handle holes line up with the upper holes

in the support legs and insert bolts to secure the handle in the full

upright position.

WIRING INSTRUCTIONS

1. Use heater only on the voltage and frequency specified on

the nameplate.

2. All wiring should be done in accordance with local codes and

the National Electrical Code by a qualified person.

3. Branch circuit wire for connection to heater must be at least

90°C wire.

4. The top access panel is secured by 4 screws that must be

loosened to gain access.

5. A ground terminal is provided near the power terminal board.

The ground wire should be connected before other

connections are made.

6. Refer to Chart A for proper size “SO” grade cable.

7. A proper strain relief must be used with “SO” grade cable.

8. Dragon heaters are factory pre-wired for 3-phase delta

operation. Some units can be converted to single phase

operation by changing the wiring. Refer to Chart A for those

heaters that can be converted to single phase. The

appropriate wiring diagram is also located on the back of the

wiring compartment cover.

Risk of fire. Do not use as a residential or household heater.

WARNING

Hazard of Fire or Discoloration of Temperature Sensitive

Fabrics. Do not use as a residential or household heater. Keep

combustible material and such fabrics away from heater. Do

not operate heater where flammable vapors, gases or liquids

are present. Heaters in the heat mode should not be operated

in room temperatures above 80°F. Fan motor is not designed

to operate in ambients below -40°F.

To avoid personal injury read “IMPORTANT INSTRUCTIONS”

before installation or operation of heater.

WARNING

Keep electrical cords and combustible materials, such as

drapes and other furnishings, away from heater.

WARNING

Bolt ( )

Nut ( )

Support Leg

Handle

Direction of

Airflow

Figure 1

ELECTRIC SHOCK HAZARD. Disconnect all power before

installing or servicing heater. Failure to do so could result in

personal injury or property damage. Heater must be effectively

grounded in accordance with the National Electrical Code,

NFPA 70.v

WARNING

Fits Cable Dia. Plug Type Model Description Volts Amps Configuration NEMA # ANSI #

.385”-.780” Locking LPS25124 3 Pole, 4 Wire 250 20 L15-20 C73.85

.385”-.780” Locking LPS25103 3 Pole, 4 Wire 250 30 L15-30 C73.86

.595”-1.150” Locking LPS25104 3 Pole, 4 Wire 480 30 L16-30 C73.88

.595”-1.150” Locking LPS25084 3 Pole, 4 Wire 600 30 L17-30 C73.89

.750”-1.125” Locking LPS25083 2 Pole, 4 Wire 600 50 — —

.750”-1.125” Locking LPS25064 3 Pole, 4 Wire 600 50 — —

.625”-1.187” Non Locking NPS25650 2 Pole, 3 Wire 250 50 6-50 C73.53

.390”-.775” Non Locking NPS1520 3 Pole, 4 Wire 250 20 15-20 C73.59

.750”-1.250” Non Locking NPS1550 3 Pole, 4 Wire 250 50 15-50 C73.61

Plug Specifications

WIRING 25 FT OPTIONAL PLUGS

MODEL DIAGRAM SHIP WIRE CORD LOCKING NON-LOCK

NUMBER KW VOLTS BTUH PH AMPS NUMBER WT. SIZE SET TYPE TYPE

DH1021C* 10 240 34,120 1 41.7 N/A 65 lbs N/A Included* - Included

DH0783 7.5 208 25,590 1 36.3 1A 65 lbs 8/3 CS25083 - NPS25650

3 21 1 10/4 CS25104 LPS25103 NPS1550

DH1023 10 240 34,120 1 40.8 1A 65 lbs 6/3 CS25063 - NPS25650

3 23.6 1 10/4 CS25104 - NPS1550

DH1583 15 208 51,180 3 41.8 1 65 lbs 6/4 CS25064 - NPS1550

DH1523 15 240 51,180 3 36.3 1 65 lbs 8/4 CS25084 - NPS1550

DH1521 15 240 51,180 1 62.5 1A 65 lbs 4/4 CS25044 - NPS1550

DH1543 15 480 51,180 1 31.4/18.2 2A 65 lbs 8/3 CS25083 LPS25083 -

3 2 12/4 CS25124 LPS25104 -

DH2043 20 480 68,240 1 41.6/24.4 4A 75 lbs 6/3 CS25063 LPS25083 -

3 4 10/4 CS25104 LPS25084 -

DH3043 30 480 102,360 3 36.3 4 75 lbs 6/4 CS25064 LPS25064

DH3063 30 600 102,360 3 29.1 4 75 lbs 8/4 CS25084 LPS25084

*Model DH1021C is shipped with 10 ft. power cord and plug.

Note: All units are factory wired for 3 phase operation. Models designated 1 and 3 phase can be field wired for single phase operation.

Chart A

OPERATION INSTRUCTIONS

THERMOSTAT

Heaters include a bimetal thermostat for the automatic control

of the exiting air temperature. The thermostat knob controls the heating

elements and fan functions. The heater and fan are

de-energized with the knob in the extreme clockwise position.

Turning the knob clockwise from the off position to the fan

position will energize the fan only, for use in summer cooling.

The adjustment knob controls power to the heater and fan

when turned further in the clockwise direction, with the highest tempera-

ture setting in the extreme clockwise position.

The temperature setting in the heater mode is approximately

40°F in the low setting and 100°F at the highest setting.

Note: The adjustment knob should be turned to the fan only

setting after use for heating. The fan should be left on for at least 3 min-

utes to remove residual heat from the unit and to prevent overheating of

the housing.

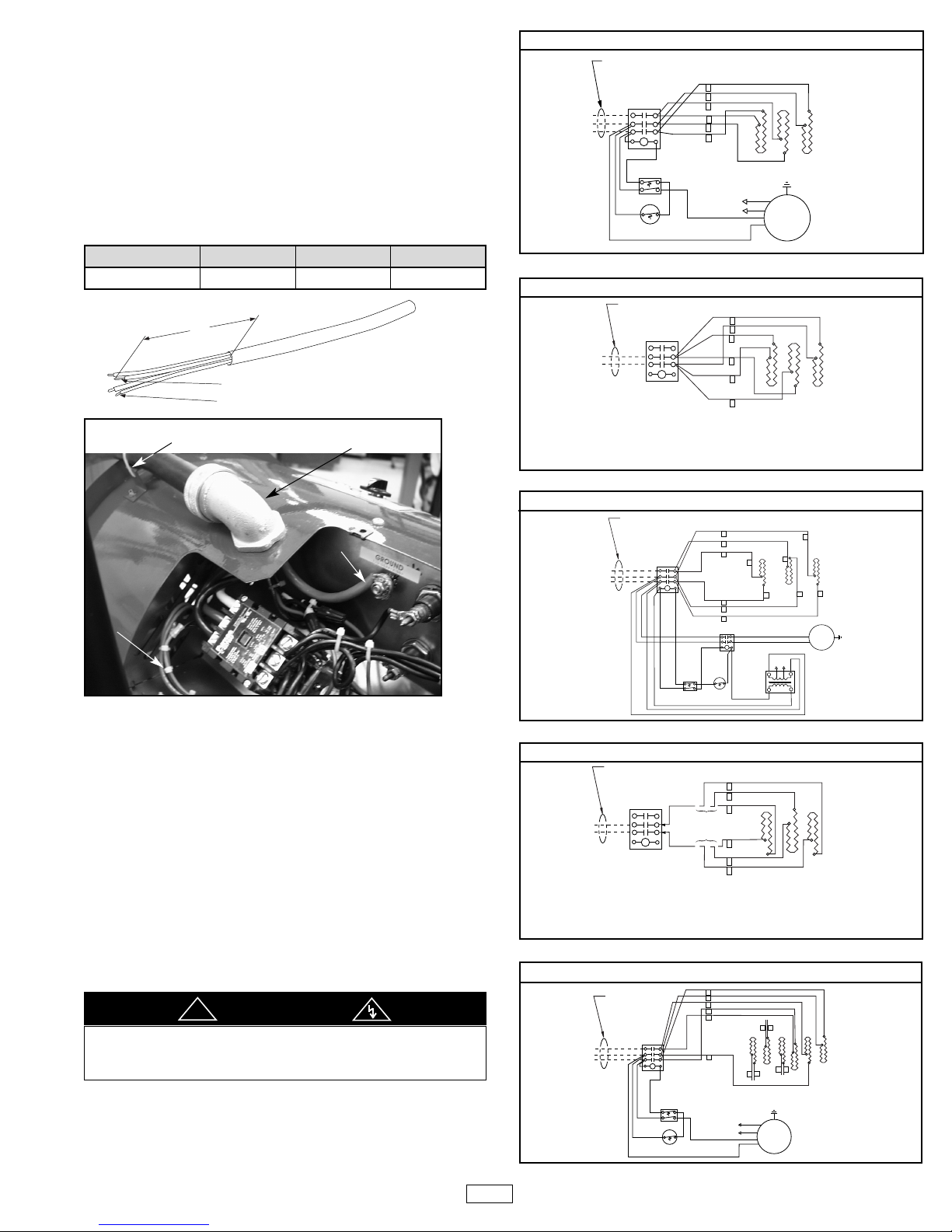

Cord Preparation for Portable Heaters

1. Determine the gage and number of conductors fromChart A using

amps and phase from the heater nameplate. It is not recommended

that cord exceed 50 feet in length.

2. Strip off outer jacket of cord and insulation from lead wires. The tabu-

lation below provides the strip dimensions for the

various Chromalox portable heaters. See the nameplate on the heater

for the Model number.

3. Slide fitting onto cord and tighten knurled nut to secure fitting

to cord.

4. Select plug to match electrical rating of cord.

5. On opposite end of cord prepare end as directed by

instructions that are provided with the plug.

6. Attach cord assembly to heater as shown in Fig. 2 below:

Model No. A B C

All Models 8” 1” 0.5”

Figure 2

Run wire tie through slots in bracket and over cord.

Pull tab of wire tie to provide cord strain relief.

Power

wires

Ground

wire

90° fitting

"A"

"B" (Insulation strip dimension for ground wire).

"C" (Insulation strip dimension for power wires).

L1 2

Thermostat

Cord by others.

Type "SO" or equal

sized to meet nameplate

requirements

Front of

Heater

Red

Motor

Blu Blk

Wht

Cutout

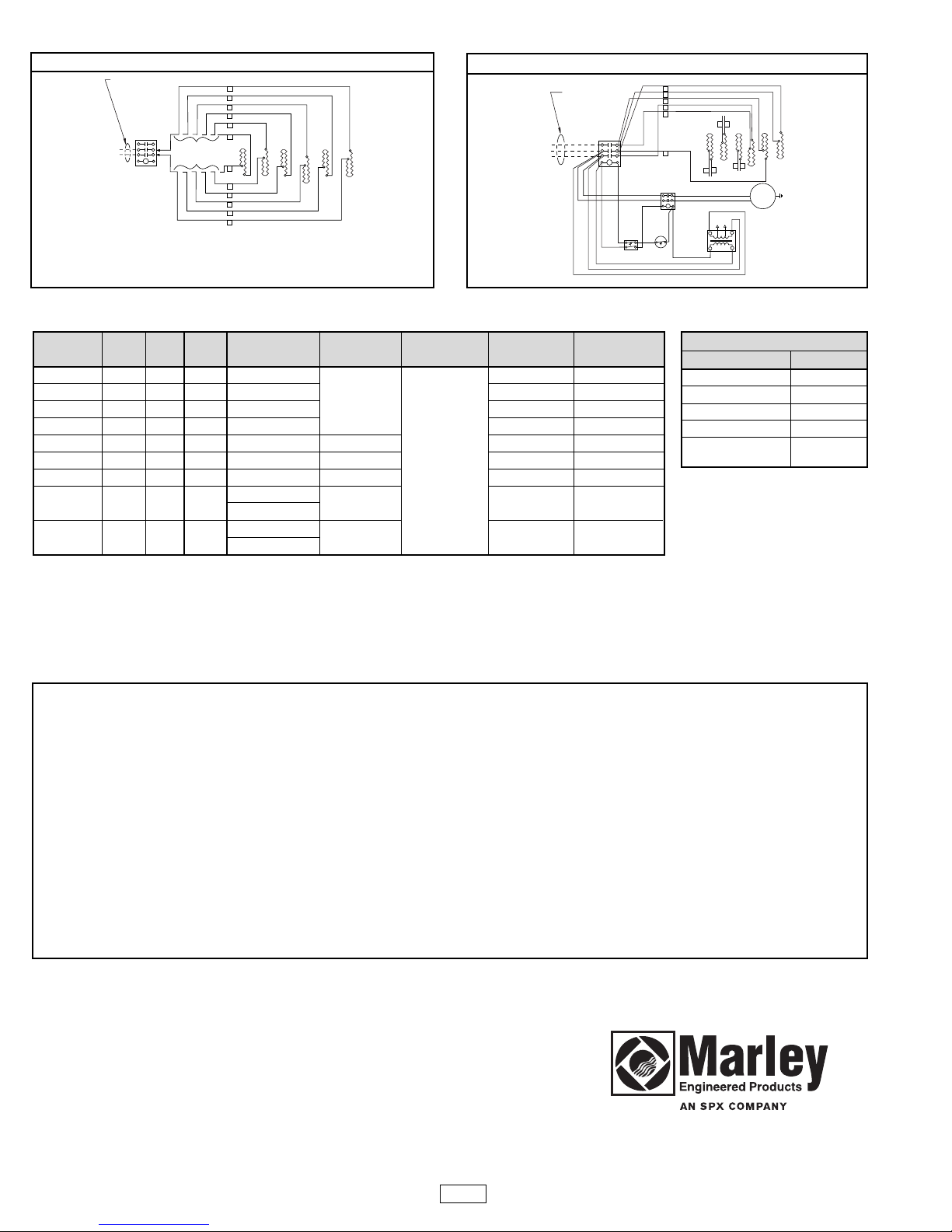

Diag. 1 – FACTORY WIRED 3 PHASE

Cord by others.

Type "SO" or equal

sized to meet nameplate

requirements

Front of

Heater

All control wiring

same as Diag. 1

Instructions:

1. Loosen screws on load side of contactor. Remove all lead wire.

2. Insert lead wires numbers 1, 3, and 5 into box lug connector "T1". Tighten screws

on box lug connector.

3. Insert lead wires numbers 2, 4, and 6 into box lug connector "T2". Tighten screws

on box lug connector.

4. Examine wiring to make certain it is per above diagram.

Diag. 1a – FIELD CONVERSION TO 1 PHASE

All control wiring

same as Diag. 2

Cord by others.

Type "SO" or equal

sized to meet nameplate

requirements

Front of

Heater

All even numbered wires to T2

All odd numbered wires to T1

Contactor

Instructions:

1. Loosen screws on load side of contactor. Remove all lead wire.

2. Insert lead wires numbers 1, 3, and 5 into box lug connector "T1".

Tighten screws on box lug connector.

3. Insert lead wires numbers 2, 4, and 6 into box lug connector "T2".

Tighten screws on box lug connector.

4. Examine wiring to make certain it is per above diagram.

Diag. 2a – FIELD CONVERSION TO 1 PHASE

Thermostat

Cord by others.

Type "SO" or equal

sized to meet nameplate

requirements

Front of

Heater

Blk/Red or Grey

Motor

Blk

Wht

Cutout

Contactor

246

To T3

To T1 To T2 To T1

To T2

Fan Relay

XFMR

Blk

Black

White

Diag. 2 – FACTORY WIRED 3 PHASE

Thermostat

Cord by others.

Type "SO" or equal

sized to meet nameplate

requirements

Front of

Heater

Motor

Blue

Cutout

Contactor

To T3

To T1

To T2 To T1

To T2

Red

Black

White

Diag. 3 – FACTORY WIRED 3 PHASE

MAINTENANCE INSTRUCTIONS

Replace or repair damaged cords or plugs immediately. Check

tightness of all electrical connections prior to energizing the

heater. Blow out or vacuum away any dirt or debries that may

have accumulated around the control enclosure fan motor or

heating elements.

Electric Shock Hazard. Disconnect heater from power supply

before servicing and/or inspecting the heater; failure to do so

may result in electrical shock.

WARNING

All control wiring

same as Diag. 4

Cord by others.

Type "SO" or equal

sized to meet nameplate

requirements

Front of

Heater

All even numbered wires to T2

All odd numbered wires to T1

Contactor

Instructions:

1. Loosen screws on load side of contactor. Remove all lead wire.

2. Insert lead wires numbers 1, 3, 5, 7, 9 and 11 into box lug connector "T1".

Tighten screws on box lug connector.

3. Insert lead wires numbers 2, 4, 6, 8, 10 and 12 into box lug connector "T2".

Tighten screws on box lug connector.

4. Examine wiring to make certain it is per above diagram.

Diag. 4a – FIELD CONVERSION TO 1 PHASE

LIMITED WARRANTY

All products manufactured by Marley Engineered Products are warranted against defects in workmanship and materials for one year from date of installation, except heat-

ing elements which are warranted against defects in workmanship and materials for five years from date of installation. This warranty does not apply to damage from acci-

dent, misuse, or alteration; nor where the connected voltage is more than 5% above the nameplate voltage; nor to equipment improperly installed or wired or maintained in

violation of the product’s installation instructions. All claims for warranty work must be accompanied by proof of the date of installation.

The customer shall be responsible for all costs incurred in the removal or reinstallation of products, including labor costs, and shipping costs incurred to return products to

Marley Engineered Products Service Center. Within the limitations of this warranty, inoperative units should be returned to the nearest Marley authorized service center or

the Marley Engineered Products Service Center, and we will repair or replace, at our option, at no charge to you with return freight paid by Marley. It is agreed that such

repair or replacement is the exclusive remedy available from Marley Engineered Products.

THE ABOVE WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, AND ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE WHICH EXCEED THE AFORESAID EXPRESSED WARRANTIES ARE HEREBY DISCLAIMED AND EXCLUDED FROM THIS

AGREEMENT. MARLEY ENGINEERED PRODUCTS SHALL NOT BE LIABLE FOR CONSEQUENTIAL DAMAGES ARISING WITH RESPECT TO THE PRODUCT,

WHETHER BASED UPON NEGLIGENCE, TORT, STRICT LIABILITY, OR CONTRACT.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives

you specific legal rights, and you may also have other rights which vary from state to state.

For the address of your nearest authorized service center, contact Marley Engineered Products in Bennettsville, SC, at 1-800-642-4328. Merchandise returned to the fac-

tory must be accompanied by a return authorization and service identification tag, both available from Marley Engineered Products. When requesting return authorization,

include all catalog numbers shown on the products.

06/08

5200-2653-001

PPD057A

470 Beauty Spot Rd. East

Bennettsville, SC 29512 USA

HOW TO OBTAIN WARRANTY SERVICE AND

WARRANTY PARTS PLUS GENERAL INFORMATION

1. Warranty Service or Parts 1-800-642-4328

2. Purchase Replacement Parts 1-800-654-3545

3. General Product Information www.marleymep.com

Note: When obtaining service always have the following:

1. Model number of the product

2. Date of manufacture

3. Part number or description

Thermostat

Cord by others.

Type "SO" or equal

sized to meet nameplate

requirements

Front of

Heater

Blk/Red or Grey

Motor

Blk

Wht

Cutout

Contactor

To T3

To T1

To T2 To T1

To T2

Fan Relay

XFMR

Blk

Black

White

Diag. 4 – FACTORY WIRED 3 PHASE

PARTS COMMON TO ALL UNITS

DESCRIPTION PART NO.

Wheels 333-557518-004

Grille 134-304780-002

Thermostat 300-304782-001

Thermal Cut-out 300-048038-003

Fan Relay (not used on 072-123534-057

208 and 240V Models)

ELEMENT MOTOR FAN CONTACTOR CONTROL

MODEL NO. VOLTS KW PHASE PART NO. PART NO. PART NO. PART NO. TRANS/

DH0783 208 7.5 1 and 3 118-304793-001 072-304551-014 ———

DH1023 240 9.75 1 and 3 118-304793-004 193-302120-009 072-304551-014 ———

DH1583 208 15 3 118-304793-007 072-304551-014 ———

DH1523 240 15 3 118-304793-008 072-304551-014 ———

DH1543 480 15 1 and 3 118-304793-009 193-302120-012 072-304551-008 315-304252-001

DRA-20-23 240 19.5 3 118-304793-004 193-302120-009 112-045422-007 072-304551-014 ———

DRA-20-43 480 20 1 and 3 118-304793-005 193-302120-012 072-304551-008 315-304252-001

DRA-30-43* 480 30 3 118-304793-011a 193-302120-012 072-304551-008 315-304252-001

118-304793-013b

DRA-30-93* 600 30 3 118-304793-012a 193-302120-015 072-304551-008 315-304252-003

118-304793-014b

*30 kW units contain two sets of three elements (six total). The ratings of the three elements on the discharge end have a lower wattage than the elements on

the fan end of heater. The ends of the elements are color coded, the lower wattage are color coded yellow and the higher wattage are color coded blue.

a. Lower wattage elements, discharge end, yellow coded

b. Higher wattage elements, fan end, blue coded

Renewal Parts Identification

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Marley Stufa

Marley

Marley RR41512 Istruzioni per l'installazione e il funzionamento

Marley

Marley 1235 Series Manuale utente

Marley

Marley PH4AB Istruzioni per l'installazione e il funzionamento

Marley

Marley Smart series ARWH4807 Manuale utente

Marley

Marley CDF552SE Guida

Marley

Marley D Guida

Marley

Marley HTWH Series Manuale utente

Marley

Marley D Series Istruzioni per l'installazione e il funzionamento

Marley

Marley 2500 & C2500 Series Manuale di istruzioni

Marley

Marley PH4AB Manuale del proprietario

Marley

Marley Smart Series Manuale utente

Marley

Marley FZL Series Istruzioni per l'installazione e il funzionamento

Marley

Marley MWUH Istruzioni per l'installazione e il funzionamento

Marley

Marley CSLAS Guida

Marley

Marley LFP Series Istruzioni per l'installazione e il funzionamento

Marley

Marley 542 Istruzioni per l'installazione e il funzionamento

Marley

Marley R1500 Manuale di istruzioni

Marley

Marley N1011B Istruzioni per l'installazione e il funzionamento

Marley

Marley K404A Istruzioni per l'installazione e il funzionamento

Marley

Marley HT2024SSNW Manuale utente

Marley

Marley S1500TB Istruzioni per l'installazione e il funzionamento

Marley

Marley U1000 Istruzioni per l'installazione e il funzionamento

Marley

Marley HTSS Series Manuale di istruzioni per l'installazione

Marley

Marley HTSS Series Manuale di istruzioni per l'installazione

Manuali Stufa popolari di altre marche

oventrop

oventrop Regucor Series Manuale utente

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuale utente

ELMEKO

ELMEKO ML 150 Manuale utente

BN Thermic

BN Thermic 830T Manuale utente

KING

KING K Series Guida

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guida rapida

Well Straler

Well Straler RC-16B Manuale utente

EUROM

EUROM 333299 Manuale utente

Heylo

Heylo K 170 Manuale utente

Eterna

Eterna TR70W Manuale utente

Clarke

Clarke GRH15 Manuale di istruzioni

IRSAP

IRSAP The Radiator Company Ovali Manuale utente

Empire Heating Systems

Empire Heating Systems WCC65 Manuale utente

Wetekom

Wetekom 92 86 43 Manuale utente

Desa

Desa SPC170-F Manuale utente

Watlow

Watlow Watrod Electric Tubular Heaters Manuale utente

Haverland

Haverland ECO-DRY GPS Series Manuale elenco delle parti

Stelpro

Stelpro ASILVC2060 Series Manuale utente
