USER MANUAL

IP-2101

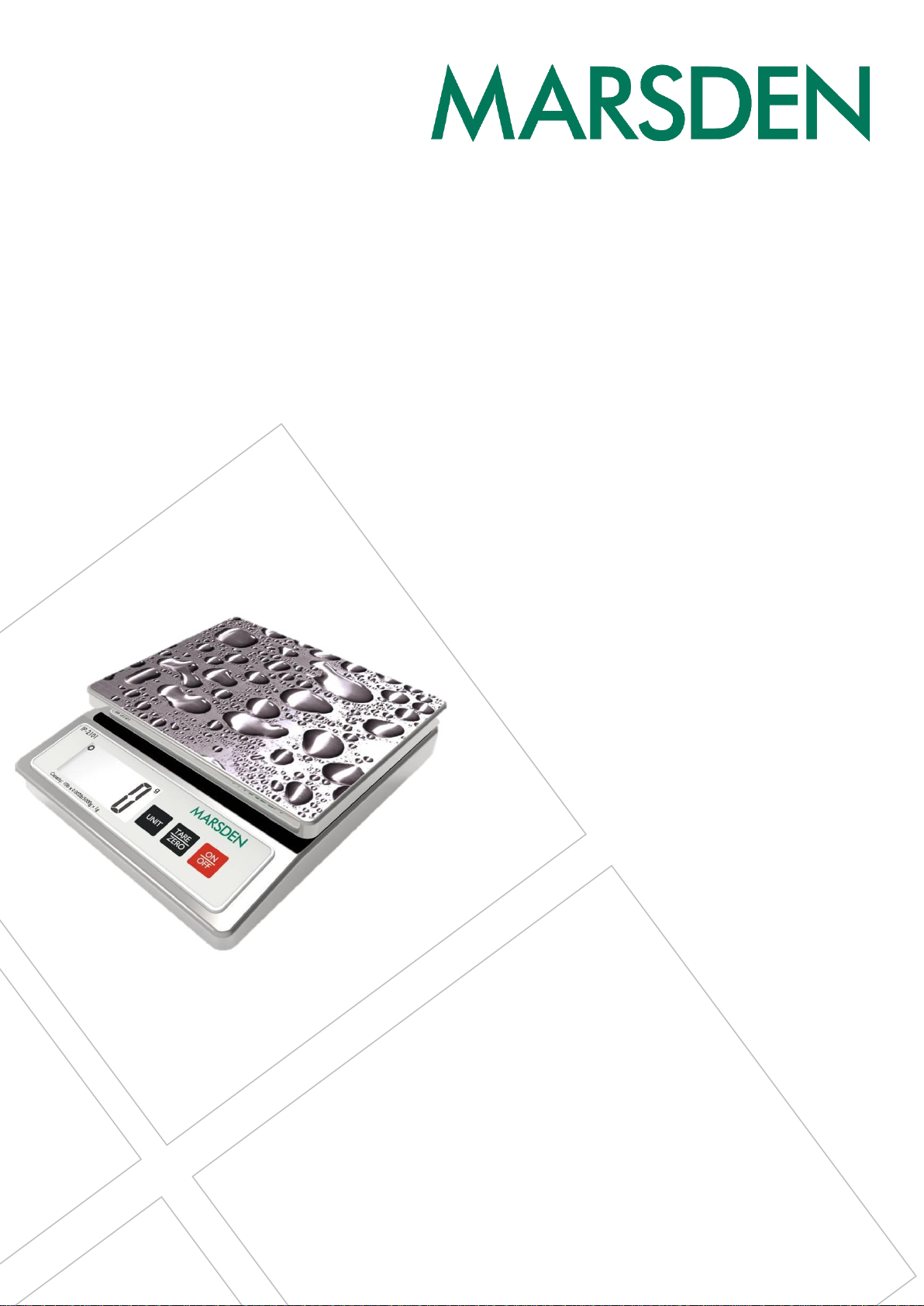

Marsden Small Bench Scale

Please take time to read these

instructions before starting

to use the scale

Version 1.0 03/18

Contents

Cleaning 3

Specification 4

Panel 5

Key Functions 5

LCD Symbols Description 5

Using the IP-2101 6

Using the Tare Function 6

Using the Unit Key 7

Setting Auto-Off Time 7

Installing the Battery 8

Error Message 9

Page 2

Cleaning

•Do not use organic solvents to clean the balance. Clean the balance with a lint free

cloth that is moistened with warm water and detergent.

•Do not disassemble the scale.

•Do not use solvents to clean the scale.

•For best cleaning of the display unit, wipe with a dry lint free cloth or a damp cloth

•Do not scratch the base unit with a brush.

•Do not use a powerful jet wash.

Product Specification

Model

IP-2101

Capacity/Division

10lb x 0.002lb / 5000g x 1g

Units of Measure

g/lb

Dimension

170 x 150 x 46.5mm

Platform Size

120 x 150mm

Display

0.8 inch LCD display

Keys

Unit, On/Off, Tare/Zero

Weight

N.W: 2.6kg G.W: 3.7kg

Power

9V alkaline battery

Temperature Range

5°C up to 35°C

Page 3

Panel

Key Features

ON/OFF

Turn the scale On/Off

TARE/ZERO

To Tare the unwanted weight during weighing process

Unit

To select the weighing unit

LCD Symbols Description

Page 4

Stable Sign

LCD displays measured weight,

units and status information

Weighing units

Low battery

Minor weight value

Using the IP-2101

1. Switch ON the scale using the ON/OFF key.

2. The display will show count down from 88888 and will automatically the display will

automatically the display will zero (weighing mode)

3. Place the item/animal in the middle of the scale. Wait until the scale stabilizes and

stable sign (o) shows on the screen.

Note: The scale with automatically zero when turned on. If a value is displayed when the

platform is empty, press TARE to zero the display.

Direction: If an item is heavier than the scale capacity, the display will show ‘Err’ prompt

(=overload)

Using the TARE function

Tare allows the user to zero the weight of a container from the reading shown on the

display of the scale, thus giving the true weight of the product being tested.

•

Turn on the scale using ON/OFF key.

•

When 0.00 is displayed on the screen, place the empty container on the scale.

•

Press TARE/ZERO key after the weight stabilizes and the stable sign appears on

the display.

•

The display will then return to 0.00

•

Place the item that needs to be weighed (without removing the tare object).

The display will now show the Net weight of the item.

•

To remove the saved tare value, remove the container from the weigh plate

and press TARE/ZERO key.

Page 5

Using the Unit Key

UNIT key is used to switch from one weighing unit to another. For example: g > lb.

IP-2101 Unit key is very easy to use, simple press UNIT key to switch the weighing unit.

Setting Auto-Off Time

IP-2101 has Auto-Off time option, which enables the scale to be turned off automatically if

the scale is not in use. The time duration for auto-off can be selected in the following way:

•Turn-On the scale using ON/OFF key.

•Long press TARE key for 3 seconds after the countdown stops and LCD stops and

LCD displays zero.

•First ‘SET’ and then ‘UNIT’ will display.

•Press ‘UNIT’ key once.

•A_OFF will display on the screen.

•Press TARE key, the default auto-off time will display on the screen.

•Press UNIT key to select the Auto-off time.

•Auto-off time can be set to 120/180/240/300 seconds.

•Auto-off option can be turned-off.

•To confirm pass TARE key again. For example, if you want to select 240 seconds,

press TARE key when ‘240 S’ displays on the screen. Press UNIT twice. Displays “End”.

Press TARE key to confirm.

Page 6

Installing the Battery

Note: If the battery door is not closed properly, water can get into the battery compartment,

causing the unit to malfunction.

Page 7

Remove the battery housing

Install 9V alkaline battery.

Install back the battery cover

Error Messages

Error Message

Reason

Action

Low battery

Replace the batteries

Total load exceeds the

maximum capacity of the

scale

Reduce the weight and try

again

Counting error (too low):

The signal from the load

cell is too low

Please contact the local

service representative

Fault in the software

Please contact the local

service representative

Page 8

Tel: 01709 364296 / 0800 169 2775

Fax: 01709 364293

E-mail: sales@marsdengroup.co.uk

Manufacturing and Distribution:

Unit 7, Centurion Business Park,

Coggin Mill Way,

Rotherham,

S60 1FB

Head Office:

Unit 1, Genesis Business Park,

Sheffield Road,

Rotherham

S60 1DX

www.marsden-weighing.co.uk
