1 Proper use (application areas)

Detailed information on the application area can be found in the Chapter

2 Product description

The operating safety of the device is ensured only with proper use and observation of the information given in

the operating instructions.

For safety and guarantee reasons, work above and beyond that described in the operating instructions may

only be carried out by personnel authorized by the manufacturer. Unauthorized conversions or modifications

are expressly prohibited.

In the event of improper use, this device can pose dangers, depending on the application.

Additional requirements for use in potentially explosive atmospheres:

1) The piping adapters must be mounted on a grounded metal pipe.

2) In the case of size 4 pipe adapters, the clamp jacket must also be grounded.

3) Operation with approved evaluation electronics (associated equipment), only.

4) When using thermal compound, it is important to ensure that only electrically conductive thermal paste

is used.

General safety instructions, use

These operating instructions must be kept where they are immediately available to specialist personnel at

all times.

Only trained personnel authorized by the operator, while wearing the corresponding protective clothing must

carry out all procedures described in these operating instructions.

1.1 Safety signs and symbols

Warning instructions are designated in this document as described below in Table:

Table 1 Safety signs and symbols

Danger

Warning! This symbol warns against immediately threaten- ing danger, death, severe physical

injury or serious material damage if instructions are not followed.

Attention! This symbol warns against possible dangers or dangerous situations, which can

cause damage to the de- vice itself or to the environment if instructions are not followed.

Note! This symbol indicates procedures, which have a direct influence on operation or can

cause unforeseen reactions if instructions are not followed.

Warning! In front of an area in which explosive atmospheres can occur.

This only applies to devices with an ATEX approval.

Danger

Clamp-on Sensor GTL720

2 / 17

BA_MA_GTL720_EN_V1.08

1.2 Safety instructions

Read the product description before bringing the device into operation. Ensure that the product is fully

suitable for the applications in question.

The operator is responsible for the problem-free operation of the device. The operator is obliged through-

out the complete usage time to establish and ensure that the required working and safety measures

comply with the relevant applicable regulations.

1.3 Product liability and guarantee

Liability disclaimer:

The content of the operating instructions has been checked for compliance with the device described. Deviations

cannot however be excluded, so that we offer no guarantee of full compliance. The information in these instruc-

tions is checked regularly, and necessary corrections incorporated into the following editions. We reserve the

right to make technical amendments. All claims are also subject to the valid “General delivery conditions for

products and services of the electronics industry”.

GHM Messtechnik cannot check or repair devices without the specified, fully completed form (see

chapter 8.1 Returns

1.4 Standards and directives

Conformity

Explosionsgefährdete Bereiche 60079-0:2018

60079-11:2012

Vibrations EN 60068-2-6:2008

FDA conform

Danger

Clamp-on Sensor GTL720

BA_MA_GTL720_EN_V1.08

3 / 17

BA_MA_TC125_EN_V0.13

2 Product description

The GTL720 pipe clamp-on sensors are especially useful as an alternative to invasive and inline-measuring

procedures for monitoring sterilization processes. Without disturbing the process, the special clamp-on

mechanics make the systems flexible, absolutely dead spot-free, and usable without high installation costs.

This measuring procedure permits high-precision results.

The pipe clamp-on sensor consists of a sensor insert with the Pt100 sensor and the pipeline adapter. The

electric contact is achieved by means of a three-wire system and an M12 round connector.

Block diagram

Figure 1 Block diagram

2.1 Delivery content

Clamp-on Sensor GTL720

Pipeline adapter, RLA (separate ordering position)

Silicone insert (RLA included)

This operating manual (GTL720 included)

2.2 Operating principle

The GTL720 pipe clamp-on sensor measures temperatures of liquids in metal pipelines without a process con-

nector touching the fluid. For this purpose, the pipe clamp sensor is mounted on the exterior of the pipe at a

suitable site. The sensor plate is pressed to the exterior of the pipe wall by a spring. Constant pressure and

shielding the silicone from the ambient air guarantee an optimal thermal transfer. The one-piece measuring

insert, which is manufactured from premium-quality synthetic material prevents undesirable heat dissipation and

reduces the response time. The sensor plate inside the measuring insert is in direct thermal contact with the

Pt100 sensor.

Clamp-on Sensor GTL720

4 / 17

BA_MA_GTL720_EN_V1.08

Pipe-Ø: DN10...DN80

2.3 Design of the measurement system

The GTL720 measuring system consists of an RLA piping adapter and a GTL720 measuring insert.

Figure 2 Design of measurement system

2.4 Type plate

The nameplate contains the most important identification data:

Connection diagram

Manufacturer

Type and article designation

Technical data

Serial number

Figure 3 Type plate GTL720

Figure 4 Type plate RLA

Insertion GTL720

Clamp-on adapter

RLA

Type plate

insertion GTL720

Type plate

Clamp-on adapter RLA

Silicon insertion

RLA

Sensor insertion with

round plug M12,

360° turn able

Clamp-on Sensor GTL720

BA_MA_GTL720_EN_V1.08

5 / 17

BA_MA_TC125_EN_V0.13

2.5 Step response of clamp-on sensor

Reference conditions

Pipe diameter

29 mm

Pipe wall thickness

1,5 mm

Pipe material

1.4404

Flow rate

0,5 ~ 1,5 m/s

Ambient temperature

30 °C

Medium

Water

Mounting direction

Acc. to position 1, 3.1 Mechanical mounting

Table 2 Reference condition for step response

Figure 5 Step-response (T90) in water, without thermal compound

Figure 6 Step-response (T90) in water, with thermal compound

GTL720 step-response (without thermal compound)

Medium (Water)

GTL720

GTL720 step-response (with thermal compound)

Medium (Water)

GTL720

Clamp-on Sensor GTL720

6 / 17

BA_MA_GTL720_EN_V1.08

3 Mounting and electrical installation

3.1 Mechanical mounting

The RLA pipe clamp sensors are available in three sizes. The adapters are adjusted to the pipe diameter (DN10

to DN80) with different highly heat- resistant silicone inserts.

Frame size (Bg)

Pipe Ø [mm]

12,0..19,0

20,0..33,9

34,0..53,0

60,3..75,9

76,0..88,9

Table 3 Frame size and pipe diameter

Available for pipe standards: DIN 11850 r1, r2 and DIN11866 rB, rC.

The cap nuts of the two adapter parts should be torqued to a value from 0.5 to 1 Nm (0.37 to 0.74 ft-lb) to avoid

a deformation of the silicone insert, which would prevent a correct fitting of the pipes.

For the same reason, all cap nuts must be torqued equally. This is especially important for pipes with small

diameters without the use of heat-conductive paste.

3.2 Mounting guidelines

For mounting instructions, see Figure 7 Permissible types of mounting

To ensure secure functionality and the best measuring results, please follow these mounting steps:

1. The pipe diameter should not deviate more than ± 1 % from the nominal diameter of the silicone insert.

2. Clean the exterior of the pipe before installation. Be sure that no chips, swarf, or other particles are

lodged between sensor and pipe because this would prevent the contact plate of the sensor from

being flush against the pipe, which reduces accuracy.

3. The installation site should be at least 15 cm (6 inches) from pipe el- bows, pipe reducers, and radial

welded seams. The sensor must not be placed on welded seams of axially welded pipes. The sensor

should be installed at a distance of at least15 cm (6 inches) from other installed sensors with fluid

contact.

4. Behind pipe elbows, the sensor housing should be installed on the out- side to prevent measuring

errors due to bubble formation or flow characteristics.

5. If the pipes are not completely filled, the sensor should be installed in the fluid-covered area of the

pipe.

6. Unilateral strain due to suspending heavy objects or taut connection wires should be avoided.

The sensor plate must be flush against the pipe.

7. If thermal compound is used between pipe wall and measuring tip, it should be replaced in the mainte-

nance interval according the maximum storage period of the paste.

8. The electrical installation must be made after the pipeline adapter is installed on the process line.

Clamp-on Sensor GTL720

BA_MA_GTL720_EN_V1.08

7 / 17

BA_MA_TC125_EN_V0.13

3.3 Mounting notes

Figure 7 Permissible types of mounting

Position

Characteristics

Ideal:

Achieves the best result, since there are no bubbles, deposits, or rising lost heat in the pipes

to distort the measuring result.

Questionable:

Lost heat and moving the contact area may lead to distorted measuring results.

Ideal:

Good measuring result, if no air bubbles form. Minimum distance to pipe angle 15 cm (6

inches)

Questionable:

Lost heat and too small a distance from the connection flange may lead to distorted measur-

ing results.

Table 4 Description to Fig. 7

3.4 Instruction on Ordinance (EUR) 20/1011 / (EC) 1935/2004

The following components of the product are designed in accordance with Ordinance for permanent contact

with foodstuffs:

FDA approved components

Flow direction

min. 15 cm

Clamp-on Sensor GTL720

8 / 17

BA_MA_GTL720_EN_V1.08

3.5 Electrical installation

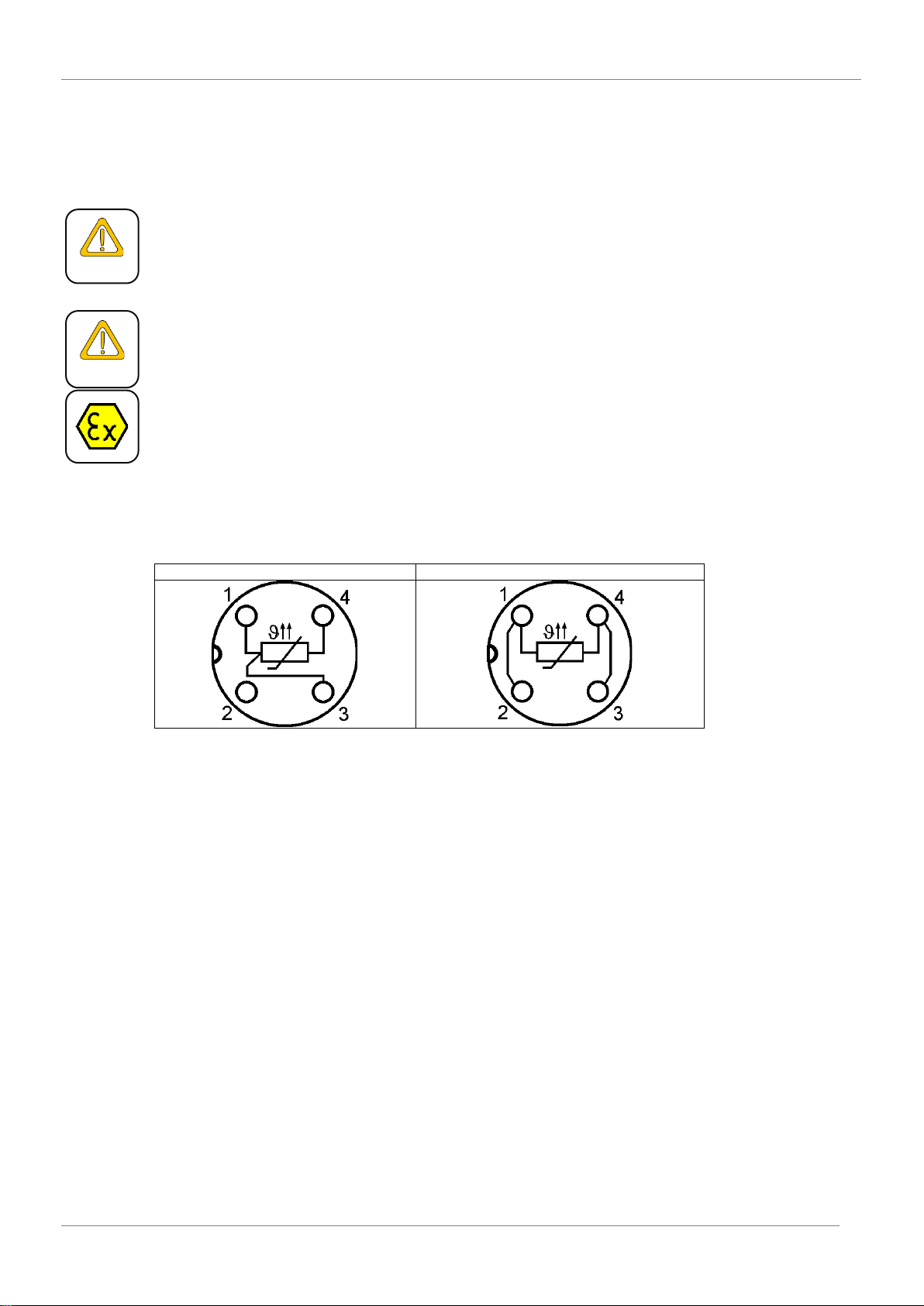

The electrical connection happens via the M12 round connector. For the wiring see Figure 8 Connection

diagram.

The device must be installed only by a qualified electrician. The national and international regulations for the

installation of electrical systems of the relevant operator country apply.

Additional requirements for use in potentially explosive atmospheres:

1) The temperature sensor GTL must be connected to an for intrinsic safety certified Ex-transmitter.

2) The temperature sensor GTL must be used together with the clamp-on adapters RLA.

3) The clamp-on adapters must be mounted on a grounded tube.

4) The declarations are only valid for operating conditions, which means the sensor must touch the pipe,

possibly with conductive thermal compound.

5) For RLAs in FS.4 the metal clamp must be grounded.

3.6 Connection diagram

View at the plugs:

Connection design 1 (standard)

Connection design 2 (customized)

4 Commissioning, Maintenance and Servicing

4.1 Commissioning

1. Be sure that the pipe clamp sensor is flush with the pipe.

2. Be sure that the M-12 connector is screwed on correctly and the cable is not pulling on the sensor.

3. Check the correct measuring function after connecting the evaluation device.

4.2 Maintenance

Housing

When cleaning the device, make sure that its connections are firm and tight. Cleansers must not harm the

housing surface and gaskets.

If the housing is cleaned with a high-pressure cleaning device, make sure the electric connection and the

device are not sprayed directly. Avoid cleanser deposits on the thread and inside the guide of the interior

part.

Sensor

During cleaning, it is essential not to damage the sensor tip. If cleansers are used, make sure that they do not

harm any materials.

Figure 8 Connection diagram

Danger

Indice

Altri manuali martens Accessori

martens

martens GTL723 Manuale utente

Manuali Accessori popolari di altre marche

Hillco

Hillco 2810 Manuale utente

Siemens

Siemens QSA2700D Manuale dell'operatore

Contours

Contours ZY024 Manuale utente

Saivod

Saivod VS621 Manuale utente

Virtuox

Virtuox VirtuCLEAN 2.0 Manuale utente

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuale utente

Z-Wave

Z-Wave HSD-200Z Manuale utente

turck

turck FMX-IM-2UPLI63FX Manuale utente

Decagon Devices

Decagon Devices 10HS Manuale utente

UPPAbaby

UPPAbaby Cup Holder Manuale utente

Elko

Elko SmartSensor Leakage Wireless Manuale utente

Grizzly

Grizzly H8371 Manuale utente

Panasonic

Panasonic HG-T Series Manuale utente

IFM Electronic

IFM Electronic Efector 250 Series Guida di riferimento

DigiDesign

DigiDesign 888/24 I/O Manuale utente

PROZIS

PROZIS QUAY Manuale utente

patagonia

patagonia PSI Vest Manuale utente

SFC Energy

SFC Energy EFOY GO! Manuale utente

martens GTL720 Manuale utente

Manuali Accessori popolari di altre marche
