Martin Audio Two-way Passive Surround System Effect 5 Manuale utente

Effect 5

Tw o -way passive surround system

features

!Tw o -way passive design

!THX™ approved

!100º x 60º HF horn

!Simple to install

applications

!Powerful surround sound applications

!For large cinemas

Century Point, Halifax Road, Cressex Business Park,

High Wycombe, Buckinghamshire HP12 3SL, England.

Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669

E-mail: [email protected]

All information is Copyright © 2003 Martin Audio Ltd.

The Effect 5 is a two-way passive cinema surround system,

designed to produce the wide dynamic range and extended

frequency response characteristics of digital sound formats. It is

suitable for both medium and large scale cinema applications.

cinema

www.martin-audio.com

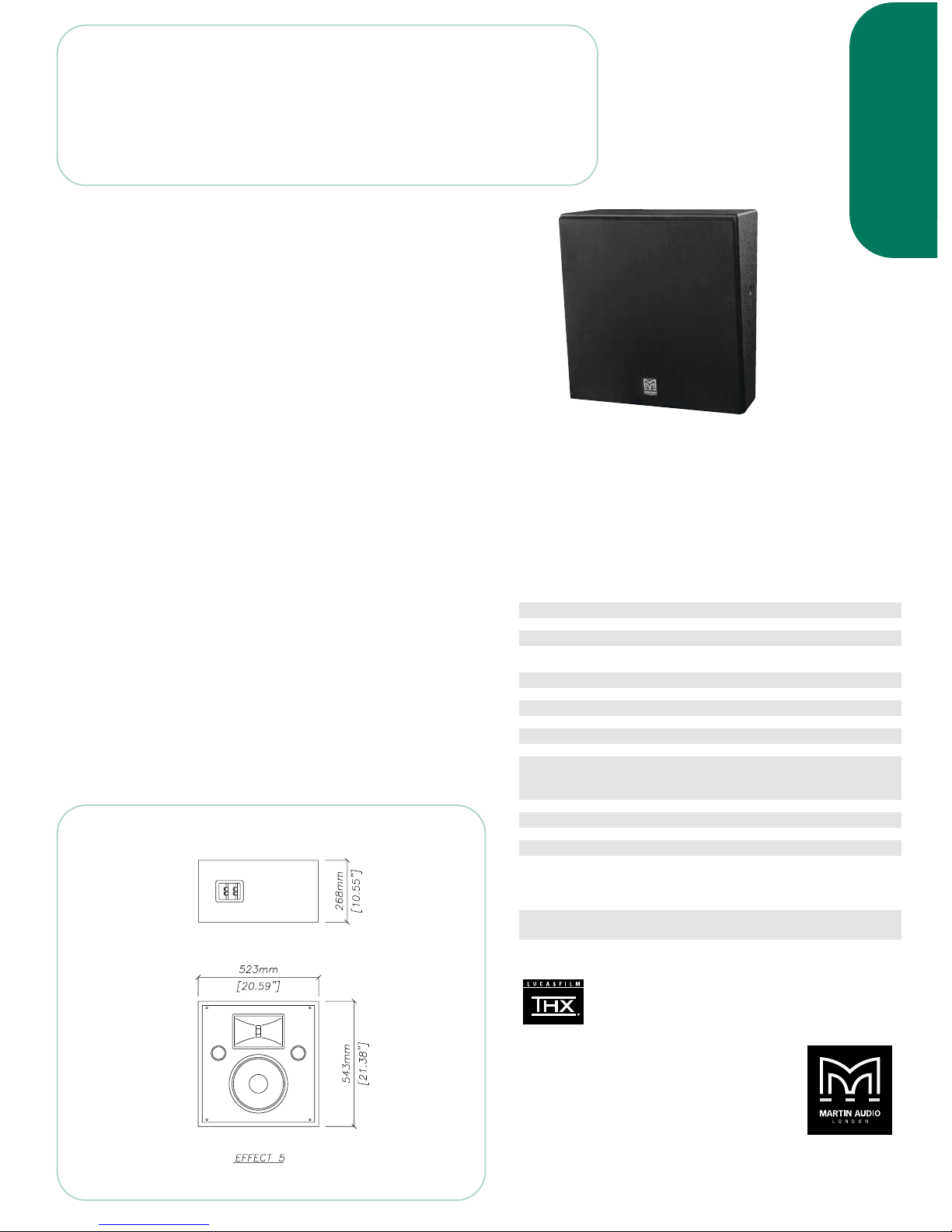

overall dimensions

technical specifications

TYPE Two-way passive, reflex enclosure

FREQUENCY RESPONSE (1) 75Hz-20kHz ±3dB

LOW FREQUENCY LIMIT -10dB @ 45Hz

DRIVERS 10" (250mm) bass-mid driver

1" (25mm) exit HF compression driver

RATED POWER (2) 150W AES, 600W peak

RECOMMENDED AMPLIFIER 100-200W into 8 ohms

SENSITIVITY (3) 95dB 1 Watt/1 metre

MAXIMUM SPL (4) 115dB continuous, 121dB peak

IMPEDANCE 8 ohms nominal

DISPERSION

(-6dB) 100˚ horizontal, 60˚ vertical

CROSSOVER 2kHz passive

Externally selectable flat /

SMPTE/ISO 2969 X-curve

ENCLOSURE

35 litre (1.1 cu foot) particle board construction

FINISH Black textured vinyl

PROTECTIVE GRILLE Black acoustically transparent cloth grille

CONNECTORS 2-way binding posts

FITTINGS 4 x M4 teenuts on rear for ‘keyhole’ brackets

2 x keyhole plates

2 x M8 threaded inserts for wall bracket

1 x wall bracket (optional)

DIMENSIONS (W) 523mm x (H) 543mm x (D) 287mm

(W) 20.6ins x (H) 21.4ins x (D) 11.3ins

WEIGHT 16.5kg (36lbs)

approved by Lucasfilm for use in THX™ theatres.
