1217A OPERATING INSTRUCTIONS

Thank you for your purchase of the Martin Yale Ind., model 1217A

Autofolder. With proper maintenance your unit is designed to provide you with

years of trouble-free service. Upon receiving the machine, take a good look at the outer

carton and make sure that there are no signs of shipping damage. If you feel that the

machine was damaged in shipping, call the shipping company immediately and request

an inspection. If you have any additional questions, feel free to contact the customer

service division at Martin Yale at 260-563-0641. Our professional staff will be happy to

assist you.

SPECIFICATIONS

Feed Speed …………………………………………………………………...Variable to 10,300*

Feed Table Paper Load Capacity……………………………………….…1 5/8”

Sheet Capacity (Stapled & Hand fed)…………………………………….20lbs. Bond –No more than three

Types of Folds………………………………………………………………..Letter, Single, Z, Double Parallel, French, Baronial.

Feeding Method………………………………………………………………Top Feed -Friction

Lightest Paper (Bond)……………………………………………………….18#

Heaviest Paper (Bond)………………………………………………………90#

Maximum Paper Size………………………………………………………..11 ¾” X 18”

Minimum Paper Size…………………………………………………………3 1/8” X 4”

Maximum Fold Length

First Fold……………………………………………………………………11 ½”

Second Fold……………………………………………………………….5 ¾”

Minimum Fold Length

First Fold…………………………………………………………………..2”

Second Fold……………………………………………………………….1 ½”

Electrical Specifications……………………………………………………120V 60 HZ

…………………………………………………………………………….Optional 220V 50 HZ

UL Approved………………………………………………………………….Yes

Working Dimensions………………………………………………………..42” X 17 ½” X 17”

Shipping Weight………………………………………………………………61#

*11” Sheets Per Hour

# 4

# 3

# 5

# 1

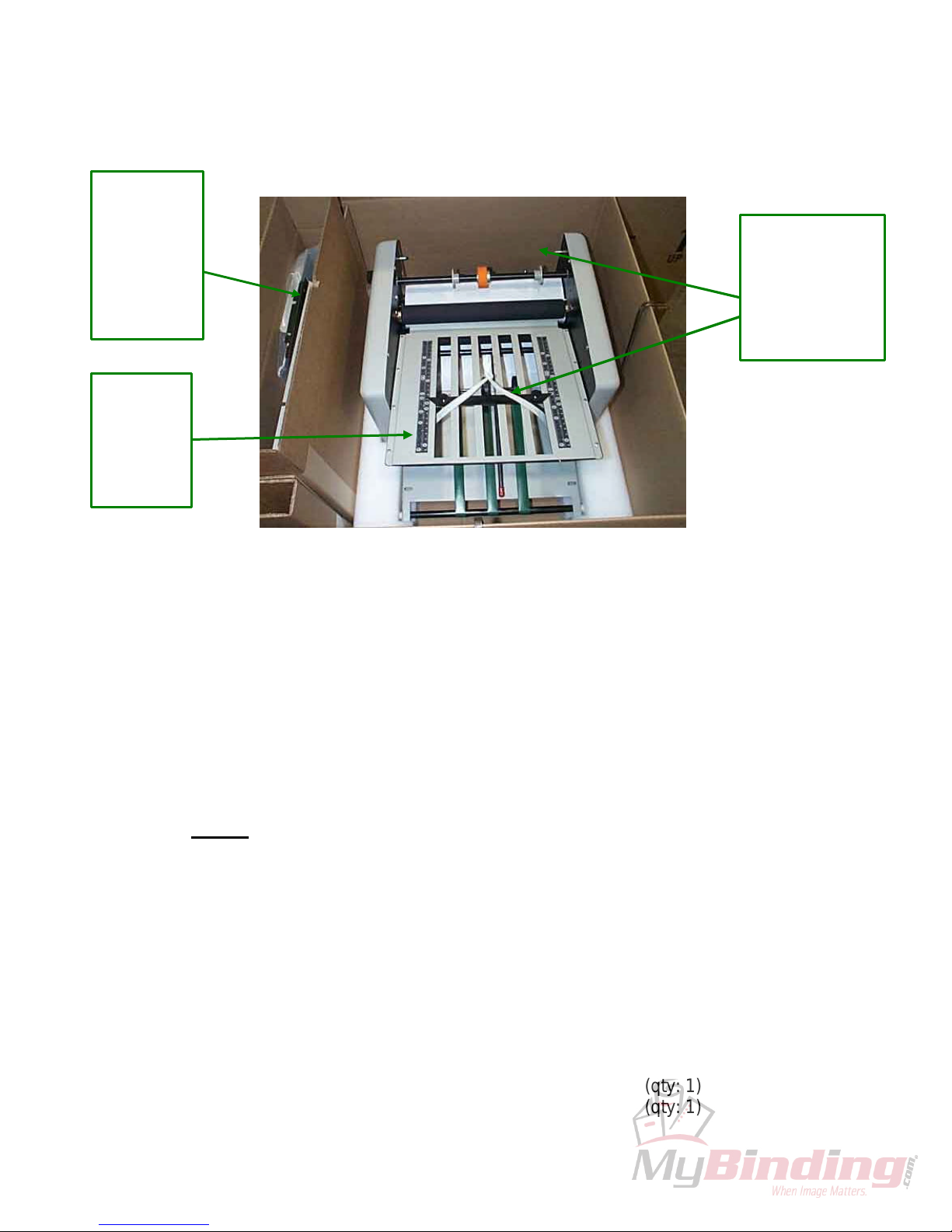

Upon receiving the machine verify that you have the following components.

1.) 1217A Autofolder

2.) Feed Table Assembly W-A121708 (not shown)

3.) 2nd Fold Table W-A121707

4.) Receiving Tray W-A121702

5.) Accessory Pack (3/32” Allen, Instructions, Dejam Handle)

Once it is verified that you have all of the necessary components, unpack

each piece and put the packaging to the side. Always keep the packaging for the

machine, in case the need to move or reship the machine should arise. Note:

When removing machine from carton do not lift machine by the first fold table.

Also, do notlift or install the feed table by grabbing the paper guides. This could

cause them to bend which would result in folding offages.

Packaging Part Numbers:

1.) Carton M-S026201 (qty: 1)

2.) Folded Insert M-S026201-1(qty: 1)

3.) 15.88” x 14.5” Mat. M-S026201-2(qty: 2)

4.) Left End Cap M-S026201-3(qty: 1)

5.) Right End Cap M-S026201-4(qty: 1)

6.) Top Pad M-S026201-5(qty: 1)

7.) 3/32” Allen M-S012003 (qty: 1)

8.) Hand KnobM-S032009 (qty: 1)

9.) Handwheel Instr. M-S027043 (qty: 1)

10.) Manuf. Manual M-S027202 (qty: 1)

WHEN LIFTING

MACHINE ,USE

THE BOTTOM

EDGE OF REAR

OF MACHINE

AND WHITE

STRAP.

AT NO

POINT

HOLD THE

FEED

TABLE BY

THE BLACK

GUIDE

RAILS

DO NOT

REMOVE

MACHINE

BY THE

FIRST

FOLD

TABLE

III

VERIFYING FUNCTION/START-UP

1.) Set the unit on a tabletop where you will have access to all sides of the

machine. At least 18” would be ideal.

2.) Unravel the power cord and plug into the wall. The power consumption

is 1.5A. This machine should be plugged into a 110/120VAC outlet. The

power supply should be dedicated.

3.) Turn the machine on to verify electrical function. If there is no power, reset

the circuit breaker and verify. If still no power, verify that the socket is live

by using some other device that you know to work. Repeat steps and

verify.

At this point if you still do not have any function of the machine, call your dealer

or the Technical Support Division at Martin Yale Industries, Inc. at 219-563-0641. Once

power to the machine has been verified, the unit can be assembled. Warning: failure

to read the instructions for assembly can cause damage to the unit.

RESETTABLE

CIRCUIT BREAKER

ON FEED TABLE

SIDE OF MACHINE

FEED TABLE INSTALLATION

The feed table is installed onto the machine so that a cutout area on the bottom

of the table fits onto the pins in photo 1 on each side. NOTE: THE BOLT ON THE

BACK PIN CAN NOT BE ADJUSTED. You should begin by getting the front edge of

the table in between the side frames at the top of the machine. See photo #2.

Once this is done you can begin bringingthe table into the lower position as you

align the front edge with the inner support pins.

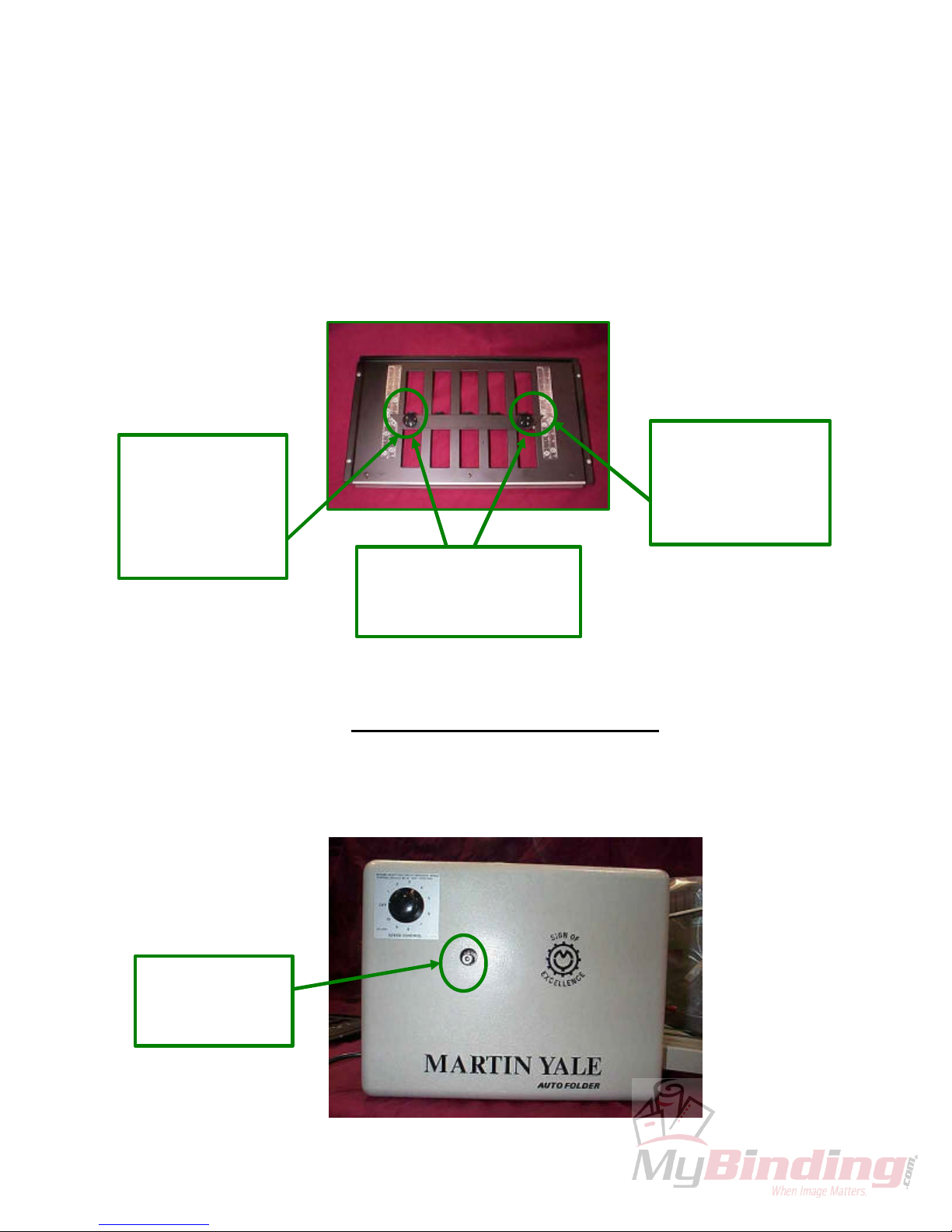

PHOTO # 1

FEED TABLE PINS PHOTO # 2

RETARDER

ADJUSTMENT

SCREW

Once the feed table has been installed on the machine, use the thumbnut on the

bottom of the feed table to raise the small red wheel in the feed table so that it is

touching the orange one. There should not be any pressure between them, just

contact.

SECOND FOLD TABLE INSTALLATION

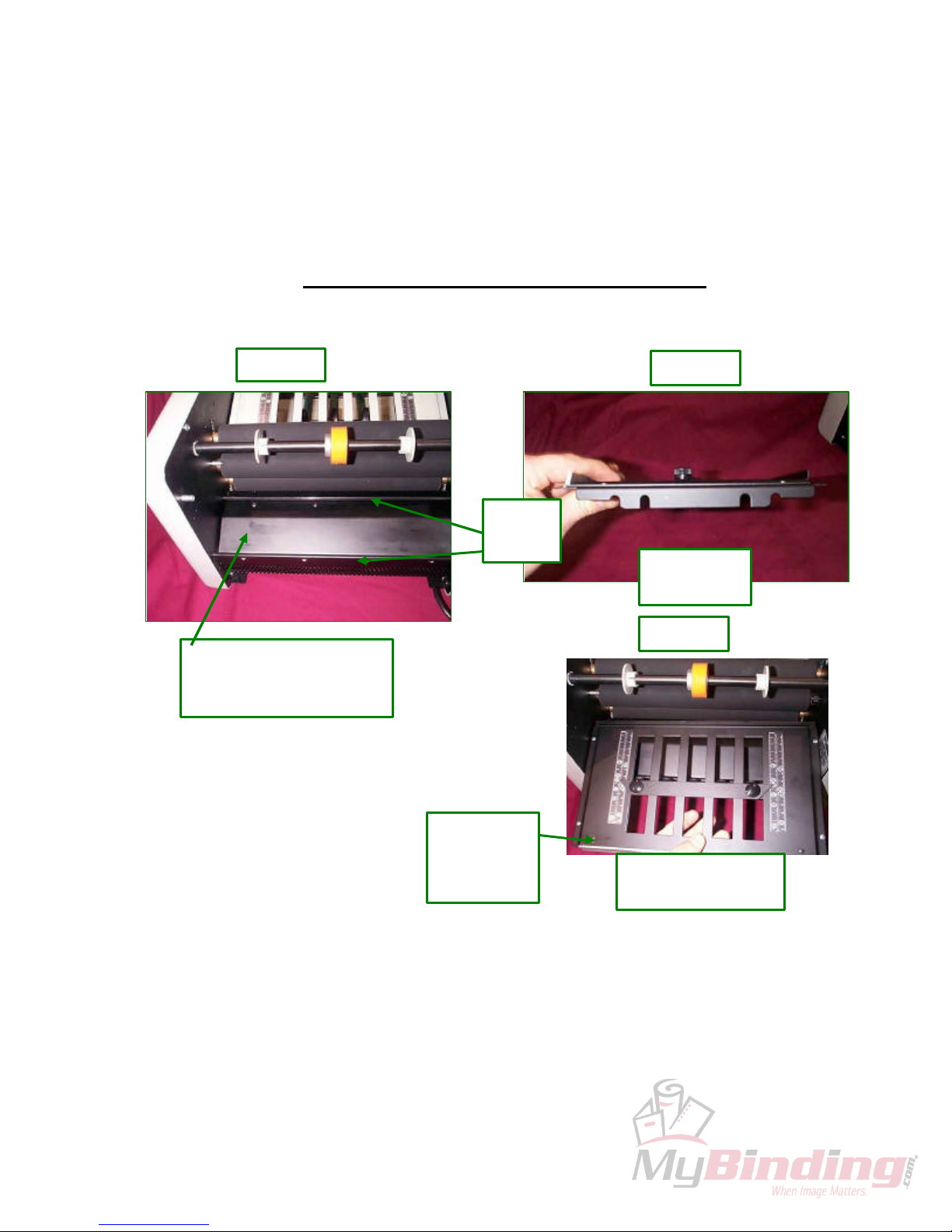

The second fold table should always be installed into the cavity beneath the feed

table (see photo 1). However, depending on the style of fold that is being done it can be

installed two ways. The aluminum deflector on the second fold table should be installed

facing the unit when there is going to be only one fold in the sheet. This is illustrated

photo #3.

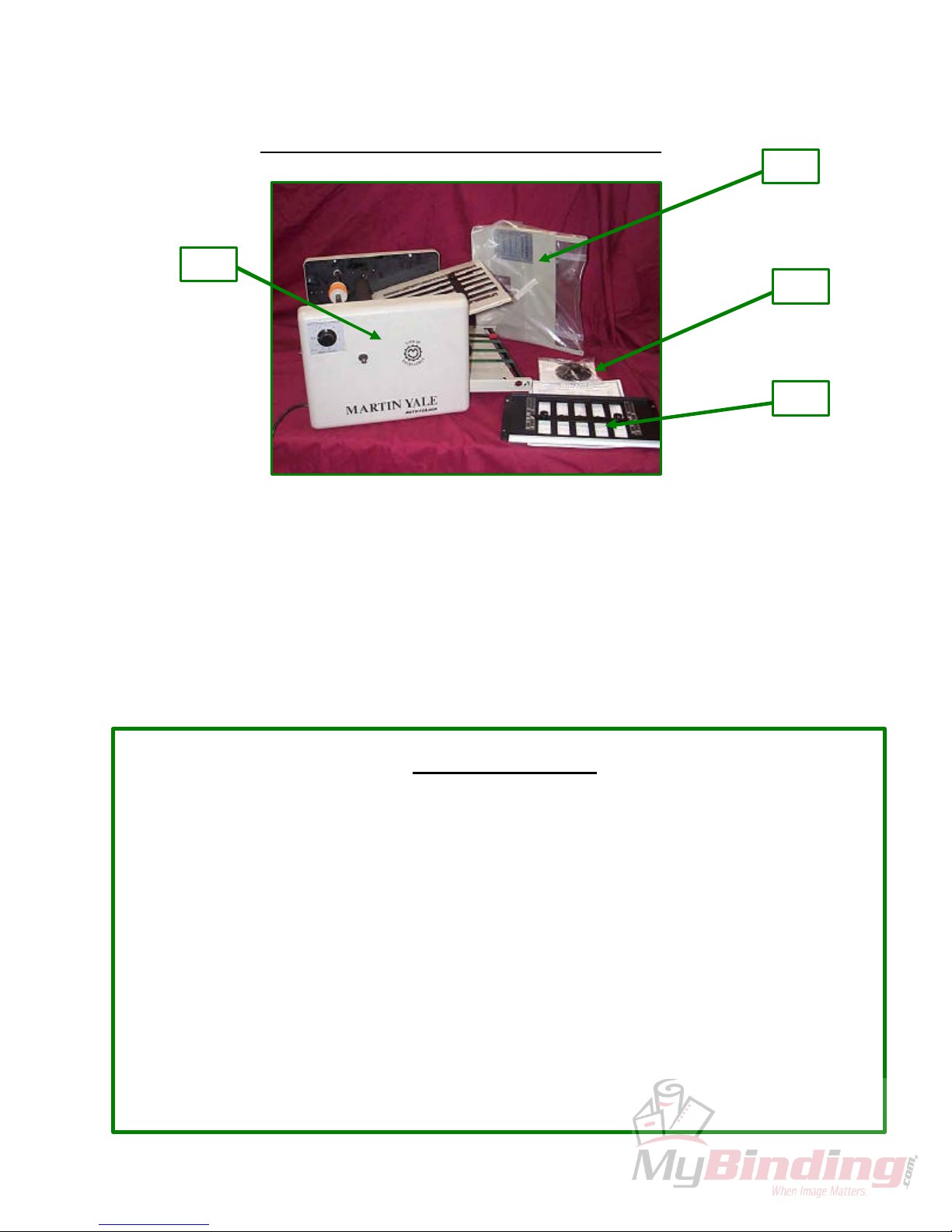

Installation Area for

the Second Folding

Table.

Gro

oves for

Tie Rods

Folding table

being installed

Aluminum

Deflector

End First

for a ½ Fold

Picture 2

Picture 1

Tie

Rods

Picture 3

However, if there is going to be two folds in the sheet the aluminum deflector

should be facing out. To engage, simply position the table so that the two tie rods in

between the side frames of the machine will be in the cut -out grooves on the bottom of

the fold table (see photo #2 on previous page). It is important that this is done because

if the table is not properly positioned, the machine will produce jams and inaccurate

folds.

HANDWHEEL INSTALLATION

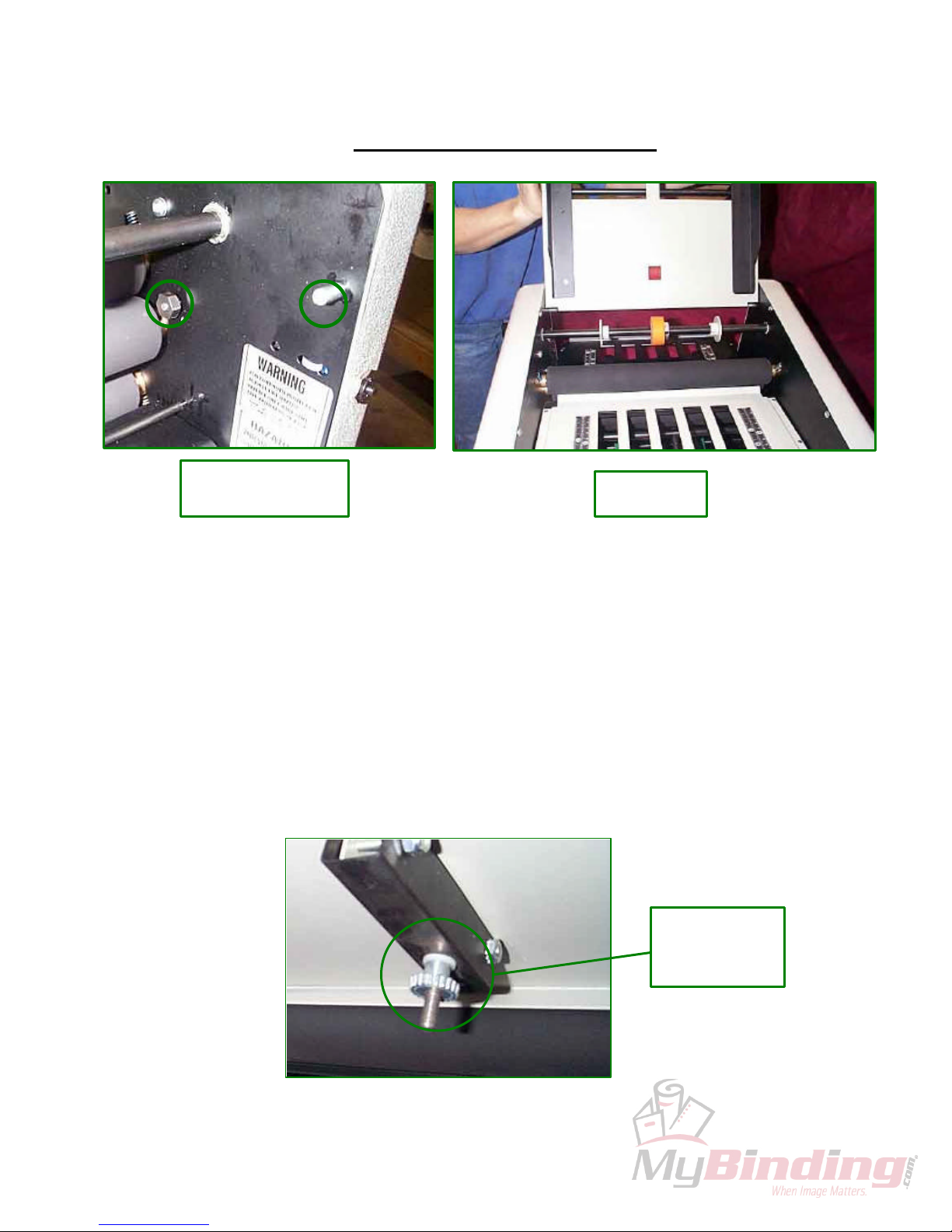

To install the handwheel on the machine, you will need the Allen wrench that was

provided with the unit. Refer to page one of the instructions if necessary.

When installing the

second fold table for

a tri-fold, it should

be put in so that the

rulers look upside

down to the

installer.

When installing the

second fold table for a

half fold, it should be

put in so that the

rulers look right side

up to the installer.

When setting the folds for

the unit, be careful not to

over tighten the adjustment

knobs on the paper stops.

Install the

hand

wheel with the set

screw tightened to

the flat area.

VII

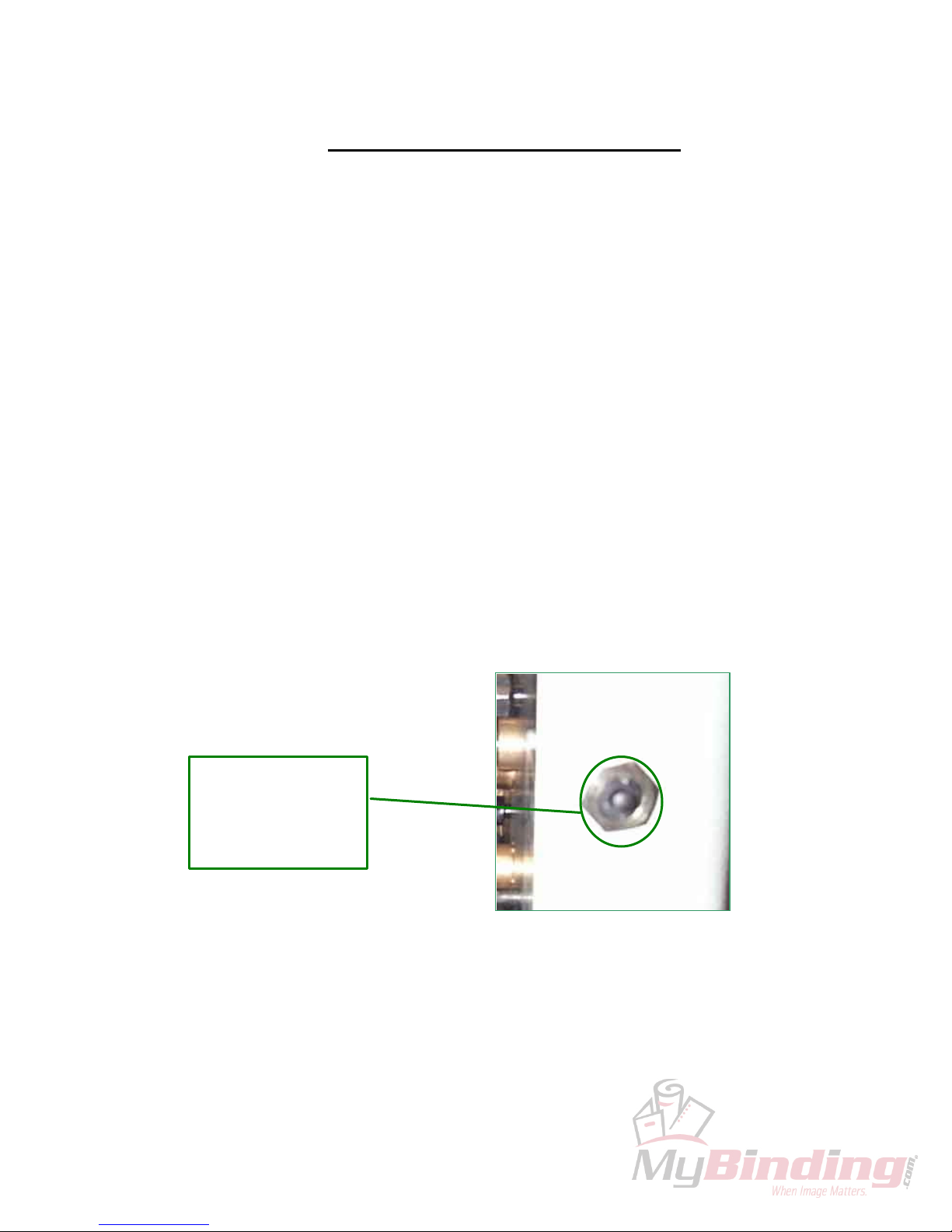

The hand wheel should be installed on the machine so that the set screw is

tightened down onto the flat side of the shaft. Make sure that it is strongly applied. This

will allow you to rotate the folding rollers of the machine by hand. If the set screw is not

tightened to the flat side of the shaft, it can damage the machine. NOTE: if you have

not removed the piece of paper from the folding rollers of the machine yet, please

do so at this time.

SETTING THE FEED SYSTEM

NOTE: A continuous run can only be done with single sheets, or properly stapled

sets.

1. Lower the red wheel in the feed table until there is light between it and the

orange one.

2. Turn unit on. Hold piece of stock to be ran in between wheels. Slowly raise red

wheel until sheet is pulled in.

3. Power down and set three pieces of stock to be tested in feed tray. Turn unit

back on, it should take them one at a time. If the sheets do not feed at all, the

red wheel is too high, if it tries to take more than one, the wheel is too low.

Readjust as necessary.

PROPER LOADING OF PAPER

To properly load the machine, the stack of paper should be put in the machine in

a reverse –fan. This means that the top sheet should be at the threshold of the orange

wheel, and each sheet underneath should be a little further back. This will allow the

machine to pull off the top of the stack in a continuous fashion. It does not need to be

extreme. A ½” stack should be fanned out ½” from left to right (see photo).

Once the stock is placed into the machine, it will have a slight tendency toslide

back together. Do not attempt to prevent this, it should not be a factor. The paper

guides should not pinch the paper, there should be 1/16” clearance on each side.

TYPES OF FOLDS

1. Single Fold (Half Fold) Style

In order to do a half fold, the 2nd folding table should be reversed (see photo).

When reversed, the paper bounces off of the aluminum deflector instead of

entering the slot on the opposite side.

VIII

Once the fold table is reversed the setting on it does not matter. Adjust the 1st

fold table paper stop for proper folding. You will find a fold chart on the receiving

tray with common settings. The settings are only approximate, some

adjustment may be necessary for the best fold quality.

NOTE: DO NOT OVERTIGHTEN THE FOLD TABLE THUMB KNOBS.

Double Fold (Letter Fold)

In order to do a double fold, the 2nd folding table should be installed with the

slotted end first (see photo on previous page). Adjust both the first and the

second fold table appropriately for proper fold. You will find afold chart on the

receiving tray of the machine with common settings. The fold table settings are

only approximate. Some readjustment may be necessary for optimum fold

quality.

RIGHT ANGLE FOLD

Folding paper at a right angle, or having a fold in two directions, can be done two

different ways on the machine.

SINGLE SHEET

1. Set feed system for stock (8 ½” X 11”, 8 ½” X 14”, 11” X 17”) and run through

machine for proper single fold.

2. Readjust the feed guides of the machine so that the folded edge of the stock will

be as close to the orange feed wheel as possible.

3. Readjust the first fold table for proper fold.

4. Readjust the feed system to accommodate folded stock.

5. Run a test piece and verify proper feed.

MULTIPLE SHEET (3 Sheets Max., 20LB BOND)

1. Lower retarder completely, hand feed each set for proper single fold.

2. Readjust 1st fold table, set feed guides so that folded edge will be as close to

orange wheel as possible.

3. Run stock, handfed, one set at a time.

STAPLED SETS

Stapled sets are not recommended on the unit due to damaging the folding

rollers over a period of time. However, these can be ran by stapling each set in both of

the upper corners. The staples should be parallel to the top edge of the sheet. An

alternative to this would be to lower the red wheel completely and hand feeding the sets

one at a time (unstapled).

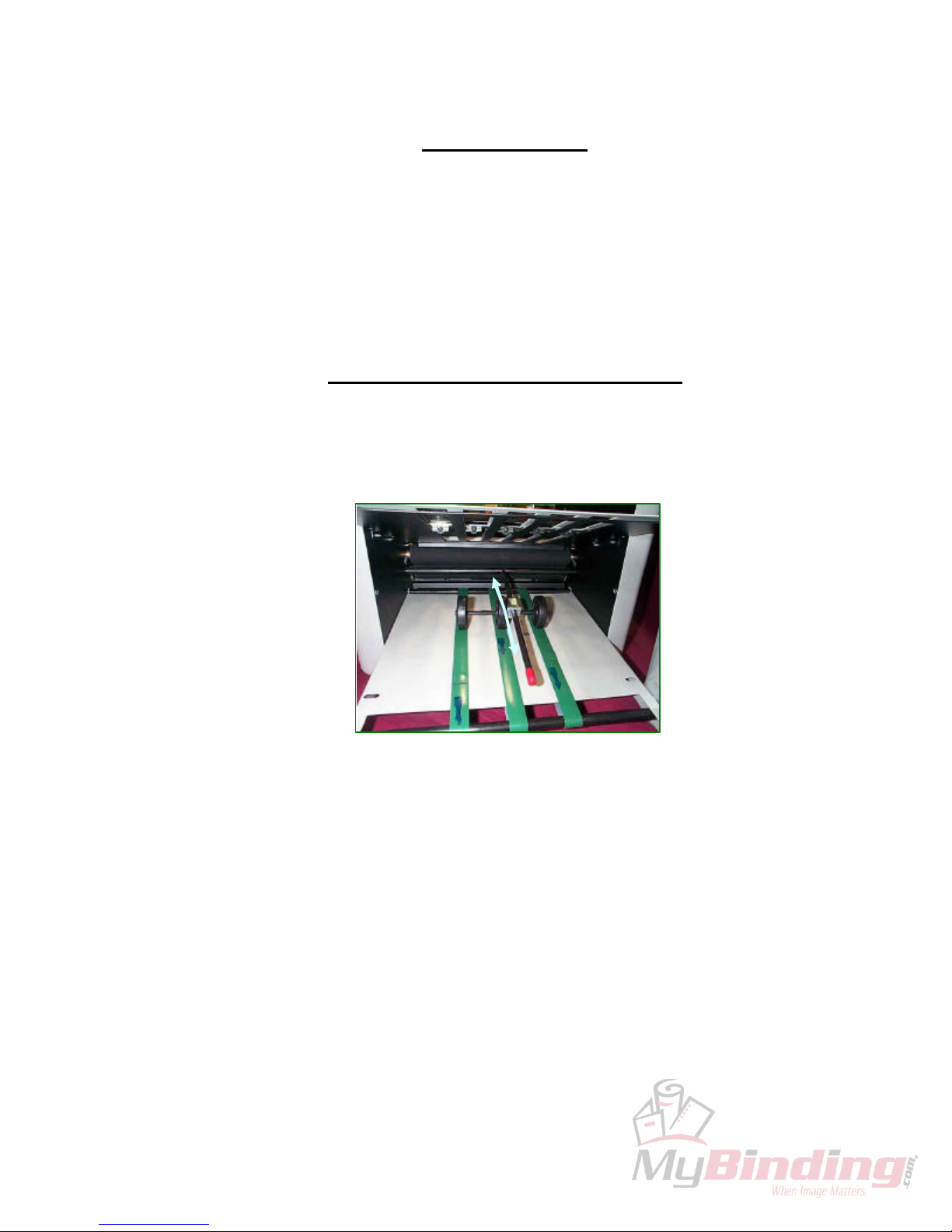

STACKING WHEEL ADJUSTMENT

The stacking wheel length can be adjusted by sliding the wheels to the

appropriate location (see photo)

When setting the stacking wheels, set them so that exiting force of the fold rollers

will force the leading edge of the folded document under the stacking wheels. If the

document lands on the conveyors completely before starting under the stacking wheels,

it will not work correctly. An example would be; the folded document comes out of the

machine 3 2/3” wide the stacking wheels should be around 3 ½” from the exit of the unit.

Some experimentation may be necessary. When the wheels are properly adjusted,

they will allow the document to exit the machine in a uniform manner.

Altri manuali per 1217a

Indice

Altri manuali Martin Yale Macchina piegatrice

Martin Yale

Martin Yale P7200 Manuale utente

Martin Yale

Martin Yale 1501 CV-7 Manuale operativo e di manutenzione

Martin Yale

Martin Yale papermonster F100 Manuale utente

Martin Yale

Martin Yale my OFFICE PRODUCTS P6500 Manuale utente

Martin Yale

Martin Yale 1217a Manuale utente

Martin Yale

Martin Yale P7200 Manuale di istruzioni

Martin Yale

Martin Yale 959AF Manuale operativo e di manutenzione

Martin Yale

Martin Yale 1501X Guida rapida

Martin Yale

Martin Yale 2051 SmartFold Manuale utente

Martin Yale

Martin Yale 2601 Manuale utente

Martin Yale

Martin Yale 1611 Manuale dell'operatore

Martin Yale

Martin Yale 1701 Manuale utente

Martin Yale

Martin Yale 1812 Manuale utente

Martin Yale

Martin Yale P7400 Manuale utente

Martin Yale

Martin Yale Premier 1422 Manuale operativo e di manutenzione

Martin Yale

Martin Yale 1711 Manuale utente

Martin Yale

Martin Yale P6200 Manuale utente

Martin Yale

Martin Yale P6400 Manuale operativo e di manutenzione

Martin Yale

Martin Yale 2051 SmartFold Manuale del proprietario

Martin Yale

Martin Yale my OFFICE PRODUCTS P7500 Manuale utente

Martin Yale

Martin Yale P6200 Manuale operativo e di manutenzione

Martin Yale

Martin Yale intimus 2020VS Manuale operativo e di manutenzione

Martin Yale

Martin Yale 1711 Manuale utente

Martin Yale

Martin Yale 1812 AutoFolder Manuale

Manuali Macchina piegatrice popolari di altre marche

Mathias Bauerle

Mathias Bauerle Multipli 35 Manuale utente

Intelli-Fold

Intelli-Fold DF-304C Manuale utente

Pitney Bowes

Pitney Bowes DI425 FastPac Manuale

Hwasung

Hwasung COMPODIS HMK-830 Series Manuale utente

KRUG+PRIESTER

KRUG+PRIESTER IDEAL 8306 Manuale utente

XPOtool

XPOtool 61574 Manuale utente

MBM

MBM 306A Manuale utente

Formax

Formax FD 342 Manuale utente

Formax

Formax FD 332 Manuale utente

MBM

MBM FO0601 Manuale utente

IMS

IMS FPi4000 Manuale utente

Nagel

Nagel Foldnak 80 Manuale utente

MBM

MBM S 352 Manuale utente

Count

Count KF-250 Manuale utente

Formax

Formax AutoSeal FD 1500 Plus Manuale utente

Opus

Opus multiCREASE 52 Manuale utente

KRUG+PRIESTER

KRUG+PRIESTER IDEAL 8306 Manuale utente

Horizon Fitness

Horizon Fitness SPF-20A Manuale utente
