Martin M6 Series Manuale utente

M6 Reference Guide Rev D

Martin Professional

More than a lighting console!

The Martin M6 is here!

•This guide was created to answer most questions you

may have about the M6.

•Don’t hesitate to contact us if you have any

unanswered questions or comments

10/1/2013 M6 2

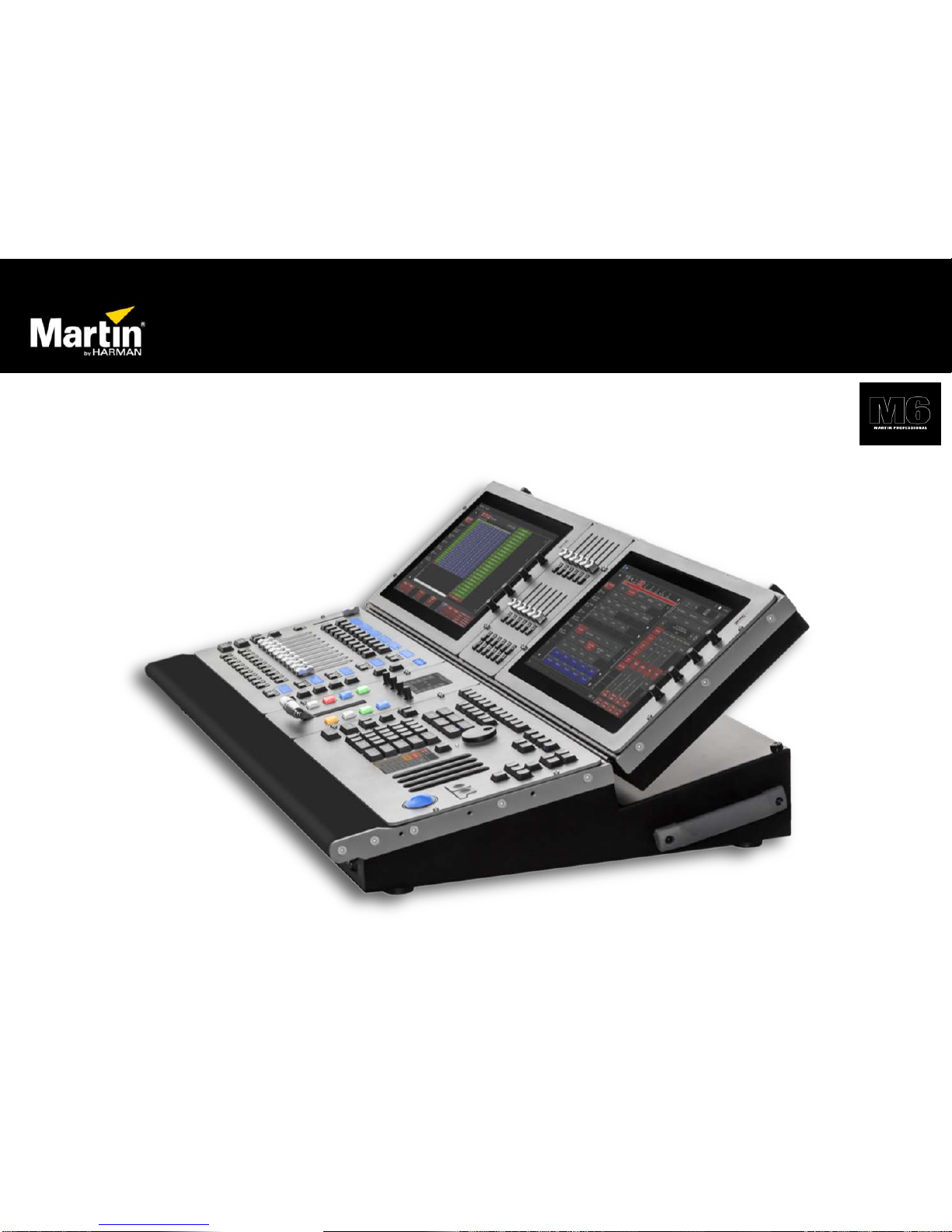

The Martin M6 –Take Control

10/1/2013 M6 3

What is the M6?

The M6 is Martin’s most advanced console ever

made. It is the result of over 12 years of

software and hardware development.

Even if new on the market, the M6 comes with

a well matured and proven software along with

many years of experience in hardware design.

M6 More than just a lighting console

10/1/2013 M6 4

Main Benefits

•Dual 15.6” enhanced brightness multi-touchscreen

•Unique LiveBlender T-Bar

•Quick access up to 17 parameters

•10 Motorized fader playbacks

•10 Paired Playback buttons

•12+12 Submaster faders/buttons for playback

•Up to 64 DMX universes directly from the console

network

•Full 1 year MSD Gold subscription

on dedicated One-Key

10/1/2013 M6 5

Martin M6 -Features list

•2 x BriteTouch widescreen crisp and clear (sunlight readable)

•Adjustable screen angle

•2 x FastTouch 3.5” touchscreens

•10 x Motorized playbacks

•10 x Paired Playback buttons

•12 x Sub Playback faders

•12 x Sub Playback buttons

•10 x LCD displays for playbacks

•12 x F-Keys

•5 x FastKeys on playback module

•8 x FastBlend RGB buttons

•12 x FastDial rotary encoders

•4 x FastTracks linear encoders

•1 x Dedicated dimmer wheel

•1 x LiveBlender split T-bar

•2 x Main Go section

•Low profile housing with modular adaptability.

•Full boot-up and show loaded in less than 45 seconds

•64 Universes directly from the console network

•1 year MSD Gold subscription on dedicated One-Key

10/1/2013 M6 6

M6 overview 24

Submaster

module

BriteTouch

Display

FastTrack

Motorized

Playbacks

Paired

Playbacks FastKeys FastBlend

RGB Keys

FastTouch

LCD

Dsiplay

LiveBlender

T-Bar

Main Go

Grand

Master

Dedicated

dimmer

wheel

Trackball

Bank

Indicator

F-Keys

FastDial

encoders

Desklamps

10/1/2013 7

Quality hardware you can trust

•Industrial Motherboard

–Ensure reliability and availability

•The fastest processor available

–Quick operation and ready for multimedia future

•16GB Ram

–Plenty of memory for the largest project

•SSD Drive

–Load and save show in no time

•Fast boot time

–Less then 45 sec with show loaded

•Workstation class graphic card

–Stunning graphic with multi-screen and reliability

•Chemically hardened touch glass

–Made for the road

•Optically bonded LCD/Touch surface

–Prevent ambient light from blurring the screen

•Special Paint process

–Anti-scratch, heat reflective, high contrast color

10/1/2013 M6 8

Martin M6 advantages

•The M6 is designed for rental, touring, corporate event,

one-off, festival and theater.

•The M6 offers an unprecedented level of flexibility to adapt

to any situations.

•M6 offer more value per universes than any other console

of its category.

10/1/2013 M6 9

Modularity

•The M6 is completely modular, this means that each and

everyone of its modules can be reposition or replaced.

•Modularity means the M6 can be configured to user needs

and taste.

•Aside from configuring the console, modularity has an

enormous advantage for rental owner. When a console on a

tour receive some damages, shipping modules overnight is

far simpler and economical.

•All M6 are always delivered from the factory with the

default layout.

10/1/2013 M6 10
