Martin MAC 101 Series Manuale utente

MAC 101

RGB, CT, WRM and CLD models

User manual

MAC 101 CTMAC 101

MAC 101 WRMMAC 101 CLD

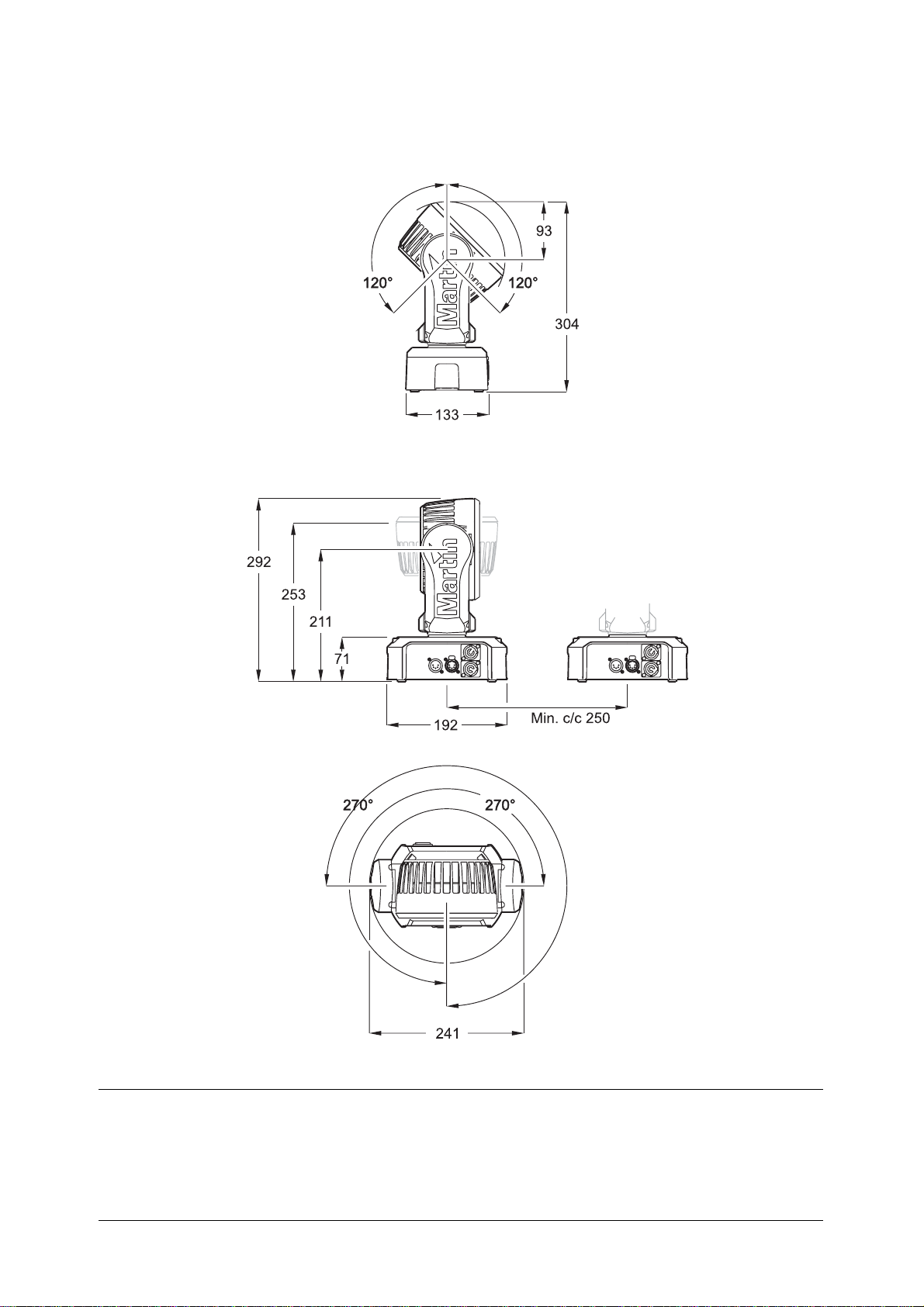

Dimensions

All dimensions are in millimeters

nies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss occasioned by

the use of, inability to use or reliance on the information contained in this manual. The Martin logo, the Martin name and all other

trademarks in this document pertaining to services or products by Martin Professional A/S or its affiliates and subsidiaries are trade-

marks owned or licensed by Martin Professional A/S or its affiliates or subsidiaries. The use of certain patents in MAC 101 products

is licensed by Color Kinetics, Inc. (see details printed on product).

P/N 35000246, Rev. F

Safety Information 3

Safety Information

The following symbols are used to identify important safety information on the product and in this manual:

Warning! Risk Group 3 (high risk) LED product according to EN 62471. Do not look into the beam at

a distance of less than 8.3 meters (27 ft. 3 inches) from the front surface of the product. Do not view

the light output with optical instruments or any device that may concentrate the beam.

This product is for professional use only. It is not for household use.

This product presents risks of severe injury or death due to fire and burn hazards, electric shock and falls.

Read this manual before installing, powering or servicing the fixture, follow the safety precautions listed

below and observe all warnings in this manual and printed on the fixture. If you have questions about how to

operate the fixture safely, please contact your Martin supplier or call the Martin 24-hour service hotline on

+45 8740 0000, or in the USA on 1-888-tech-180.

PROTECTION FROM ELECTRIC SHOCK

• Disconnect the fixture from AC power before removing or installing any cover or part and when not in use.

• Always ground (earth) the fixture electrically.

• Use only a source of AC power that complies with local building and electrical codes and has both

overload and ground-fault (earth-fault) protection.

• Before using the fixture, check that all power distribution equipment and cables are in perfect condition

and rated for the current requirements of all connected devices.

• Power input and throughput cables must be 3-conductor, rated 20 A minimum, 1.5 mm² (16 AWG)

minimum conductor size, extra hard usage type (ST or equivalent). The cable must be heat-resistant to

90° C (194° F) minimum.

• Use only Neutrik PowerCon NAC3FCA cable connectors to connect to power input sockets. Use only

Neutrik PowerCon NAC3FCB cable connectors to connect to power throughput sockets.

• Isolate the fixture from power immediately if the power plug or any seal, cover, cable, or other component

is damaged, defective, deformed, wet or showing signs of overheating. Do not reapply power until repairs

have been completed.

WARNING!

Read the safety precautions in this section before

installing, powering, operating or servicing this

product.

DANGER!

Safety hazard.

Risk of severe

injury or death.

DANGER!

Hazardous

voltage. Risk of

lethal or severe

electric shock.

WARNING!

Fire hazard. WARNING!

LED light

emission. Risk of

eye injury.

WARNING!

Burn hazard. Hot

surface. Do not

touch.

WARNING!

Wear protective

eyewear.

WARNING!Refer

to user manual.

4 MAC 101 user manual

• Do not expose the fixture to rain or moisture.

• Refer any service operation not described in this manual to a qualified technician.

• Socket outlets used to supply MAC 101 fixtures with power or external power switches must be located

near the fixtures and easily accessible so that the fixtures can easily be disconnected from power.

PROTECTION FROM BURNS AND FIRE

• Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104° F).

• The exterior of the fixture becomes hot during use. Avoid contact by persons and materials. Allow the

fixture to cool for at least 10 minutes before handling.

• Keep all combustible materials (e.g. fabric, wood, paper) at least 100 mm (3.9 in.) away from the head.

• Keep flammable materials well away from the fixture.

• Ensure that there is free and unobstructed airflow around the fixture.

• Do not illuminate surfaces within 200 mm (7.9 ins.) of the MAC 101.

• Do not attempt to bypass thermostatic switches or fuses.

• If you relay power from one fixture to another using power throughput sockets, do not connect more than

ten MAC 101 fixtures in total to each other in an interconnected chain.

• Connect only other MAC 101 fixtures to MAC 101 power throughput sockets. Do not connect any other

type of device to these sockets.

• Do not stick filters, masks or other materials onto any optical component.

• Do not modify the fixture in any way not described in this manual

• Install only genuine Martin parts.

PROTECTION FROM INJURY

• Do not look continuously at LEDs from a distance of less than 8.3 meters (27 ft. 3 inches) from the front

surface of the fixture without protective eyewear such as shade 4-5 welding goggles. At less than this

distance, the LED emission can cause eye injury or irritation. At distances of 8.3 meters (27 ft. 3 inches)

and above, light output is harmless to the naked eye provided that the eye’s natural aversion response is

not overcome.

• Do not look at LEDs with magnifiers, telescopes, binoculars or similar optical instruments that may

concentrate the light output.

• Ensure that persons are not looking at the LEDs from within 8.3 meters (27 ft. 3 inches) when the product

lights up suddenly. This can happen when power is applied, when the product receives a DMX signal, or

when SERVICE menu items are selected.

• If suspending from a rigging structure, fasten the fixture to a rigging clamp with an M12 bolt screwed into

the threaded hole in the center of the base of the fixture. The bolt must protrude at least 20 - 30 mm

(0.8 - 1.2 ins.) into the fixture. If the fixture is suspended by any other method, an M12 bolt must be

tightened into this hole so that it protrudes at least 20 - 30 mm (0.8 - 1.2 ins.) into the fixture.

• Install as described in this manual a secondary attachment such as a safety cable that is approved by an

official body such as TÜV as a safety attachment for the weight of all the fixtures it secures. The safety

cable must comply with EN 60598-2-17 Section 17.6.6 and be capable of bearing a static suspended load

ten times the weight of the fixture.

• Ensure that any supporting structure and/or hardware used can hold at least 10 times the weight of all the

devices they support.

• Allow enough clearance around the head to ensure that it cannot collide with an object or another fixture

when it moves.

• Check that all external covers and rigging hardware are securely fastened.

• Block access below the work area and work from a stable platform whenever installing, servicing or

moving the fixture.

• Do not operate the fixture with missing or damaged covers, shields or any optical component.

Contents

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Fixture overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

AC power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Power voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Power cables and power plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Relaying power to other devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Data link. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Tips for reliable data transmission. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Connecting the data link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Physical installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Placing the fixture on a flat surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Mounting the fixture on a truss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Hanging the fixture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Quick-mount surface mounting bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Control panel and menu navigation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

DMX address setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

DMX modes in the standard MAC 101 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Tailoring performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Restoring factory default settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Operation and effects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Service and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Control menu service utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Fixture readouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Lubrication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Installing optional diffuser filters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Installing an optional top hat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

DMX protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Standard MAC 101 RGB DMX protocol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

MAC 101 CT DMX protocol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

MAC 101 CLD and MAC 101 WRM DMX protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

LEE colors and RGB equivalents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Onboard control menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Display messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

6 MAC 101 user manual

Fixture overview

Control buttons

AC mains power

Safety cable attachment point

Display

Figure 1: Fixture overview

DMX input

DMX output

AC mains power

throughput

input

Introduction 7

Introduction

Thank you for selecting the MAC 101™, an intelligent lighting fixture from Martin Professional™. This range

of compact LED-based moving-head washlight includes four models:

All MAC 101 fixtures feature:

• DMX control

• Onboard control panel and backlit LCD graphic display

• Smooth electronic dimming

• Electronic shutter with strobe and pulse effects

• 540° pan and 240° tilt ranges

The standard MAC 101 features:

• RGB color mixing with color temperature control

• Cree XP-E high-power RGB emitters

• ‘Color wheel’ color-snap feature

• Three DMX control modes:

- Raw RGB + CTC

- Calibrated RGB + CTC

- Basic (color-wheel only, RGB + CTC disabled)

The MAC 101 CT features:

• Warm/cold white mixing with 2800 - 6200 K color temperature control

• Cree XP-E high-power warm and cold white emitters

The MAC 101 WRM features

• 2800 K color temperature

• Cree XP-E high-power warm white emitters

The MAC 101 CLD features:

• 6700 K color temperature

• Cree XP-E high-power cold white emitters

For the latest firmware updates, documentation, and other information about this and all Martin Professional

products, please visit the Martin website at http://www.martin.com

Comments or suggestions regarding this document may be e-mailed to service@martin.dk or posted to:

Technical Documentation, Martin Professional A/S, Olof Palmes Allé 18, DK-8200 Aarhus N, Denmark.

Using for the first time

Warning! Read “Safety Information” on page 3 before installing, powering, operating or servicing

the MAC 101. Before applying power to the fixture:

• Check the Martin Professional website at www.martin.com for the most recent user documentation and

technical information about the MAC 101. Martin user manual revisions are identified by the revision letter

at the bottom of page 2.

• Carefully review “Safety Information” starting on page 3.

• Check that the local AC mains power source is within the fixture’s power voltage and frequency ranges.

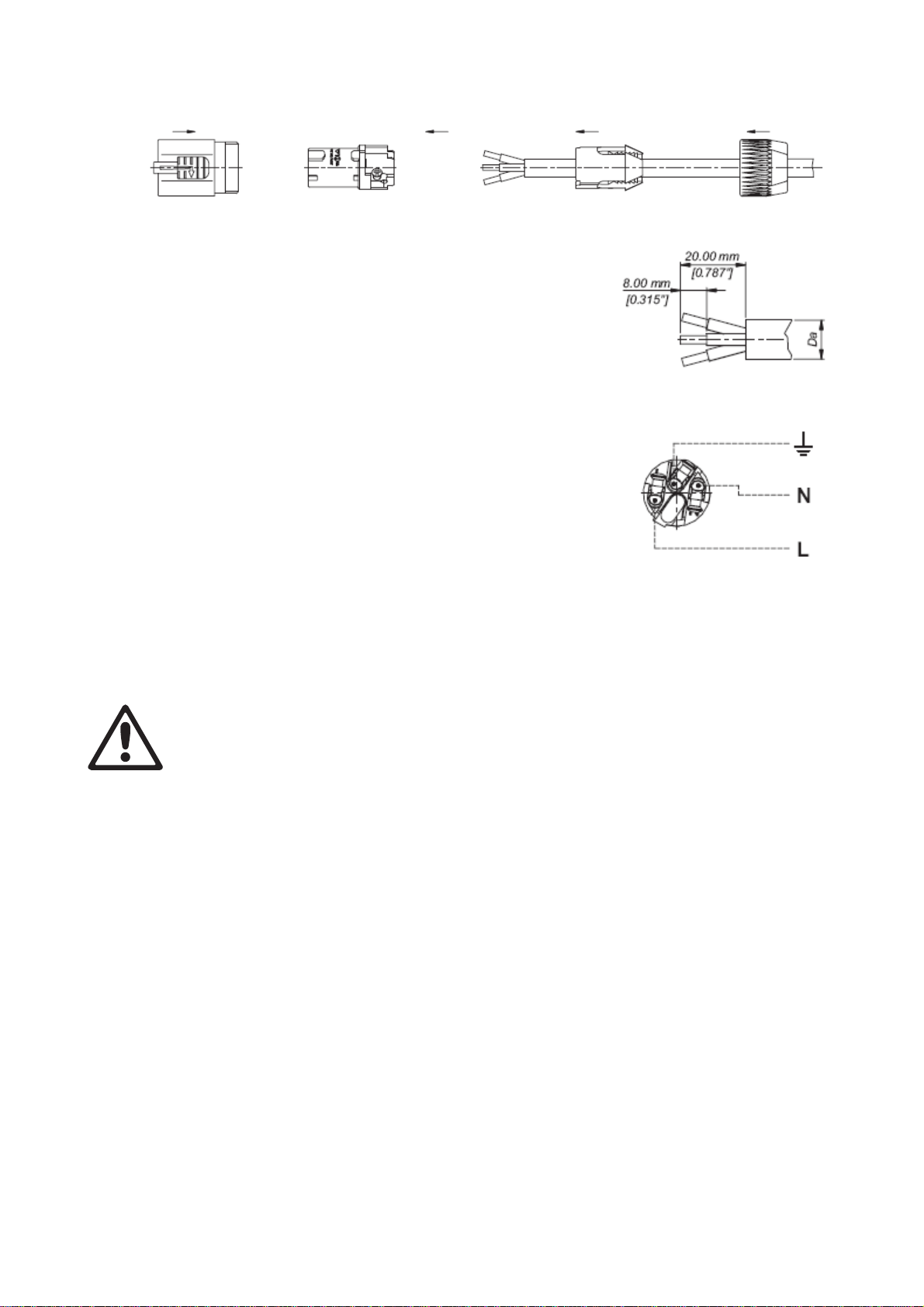

• See “Power cables and power plug” on page 8. Install a Neutrik PowerCon NAC3FCA power input

connector on a suitable power cable. If drawing power from a mains power outlet, install a suitable power

plug on the power cable.

8 MAC 101 user manual

AC power

Warning! Read “Safety Information” starting on page 3 before connecting the MAC 101 to AC mains

power.

Warning! For protection from electric shock, the MAC 101 must be grounded (earthed). The power

distribution circuit must be equipped with a fuse or circuit breaker and ground-fault (earth-fault)

protection.

Warning! The MAC 101 does not have a power on/off switch. Socket outlets or external power

switches used to supply the MAC 101 with power must be located near the fixture and easily

accessible so that the fixtures can easily be disconnected from power.

Warning! Do not insert or remove live Neutrik PowerCon connectors to apply or cut power, as this

may cause arcing at the terminals that will damage the connectors.

Important! Do not use an external dimming system to supply power to the MAC 101, as this may

cause damage to the fixture that is not covered by the product warranty.

The MAC 101 can be hard-wired to a building electrical installation if you want to install it permanently, or a

power plug that is suitable for the local power outlets can be installed on the power cable.

Power voltage

Warning! Check that the voltage range specified on the fixture’s serial number label

matches the local AC mains power voltage before applying power to the fixture.

MAC 101 fixtures accept AC mains power at 100-240 V nominal, 50/60 Hz. Do not apply AC mains power to

the fixture at any other voltage than that specified on the fixture’s serial number label.

Power cables and power plug

Power input and throughput cables must be rated 20 A minimum, have three conductors 1.5 mm² (16 AWG)

minimum and a total cable diameter of 5 - 15 mm (0.2 - 0.6 in.). Cables must be extra hard usage type (ST

or equivalent) and heat-resistant to 90° C (194° F) minimum.

If you install a power plug on the power cable, install a grounding-type (earthed) plug that is rated 20 A

minimum. Follow the plug manufacturer’s instructions. Table 1 shows standard wire color-coding schemes

and some possible pin identification schemes; if pins are not clearly identified, or if you have any doubts

about proper installation, consult a qualified electrician.

Wire Color

(EU models) Wire Color

(US models) Conductor Symbol Screw (US)

brown black live L yellow or brass

blue white neutral N silver

yellow/green green ground (earth) or green

Table 1: Wire color-coding and power connections

AC power 9

Installing a power input connector on a power cable

To install a Neutrik PowerCon NAC3FCA input connector on a power

cable:

1. Slide the bushing over the cable.

2. Slide the white chuck over cables with a diameter (Da) of 5 - 10 mm

(0.2 - 0.4 in.), or the black chuck over cables with a diameter of 10 -

15 mm (0.4 - 0.6 in.).

3. Prepare the end of the cable by stripping 20 mm (0.8 in.) of the

cable’s outer jacket.

4. Strip 8 mm (1/3 in.) from the end of each of the wires.

5. Insert each of the wire ends into the appropriate terminal (see

instructions and Table 1 above) and fasten the clamping device

using a small flathead screw driver.

6. Push and insert the chuck into the housing (note that there is a

raised key on the chuck to ensure that it is oriented correctly).

7. Fasten the bushing using a wrench to a torque of 2.5 Nm (1.8 lb.-ft).

Illustrations above used by kind permission of Neutrik AG

Relaying power to other devices

Warning! Do not connect more than ten MAC 101 fixtures in total to AC mains power in one

interconnected chain.

Power can be relayed to another device via the light-grey PowerCon throughput socket that accepts a

light-grey PowerCon NAC3FCB cable connector. Note that blue input and light-grey throughput connectors

have different designs: one type cannot be connected to the other. Neutrik power connectors can be

ordered separately from Martin (see Accessories on page 33).

If you link fixtures in a chain so that they all draw AC mains power via the first fixture, certain points must be

respected:

• An extra hard usage, three-conductor, 16 AWG or 1.5 mm2cable with ST or equivalent cable jacket must

be used to connect the first fixture to AC mains power and to interconnect all the fixtures in the chain up to

a maximum of ten fixtures in total.

• Light-grey Neutrik PowerCon NAC3FCB connectors must be used to draw AC mains power from the

fixtures’ power throughput sockets and blue Neutrik PowerCon NAC3FCA connectors must be used to

supply power at the fixture’s power input sockets.

• No matter what the AC mains power voltage is, do not connect more than ten MAC 101 fixtures in total

(i.e. including the first fixture) to AC mains power in one interconnected daisy chain using power input and

throughput connectors.

Chuck BushingHousing Insert

Cable end

Terminals

10 MAC 101 user manual

Data link

A DMX 512 data link is required in order to control a MAC 101 via DMX.

The MAC 101 has 5-pin XLR connectors for DMX data input and output. The pin-out on all connectors is pin

1 = shield, pin 2 = cold (-), and pin 3 = hot (+). Pins 4 and 5 in the 5-pin XLR connectors are not used in the

MAC 101 but are available for possible additional data signals as required by the DMX512-A standard.

Standard pin-out is pin 4 = data 2 cold (-) and pin 5 = data 2 hot (+).

The MAC 101 is not subject to the limit of 32 devices per daisy-chained link which is common in Martin

fixtures. Instead, the number of fixtures is either limited to 256 or limited by the number of DMX channels

required by the fixtures in relation to the maximum 512 channels available in one DMX universe, whichever

limit is lower. Note that if independent control of a fixture is required, it must have its own DMX channels.

Fixtures that are required to behave identically can share the same DMX channels.

To add more fixtures or groups of fixtures when the above limit is reached, add a DMX universe and another

daisy-chained link.

Tips for reliable data transmission

• Use shielded twisted-pair cable designed for RS-485 devices: standard microphone cable cannot transmit

control data reliably over long runs. 24 AWG cable is suitable for runs up to 300 meters (1000 ft). Heavier

gauge cable and/or an amplifier is recommended for longer runs.

• Never use both a fixture’s outputs to split a DMX link. To split the link into branches, use a splitter such as

the Martin 4-Channel Opto-Isolated RS-485 Splitter/Amplifier.

• Terminate the link by installing a termination plug in the output socket of the last fixture. The termination

plug, which is a male XLR plug with a 120 Ohm, 0.25 Watt resistor soldered between pins 2 and 3, “soaks

up” the control signal so it does not reflect and cause interference. If a splitter is used, terminate each

branch of the link.

Connecting the data link

To connect the MAC 101 to data:

1. Connect the DMX data output from the controller to the closest MAC 101’s male 5-pin XLR DMX input

connector.

2. Connect the DMX output of the fixture closest to the controller to the DMX input of the next fixture and

continue connecting fixtures output to input.

3. Terminate the last fixture on the link with a 120 Ohm resistor.

Altri manuali per MAC 101 Series

Questo manuale è adatto per i seguenti modelli

Indice

Manuali Apparecchio di illuminazione mobile popolari di altre marche

ProLights

ProLights Z1200SPOT Manuale utente
