Maruyama MS157 Manuale utente

INSTRUCTION MANUAL

MODE D'EMPLOI

MANUAL DE INSTRUCCIONES

POWER SPRAYER MS157/MS333

PULVÉRISATEUR AUTOMOTEUR

MS157/MS333

FUMIGADORA DE MOTOR

MS157/MS333

−1−

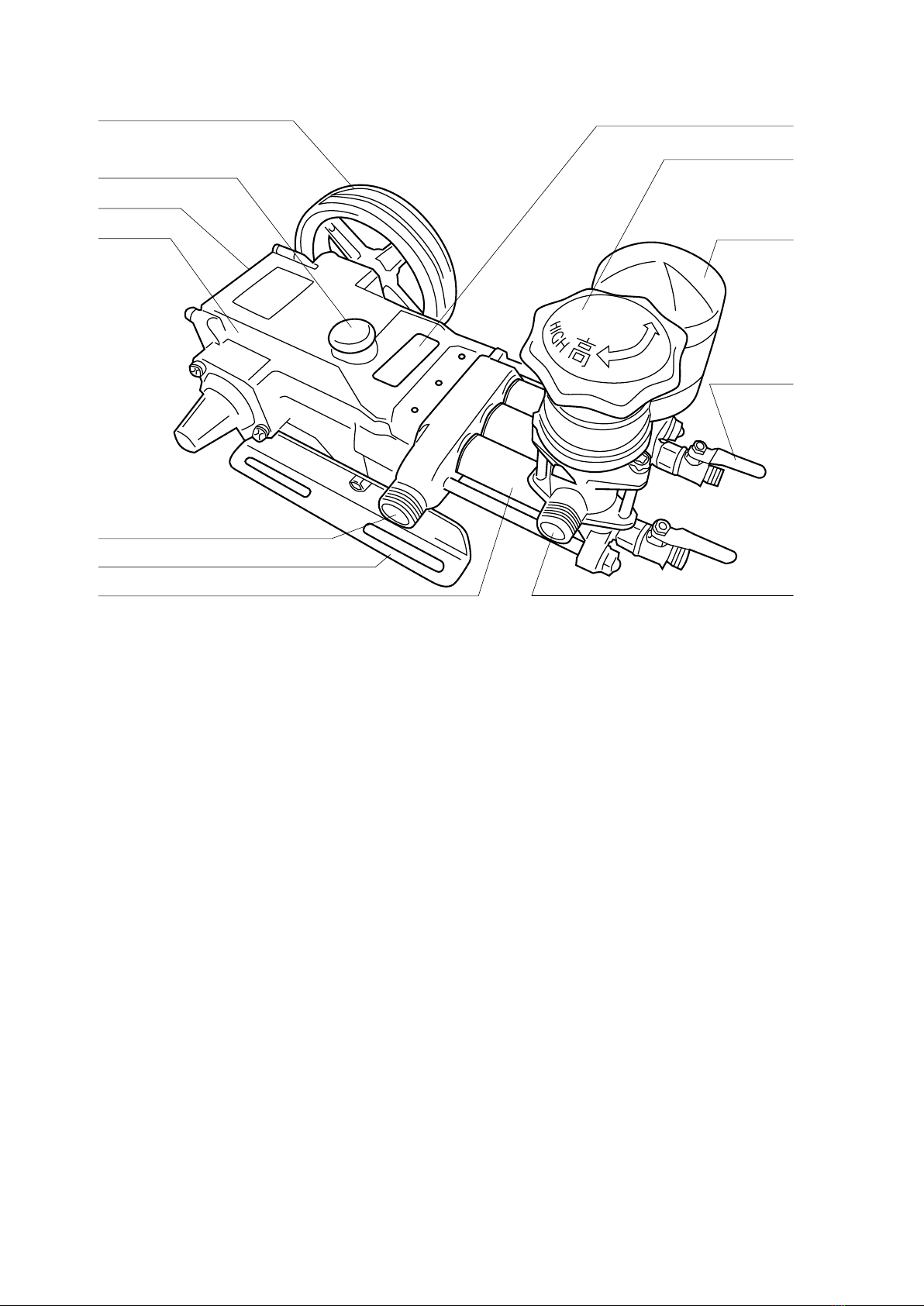

Main parts nomenclature

Caution and Serial number Label

Overflow port

Regulator knob

Air chamber

Main cock

V–pulley

Oil filler cap

Oil gauge

Crankcase

Suction port

Rail

Cylinder pipe

−2−

Specifications

Performance curve

600 800 1400

0.5

1.0

1.5

(PS)

7 10 17.5

Suction capacity

/min

Crankshaft speed rpm

Required power

1000

1200

15.5

Pressure MPa

1.0

3.5

700 900 1050 1300

(PS)

20 30 35

Suction capacity

/min

Crankshaft speed rpm

Required power

Pressure MPa

2.5

3.5

MS157 MS333

Model MS157 MS333

Dimensions

Overall length (mm) 378 403

Overall width (mm) 215 243

Overall height (mm) 288 281

Weight (kg) 6.9 7.2

Maximum Irrigation Maximum Irrigation

Speciﬁcations

Crankshaft speed (rpm) 1000 1400 1050 1300

Suction capacity (L/min) 13 17.5 30 35

Pressure MPa 3.5 1.0 3.5 2.5

Required power

kW 1.0 0.5 2.1 2.0

(PS) (1.4) (0.7) (2.9) (2.7)

Suction hose (mm)φ13×3000, G1/2φ19×3000, G3/4

Overflow hose (mm)φ13×3000, G1/2

Main cock G1/4×2

Type of Lubricant SAE10W-30, or SAE30 Non-detergent

Lubricant volume(L) 0.23 0.42

−3−

Specifications

Performance curve

600 800 1400

0.5

1.0

1.5

2.6

1.8 4.6

Suction capacity GPM

Crankshaft speed RPM

Required power HP

1000

3.4

1200

4.1

146

510

700 900 1050 1300

1.0

2.0

3.0 5.3 7.9 9.2

Suction capacity GPM

Crankshaft speed RPM

6.9

Pressure PSI

364

510

MS157 MS333

Model MS157 MS333

Dimensions

Overall length 14.9" 15.9"

Overall width 8.5" 9.6"

Overall height 11.3" 11.1"

Weight (lbs) 15.2 15.9

Maximum Irrigation Maximum Irrigation

Speciﬁcations

Crankshaft speed (RPM) 1000 1400 1050 1300

Suction capacity (GPM) 3.4 4.6 7.9 9.2

Pressure

PSI 510 146 510 364

Required power

HP 1.3 0.7 2.8 2.7

Suction hose φ1/2"×9.8', G1/2φ3/4"×9.8', G3/4

Overflow hose φ1/2"×9.8', G1/2

Main cock G1/4×2

Type of Lubricant SAE10W-30, or SAE30 Non-detergent

Lubricant volume (OZ) 8 14.5

−4−

Operating procedure

Be sure to check all the screws

for tightness.

1 Lubricating oil.

Fill the lubricating oil into the

crankcase up to the center

level of the gauge.

2 Oiling

Feed a few drops of oil into

the 3 holes of the crankcase.

3 Installing the suction

hose and overflow hose.

When installing the suction hose, check

the condition and presence of sealing

gaskets at the threaded couplings.

4 Attaching the strainer for

the hose coupling.

5 Insert the suction hose

and overflow hose into

the chemical tank.

6 Coincide knob of pres-

sure regulator with 0.

7 Close the valve.

8 Starting

9 Pressure regulation.

10 Spraying

11 Stopping spraying

Strainer

Preparatory

inspection

〜Spraying

Stopping

operation and

maintenance

Overflow

hose

Suction

hose

Suction

hose

Overflow

hose

Suction hose

Chemical

solution

Please

bleed air by

opening cock

when water is not

being taken in.

High Low

Operate after suction confirmation.

Pressure

value

Open the

valves

−5−

12 Wash up with the clean

water after spraying.

13 Running the Power

Sprayer.

14 Continue to run the

sprayer for one minute

after raising the strainer.

Caution!!

15 Stopping the operation.

16 Detach the suction hose

and overflow hose.

Resume knob to 0 position.

Protection from freezing.

Water should be completely drained

during winter storage to prevent freezing.

The operation is performed according to

items from 11 to 18 in the operation pro-

cedure.

Inspection and

adjustment

Discharge valve and its

vicinity.

Inspect discharge valve and valve seat for

wearing degree over their contact surface.

Replace worn or spoiled ones, if any.

Piston and its vicinity.

Inspect parts as exploded for damage

wear break, etc. Lubricate mobile oil over

piston packing when reassembled.

Replacement of

Crankcase oil.

Replace at 50 hours operation after initial

operation.

Overflow

hose

Discharge

valve

Discharge

valve seat

Piston

Suction valve

seat

Piston packing

Suction valve stopper

Running the sprayer for more

than one minute without the

presence of liquid may cause

severe pump damage!

−6−

Precautions

Thank you very much for your purchase this time.

Needless to say, no matter how excellent the quality of

the product may be it won't display its maximum

potential performance unless operated properly.

Read this instruction manual repeatedly prior to opera-

tion in order to make the best use of the product.

Power sprayers are for agricultural or irrigation uses

and not for industrial use. Therefore, do not use

chemicals, seawater, hot water, etc. When agrichemi-

cals are used, read and follow the instruction manual

for chemicals.

For further information or assistance, please contact

the nearest authorized Maruyama Dealer of the store

which you purchased this product from.

When pump fails to suck liquid.

When hoses are vibrating themselves...

Hose vibration occurs when air is released out of

air-chamber. It will stop if you let air send forth as fol-

lowing procedural.

qOpen main

cock.

wOnce pump

sucks liquid.

eClose main

cock.

wRelease pressure

Lift suction strainer

once to let it suck air for

about 10 seconds and

plunge it into water

again.

High Low

Pressure

value

When pressure fails to get accumulated...

●Inspect belt for

tension.

●Inspect pressure regulating

valve for wear.

●Replace wrong nozzle for proper one.

When nozzle orifice is big. . . . .Make orifice smaller.

15 〜20mm

When spray is voluminous. . . . .Make spray less volu-

minous.

Valve seat

Valve ball Choose right nozzle so that its spray vol-

ume fails on about 80% (but not more than

80%) of suction volume.

−7−

Nomenclature des pièces principales

Etiquette d'Avertissementet de

meméro de série

Orifice de trop-plein

Molette de réglage

Chambre à air

Robinet

principal

Poulie en V

Bouchon de remplissage

d'huile

Jauge

Carter

Orifice d'aspiration

Rail

Tuyau de cylindre

−8−

Spécifications

600 800 1400

0.5

1.0

1.5

(PS)

7 10 17.5

Capacité d'aspiration

/min

Vitesse du vilebrequin min

-1

(tr/mn)

Puissance requise

1000

1200

15.5

Pression MPa

1.0

3.5

700 900 1050 1300

(PS)

20 30 35

Capacité d'aspiration

/min

Vitesse du vilebrequin min

-1

(tr/mn)

Puissance requise

Pression MPa

2.5

3.5

Courbe de performances

MS157 MS333

Modèle MS157 MS333

Dimensions

Longueur hors-tout (mm) 378 403

Largeur hors-tout (mm) 215 243

Hauteur hors-tout (mm) 288 281

Poids (kg) 6.9 7.2

Maximum Irrigation Maximum Irrigation

Spéciﬁcations

Vitesse du vilebrequin(tr/mn)

(rpm) 1000 1400 1050 1300

Capacit d'aspiration(N/min)

(L/min) 13 17.5 30 35

Pression MPa 3.5 1.0 3.5 2.5

Puissance requise

kW 1.0 0.5 2.1 2.0

(PS) (1.4) (0.7) (2.9) (2.7)

Tuyau d'aspiration (mm)φ13×3000, G1/2φ19×3000, G3/4

Tuyau de trop-plein (mm)φ13×3000, G1/2

Robinet principal G1/4×2

Huile de graissage SAE10W-30, ou SAE30 non-détergente

Contenance d'huile de graissage (L) 0.23 0.42

−9−

Utilisation

Bien vérifier le serrage de

toutes les vis.

1 Huile de graissage

Remplir le carter moteur

d'huile de graissage jusqu'au

niveau central de la jauge.

2 Graissage

Verser quelques gouttes d'huile

dans les 3 orifices du carter moteur.

Installation du tuyau

d'aspiration et du tuyau de

trop-plein

Au cours de l'installation du tuyau

d'aspiration, vérifiez d'abord la

présence ainsi que le bon état

des joints d'étanchéité aux

abords des couplages de fils

électriques.

Fixation de la crépine pour

le raccordement des tuyaux.

Insérer le tuyau d'aspiration

et le tuyau de trop-plein

dans le réservoir chimique

Régler le bouton du

régulateur de pression sur 0

7 Refermer la soupape.

8 Mise en route

Régulation de la pression

10 Vaporisation

11 Arrêt de la vaporisation

Inspection

préparatoire

〜

Vaporisation

Arrêt du

vaporisateur

et entretien

Tuyau de

trop-plein

Tuyau de

trop-plein

Tuyau d'aspi-

ration

Solution

chimique

Purger l'air

en ouvrant le

robinet si l'eau

n'est pas aspirée.

Fort Faible

Pression

Ouvrir les

soupapes

Tuyau

d'aspiration

Tuyau de

trop-plein

Crépine

Faire marcher le vaporisateur aprés avoir

vérifié le bon fonctionnement de l'aspiration.
