Master FPC90 Manuale utente
Henan Master Machinery Co., Ltd
Tel:(+86)17737606271 www.mastermachinerys.com
1
OPERATION MANUAL
FPC90 Vibratory Plate
Compactor
P E R F O R M A N C E · E F F I C I E N T · R E L I A B L E
Henan Master Machinery Co., Ltd
Tel:(+86)17737606271 www.mastermachinerys.com
2
Master sincerely thanks you for selecting the Plate
Compactor Machine. For your Safety and proper operation,
before you start to operate or carry out any maintenance on
this equipment, YOU MUST READ and STUDY this manual
carefully. Be sure to always keep it ready for reference
Produced By Henan Master Machinery Co.,Ltd
Dear Customer,
Thanks for choosing Master machine.
To ensure the safety and proper use of the machine,
please read the instruction book carefully before use.
Also, please fill this card and save it for warranty use.
Buyer Name
Purchase
Time
Tel
Contact
Person
Address
Product
Name
Plate Compactor
MODEL
FPC90
Motor Model
Note
Henan Master Machinery Co., Ltd
Tel:(+86)17737606271 www.mastermachinerys.com
3
FOREWARD
◇For your own safety and protection from bodily injuries, carefully read,
understand and follow the safety instructions in this manual.
◇Please operate and maintain your machine in accordance with the
instructions in this manual.
◇Defective machine parts are to be replaced as soon as possible.
◇Keep this owner's manual handy, so you can refer to it at any time.
◇No part of this publication may be reproduced without written
permission.
◇We expressly reserve the right to technical modifications- even
without express due notice - which aim at improving our machines or
their safety standards.
FEATURE
This machine are ideal for curbs, gutters, around tanks, forms,
columns, footings, guard railings, drainage ditches, gas and sewer
works and building construction. The asphalt models are suitable for hot
or cold asphalt applications in confined areas.
Optimally suited for a variety of compaction applications due to high
travel speeds and ease of maneuverability. Guide handle with patented
vibration dampening increase operator comfort and reduces fatigue.
The large capacity water tank and the wide filler opening improve
productivity. Tough ductile iron base plate is extremely durable even
under extremely conditions and provides for long service. Optional
wheel kit offer easier moving and transport.
Henan Master Machinery Co., Ltd
Tel:(+86)17737606271 www.mastermachinerys.com
4
SAFETY PRECAUTIONS
Familiarity and proper training are required for the safe operation of
equipment. Equipment operated improperly or by untrained personnel
can be dangerous﹗Read the operating instructions contained in both
this manual and the engine manual and familiarize you with the location
and proper use of all controls.
WARNING
NEVER allow improperly trained people to operate this equipment.
People operating this equipment must be familiar with the potential risks
and hazards associated with it.
NEVER touch engine or muffler while forward plate is operating or
immediately after it has been turned off. These areas get hot and may
cause burns.
NEVER use accessories or attachments, which are not recommended
for this equipment. Damage to equipment and/or injury to user may
result.
NEVER operate machine with the belt guard missing. Exposed drive
belt and pulleys create potentially dangerous hazards that can cause
serious injuries.
NEVER leave machine running unattended.
ALWAYS read, understand, and follow procedures in Operator’s
Manual before attempting to operate equipment.
ALWAYS wear protective clothing when operating equipment. For
instance, goggles or safety glasses will protect eyes from damage
caused by flying debris.
ALWAYS close fuel valve on engines equipped with one, when screed
is not being operated.
Henan Master Machinery Co., Ltd
Tel:(+86)17737606271 www.mastermachinerys.com
5
ALWAYS store equipment properly when it is not being used.
Equipment should be stored in a clean, dry location out of the reach of
children.
ALWAYS operate screed with all safety devices and guards in place
and in working order.
ALWAYS operate plate along even forms. Avoid objects protruding from
concrete such as stakes or plumbing that would interfere with screed
operation.
PERIODIC MAINTENANCE SCHEDULE
The Periodic Maintenance Schedule below lists basic maintenance
intervals for the engine and forward plate. The layman with everyday
hand tools may carry out items listed.
Routine
Service
Intervals
Befor
e
each
use
After
first
20
hours
Every
two
weeks
or 50 hrs
Every
month
or 100
hrs
Every
year or
300
hrs
Check fuel level
●
Check engine oil
level
●
Check fuel lines
●
Inspect air
cleaner
elements.
Replace as
needed.
●
Henan Master Machinery Co., Ltd
Tel:(+86)17737606271 www.mastermachinerys.com
6
Check and
tighten external
hardware.
●
Check and
tighten belt
●
●
Clean air
cleaner
elements.
●
Check shock
mounts
●
Change engine
oil
●
●
Clean cooling
system
●
Check and clean
spark plug
●
Clean sediment
cup
●
Check and
adjust valve
clearances.
●
Change
eccentric block
rubricate
●
Notice! A new belt must be checked after 5 hours use.
FUEL RECOMMENDATIONS
Use unleaded gasoline with a pump octane rating of 90 or higher.
Never use stale or contaminated gasoline or an oil/gasoline mixture.
Henan Master Machinery Co., Ltd
Tel:(+86)17737606271 www.mastermachinerys.com
7
STARTING THE ENGINE
a. Move the fuel valve lever to the ON position.
b. Move the choke lever to the CLOSE position. If the engine is warm or
the air temperature is high, move the control lever away
from the OPEN position as soon as the engine starts.

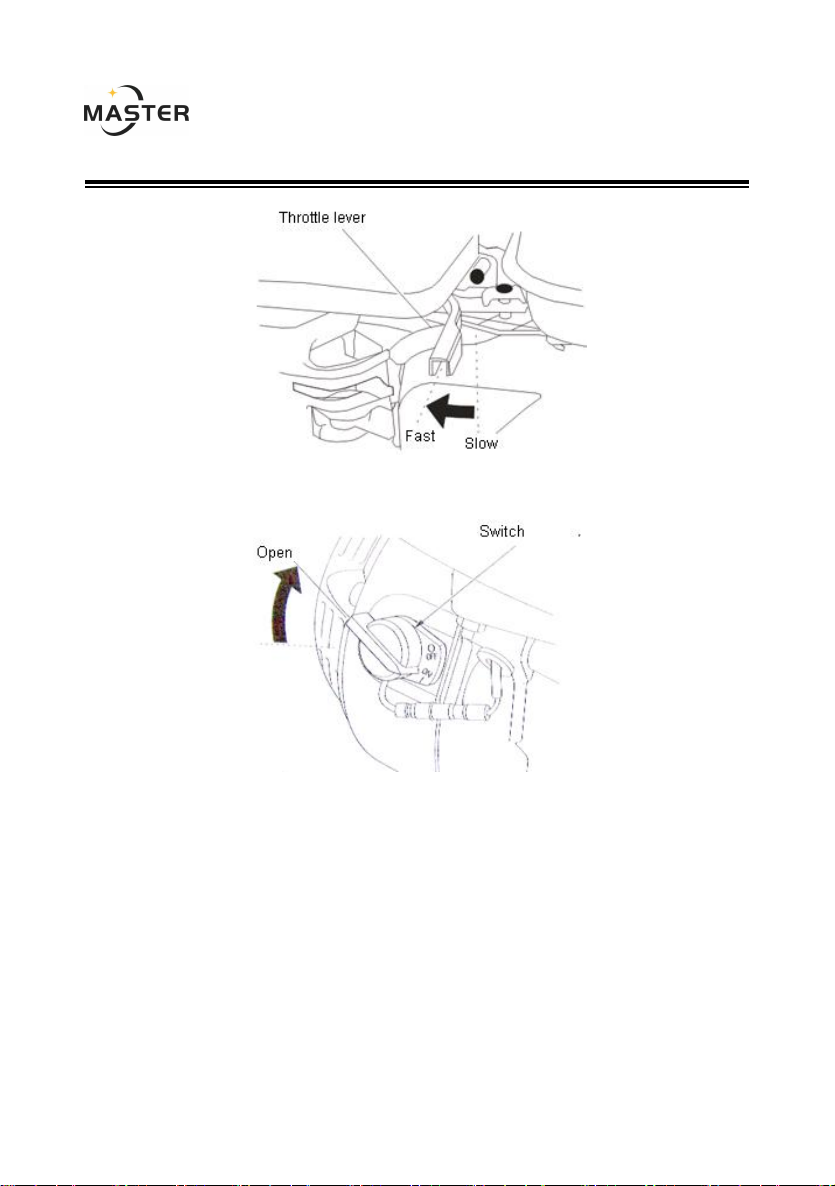

c. Move the throttle lever away from the SLOW position, about 1/3 of
the way to toward the FAST position.
Henan Master Machinery Co., Ltd
Tel:(+86)17737606271 www.mastermachinerys.com
8
d. Turn the engine switch to the ON position.

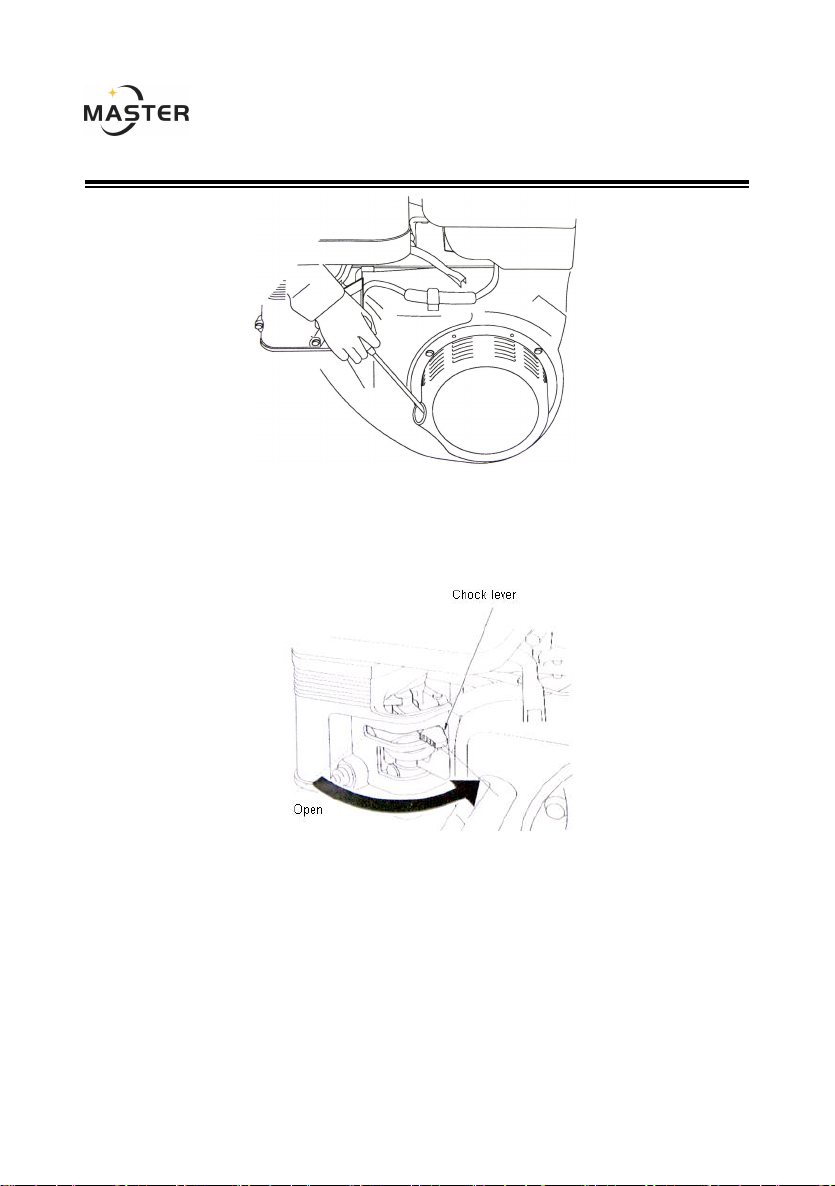

e. Pull the starter grip lightly until you feel resistance, then pull briskly.
Return the starter grip gently.
CAUTION! Do not allow the starter grip to snap back against the
engine. Return it gently to prevent damage to the starter.
Henan Master Machinery Co., Ltd
Tel:(+86)17737606271 www.mastermachinerys.com
9
f. If the chock lever or chock rod (applicable types) has been moved to
the CLOSED position to start the engine, gradually move it to the OPEN
position as the engine warms up.
STOPPING THE ENGINE
a. Move the throttle lever to the SLOW position.
Henan Master Machinery Co., Ltd
Tel:(+86)17737606271 www.mastermachinerys.com
10
b. Turn the engine switch to the OFF position.
c. Turn the fuel valve lever to the OFF position.
