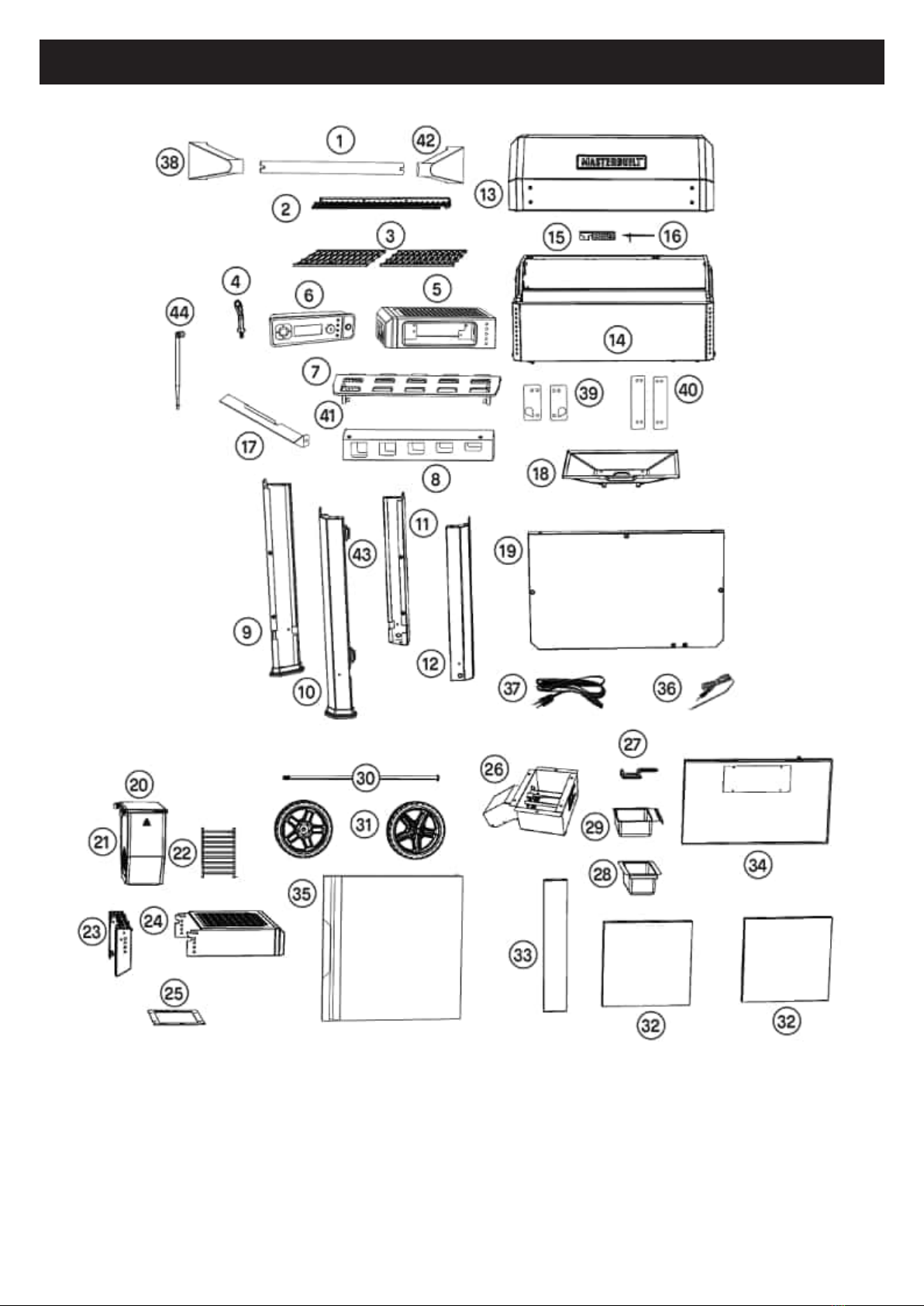

NO. Q T Y. DESCRIPTION
1 1 Lid Handle
2 1 Warming Rack
3 2 Cooking Grates
4 1 Grate Lifter
5 1 Left Shelf Assembly
6 1 Controller
7 1 Heat Tent Assembly
8 1 Heat Manifold
9 1 Rear Left Leg
10 1 Front Left Leg
11 1 Rear Right Leg
12 1 Front Right Leg
13 1 Lid Assembly
14 1 Body Assembly
15 1 Temperature Probe Bracket
16 1 Temperature Probe
17 1 Heat Manifold Support Bracket
18 1 Grease Pan Assembly
19 1 Bottom Shelf
20 1 Hopper Lid (Sear Plate)
21 1 Mini Hopper
22 1 Charcoal Grate
Parts List
NO. Q T Y. DESCRIPTION
23 1 Right Shelf Bracket
24 1 Right Folding Shelf Assembly
25 1 Lower Hopper Gasket
26 1 Lower Hopper Assembly
27 1 Firestarter Tray
28 1 Grease Tray
29 1 Ash Tray
30 1 Axle with Lock Nut
31 2 8” Wheels
32 2 Cart Side Panels
33 1 Cart Front Panel
34 1 Cart Rear Panel
35 1 Cart Door Assembly
36 1 Meat Probe
37 1 Power Cord
38 1 Lid Handle Bracket Left
39 1 Mica Strip Left Shelf
40 1 Mica Strip Right Shelf
41 2
Heat Manifold Bracket
42 1 Lid Handle Bracket Right
43 2
Magnetic Brackets
44 1
Antenna
5

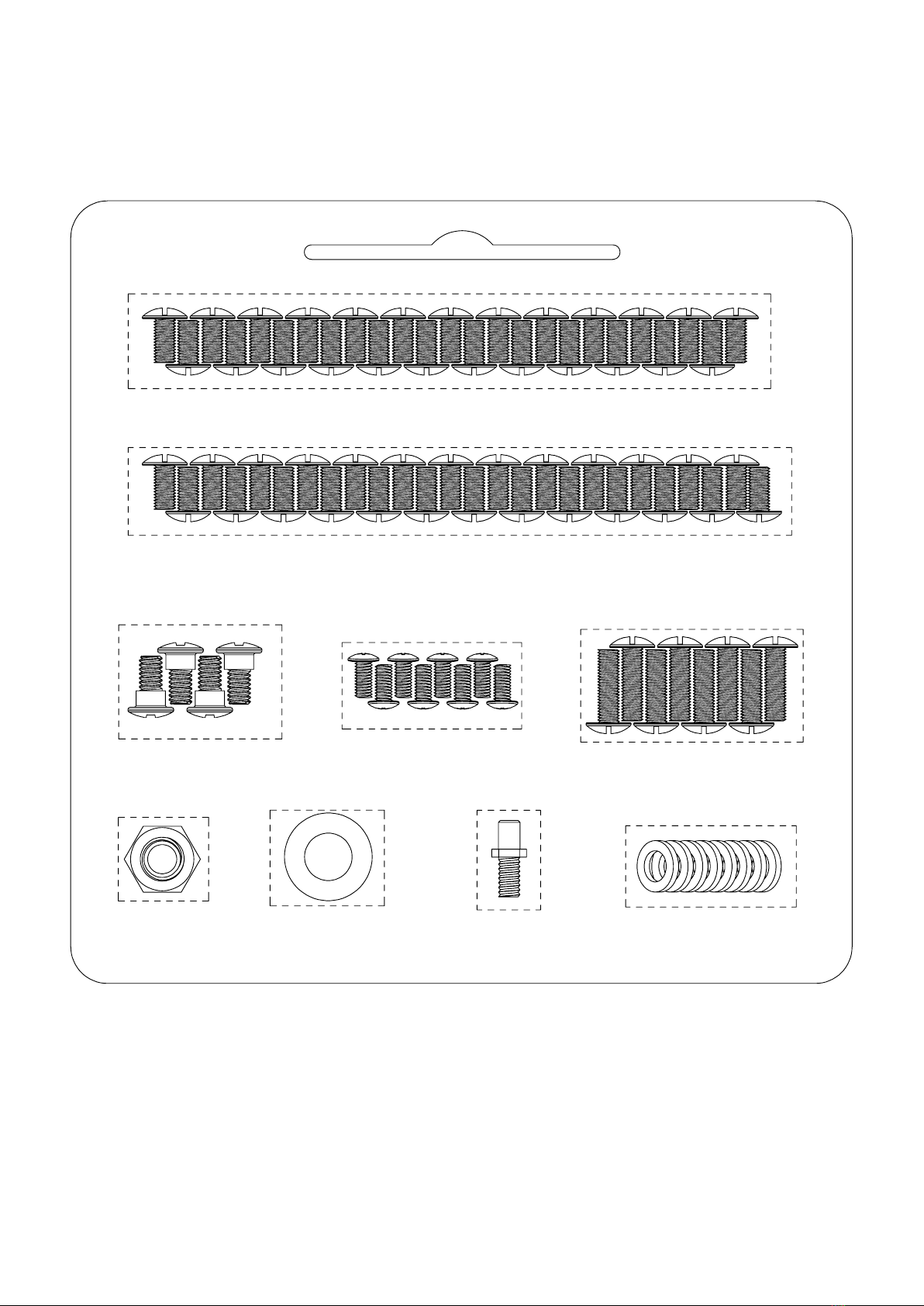

BEFORE ASSEMBLY READ ALL INSTRUCTIONS CAREFULLY
• Assemble on a clean at surface.
• Recommend assembling on cardboard to avoid residue on oors or scratches.
• Gloves recommended for assembly.
• Tools needed: Phillips head screwdriver, adjustable wrench, 19m socket wrench.
• Approximate assembly me: 1 hour, 45 minutes.
• Recommend two people assemble to increase ease and reduce assembly me.
• Actual product may dier from picture shown.
• It is possible that some assembly steps have been completed in the factory.
• Remove all printed labels before use.
DO NOT RETURN TO RETAILER!
For assembly assistance, missing or damaged parts, please contact Masterbuilt®Customer Service.
Masterbuilt ® Premier Specialty Brands, LLC, 5367 New Peachtree Road, Suite 150, Chamblee, GA 30341 www.masterbuilt.com/pages/customer-support
Masterbuilt ® Kamado Joe Europe, Lange Voorhout 86, 2514 EJ, Den Haag, Netherlands internaonal.masterbuilt.com/pages/customer-support
Masterbuilt ® Kamado Joe UK Limited, Cheyenne House West Street, Farnham GU9 7EQ internaonal.masterbuilt.com/pages/customer-support
Australia & New Zealand: Please contact your retailer
