Masterbuilt 20070710 Manuale utente

Heating Element Replacement Instruction for

20070710, 20070810, 20070910 Electric Smokers

PARTS AND HARDWARE

ITEM

NUMBER

QUANTITY

DESCRIPTION

1 1 Replacement Element

2 1 Gasket

3 2 Replacement Wire Assembly

4 2 Wire Nuts

5 2 Element Screws

Required Tools: Short Phillips head Screwdriver

Wire Stripper

• ALWAYS REMOVE PLUG FROM OUTLET BEFORE SERVICING!

• MAKE SURE UNIT HAS FULLY COOLED TO AVOID BURNING!

• EDGES MAY BE SHARP. USE CAUTION TO AVOID INJURY!

!CAUTION!

090126-04SS

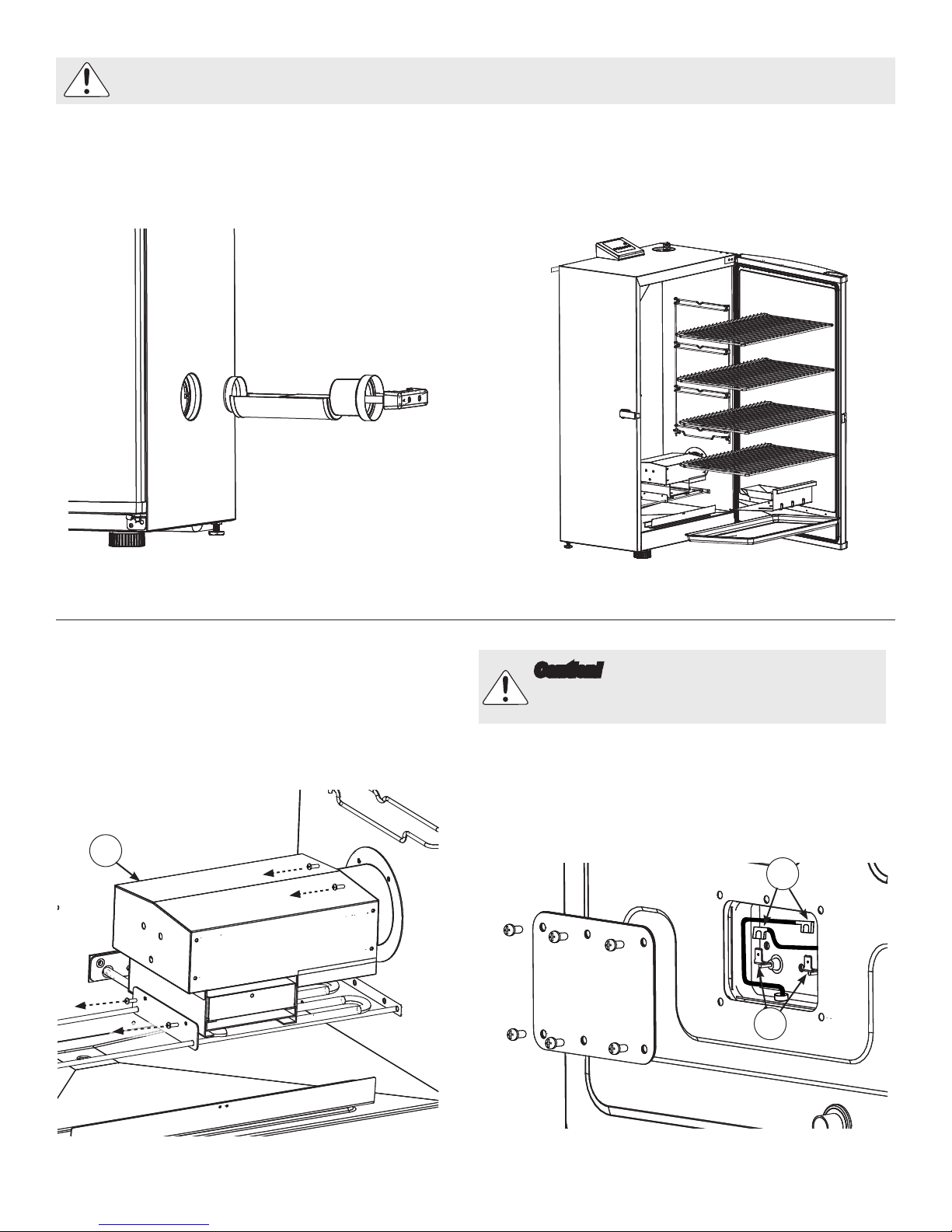

Step 1:

Remove woodchip loader from unit

Step 2:

Remove cooking grates, woodchip holder

and drip pan out of smoker.

*Disconnect from power source and allow unit to fully cool before replacing heating element.

Step 3:

Remove 4 screws from the woodchip

housing (A) and detach from inside smoker

to expose heating element as illustrated.

Step 4:

Remove back plate from rear of smoker

exposing leads for heating element.

Carefully remove heat shrink from female

leads (B) and disconnect from male spades

Caution! Sharp edges may cause injury!

Before continuing, be sure to note that edges of

thin sheet metal in this step could cause injury.

Step 5:

Unscrew heating element support screws

and detach rubber housing from rear

enclosure.

Step 6:

Inside unit, pull heating element from back

of unit, pulling away gasket from element

bracket and exposing ground wire. Remove

ground wire from heating element as shown.

Step 7:

Connect ground wire to new heating ele-

ment in reverse order of step 6.

Step 8:

Align male spades of heating element with

holes on back wall, inserting them at a slight

angle as shown in illustration while making

sure ground wire does not get lodged

between the element bracket and housing.

Step 9:

Following step 5 in reverse, hold element in

place while having someone secure element

to housing.

Step 10:

If existing female leads are clear of

corrosion, reattach leads in reverse order as

in steps 5-1. However, if there is clear

damage or corrosion to female leads they will

need to be replaced as shown in steps 11-13

on the following page.

*Steps 8-9 require assistance.

Step 11:

If female spades need to be replaced, cut

the existing spade off, then strip insulation

back 3/8” using wire stripper.

Step 13:

Insert replacement wire leads onto ele-

ment terminals as shown.

Step 12:

Attaching bare replacement wiring

assembly to existing wire from body, join

the two bare ends of wire together and twist

until wires are held securely to each other.

Place wire not over the two wires and twist

wirenut until secure on both wires.

*Before reinstalling woodchip housing, plug unit

into outlet and test element to ensure correct

operation. Once unit checks out, unplug unit and

allow smoker to fully cool.

*A small piece of electrical tape wrapped

around wirenut and wires adds security.

Step 11:

Reassemble smoker following steps 5-1 in

reverse order. Unit is now operational. Enjoy!

Masterbuilt Manufacturing, Inc.

1 Masterbuilt Court

Columbus, Georgia 31907

Customer Service 1-800-489-1581

3/8
