MasterChef S420 Manuale utente

S420 Barbecue

Assembly Manual

85-3062-2 (G45123) Propane

85-3063-0 (G45124) Natural Gas

1 YEAR LIMITED WARRANTY

Manual Revision #: 12022013 PD

ANS Z21.58b-2012-CSA 1.6b-2012

ANS Z21.58b-2012-CSA 1.6b-2012 ANS Z21.58b-2012-CSA 1.6b-2012

ANS Z21.58b-2012-CSA 1.6b-2012

READ AND SAVE MANUAL FOR FUTURE REFERENCE.

Assemble your grill immediately.

Missing or damaged parts claims must be submitted within 30 days of purchase date.

For product inquiries, parts, warranty and troubleshooting support,

please call 1-855-453-2150.

DANGER

1. If you smell Gas:

a. Shut o gas to the appliance

b. Extinguish any open ame

c. Open lid

d. If odor continues, keep away from

the appliance and immediately

call your gas supplier or your

re department

2. Requires two people to complete the

assembly process.

3. Beware of sharp edges.

WARNING

Failure to follow all of the Manufacturer’s

instructions could result in hazardous res,

explosions, property damage, or serious

personal injury or even death.

Follow all leak check procedures carefully

prior to operation of barbecue, even if grill

was dealer assembled. Do not try to light

this barbecue without reading the Lighting

Instructions section of this manual.

THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES

CAUTION

Read and follow all safety statements,

assembly instructions, use and care

directions before attempting to assemble

and cook.

WARNING

1. Do not store or use gasoline or other

ammable liquids or vapours in the

vicinity of this or any other appliance.

2. An LP cylinder not connected for use shall

not be stored in the vicinity of this or any

other appliance.

WARNING

IN DIRECT SUN, AND IN OPERATION,

YOUR BBQ’S STAINLESS STEEL AND

PAINTED STEEL PARTS CAN BECOME

VERY HOT.

CAUTION

Sharp edges. Wear gloves when assembling

your grill.

THIS BARBECUE IS FOR OUTDOOR USE ONLY

CONTACT CALL CENTRE IF ANY PARTS ARE MISSING

1-855-453-2150

INSTALLER OR ASSEMBLER/CONSUMER

This manual should be kept with the BBQ at

all times.

HEAVY ARTICLE NEEDS 2 TO LIFT

To ORDER non-warranty replacement parts or accessories, or to register your warranty,

please visit us on the web at

www.masterchefbbqs.com

TOOLS NEEDED FOR ASSEMBLY

• #2 Phillips screwdriver (long and short)

• ¼” Slotted screwdriver (long and short)

• Adjustable wrench

• Pliers

Before assembling the barbecue, read these

instructions carefully.

Assemble the barbecue on a at, clean surface.

Grill is heavy. You should have at least two people

assemble the barbecue together.

Notes: Do not fully tighten all the nuts during

this initial stage.

Caution:

Sheet metal can cause injury. Wear gloves when installing the grill.

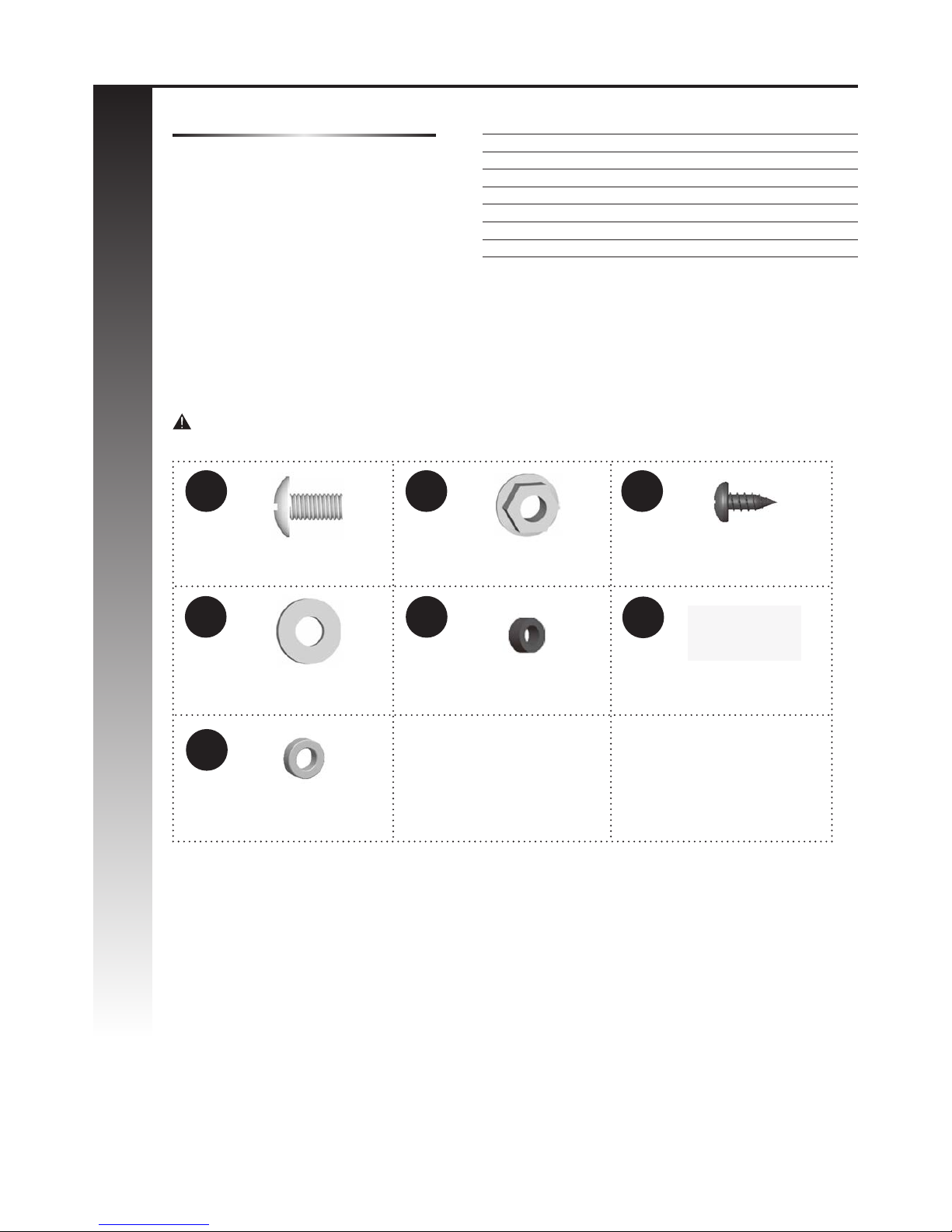

HARDWARE PACK

¼” x 13mm Screw

X 20

Hitch Pin

X 1

#8X3/8” Self Tapping Screw

X 12

Ø7 Fiber Washer

X 8

¼” - 20UNC Nut

X 8

Wheel Spacer

X 2

1 2 3

4 5 6

Washer (Wheel)

X 1

KEY # DESCRIPTION PART NUMBER QUANTITY

1 1/4” x 13mm Screw 20120-13013-036 20

2 1/4”-20UNC Nut 31220-13000-036 8

3 #8X3/8” Self Tapping Screw 24200-42008-136 12

4 φ7 Fiber Washer G431-0018-9000 8

5 Wheel Spacer G305-0024-9088 2

6 Hitch Pin G306-0005-9088 1

7 Washer (Wheel) 40300-08000-036 1

PARTS LIST PROPANE FOR 8530622 G45123

KEY # QUANTITY DESCRIPTION PART NO.

AA 1 Top Lid Assembly G451-0E00-01

AB 1 Thermometer and bezel G432-000K-01

AC 1 Top Lid Handle G451-0063-01

AD 2 Lid Bumbers-Back G303-0038-01

AE 2 Lid Bumbers-Front G430-00B8-01

AF 2 Screws For Lid G430-0024-01

BA 1 Burner Box Assembly G451-0H00-01

BB 3 Burner G432-B600-01

BC 1 Electrode Set,Main Burners G501-0010-01

BD 2 Burner Brace Assembly G432-0078-01

BE 3 Flame Tamers G430-0005-01

BF 3 Cooking Grates G451-1200-01

BG 1 Warming Rack G430-0003-01

CA 1 Control Panel G451-0064-01

CB 1 Manifold Assembly G451-P200-01

CC 1 Regulator G511-0031-01

CD 3 Bezel, control knob G430-0027-02

CE 3 Control Knob G432-0090-01

CF1 1 Electronic Ignition Assembly G409-0021-A1

CF2 1 Electronic Ignition Button G409-0030-01

CG 1 Grease Cup Hook G305-0043-01

CH 1 Grease Cup G430-0033-02

CI 1 Heat Shield G451-6201-01

DA 1 Cart Side Panel,Right G451-0D00-01

DB 1 Cart Side Panel,Left G451-0C00-01

DC 2 Back Brace G459-1100-01

DD 1 Front Panel G451-0005-02

DE 2 End Caps G431-0004-01

DF 1 Match Holder G401-0079-01

DG 2 Wheel G210-0018-02

DH 1 Wheel Axle G430-0007-01

DI 1 Tank exclusion G430-5402-01

DJ 1 Gas Tank Support G307-0016-01

EA 1 Side Shelf Table(right) G451-0B00-01

EB 1 Side Shelf Fascia(right) G451-0061-01

EC 1 Side Shelf Table(left) G451-0A00-01

ED 1 Side Shelf Fascia(left) G451-0060-01

F1 1 Hardware Pack G451-B023-01

F2 1 Assembly Instructions G451-M023-01

F3 1 Safe Use and Care Manual G451-M018-02

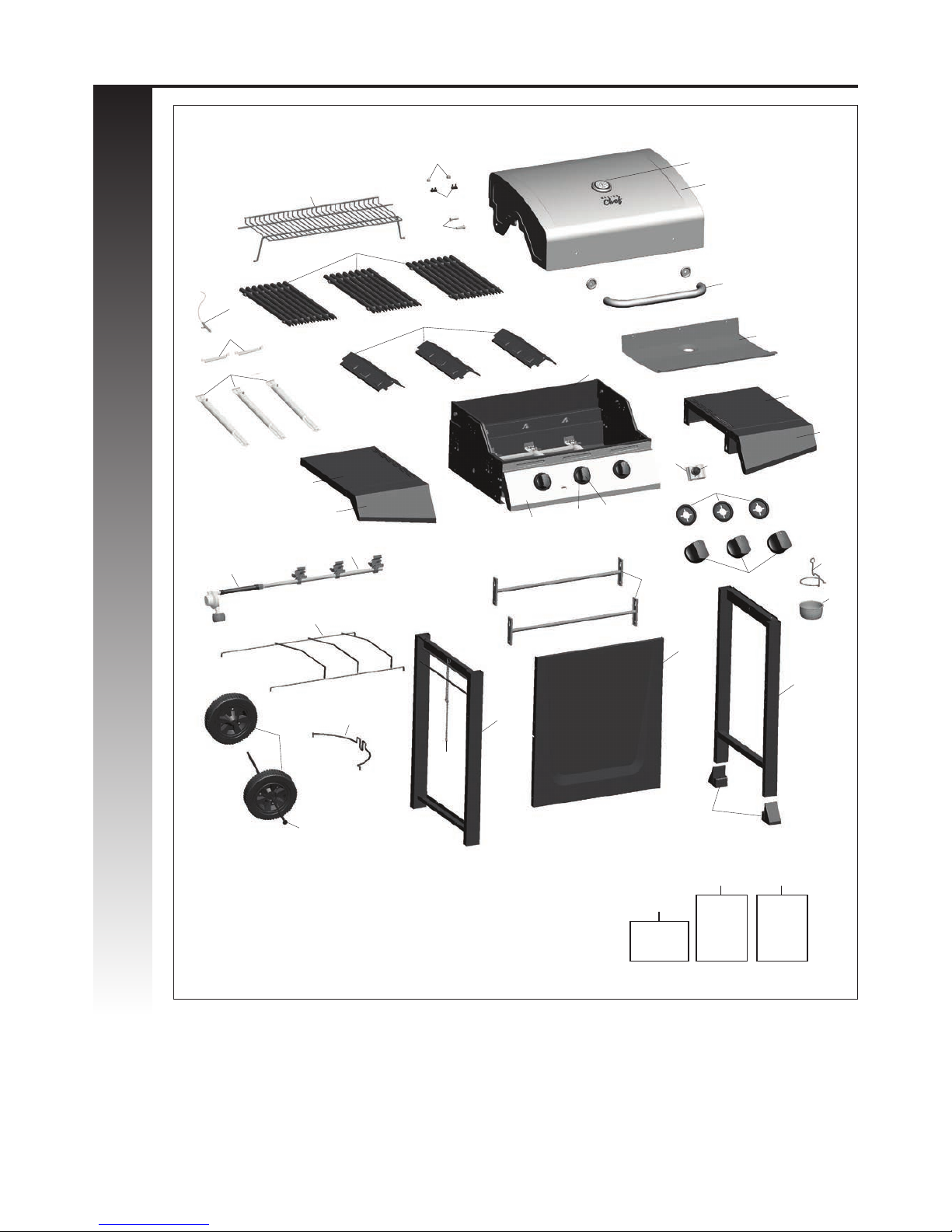

EXPLODED DIAGRAM PROPANE FOR 8530622 G45123

CF1 CF2

HARDWARE

PACK

F2 F3

ASSEMBLY

MANUAL

SAFETY

AND CARE

MANUAL

PARTS LIST NATURAL GAS FOR 8530630 G45124

KEY # QUANTITY DESCRIPTION PART NO.

AA 1 Top Lid Assembly G451-0E00-01

AB 1 Thermometer and bezel G432-000K-01

AC 1 Top Lid Handle G451-0063-01

AD 2 Lid Bumbers-Back G303-0038-01

AE 2 Lid Bumbers-Front G430-00B8-01

AF 2 Screws For Lid G430-0024-01

BA 1 Burner Box Assembly G451-0H00-01

BB 3 Burner G432-B600-01

BC 1 Electrode Set,Main Burners G501-0010-01

BD 2 Burner Brace Assembly G432-0078-01

BE 3 Flame Tamers G430-0005-01

BF 3 Cooking Grates G451-1200-01

BG 1 Warming Rack G430-0003-01

CA 1 Control Panel G451-0064-01

CB 1 Manifold Assembly G451-P700-01

CC 1 Natural Gas Hose G501-0099-01

CD 3 Bezel, control knob G430-0027-02

CE 3 Control Knob G432-0090-01

CF1 1 Electronic Ignition Assembly G409-0021-A1

CF2 1 Electronic Ignition Button G409-0030-01

CG 1 Grease Cup Hook G305-0043-01

CH 1 Grease Cup G430-0033-02

CI 1 Heat Shield G451-6201-01

DA 1 Cart Side Panel,Right G451-0D00-01

DB 1 Cart Side Panel,Left G451-0C00-01

DC 2 Back Brace G459-1100-01

DD 1 Front Panel G451-0005-02

DE 2 End Caps G431-0004-01

DF 1 Match Holder G401-0079-01

DG 2 Wheel G210-0018-02

DH 1 Wheel Axle G430-0007-01

EA 1 Side Shelf Table(right) G451-0B00-01

EB 1 Side Shelf Fascia(right) G451-0061-01

EC 1 Side Shelf Table(left) G451-0A00-01

ED 1 Side Shelf Fascia(left) G451-0060-01

F1 1 Hardware Pack G451-B023-01

F2 1 Assembly Instructions G451-M023-01

F3 1 Safe Use and Care Manual G451-M018-02

CF1 CF2

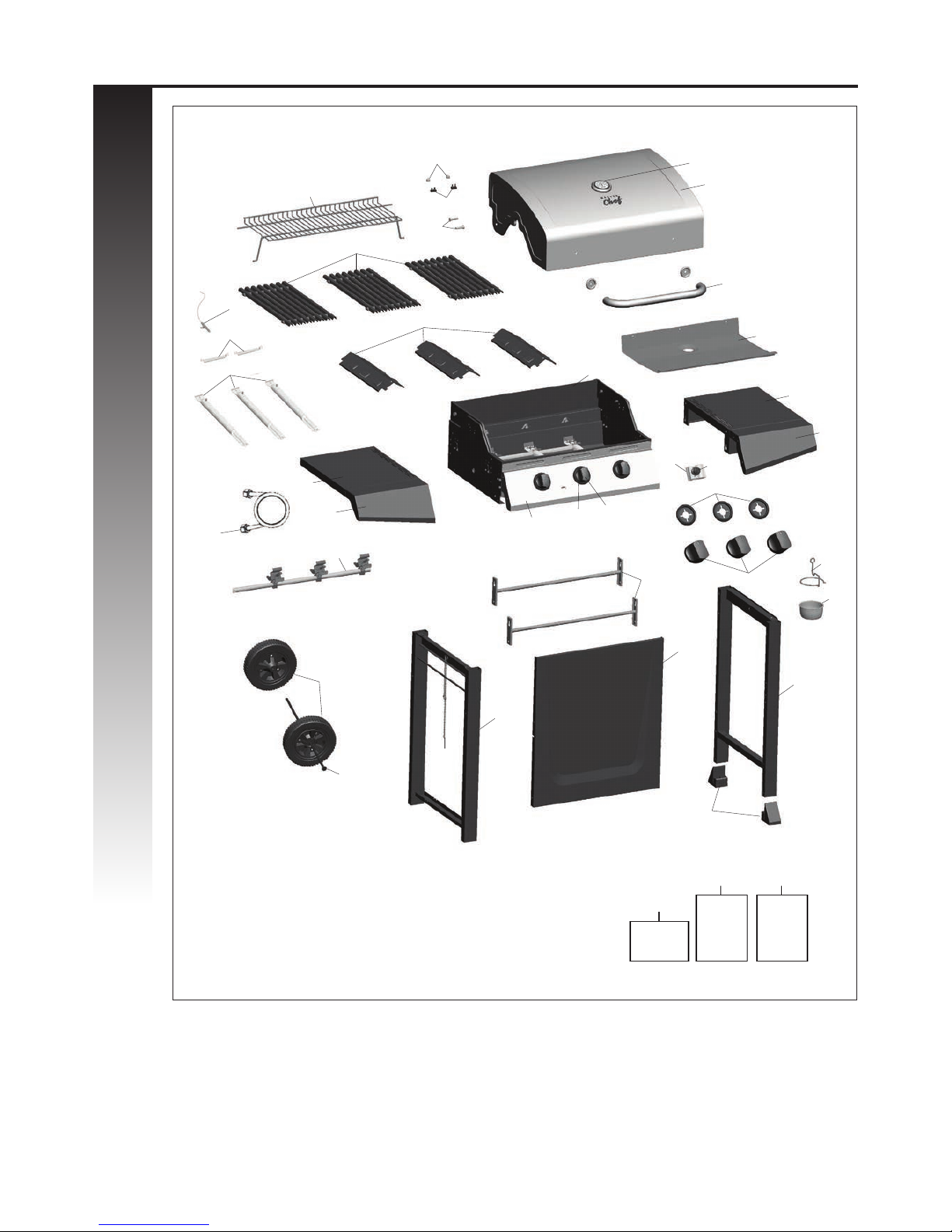

EXPLODED DIAGRAM NATURAL GAS FOR 8530630 G45124

HARDWARE

PACK

F2 F3

ASSEMBLY

MANUAL

SAFETY

AND CARE

MANUAL

PROPANE MODELS ONLY: NATURAL

GAS MODELS WILL NOT INCLUDE

THE TANK EXCLUSION (DI)

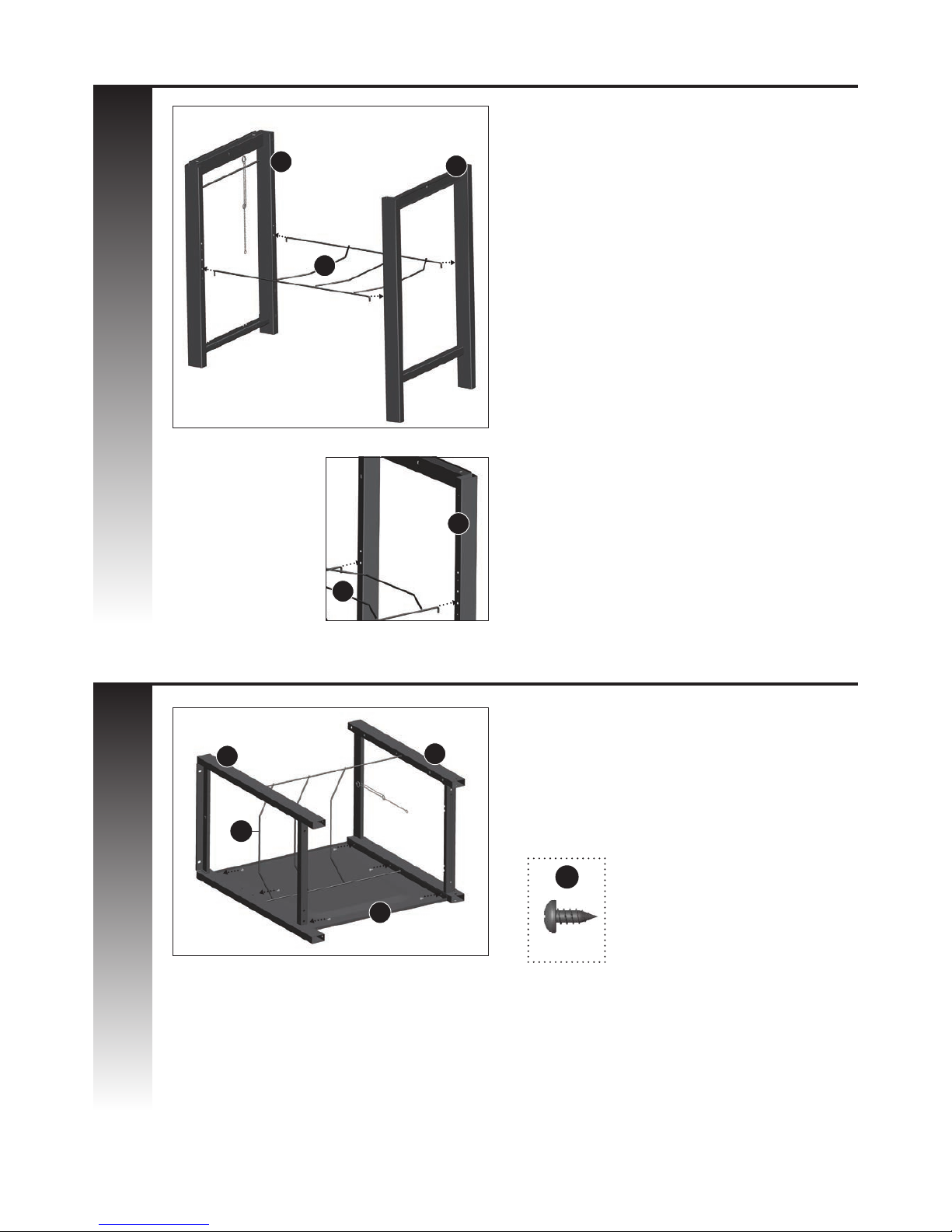

Note: You will need two people for this step.

Assemble the tank exclusion (DI) to the left and

right cart side panels (DA, DB), as shown.

Note: The left cart side panel (DB) will

have large holes on the end of the legs for

assembling the wheel axle (DH).

Note: the tank exclusion should sit in the lower

hole on the left and right side panel.

Note: Turn Cart assembly over. Front panel

should be facing upward.

Assemble the Front Panel (DD) to the Left and

Right Cart Side Panels (DA and DB), as shown.

ASSEMBLY INSTRUCTIONS

YOU WILL NEED:

X 6

DB DA

Front View

Close up

Front side down

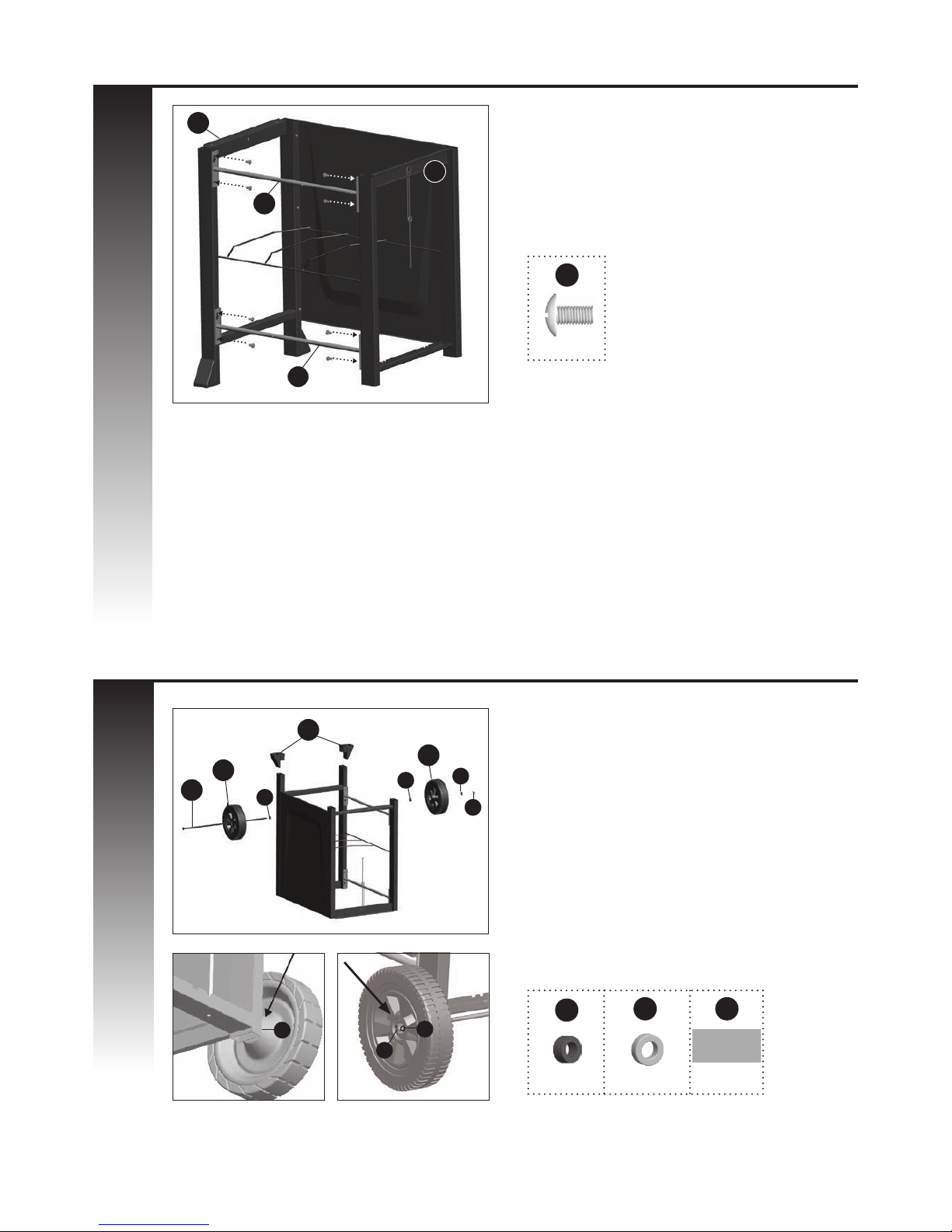

Note: Turn Cart assembly upside down.

a. Place wheel (DG) and wheel spacer (#5) onto

wheel axle (DH). “Cone” side of wheel should

be against cart side panel, as shown in gure B.

b. Insert wheel axle assembly (DH) through

wheel axle hole in the front and rear, of the left

cart side panel (DB), as shown.

c. To complete wheel assembly, position the

wheel spacer (#5), wheel (DG), wheel washer

(#7) and hitch pin (#6), onto wheel axle (DH),

as shown.

d. Insert end caps (DE) into right cart side panel

(DA).

Assemble the two Back Braces (DC) to the Left

and Right Cart Side Panels (DA and DB),

as shown.

ASSEMBLY INSTRUCTIONS

876

YOU WILL NEED:

X 2

X 1

YOU WILL NEED:

X 8

Close upClose up

Back view

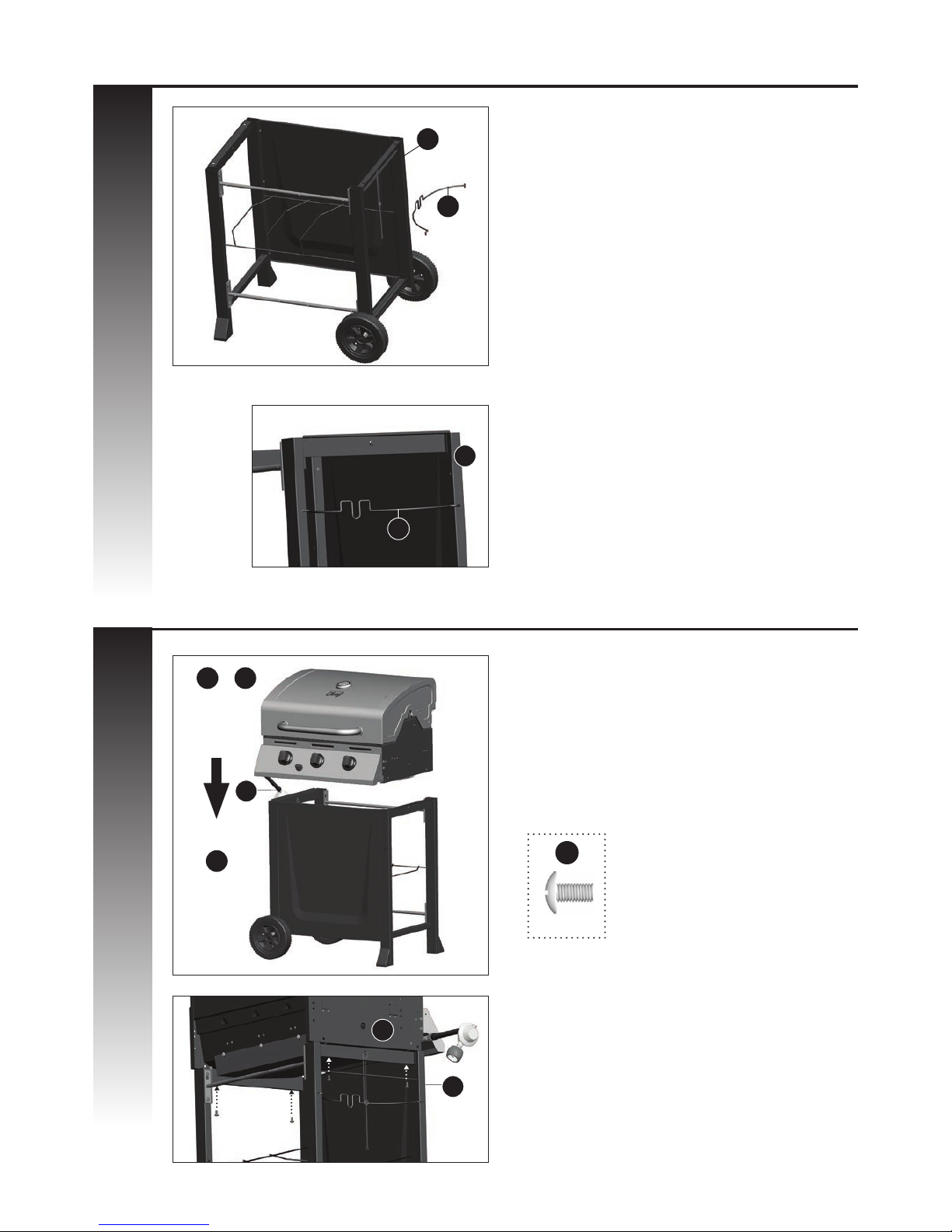

Note: TWO PEOPLE required for this step.

Ensure that the regulator hose (CC) (Propane

models only) is hanging outside of cart.

Position the lid and burner box assembly (A&B),

onto the cart assembly (C), and assemble.

ASSEMBLY INSTRUCTIONS

Close up

PROPANE MODELS ONLY

Assemble the Gas Tank Support (DJ) to the Left

Cart Side Panel (DB).

A B

YOU WILL NEED:

X 4
