MasterCraft Maximum Manuale utente

INSTRUCTION MANUAL

058-9308-0

Quick Start Guide

If any parts are

missing or damaged,

or if you have any

questions, please call

1-800-689-9928.

Read and understand this instruction manual

thoroughly before using the product. It contains

important information for your safety as well as

operating and maintenance advice.

Keep this instruction manual for future use. Should

this product be passed on to a third party, then this

instruction manual must be included.

5 U.S. GALLONS (18.9 L) ·150 PSI (MAX) AIR COMPRESSOR 058-9308-0

QUICK START GUIDE

5 U.S. GALLONS (18.9 L) AIR COMPRESSOR 058-9308-0

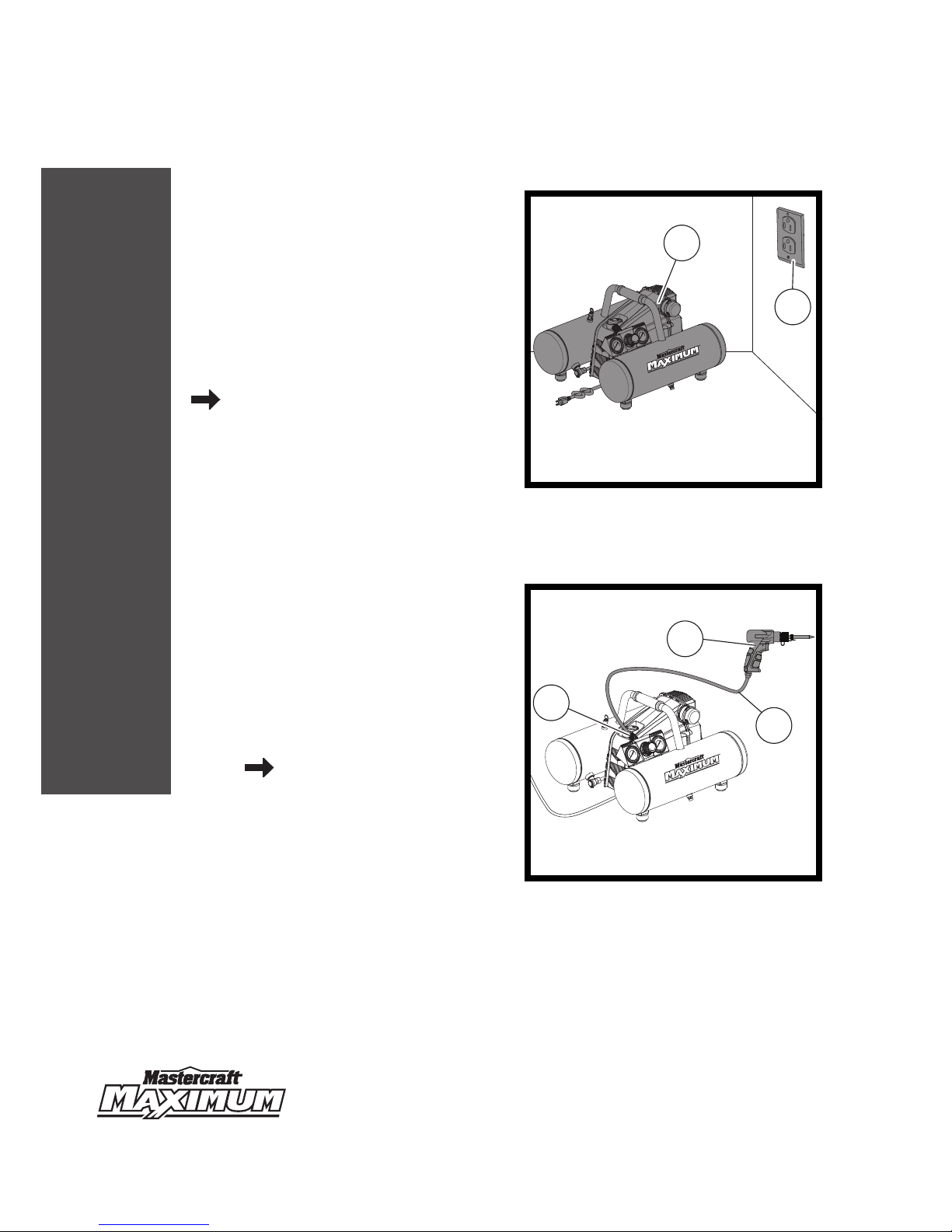

STEP 1

Place the compressor (1) on a flat, even,

concrete floor surface or separate concrete

foundation. Locate the compressor near a

grounded electrical outlet (2).

page 13, steps 1-2

STEP 2

Make sure the drain valves at the bottom of

the tanks are closed. Connect the air hose (1)

to the air line outlet (2) and the air

tool (3). page 16, steps 1-2

MC-589308-03

515

100

125 150

175

200

225

250

100

125

150

175

200

225

250

MC-589308-09

125

100

150

175

200

225

250

100

125 150

175

200

225

250

STEP 3

Plug the power cord (1) into the electrical

outlet. Turn the ON/OFF switch (2) to the AUTO

position. Let the motor run.

page 16, steps 3-4

STEP 4

Turn the pressure regulator knob (1) clockwise

to adjust the hose pressure with respect to the

air tool. page 16, step 5

MC-589308-12

125

100

150

175

200

225

250

100

125 150

175

200

225

250

MC-589308-11

125

100

150

175

200

225

250

100

125

150

175

200

225

250

125

100

150

175

200

225

250

100

125 150

175

200

225

250

TABLE OF CONTENTS

5 U.S. GALLONS (18.9 L) AIR COMPRESSOR 058-9308-0

QUICK START GUIDE

TECHNICAL SPECIFICATIONS 3

SAFETY GUIDELINES 4–9

KEY PARTS DIAGRAM 10

IMPORTANT INFORMATION 11–12

ASSEMBLY INSTRUCTIONS 13

OPERATING INSTRUCTIONS 14–17

MAINTENANCE 18–20

TROUBLESHOOTING 21–22

EXPLODED VIEW 23

PARTS LIST 24

WARRANTY 25–26

TECHNICAL SPECIFICATIONS

5 U.S. GALLONS (18.9 L) AIR COMPRESSOR 058-9308-0

*CFM: Cubic feet per minute

**PSI: Pounds per square inch

RUNNING HORSEPOWER 2

POWER 120 V, 60 Hz, 12 A

COMPRESSOR TYPE Oil-less

TANK TYPE Black twin tank

TANK SIZE 5 U.S. gallons

(18.9 L)

MOTOR Induction

CUT-IN PRESSURE 120 PSI

(8.27 bar)

CUT-OFF PRESSURE 150 PSI

(10.34 bar)

AIR DELIVERY 5 CFM* @ 40 PSI**

4 CFM* @ 90 PSI**

WEIGHT 52 lb

(23.6 kg)

SAFETY GUIDELINES

5 U.S. GALLONS (18.9 L) AIR COMPRESSOR 058-9308-0

Safety guidelines

This manual contains information that relates to PROTECTING PERSONAL SAFETY and PREVENTING

EQUIPMENT PROBLEMS. It is very important to read this manual carefully and understand it

thoroughly before using the product. The symbols listed below are used to indicate this information.

Note: The word “Note” is used to inform the

reader of something the user needs to know

about the tool.

SAFETY RECOMMENDATIONS

These precautions are intended for the personal safety of the user and others working with the user.

Failure to follow these instructions may result in a permanent loss of vision, serious personal, or

even fatal, injury, property damage, and/or tool damage. Please take the time to read and

understand them.

DANGER!

Potential hazard that will result in serious

injury or loss of life.

WARNING!

Potential hazard that could result in

serious injury or loss of life.

CAUTION!

Potential hazard that may result in

moderate injury or damage to equipment.

SAFETY GUIDELINES

5 U.S. GALLONS (18.9 L) AIR COMPRESSOR 058-9308-0

DANGER!

Potential hazard that will result in serious injury or loss of life.

•Keep bystanders, children and visitors away from the work area while

operating the compressor. Do not allow children to handle the compressor.

Distractions can affect the control of the compressor.

•Never point any nozzle or sprayer toward yourself, other people or animals.

Fast moving air may spread dust and debris which are harmful. Always

release air slowly when draining tank or depressurizing the compressor

system.

•Always shut OFF the compressor, remove the power plug from the electrical

outlet, and release all pressure from the air system, before attempting to

install, service, relocate, or perform any maintenance on the compressor.

•Never use plastic PVC pipe with the compressor. Failure to comply will result

in serious personal injury or death.

•Do not operate the compressor if the power cord or plug is damaged. Have

the cord or plug serviced at a qualified service centre.

•Follow all local electrical and safety codes.

Risk of burns: To prevent burns or other injuries, do not touch the

compressor while operating. Once stopped, allow it to cool before touching.

The compressor parts may be hot even if it is stopped.

•Motor, electrical equipment and control can produce an

electrical spark that will ignite a flammable gas or

vapour. Never use the compressor in a combustible

environment or in the presence of combustible materials,

such as flammable chemicals, adhesives, gasoline or

solvents, as the internal combustion produces hot exhaust

gases that may ignite flammable materials. Failure to

observe this warning can cause explosion and serious

personal injury or death.

Oxygen

Hydrogen

Explosive

Combustible

MC-OM-02

SAFETY GUIDELINES

5 U.S. GALLONS (18.9 L) AIR COMPRESSOR 058-9308-0

•Risk of electric shock: Do not expose the compressor to rain or wet

conditions. Store it indoors. Make sure the power supply outlet and

grounding wire are grounded properly. Keep the power cord away from heat,

oil, sharp edges, moving parts, chemical spills, solvents and wet floors.

•Risk of bursting: Make sure the safety relief valve installed in the tank

complies with ASME code and has a setting not higher than maximum

working pressure. Never attempt to adjust the safety relief valve. Keep the

valve free from paint and other accumulations.

•Risk of fire or explosion: Always operate the compressor in a well-ventilated

area. Do not smoke while spraying paint or insecticides. Never spray

flammable liquids near ignition sources or in a confined area or the area

where spark or flame is present. Keep the compressor as far as possible

from the spraying area and all flammable materials.

• Never attempt to repair or modify the air tank, as doing so may damage the

tank, resulting in an explosion. Always replace the tank if it is worn, cracked,

or damaged.

•Risk of inhalation: Do not use the compressor to spray chemicals, as doing

so may affect your lungs by inhaling toxic fumes. Use a respirator in dusty

environment or when spraying paints.

WARNING!

Potential hazard that could result in serious injury or loss of life.

•Do not allow inexperienced or untrained individuals to operate the

compressor.

•Stay alert and use caution when operating the compressor. Do not use the

compressor when you are tired or under the influence of drugs, alcohol or

medication.

•Never leave the compressor unattended. Failure to comply will result in fire

or serious personal injury.

•Do not stand on the compressor.

•Make sure all fasteners of the compressor are tightened securely in proper

place.

SAFETY GUIDELINES

5 U.S. GALLONS (18.9 L) AIR COMPRESSOR 058-9308-0

CAUTION!

Potential hazard that may result in moderate injury or damage to

equipment.

•Do not wear watches, rings, bracelets or loose clothing when using the

compressor. Keep your hair, clothing and gloves away from moving parts.

•Use the compressor only for its intended purpose. Do not alter or modify the

compressor from its original design or function.

• Always operate the compressor in a stable, secure position to prevent

accidental movement.

•Do not misuse the power cord. Never use the cord to carry the compressor.

Always use grip handle to move it. Remove the power plug from the power

supply outlet after use.

•Drain out the moisture from the air tank on a regular basis to prevent

corrosion of the tank. Inspect the tank periodically.

•Make sure the compressor vibrates normally during operation. If not, stop

the compressor and immediately find the cause of the vibration.

•Keep the compressor and the work area clean and well lit. A cluttered or

dirty workplace may lead to an accident. Floors should be kept clear.

•Protect the air hose and electric cord from damage and puncture. Inspect

them weekly for weak or worn spots, and replace them if necessary.

•Use safety glasses and ear protection.

Wear safety glasses with side shields when operating the

tool and verify that others in the work area are also wearing

safety glasses. Safety glasses must conform to American

National Standards Institute (ANSI Z87.1) requirements and

must provide protection from flying particles from the front

and the sides.

The compressor is loud, and the sound can cause hearing

damage. Always wear ear protection to help prevent hearing

damage and loss. Failure to comply may result in moderate

injury.

MC-OM-01
