OPERATING MANUAL
FOR ALL I/P STANDARD
PUMP HEAD MODELS
A-1299-0019
Edition 15
(US & Canada only) Toll Free 1-800-MASTERFLEX • 1-800-637-3739
(Outside US & Canada) 1-847-549-7600 • 1-847-381-7050
®

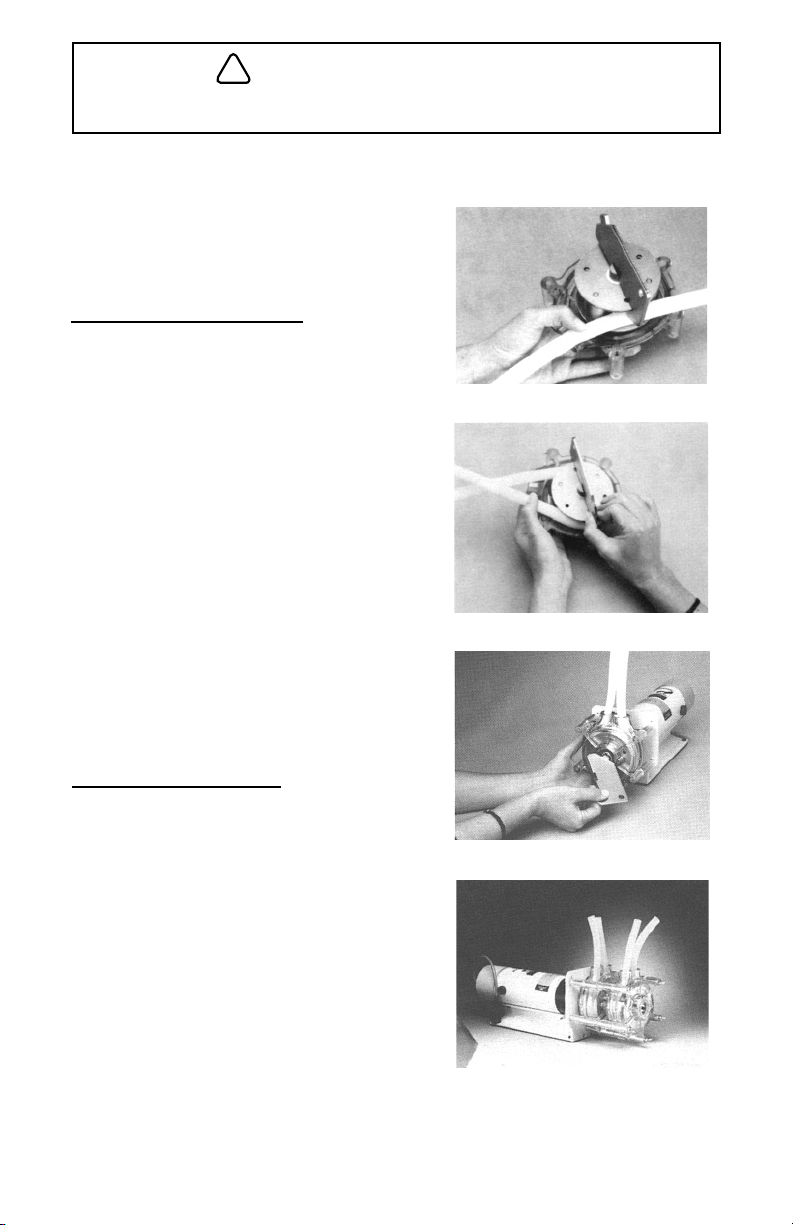

a) Separate the end bells (the Pump Head halves). Hold
the end bell containing the rotor as shown with the
tubing retainer grooves pointing down.
Place tubing in the right groove and against the first
two rollers. Hold tubing with thumb. Near groove,
insert bottom tab of loading key between the top of
the rotor and tubing. Push key in as far as possible,
locking into the slot of the rotor.
b) Push down and turn key counterclockwise (CCW)
completely around the rotor.
The key will push the tubing uniformly into the end bell
assembly.
Hold the second end of tubing. Remove the key.
Position the other end bell on top and press the end bells
together. Be careful not to pinch the tubing. If end bells do
not snap tightly together, reload tubing. If necessary, twist
key in slot on rotor shaft to adjust tubing.
c) With key in slot on rotor shaft, twist key to align tang
on rotor shaft with slot in motor drive shaft. Point
tubing retainer grooves up. Shift the Pump Head
slightly until it snaps on the alignment pins (if present).
Secure with five screws provided.
Tighten with screwdriver.
Contents: One MASTERFLEX®I/P®Pump Head, one
20 in (50-cm) length of silicone tubing, one
mounting hardware package, manual and
tubing loading key.
Flat-bladed screwdriver required for mounting.
WARNING: PRODUCT USE LIMITATION
These products are not designed for, nor intended for, use in patient-connected applications; including,
but not limited to, medical and dental use, and, accordingly have not been submitted for FDA approval.
1. Single Pump Head Loading
2. Multi-channel Mounting
Tubing loading key required for mounting.
Note: Order special mounting hardware for multi-channel pump-
ing, see “4. Replacement Parts and Accessories”.
a) Load the Pump Heads with tubing.
b) Install the five correct length mounting screws into
the drive.
c) Slide the first Pump Head onto the mounting screws.
d) Place key in slot on rotor shaft. Twist to align tang on rotor
shaft with slot in motor drive shaft.
e) Repeat for each additional Pump Head, aligning Pump Head
tang with slot on previously mounted Pump Head.
f) Slide the five flat washers onto screws and secure
with the five wing nuts. Tighten with fingers only.
Note: Use only MASTERFLEX precision tubing with MASTERFLEX pumps to ensure
optimum performance. Use of other tubing may void applicable warranties.
2
2
1c.
1b.
1a.
PUMP FOR LIQUIDS
ORIGINAL INSTRUCTIONS
!
A
F
C
C
D
D
A
B
E

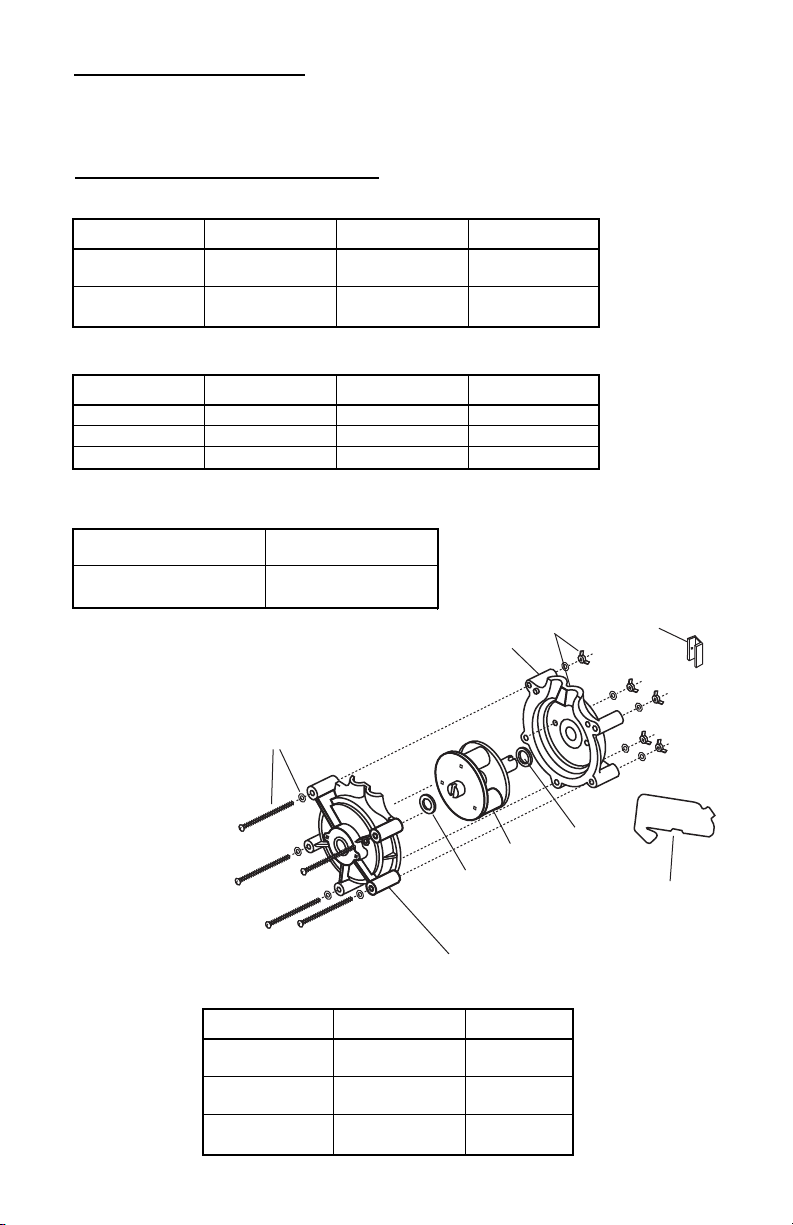

4. Replacement Parts and Accessories
A. End Bells (order two end bells for a complete head assembly).
Pump Head number PC Order number Pump Head number PPS Order number
07019-00, -20 07019-78 — —
07019-01, -21 07019-79 07019-41, -43 07019-73
07019-25, -32 07019-74 — —
07019-26, -31 07019-75 07019-51, -53 07019-77
Pump Head number Long Shaft Order No. Pump Head number Short Shaft Order No.
07019-00, -25 07019-80 07019-20, -32 07019-82
07019-01, -41 07019-83 07019-21, -43 07019-85
07019-26, -51 07019-83 07019-31, -53 07019-85
B. Rotor assemblies
C. Mounting hardware for standard pump heads
Set contains five #10-24 screws, five washers and five wing nuts.
Number of heads Stainless steel
to be mounted order number
1 07019-95
2 07019-96
D. 07019-92 Thrust washers. Pack of 10
E. 07019-90 Tubing loading key.
F. Tang Boot. 77600-02 (pkg. of 2) & 77600-03 (pkg. of 10)
3
3. Maintenance and Cleaning
No lubrication is required for the I/P Standard Pump Head. Use a mild detergent solution to clean the Pump
Head. Inspect the tang boot after 1,000 hours of operation and replace if necessary.
Pump Head number Housing Material Tubing Size
07019-00, -20 PC/CRS I/P®73
07019-01, -21 PC/SS I/P®73
07019-25, -32 PC/CRS I/P®82
07019-26, -31 PC/SS I/P®82
07019-41, -43 PPS/SS I/P®73
07019-51, -53 PPS/SS I/P®82
SPECIFICATIONS
I/P®73 I/P®82
Maximum intermittent
discharge pressure—psi (bar): 40 (2.7)* 20 (1.4)*
Maximum vacuum: 610 mm (24) in Hg* 508 mm (20) in Hg*
Maximum suction lift: 7.3 m (24 ft) H2O* 7.0 m (23 ft) H2O*
Number of rollers: 3
Occlusion: Standard fixed
Maximum pump speed (rpm): 650
Nominal torque load: 13 kg-cm (180 oz-in)
Housing materials: Polycarbonate (PC) or Polyphenylene sulfide (PPS)
Roller/rotor materials: Plated cold-rolled steel (CRS) or Stainless steel (SS)
Operating temperature‡ (ambient): 0 to 40oC (32 to 104oF)
Noise level: <70dBa @ 1 meter
Compliance (for CE mark): EN809 (EU Machinery Directive)
* Testing with NORPRENE®, PHARMED®BPT and TYGON®tubing. Values will be less with silicone and C-FLEX®.
‡ Use in this temperature range for continuous duty operation with no decrease in performance or product life.
Pump Heads will work outside this range with some possible reductions in performance or product life.
WARRANTY
Use only MASTERFLEX precision tubing with MASTERFLEX pumps to ensure
optimum performance. Use of other tubing may void applicable warranties.
The Manufacturer warrants this product to be free from significant deviations from pub-
lished specifications. If repair or adjustment is necessary within the warranty period, the
problem will be corrected at no charge if it is not due to misuse or abuse on your part,
as determined by the Manufacturer. Repair costs outside the warranty period, or those
resulting from product misuse or abuse, may be invoiced to you.
The warranty period for this product is 2 years from the date of purchase.
PRODUCT RETURN
To limit charges and delays, contact the seller or Manufacturer for authorization and
shipping instructions before returning the product, either within or outside of the
warranty period. When returning the product, please state the reason for the return.
For your protection, pack the product carefully and insure it against possible dam-
age or loss. Any damages resulting from improper packaging are your responsibility.
TECHNICAL ASSISTANCE
If you have any questions about the use of this product, contact the Manufacturer
or authorized seller.
SPECIFICATIONS(continued)
4
C-FLEX, NORPRENE, PHARMED, TYGON — Reg TM Saint-Gobain Performance Plastics Corp.
Trademarks bearing the ® symbol in this publication
are registered in the U.S. and in other countries. Printed in U.S.A.
(US & Canada only) Toll Free 1-800-MASTERFLEX • 1-800-637-3739
(Outside US & Canada) 1-847-549-7600 • 1-847-381-7050
*EN809 manufactured by:
Cole-Parmer Instrument Company
28W092 Commercial Avenue
Barrington, IL 60010
®
