Mastervolt AC Master 12/2500-230 Manuale operativo

AC Master

PURE SINE WAVE INVERTER

12/2500-230, 24/2500-230, 12/3500-230

EN USER’S AND INSTALLATION MANUAL

10000011809/00

2

AC Master

Product description

The AC Master is a sine wave inverter. The AC Master converts DC energy from the battery into AC

output power. The AC Master 2500-3500 is equipped with an AC transfer switch and is suitable for

creating systems with multiple units in parallel or 3 phase configuration.

AC Master

3

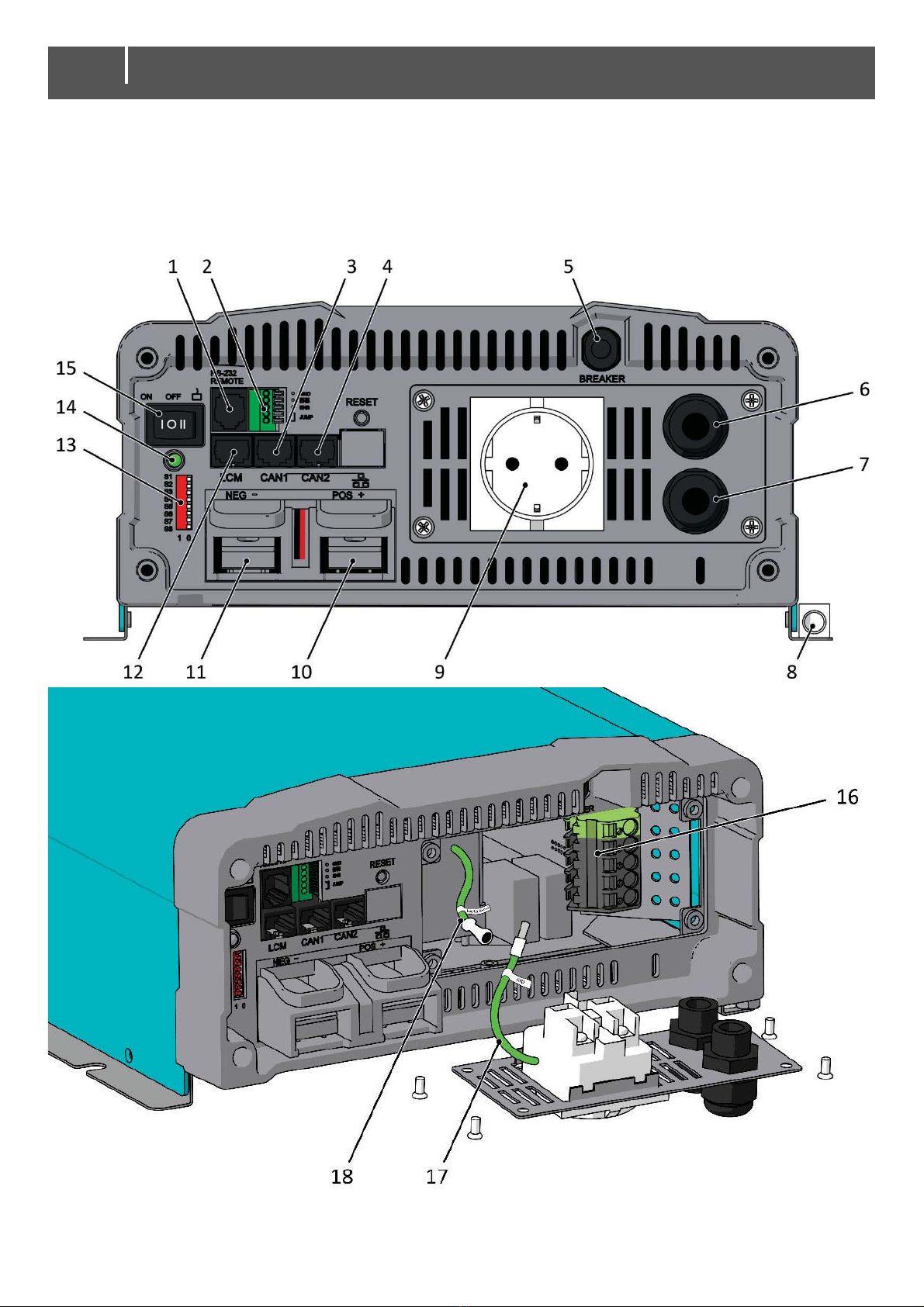

Front panel

1 Remote port (RS-232)

2 Terminal for remote switch and CAN termination

3 CAN1 port *

4 CAN2 port *

5 AC input circuit breaker 20 Amp

6 By-pass AC input

7 AC output

8 Chassis ground terminal

9 AC output socket

10 Battery input +

11 Battery input -

12 LCM port for LCD remote control panel **

13 DIP switches

14 LED indicator

15 Main switch

16 Hard-wire connection for AC output and AC input

17 Internal grounding cable (GND)

18 Internal grounding cable (Inverter Neutral)

* This is not a MasterBus port. Do not connect a CAN port to a MasterBus network. This will cause

hardware damage.

** LCM is not supported by Mastervolt

4

AC Master

Dimensions

Model

A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm)

2500 436,0 240,0 95,6 268,6 8,5 11,5 128,0 283,0

3500 496,0 240,0 125,6 268,6 8,5 11,5 128,0 283,0

AC Master

5

Identification label

6

AC Master

Installation instructions

This section provides a step by step instruction of the basic stand-alone installation of

the AC Master 2500/3500. Please read the entire manual for instructions on safety,

grounding, configuration settings, additional features and creating systems with multiple

units.

Read the safety instructions! See section 1 on page 11.

Use isolated tools!

1. Disconnect power supplies

2. Switch OFF the AC Master

3. Select a location that complies with section 6 on page 12.

AC Master

7

4. Mount the AC Master with four screws to a solid surface.

5. Connect the chassis ground terminal to the central grounding point of the vehicle/ship.

6. Optional: Connect remote panel or remote switch, see section 6 on page 12.

8

AC Master

7. Connect the battery to the DC input.

8. Integrate a fuse holder in the positive battery wire, but do not place the fuse yet.

AC Master

9

9. Connect the AC load.

See section 5 on page 12 for instructions on neutral

grounding.

AC socket

AC hard-wired

10

AC Master

10. Optional: Connect AC input, see section 7 on page 16.

11. Set the desired output voltage and other configuration settings, see section 8 on page 16.

12. Check all wiring. If all wiring is OK: Place the inverter fuse.

13. Switch ON the AC Master. In case of remote operation choose REMOTE.
