Mastervolt MasterBus PowerCombi Interface Manuale operativo

MasterBus

PowerCombi

Interface

Interface from MasterBus to

PowerCombi Inverter/Charger

USER AND INSTALLATION

MANUAL

10000015305/02

1GENERAL INFORMATION

This manual serves as a guideline for the safe and effective

operation of the PowerCombi MasterBus Interface. Keep

this manual at a secure place!

Warranty

Mastervolt assures the product warranty of the

PowerCombi MasterBus Interface during two years after

purchase, on the condition that the product is installed and

used according to the instructions in this manual.

Installation or use not according to these instructions may

result in under performance, damage or failure of the

product and may void this warranty. The warranty is limited

to the cost of repair and/or replacement of the product.

Costs of labor or shipping are not covered by this

warranty.

CAUTION!

Never remove the identification label.

This will void the warranty.

Liability

Mastervolt can accept no liability for:

•consequential damage due to use of the PowerCombi

MasterBus Interface;

•possible errors in the manuals and the results thereof;

•use that is inconsistent with the purpose of the product.

Disclaimer

Our products are subject to continual development and

improvement. Therefore, additions or modifications to the

products may cause changes to the technical data and

functional specifications. No rights can be derived from

this document. Please consult our online Terms &

Conditions of Sale.

Correct disposal of this product

This product is designed and manufactured with

high quality materials and components, which can

be recycled and reused.

Please be informed about the local separate collection

system for electrical and electronic products.

Please act according to your local rules and do not

dispose of your old products with your normal household

waste. The correct disposal of your old product will help

prevent potential negative consequences to the

environment and human health.

2COMPATIBILITY

The PowerCombi MasterBus Interface supports the

following models:

•PowerCombi 12V/1200W-50A 120V –36211200

•PowerCombi 12V/2000W-100A 120V –36212000

PowerCombi MasterBus Interface –User and Installation Manual

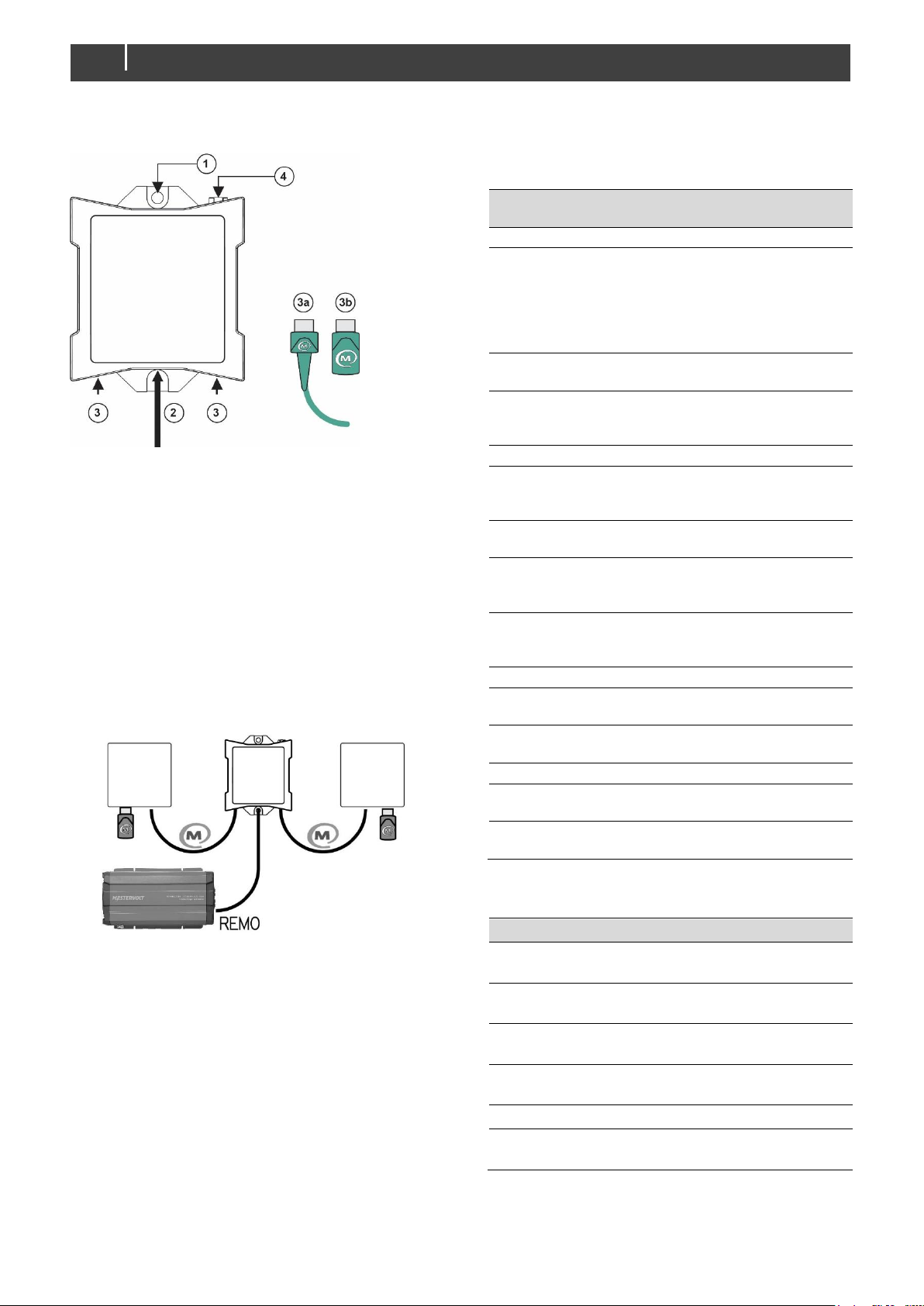

3INSTALLATION

Steps:

1. Mount the PowerCombi MasterBus Interface to any flat

surface. The PowerCombi MasterBus Interface comes

with a DIN rail mount option. Alternatively, use the two

mounting holes (1).

2. Insert the RJ11 cable (included) and connect to the

remote port (REMO) of the PowerCombi (2).

3. Adding the PowerCombi MasterBus Interface to the

MasterBus network:

- Disconnect a MasterBus cable (3a) or Terminator

(3b) from the closest MasterBus device and connect

it to the PowerCombi MasterBus Interface.

- Connect the new MasterBus cable (included) to the

other MasterBus device and then connect to the

PowerCombi MasterBus Interface.

4. A flashing LED (4) indicates that the MasterBus

communication is working.

5. When the PowerCombi MasterBus Interface is

connected, open MasterAdjust on a Windows laptop or

notebook connected to the MasterBus network via a

MasterBus USB interface. MasterAdjust is available as

free to download software on the Mastervolt website:

www.mastervolt.com.

For more information refer to the manual of the

PowerCombi.

4CONFIGURATION

The following table lists the MasterBus monitoring

functions as shown in MasterAdjust.

Monitoring

Description

Default

Adjustable

range

General

Device state

The operation

mode: Off,

Charging,

Inverting, Alarm,

Power saving,

Supporting

Not

applicable

(read only)

AC IN Limit

Fuse setting of

the AC input

3-30

Power

button

Button to switch

off/on the

PowerCombi

On, Off

DC IN/OUT

Charger

state

Charger state:

Off, Bulk,

Absorption, Float

Not

applicable

(read only)

Voltage

Battery voltage

Not

applicable

(read only)

Current

Battery current

(minus is

discharging)

Not

applicable

(read only)

Temperature

Battery tempera-

ture (if not

connected: --- °F)

Not

applicable

(read only)

AC IN

Voltage

AC input voltage

Not

applicable

(read only)

Current

AC input current

Not

applicable

(read only)

AC OUT

Voltage

AC output

voltage

Not

applicable

(read only)

Power

AC output power

Not

applicable

(read only)

The following table lists the MasterBus alarms with their

meaning:

Alarm

Description

DC High

voltage

Battery voltage is too high.

DC Low

voltage

Battery voltage is too low.

Temperature

Internal temperature of the PowerCombi

is too high.

Overload

The loads exceed the nominal inverter

power

Device error

Internal PowerCombi error.

AC IN limit

AC input voltage or frequency out of

range

PowerCombi MasterBus Interface –User and Installation Manual

The following table shows the PowerCombi configuration settings.

Configuration

Description

Default

Adjustable range

Device

Language

Language displayed on monitoring

device connected to PowerCombi

English

Read-only

Name

Name of the PowerCombi in

MasterBus

PowerCombi

Free text with a max. of 12

characters

Type

PowerCombi type

12V/1200W-50A or

12V/2000W-100A

Read-only

Inverter

Energy save mode

Option to enable Energy save mode

Off (not checked)

Off. On

Frequency

Output frequency

60Hz

Voltage

AC voltage

115V

100 - 120

DC low off

Low battery voltage at which the

inverter switches off

10.0V /

20.0V

10.00-11.50 (12V)

20.00-23.00 (24V)

DC low on

Low battery inverter switch on

voltage at DC Low off alarm

11.5V /

23.0V

10.00-14.50 (12V)

20.00-29.00 (24V)

DC high off

High battery voltage for inverter

switch off

15.5V /

31.0V

15.00-16.50 (12V)

30.00-33.00 (24V)

DC high on

High battery voltage for inverter

switch to DC High Off alarm

15.0V /

30.0V

13.00-16.50 (12V)

26.00-33.00 (24V)

Charger

Max charge cur.

Maximum charging current

adjustable.

50A /

100A

13-50 (12V/1200W-50A)

25-100 (12V/2000W-100A)

6-25 (24V/1200W-25A)

13-50 (24V/2000W-50A)

Battery type

Select the main battery type.

Flooded (Lead acid)

Flooded, Gel, AGM, User defined

Bulk

Voltage

Maximum Bulk voltage (adjustable if

User Defined).

Flooded: 14.40 / 28.80

Gel: 14.40 / 28.80

AGM: 14.40 / 28.80

User defined: 14.40 / 28.80

12.00-16.00 (12V)

24.00-32.00 (24V)

Read-only when battery type is

not User defined

Maximum time

Maximum time the bulk phase lasts

before the charger changes to

absorption.

480min

30-1200

Read-only when battery type is

not User defined

Absorption

Voltage

Absorption voltage (adjustable if User

Defined is selected.

14.25V /

28.50V

12.00-16.00 (12V)

24.00-32.00 (24V)

Read-only when battery type is

not User defined

Maximum time

Maximum time that the charger stays

in absorption mode.

240min

30-600

Float settings

Voltage

Float voltage (adjustable if User

Defined).

Flooded: 13.25/26.50

Gel: 13.80/27.60

AGM: 13.80/27.60

User defined: 13.25/26.50

12.00-16.00 (12V)

24.00-32.00 (24V)

Read-only when battery type is

not User defined

AC IN

AC IN support

Allow AC support mode option

Off (not checked)

Off. On

DIP Switches

Position of the DIP switches

Not applicable

Read-only

A MasterBus device can be programmed to initiate an action at another connected device. This is very helpful in automation of

your system. In MasterBus this is done by means of event-based commands. In the Events tab you can program the

PowerCombi to act as an event source. Events which occur during the operation of the PowerCombi will then trigger actions

from other products. The following tables list the parameters as shown in MasterAdjust.

PowerCombi MasterBus Interface –User and Installation Manual

Events

Description

Value

Event x

source

Event that triggers an

action, e.g. Battery low

See Event source

list

Event x

target

Device that should act,

e.g. the generator

System dependent

Event x

command

Parameter that must be

changed on the target

device, e.g. Activate

See command list

of the selected

device

Event x

data

Data is linked to the

command

Off, On, Copy,

Copy Invert, Toggle

The PowerCombi can be configured as an event source.

An event source can be used to initiate an event command

and event action by another device that is connected to

the MasterBus.

Event source

Description

Power

PowerCombi is switched on

Overload

Loads exceed nominal inverter power

DC Low voltage

Main battery voltage has dropped

below Low bat value

Alarm

PowerCombi alarm has been triggered

AC IN

AC input is present

When the PowerCombi is configured as an event target by

another device, this device can initiate an event command

and an event action to be performed by the PowerCombi.

Event command

Description

Power

Change PowerCombi on/off state

5TROUBLESHOOTING

Problem

Possible cause

What to do?

PowerCombi

cannot be found

Connected

device is not set

to remote control

Switch the

PowerCombi's main

switch to position

remote

Error in the wiring

Check the cables

PowerCombi is

switched off via

interface but

still consumes

energy

PowerCombi is

set to on instead

of remote

On the

PowerCombi,

switch the main

switch to position

remote

No display

function

Display is

switched off

Switch on display,

refer to display

manual

Error in the

wiring.

Check the

MasterBus cables

No powering

device available

on the MasterBus

With AC power

disconnected, the

PowerCombi

MasterBus Interface

gets no power from

the MasterBus

network. At least

one connected

MasterBus device

should have

powering

capabilities

Problem

Possible cause

What to do?

Slow or no

MasterBus

communication

Error in the

MasterBus wiring

Check the

MasterBus cables

No terminator at

the end(s) of the

network

MasterBus needs a

terminator on both

ends of the network

MasterBus

network is

configured as ring

network or has T-

connections

Ring networks and

T-connections are

not allowed. Check

the connections of

the network

6SPECIFICATIONS

Product code:

77032900

Delivery also includes:

˗MasterBus terminator

˗MasterBus cable 39inch [1m]

˗RJ11 straight cable 39inch [1m]

˗User and installation manual

Languages available:

English

Current consumption:

35mA

MasterBus Powering:

DIN rail mounting:

Yes, DIN rail 1.2inch [30mm]

Protection degree:

IP 21

Weight:

0.15lb [70g]

Dimensions:

2.6 x 3.1 x 1.3inch

[66 x 78 x 32mm]

Dimensions in inches

Europe, Middle

East & Africa

The Netherlands

Customer Service

T: +31(0)203422100

E: info@

mastervolt.com

Technical Support

T: +31(0)203422100

E: ts@

mastervolt.com

Americas &

Caribbean

United States

Customer Service

T: +1 800 307 6702

E: orderentry@

marinco.com

Technical Support

T: +1 800 307 6702

E: tsusa@

mastervolt.com

Asia Pacific

New Zealand

Customer Service

T: +64 9 415 7261

E: enquiries@

bepmarine.com

Technical Support

T: +64 9 415 7261

E: technical@

bepmarine.com

Questo manuale è adatto per i seguenti modelli

Altri manuali Mastervolt Apparecchiature di registrazione

Mastervolt

Mastervolt MasterBus Manuale utente

Mastervolt

Mastervolt MasterBus - Inverter Interface Manuale utente

Mastervolt

Mastervolt 77030300 Manuale utente

Mastervolt

Mastervolt 77030460 Manuale utente

Mastervolt

Mastervolt MasterBus Philippi Manuale utente

Mastervolt

Mastervolt MasterBus CANopen Interface Manuale utente

Mastervolt

Mastervolt MasterBus AC Master Interface Manuale operativo

Mastervolt

Mastervolt MasterBus Manuale utente

Mastervolt

Mastervolt MasterBus LIN Interface Manuale operativo

Manuali Apparecchiature di registrazione popolari di altre marche

KV2 Audio

KV2 Audio 500 Series Manuale utente

Robotics Technologies

Robotics Technologies microBus-Cam II Manuale utente

Seca

Seca 460 Manuale utente

Cognex

Cognex MVS-8000 Series Manuale utente

Mect

Mect MPNC006 Series Manuale utente

Bad Caf

Bad Caf THE LEASH Manuale utente

Strymon

Strymon NIGHTSKY Manuale utente

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuale utente

Tews Technologies

Tews Technologies TPMC465 Manuale utente

Honeywell

Honeywell Excel 50 Manuale utente

SeaLevel

SeaLevel COMM+8.LPCI Manuale utente

Arturia

Arturia AUDIOFUSE STUDIO Manuale utente

Rukra

Rukra RK-1240 Manuale utente

Samson

Samson SCOM Manuale utente

Dynacord

Dynacord DPS260 Manuale utente

Nice

Nice Core Manuale utente

Pyle Pro

Pyle Pro PSS8 Manuale utente

RF-System

RF-System TinyGate Manuale per l'uso e la cura
