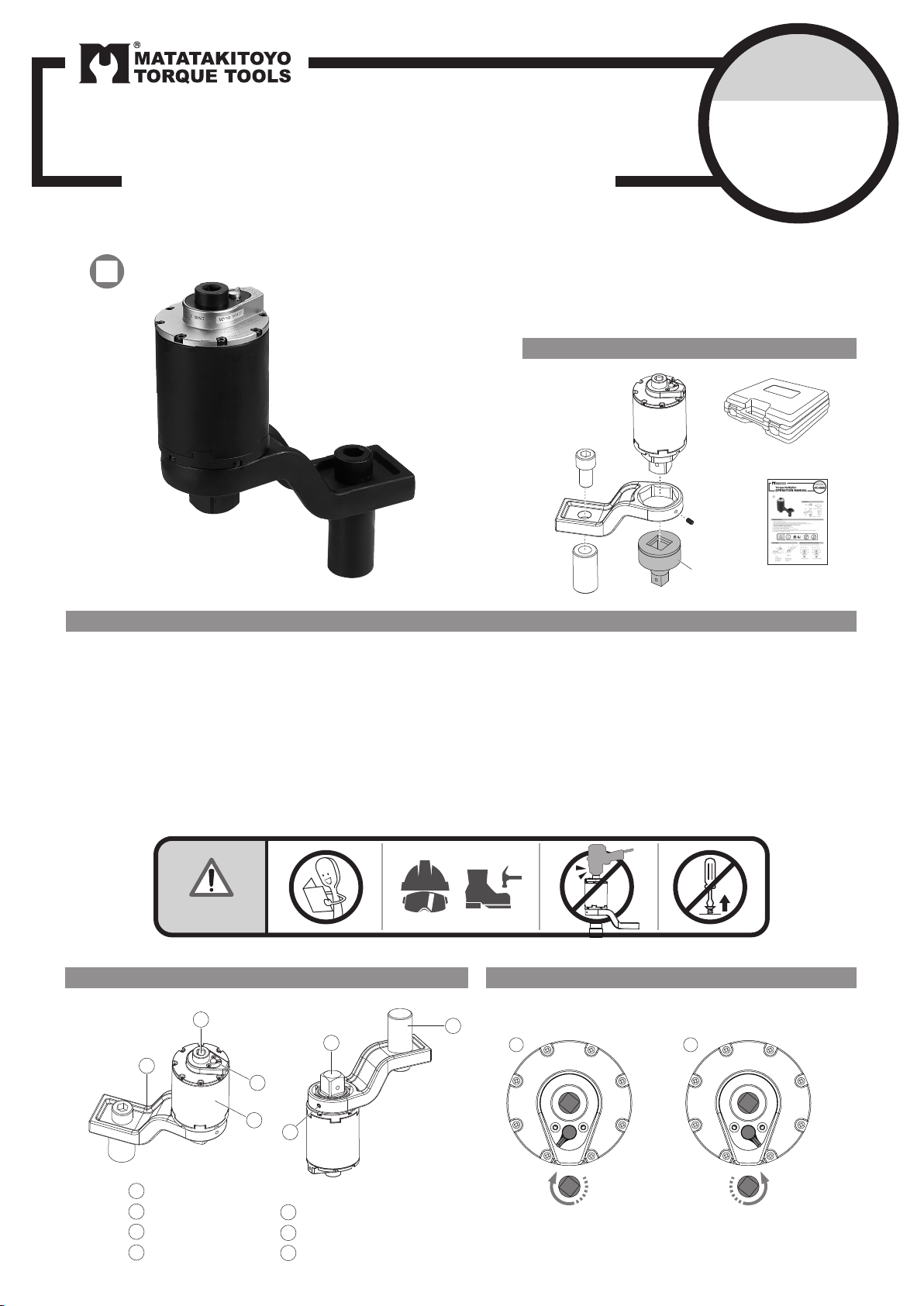

Matatakitoyo Torque Tools MT2-4000N Manuale utente
A B
Set ratchet direction to the correct direction of operation.
C.W.
C.C.W.
C.W.
C.C.W.
Anti-Clockwise OperationClockwise Operation
CONTENTS
1 Body
2 Reaction Plate
3 Switch lever
4 Input Drive
5 Output Drive
6 Support stand
7 Screw
Manual
Multiplier
Supplied in a plastic box
1
3
6
2
1-1/2”
Optional
1. Study this instruction before use.
2. This tool is with torque ratio and there is an amount of reaction to be made to the fasteners.
Please keep hands or face away from reaction plate / support stand. The reaction force might result injury.
3. THIS TOOL IS DESIGNED FOR MANUAL TIGHTENING FASTENERS ONLY.
DO NOT USE ANY IMPACT TOOL TO OPERATE
4. Over torque will cause tool damage and personal injury.
5. Do not use this tool near rotating machinery.
6. Any adjustments will result of losing accuracy and void the warranty.
7. Do not use any format of extension on the handle of the tool. This will not only damage the tool, also affect the accuracy.
8. Please wear gloves and goggles when working.
BEFORE STARTING
4
5
4
5
PART NAME OPERATING THE RATCHET FUNCTION
57
Manual
CAUTIONS
OPERATION MANUAL
Torque Multiplier
MT2-4000N
Models covered
E-mail:[email protected]om
www.matatakitoyo.com Made in Taiwan
MATATAKITOYO TOOL CO., LTD.
No. 63, Ln. 493, Sec. 3, Zhongshan Rd., Tanzi Dist.,
Taichung City 42754, Taiwan
TEL : 886-4-2533 5893
Manufacturer
Accuracy : ± 6%
Unit : mm
ITEM NO. Torque Ratio
131:10MT2-4000N 1081/2"400 Nm 300 ft.lb 4000 Nm 3000 ft.lb
W
257.0
H
228.0
H1
265.0
L
Input
Square
1-1/2"
Output
Square
Range ( max )
Input Output
KG
HOW TO USE
B
FINISHING WORKING
SPECIFICATION
MAINTENCE AND STORAGE
MULTIPLIER
C.W.
C.C.W.
1. Load the torque wrench.
2. Move the ratchet direction to anti-clockwise and rotate
slowly until the reaction is all released.
3. If remove failed, please re-set the ratchet direction to
clockwise and engage the torque wrench again.
Then go back to step 2 until the reaction is all released.
To rotate slowly until the multiplier be released
Clean this tool by wiping with a clean cloth after operation and storage in a dry
environment. Do not dip any type of liquid in this tool. This may damage the
internal of this tool.
Apr. 2020
02
Edition
INPUT DRIVE
FORCE
REACTION
C.W.
C.C.W.
STOP
CLICK
AMultiplier
L
W
H
H1
1. Select a quality torque wrench
2. Get a torque multiplier
3. Choose quality socket
4. Prepare reaction plate / support stand
Input
Output
1. Choose the correct size of socket for bolt to be fastened with the multiplier.
2. Fix the reaction reaction plate / support stand with the multiplier and next
to the reaction point.
3. Put the torque wrench on the multiplier.
Remark：The input torque value is calculated by the physical formula,
Required Torque / Torque Ratio = Input Torque
For example：1,600 Nm / 10 = 160 Nm, 160 Nm is the input torque
4. Apply the torque wrench gently and evenly until hear the
click sound and feel light shock.
