Matatakitoyo Torque Tools INS2 Manuale utente

Insert square drive securely to the socket.

BEFORE STARTING

Main Scale Graduation Scale

KnobGrip Hand ForceTube

Quick Release

Quick release button design.

Push the button to release socket.

PUSH

For example : ITEM NO. INS2-100N

To set torque to 58.5 Nm.

Red line of main scale reach 55 Nm (see A) and

adjust graduation scale to 3.5 Nm (see B).

Then 55+3.5=58.5Nm (see C)

1. Push down the knob to unlocked.

2. Turn the adjustable handle Clockwise or

Anti-clockwise (Right or left) to set the desired torque.

3. Pull upper the knob to set ﬁnished.

1 2 3

Unlock

Lock

Set

3/8” 1/2” 3/4”

TORQUE

1. Study this instruction before use.

2. This torque wrench as calibrated and tested before leaving the factory is certiﬁed to meet the current standard speciﬁcation and has an

accuracy of ±4%.

3. This tool is a precision measurement and designed for manual tightening fasterners only.

Do not use it as a nut breaker or for any other purpose.

4. Over torque will cause tool damage and personal injury.

5. Do not use this tool near rotating machinery.

6. Disassemble this tool or make any adjustments will result of losing accuracy and void the warranty.

7. Do not continuously apply force after hear click or feel shock.

8. Do not use any format of extension on the handle of the tool. This will not only damage the tool, also aﬀect the accuracy.

9. Do not immerse grease inside ratchet head. It may cause unexpected damage.

10. Use special care at minimum torque setting.

11. This tool should be visually inspected before use.

12. Please wear gloves and goggles when working.

ManualSupplied in a plastic box.

Torque wrench

CONTENTSHOW TO USE

Manual

WARNING

A B C

3.5 34

4.5

2.5

3.5 34

4.5

2.5

Choose quality

insulated socket

INS2

OPERATION MANUAL

Insulated Torque Wrench, Click Type

Models covered

E-mail:[email protected]om

www.matatakitoyo.com Made in Taiwan

MATATAKITOYO TOOL CO., LTD.

No. 63, Ln. 493, Sec. 3, Zhongshan Rd., Tanzi Dist.,

Taichung City 42754, Taiwan

TEL : 886-4-2533 5893

Manufacturer

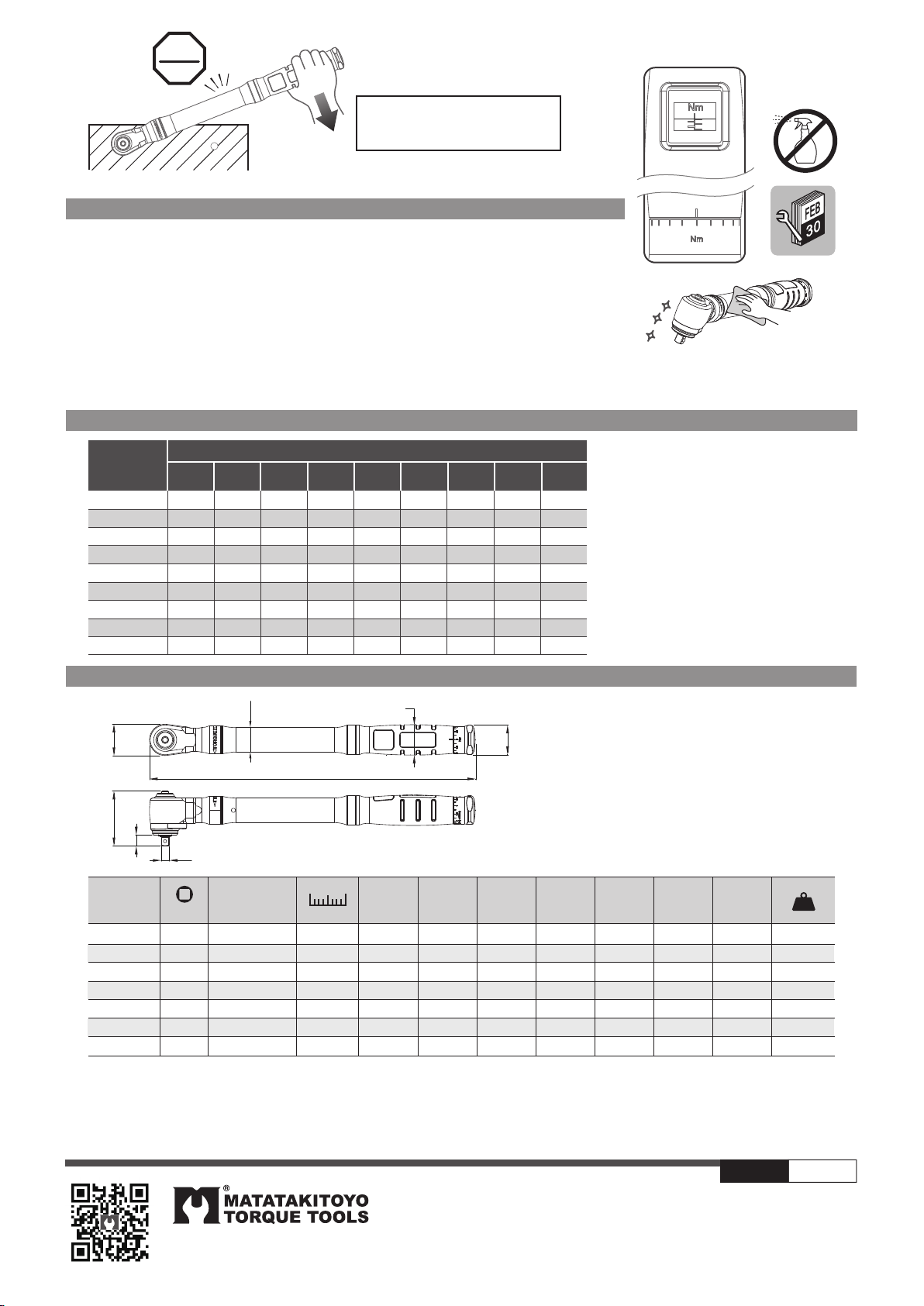

SPECIFICATION

TORQUE CONVERSION FACTORS

MAINTENCE AND STORAGE

ØD2

ØD

ØD1

Unit : mm

Accuracy : ± 4%

ITEM NO. ØD2

Range

INS2-30N

INS2-60N

INS2-100N

INS2-200N

INS2-300N

INS2-500N

INS2-1000N

6~30 Nm

10~60 Nm

20~100 Nm

40~200 Nm

60~300 Nm

100~500 Nm

200~1000 Nm

0.1 Nm

0.25 Nm

1 Nm

2 Nm

3/8”

1/2”

3/4”

33.5

35.9

ØD1

34.7

36.5

293.0

345.6

397.4

447.0

576.0

ØD

11.9

13.6

67.0

82.1

38.2

50.0

720

850

1050

N / A

COMING SOON

1. Please return torque value to just below lowest reading when not in use.

Do not turn below lowest reading (see D).

2. If this tool has not been used for a period of time, it shall be preloaded several times at its

maximum torque setting. This will allow internal lubricant to recoat.

3. Clean this tool by wiping with a clean cloth after operation and storage in a dry environment.

Do not dip any type of liquid in this tool. This may damage the internal of this tool.

4. This tool should be recalibrated a period of 12 months, or 5,000 cycles, whichever occurs ﬁrst.

To contact with local vendor, an authorized repair center for supporting.

5. This tool should be prevented from excessive heat, for example heating or steam pipes, as well as UV- radiation.

6. This tool should be annual visual inspected and a periodic examination and electrical retesting should be

performed by national regulation or by speciﬁcations.

Do not continuously apply force

after hear click or feel shock.

1 Years

5000 Times

STOP

CLICK

0 4.50.5

3.5 34

4.5

2.5

Units to be

converted

1 mN.m

1 cN.m

1 N.m

1 ozf.in

1 lbf.in

1 lbf.ft

1 gf.cm

1 kgf.cm(kp.cm)

1 kgf.m(kp.m)

1000

7.062

113

1356

0.098

98.07

9807

0.1

100

0.706

11.3

135.6

0.01

9.807

980.7

0.001

0.01

0.007

0.113

1.356

0.0001

0.098

9.807

0.142

1.416

141.6

192

0.014

13.89

1389

0.009

0.088

8.851

0.0625

0.0009

0.868

86.8

0.0007

0.007

0.738

0.005

0.083

0.00007

0.072

7.233

10.2

102

10197

1152.1

13826

1000

100000

0.01

0.102

10.2

0.072

1.152

13.83

0.001

100

0.0001

0.001

0.102

0.0007

0.0115

0.138

0.00001

0.01

=mN.m =cN.m =N.m =ozf.in =lbf.in =lbf.ft =gf.cm =kgf.cm

(kp.cm)

=kgf.m

(kp.m)

Corresponding unit

Conversion-formula :

Units to be converted × Factor = Corresponding unit

Example : Convert 5 lbf.ft into cN.m

Solution : 5 × 135.6 = 678 cN.m

MAY 2020

Edition
