Matrix VS-S33 Lat Pulldown Manuale utente

OWNERS MANUAL

Versa Single-Station Strength

VS-S33 Lat Pulldown

Table Of Contents

Safety, General Care & Maintenence .................................................3

Getting Started (Product Specifications)..........................................5

Assembly Information ..........................................................................6

Parts List ................................................................................................7

Markings .................................................................................................8

Installation & Assembly: Value Line

Part 1 Weight Stack To User Frame Assembly............................... 10

Part 2 Thigh Pad Assembly................................................................11

Part 3 Arm Assembly......................................................................... 12

Part 4 Cable Assembly....................................................................... 13

Part 5 Counter Weight Assembly ..................................................... 16

Part 6 Pad Assembly.......................................................................... 17

Part 7 Plastics Assembly................................................................... 18

Part 8 Cable Adjustment.................................................................... 21

Installation & Assembly: Optional Kits

Part 9 Premium Kit Assembly.......................................................... 22

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INFORMATION

It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or supervis-

ing personnel on proper usage of the equipment.

It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.

PROPER USAGE

Do not use any equipment in any way other than designed or intended by the manufacturer. It is imperative that Matrix equipment

be used properly to avoid injury.

Keep hands and feet clear at all times from moving parts to avoid injury.

CHECK FOR DAMAGED PARTS

1. DO NOT use any equipment that is damaged and or has worn or broken parts. Use only replacement parts supplied by your

country’s local Matrix dealer.

2. MAINTAIN LABELS AND NAMEPLATES: Do not remove labels for any reason. They contain important information.

If unreadable or missing, contact your Matrix dealer for a replacement.

3. SECURING EQUIPMENT: All equipment MUST be secured to the floor to stabilize and eliminate rocking or tipping over. This

must be performed by a licensed contractor.

4. MAINTAIN ALL EQUIPMENT: Preventative maintenance is the key to smooth operating equipment as well as keeping your li-

ability to a minimum. Equipment needs to be inspected at regular intervals.

5. Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so.

Matrix dealers will provide service and maintenance training at our corporate facility upon request.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: This product contains chemicals known to the State of

California to cause cancer and birth defects or other reproductive harm.

WARNING: SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW

THESE PRECAUTIONS TO AVOID INJURY!

1. Never allow children on strength training equipment. Teenagers must be supervised at all times while using this

equipment.

2. All warnings and instructions should be read and proper instruction obtained prior to use.

3. Use this equipment for its intended purposes only.

4. NEVER allow resistance straps, ropes or other means be attached to this equipment, as this may result in serious

injury.

5. NEVER use this equipment for support during stretching, as this may result in serious injury.

6. Cease exercise if you feel faint or dizzy. Obtain a medical exam before beginning an exercise program.

7. Keep body, hair, clothing and accessories free and clear of all moving parts.

8. Inspect the machine before use. DO NOT use machine if it appears damaged or inoperable.

9. Check to see that the selector pin is completely inserted into the weight stack.

10. NEVER use this machine with the weight stack pinned in an elevated position.

11. NEVER use dumbells or other means to incrementally increase the weight resistance. Only use the means provided

directly from the manufacturer.

12. This equipment should only be used in supervised areas where access and control are regulated by the owner.

GETTING STARTED

TECH SPECS

Overall dimensions 61”L X 48”W X 66”H

Weight Light Stack = 642 lbs (292 kg), Heavy Stack = 729 lbs (331

kg)

Shipping weight 407 lbs (185 kg)

WARRANTY (Valid in USA only)

Frame (not coatings) 10 years

Structural parts 10 years

Weight stacks 5 years

Pulleys 5 years

Pivot bearings 5 years

Any items not specified 3 years

Labor (excluding upholstery/cables/grips) 3 years

Upholstery/cables/grips/springs 1 year

ACTION FREQUENCY

Clean Upholstery Daily

Inspect Cables Daily

Clean Guide Rods Monthly

Inspect Hardware Monthly

Inspect Frame Bi-Annually

Clean Machine As Needed

Clean Grips As Needed

Lubricate Guide Rods As Needed

Upholstery & Grips should be cleaned with a non-ammonia based cleaner or a mild soap and water. Guide rods should be

lubricated with Teflon based lubricant. Apply the lubricant to a cotton cloth and then apply up and down the guide rods.

MAINTENANCE CHECKLIST

EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST

PRODUCT SPECIFICATIONS

EXERCISE PLACARD

ASSEMBLY

UNPACKING | TOOLS REQUIRED

UNPACKING

Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your Ma-

trix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the

machine. Prior to assembly, confirm all the components by matching them with the exploded diagrams. Carefully unpack

the unit from this box and dispose of the packing materials in accordance with your local laws.

CAUTION

The weight of the product is 407 lbs. (185 kg) not including the weight stack. The standard weight stack for this machine

is 235 lbs. (107 kg) & the heavy stack is 322 lbs. (147kg) (Labeled 160 lbs./73 kg & 230 lbs./105 kg respectively). To avoid

injury to yourself and prevent damage to the frame components, be sure to have proper assistance removing the frame

pieces from this box. Please be sure to install the equipment on a stable base, properly level the machine and leave at least

two feet of clearance to enter and exit the machine. Maximum user weight for this machine is 300 lbs.

TOOLS REQUIRED FOR ASSEMBLY

3MM L-Shaped Allen Wrench

4MM L-Shaped Allen Wrench

5MM L-Shaped Allen Wrench

6MM L-Shaped Allen Wrench

8MM L-Shaped Allen Wrench

10MM L-Shaped Allen Wrench

Phillips & Standard Screwdrivers

8MM Open-End Wrench

13MM Open-End Wrench

17MM Open-End Wrench.

19MM Open-End Wrench

Adjustable Wrench

Blue Locktite 242 must be used on all fasteners that are not assembled with Nylock Nuts

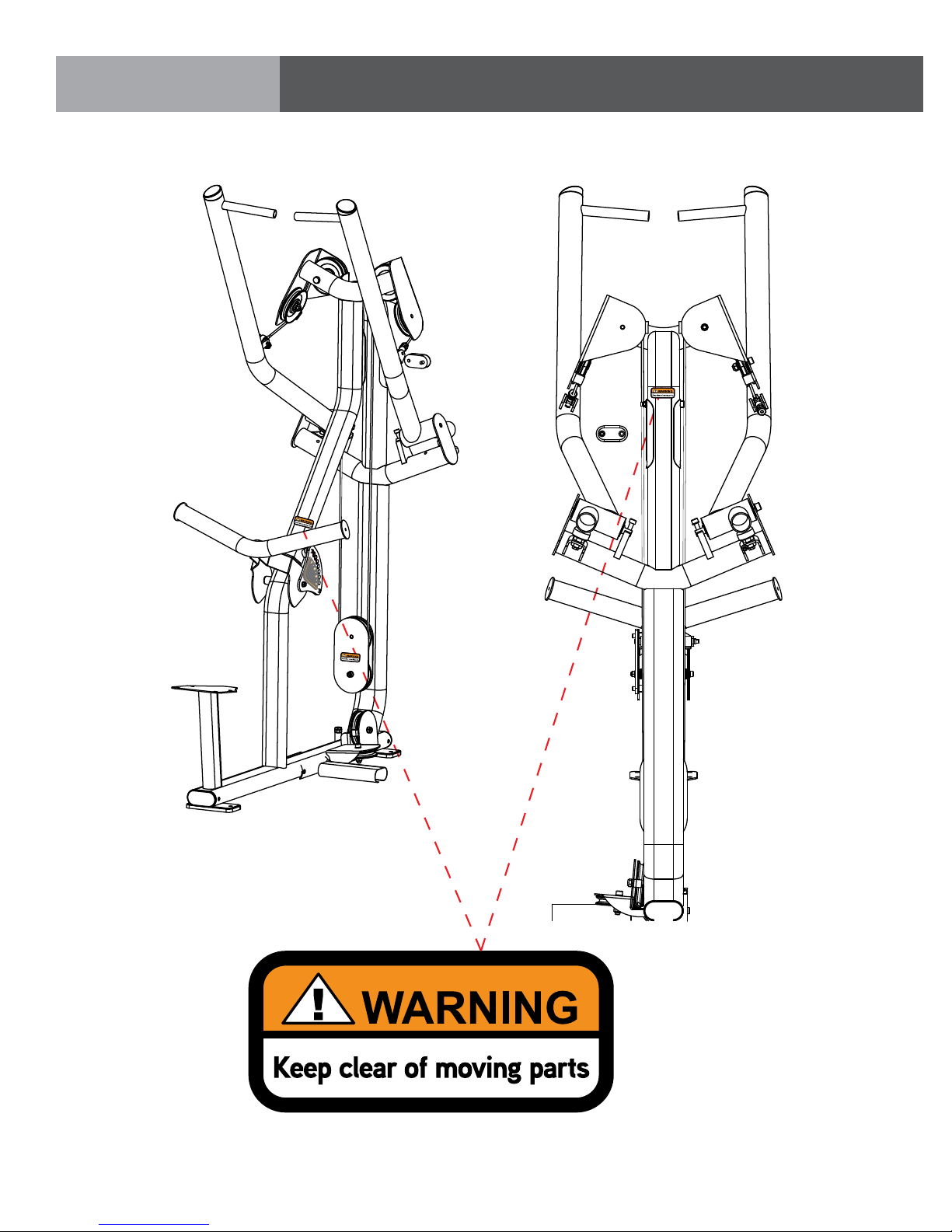

MARKINGS

WARNING LABEL LOCATIONS

Parts List

ID DESCRIPTION QTY

1 User Frame 1

2 Weight Stack Frame 1

3 M10 X 105L SHC 2

4 Narrow Cupped Flange 1

5 M10 Flat Washer 14

6 M10 Nylock Nut 4

7 Upper Connecting Tube 1

8 M10 X 20L SHC 6

9 M10 X 125L SHC 2

10 Wide Cupped Flange 1

11 Lower Connecting Tube 1

12 Thigh Pad Assembly 1

13 Pullpin Assembly 1

14 M8 X 150L SHC 1

15 Axle 1

16 M8 Flat Washer 6

17 M8 Nylock Nut 1

18 Large Flat Washer (Ø40 mm) 2

19 Belleville Washer 2

20 Right Arm Assembly 1

21 M10 X 25L SHC 2

22 Left Arm Assembly 1

23 M12 X 25L Socket Head Cap Screw 2

24 M12 Flat Washer 2

25 Weight Stack to User Frame Cable 1

26 User frame Cable 1

27 Counter Weight 2

28 M8 X 20L Socket Head Cap Screw 4

29 M10 X 20L Hex Bolt 4

30 Pad 1

31 Front Shroud 1

32 Rear Shroud 1

33 M8 X 25L Socket Head Cap Screw 4

34 M8 Flat Washer (Ø20 mm) 4

35 Top Cap 1

36 Top Cap Covers 2

ID DESCRIPTION QTY

OPTIONAL PREMIUM KIT COMPONENTS

1P Wing 1

2P Rep Counter 1

3P Towel Hook 1

4P ASG Pull Grip 2

5P Premium Pullpin 1

Parts List

ASSEMBLY

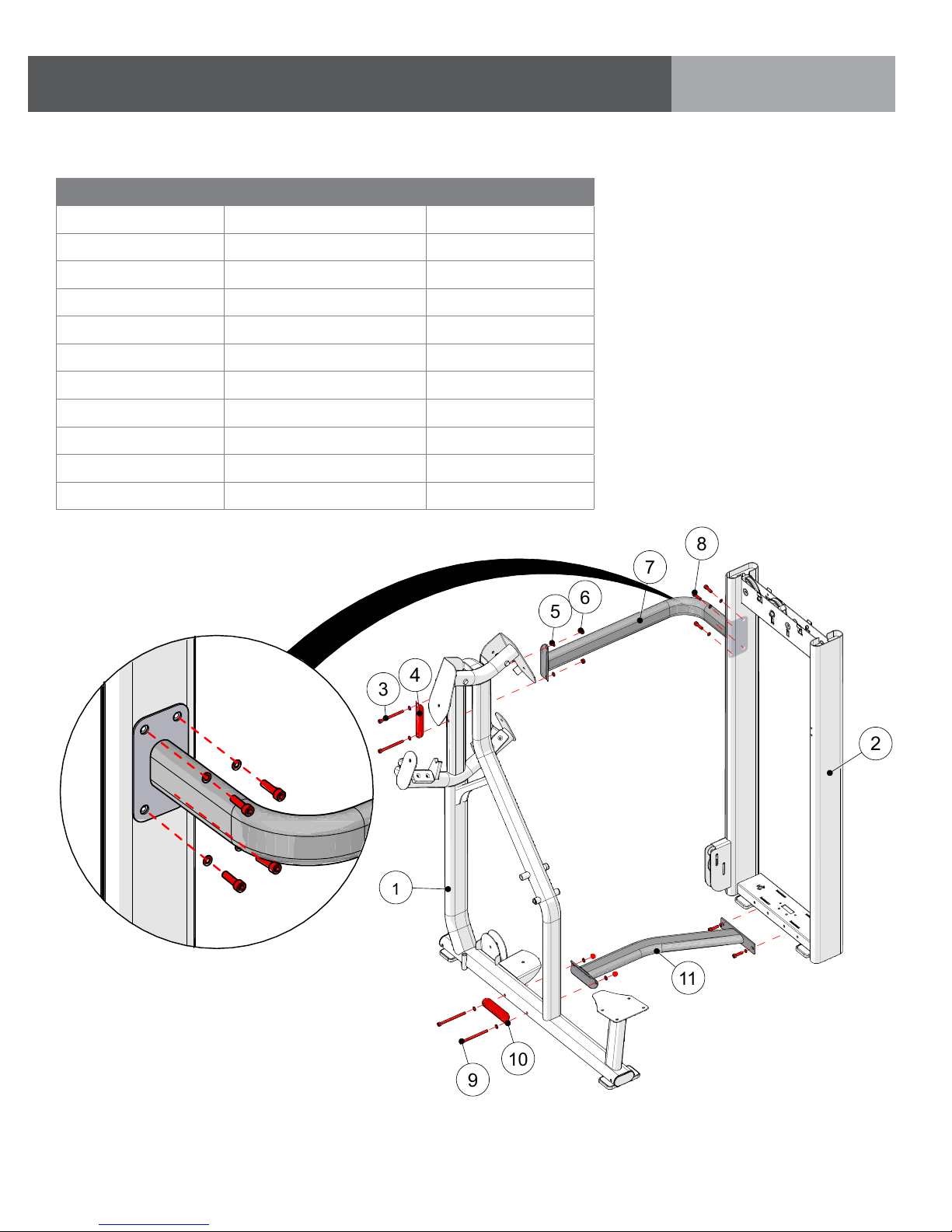

PART 1: WEIGHT STACK TO FRAME ASSEMBLY

STEP 1 | WEIGHT STACK FRAME INSTRUCTIONS & NOTES

Machine must be assembled on a flat and level floor.

Install the user frame hardware as shown, BUT DO NOT FULLY TIGHTEN.

ID DESCRIPTION QUANTITY

1 User Frame 1

2 Weight Stack Frame 1

3 M10 X 105L SHC 2

4 Narrow Cupped Flange 1

5 M10 Flat Washer 14

6 M10 Nylock Nut 4

7 Upper Connecting Tube 1

8 M10 X 20L SHC 6

9 M10 X 125L SHC 2

10 Wide Cupped Flange 1

11 Lower Connecting Tube 1
