Find the Matrox Productiva G100 Dual at our website: Click HERE

Matrox Graphics Architecture

Matrox Productiva G100 Multi-Monitor Series

User Guide

10627-301-0130

1999.03.12

ENGLISH

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

2 Matrox Productiva G100 Multi-Monitor Series – User Guide

Contents

Using this guide 4

Overview 5

Hardware supplied..............................................................................................................5

Software supplied ...............................................................................................................6

Installation overview...........................................................................................................6

Hardware installation 7

Connection setup 11

Quick connection setup.....................................................................................................11

SCART information .........................................................................................................13

Matrox video input............................................................................................................14

Software installation 15

Matrox PowerDesk software 16

Monitor setup....................................................................................................................16

Display setup.....................................................................................................................17

Multi-display setup...........................................................................................................17

Software overview ............................................................................................................17

Matrox PC-VCR Remote program 19

Input setting ......................................................................................................................20

Video file input .................................................................................................................20

TV tuner input...................................................................................................................21

Video line input ................................................................................................................22

Mini remote.......................................................................................................................23

More features....................................................................................................................24

Matrox VidCap driver 26

Video source settings........................................................................................................26

Video format settings........................................................................................................27

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Matrox Productiva G100 Multi-Monitor Series – User Guide 3

Troubleshooting 28

Graphics............................................................................................................................ 28

Video ................................................................................................................................ 36

Sound................................................................................................................................ 40

Display information 42

Graphics............................................................................................................................ 42

Video (Matrox TV tuner required).................................................................................. 43

Hardware information 44

Customer support 46

Warranty 49

Index 51

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

4 Matrox Productiva G100 Multi-Monitor Series – User Guide

Using this guide

This guide assumes you’re familiar with basic functions like click, right-click and double-click,

and that you’re familiar with the basics of the operating system you’re using. Also, we use the

following conventions:

Bold for text that appears on-screen, subheadings and labels.

Italics for file names, paths, publication titles, and new terms.

Bold Italics for emphasis.

Keyboard keys in square brackets, with a plus sign separating keys that you press

simultaneously. For example: press [Ctrl]+[Alt]+[Del] to restart your computer.

Arrows (“”) to separate ordered directions. For example, “click OK Close OK” is the

same as “click OK, then click Close, then click OK”.

When viewing online, green for cross-references and underlined green for links to Web pages.

Click green text to jump to what is being referenced. (To jump to Web pages, your system first

needs to have full Internet access.)

More information

We provide additional documentation in help files, readme files, and Adobe Acrobat PDF

(Portable Document Format) files. To view or print PDF files, use the Acrobat Reader program,

which you can install from the “Matrox Installation” CD-ROM. This guide is available on the

CD-ROM as a PDF file (Doc\Inst\inst_en.pdf). The online version of this guide has additional

information, including the following sections: “Customer support”, “Warranty” and “Software

license agreement”.

For context-sensitive help where available, click the “ ” icon in the title bar, then click the

item you want help on. Right-click a help topic for a pop-up menu that lets you print or copy it.

Also, be sure to check for any last-minute release notes at the end of this manual and in the

Matrox CD-ROM readme file.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Matrox Productiva G100 Multi-Monitor Series – User Guide 5

Overview

Thank you for purchasing a Productiva G100 MMS (Multi-Monitor Series) graphics card. Your

Matrox MMS card is a high-performance graphics card that plugs into an expansion slot inside

your personal computer. This card lets you use 2 or 4 monitors at a time with Windows 98, NT 4.0

or NT 3.51.

The Matrox graphics engine gives you superior performance with Windows, digital video and 3D

graphics. To accelerate 3D programs, your Matrox card uses bus mastering and has hardware-

accelerated features, including texture mapping, Gouraud shading and Z-buffering.

Your Matrox graphics card is 100% VGA compatible and supports all VESA standards: VBE 2.0

(Super VGA modes), DPMS (energy saving), and DDC-2B (Plug-and-Play monitor).

Also, you can upgrade your Matrox card with hardware add-ons. For a list of available upgrades,

see “Hardware information”, page 44. For more information on available upgrades, see the Matrox

Web site (www.matrox.com/mga).

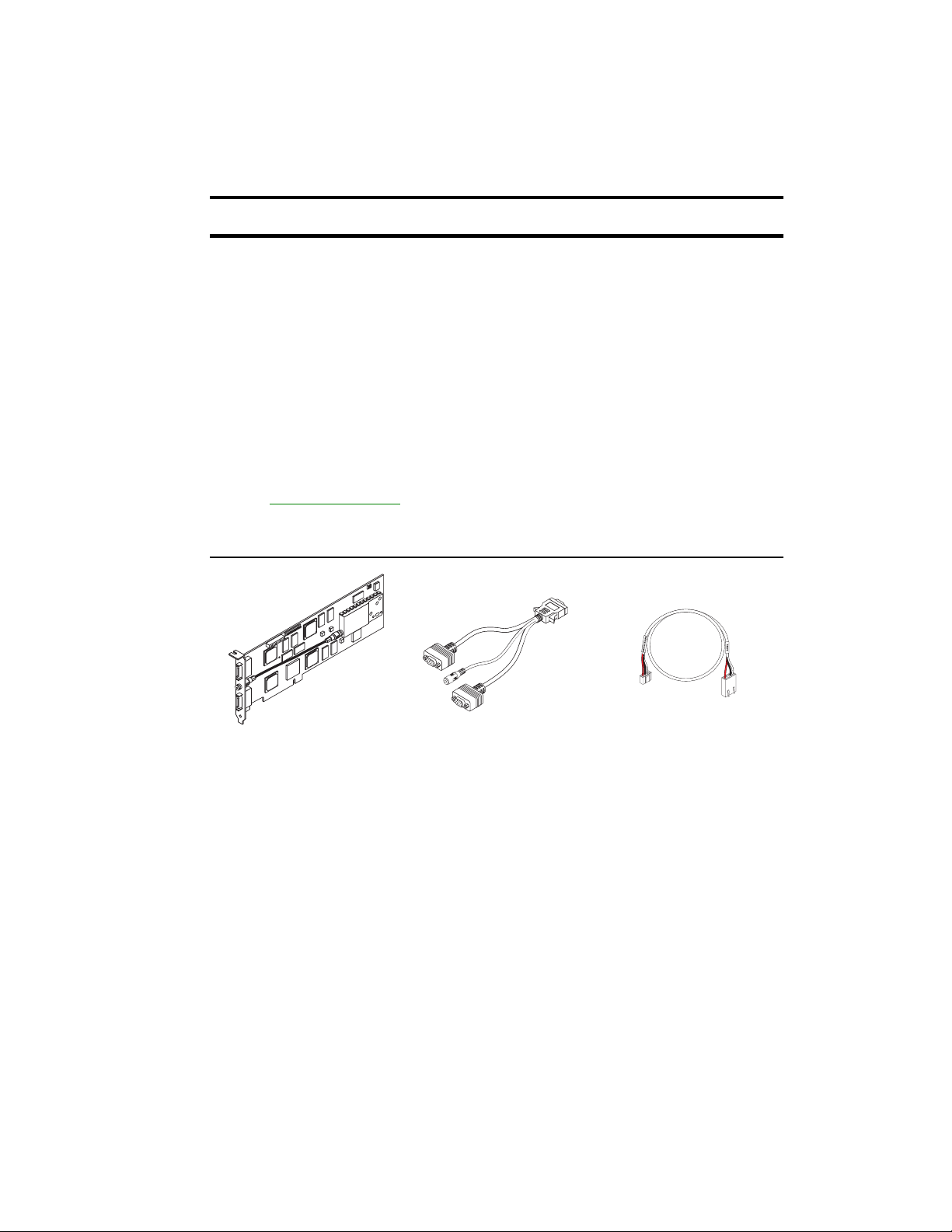

Hardware supplied

Productiva G100 MMS card*

* Pictured is a G100-Quad card with a TV tuner.

Dual-monitor adapter†

†Two dual-monitor adapters are included with Matrox MMS-Quad products. An adapter with a composite video (RCA)

connector is included only with Matrox MMS products that include a TV tuner.

Internal audio cable‡

‡ Matrox TV tuner required. Only certain Matrox MMS products include a TV tuner.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

6 Matrox Productiva G100 Multi-Monitor Series – User Guide

Software supplied

Matrox PowerDesk – to use your Matrox graphics hardware

Matrox Video Tools*† – to use your Matrox video capture hardware

Adobe Acrobat Reader for Windows

Online documentation

Installation overview

To install your Matrox product:

1Install the hardware – see “Hardware installation”, page 7.

2Connect your video input – see “Connection setup”, page 11.

3Install the software –

for Windows 98 and Windows NT 4.0, see “Software installation”, page 15.

for Windows NT 3.51, see the readme file in the root folder of the “Matrox Installation”

CD-ROM.

* Matrox TV tuner required. Only certain Matrox MMS products include a TV tuner.

† Matrox Video Tools software isn’t supported for Windows NT 3.51.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Matrox Productiva G100 Multi-Monitor Series – User Guide 7

Hardware installation

1Switch to the standard VGA display driver

If you’re running Windows 98 on your computer, this step isn’t necessary. If you’re using

another operating system (for example, Windows NT 4.0), see its documentation for how to

switch to VGA mode.

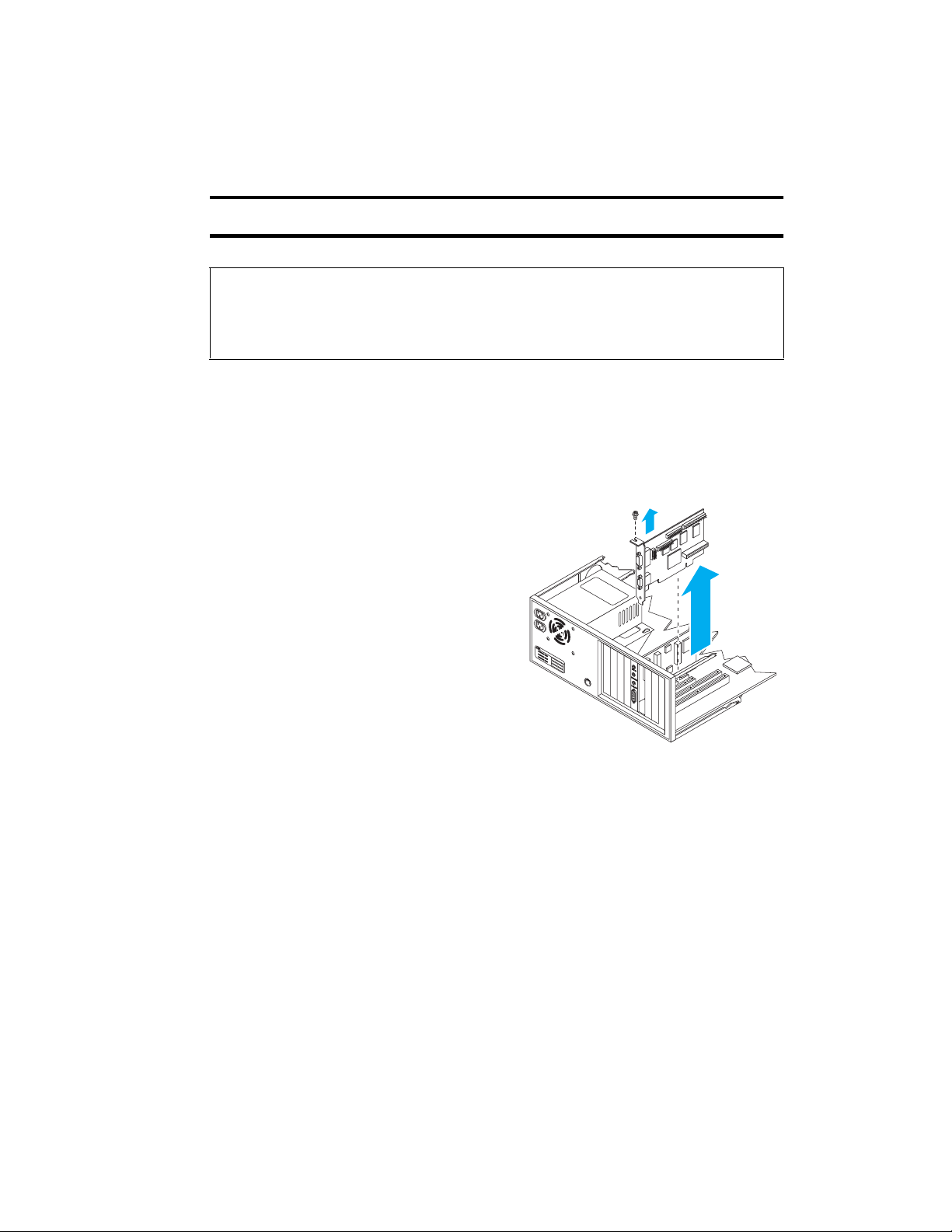

2Open your computer and remove

your existing graphics card

aTurn off your computer and all

peripherals such as your monitor or

printer.

bOpen the computer and remove your

existing graphics card. (If you have a

display adapter built into your computer

motherboard, it should automatically

disable itself after your Matrox card is

installed.)

WARNING: Static electricity can severely damage electronic parts. Before touching any

electronic parts, drain the static electricity from your body. You can do this by touching the

metal frame of your computer. When handling a card, hold it by its edges, and avoid touching

its circuitry.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

8 Matrox Productiva G100 Multi-Monitor Series – User Guide

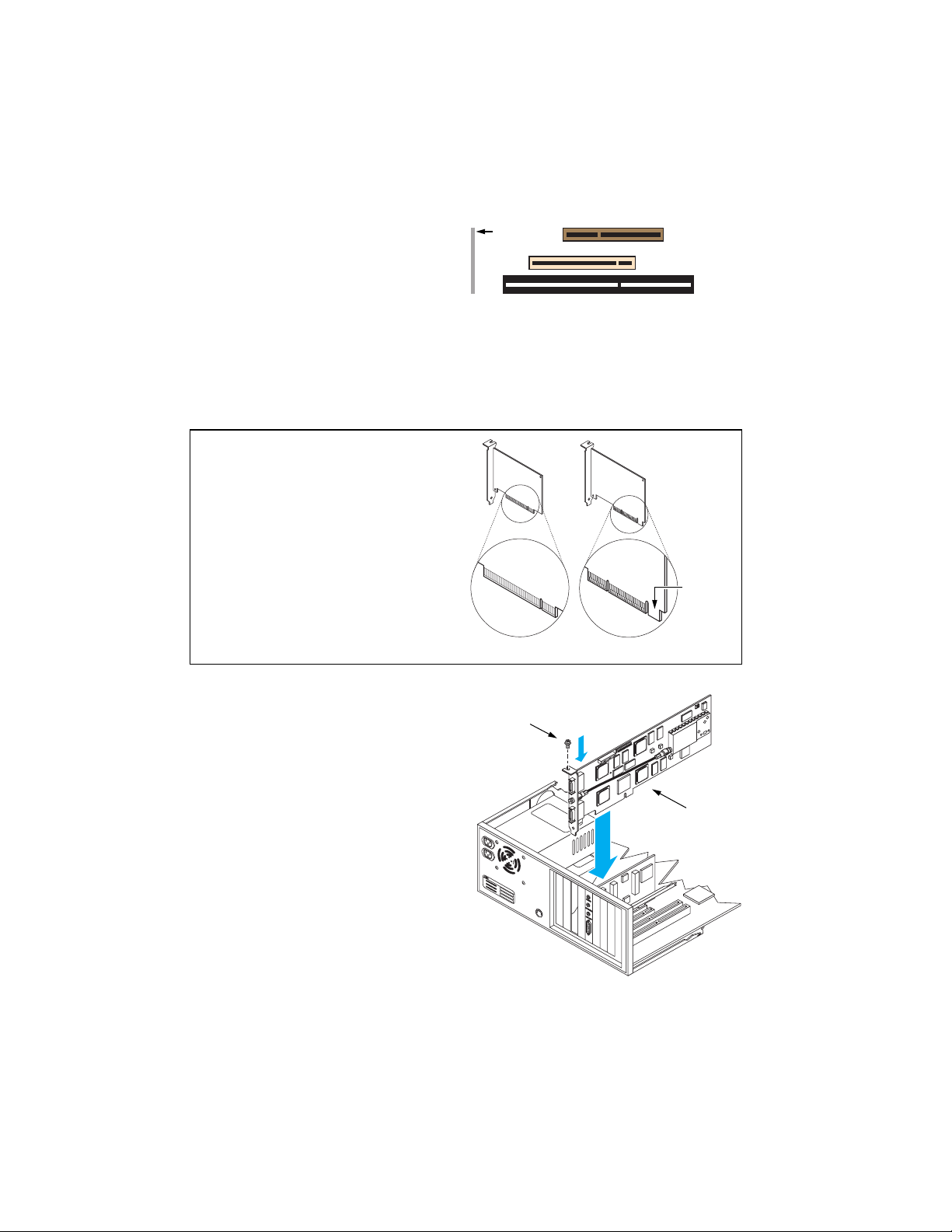

3Choose an expansion slot

aMost computers have different types of

expansion slots. Choose a PCI slot for

your graphics card. Your system manual

should identify the location of each type

of expansion slot in your computer.

bRemove the cover for the slot you intend

to use (if it’s not already removed). Save

the screw for the mounting bracket. (If

another slot is uncovered, you can seal it

with the cover you just removed.)

4Insert your Matrox card

aPosition your Matrox card over the

expansion slot you’ve chosen, then push

the card in firmly and evenly until it’s fully

seated.

bReplace the screw to secure the bracket of

your Matrox card to the computer frame.

WARNING: Inserting your Matrox card into

the wrong type of slot could damage your

card, your computer, or both.

AGP slot

PCI slot

ISA slot

(Back of

computer)

AGP cardPCI card

Plastic

tab

Graphics

card

Bracket screw

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Matrox Productiva G100 Multi-Monitor Series – User Guide 9

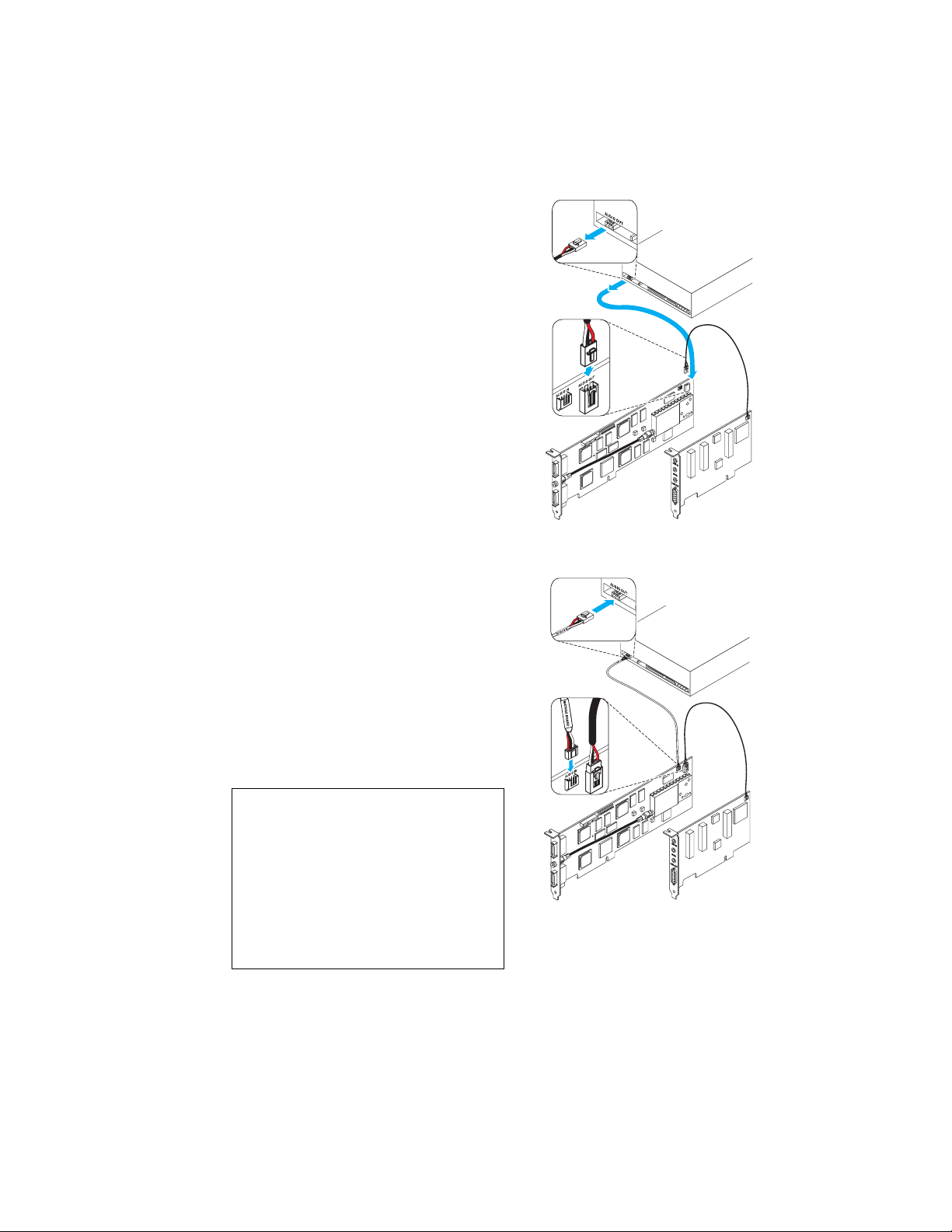

5If your Matrox product

includes a TV tuner:

Connect the internal audio cable

To use audio from your Matrox TV tuner,

connect the internal audio cable included

with your Matrox product.

aNote how your sound card is connected

to your CD-ROM or DVD-ROM drive

and then disconnect it from your drive.

bPlug the end of the cable from your

sound card into the AUDIO OUT

connector on your Matrox card.

cUse the audio cable included with your

Matrox product. Plug the end labeled

MATROX BOARD into the AUDIO IN

connector on your Matrox card.

dPlug the other end of the Matrox audio

cable (labeled DRIVE) into the audio out

connector on your CD-ROM or

DVD-ROM drive.

ePut your computer cover back on.

Note – If your sound card has a TV tuner

connector or your computer doesn’t have a

CD-ROM or DVD-ROM drive: use the

Matrox audio cable; plug the end labeled

DRIVE into the AUDIO OUT connector on

your Matrox card; plug the other end into

your sound card using its TV tuner

connector (if it exists) or its audio input

connector.

Sound cardMatrox card

CD-ROM or

DVD-ROM

drive

Sound cardMatrox card

CD-ROM or

DVD-ROM

drive

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Indice

Altri manuali Matrox Scheda video

Matrox

Matrox QID Manuale utente

Matrox

Matrox Solios Series Istruzioni di montaggio

Matrox

Matrox Millennium G550 Manuale utente

Matrox

Matrox Millennium G400 Manuale utente

Matrox

Matrox Millennium G550 Manuale utente

Matrox

Matrox Digidesktop Guida

Matrox

Matrox C900 Manuale utente

Matrox

Matrox Mojito MAX Manuale utente

Matrox

Matrox Productiva G100 Manuale utente

Matrox

Matrox G450 MMS Manuale utente

Matrox

Matrox Productiva G100 Manuale utente

Matrox

Matrox Millenium II for Mac Manuale utente

Matrox

Matrox G450 MMS Manuale utente

Matrox

Matrox Productiva G100 Manuale utente

Matrox

Matrox Parhelia Precision SGT Manuale utente

Matrox

Matrox EpicA Series Manuale utente

Matrox

Matrox Millennium G450 DVI Manuale utente

Matrox

Matrox CompressHD Manuale utente

Matrox

Matrox G450 MMS Manuale utente

Matrox

Matrox orion HD Istruzioni di montaggio

Matrox

Matrox CompressHD Manuale utente

Matrox

Matrox ALT-256 Series Manuale utente

Matrox

Matrox RAD Series Manuale utente

Matrox

Matrox C Series Manuale utente

Manuali Scheda video popolari di altre marche

Gainward

Gainward GeForce GTX 690 4GB Manuale utente

ATI Technologies

ATI Technologies RADEON 137-40225-20 Manuale utente

MSI

MSI N220GT series Manuale utente

ATI Technologies

ATI Technologies RADEON 7000 MAC EDITION Manuale utente

SIIG

SIIG aurora Manuale utente

ClearSpeed

ClearSpeed ClearSpeed Advance e720 Manuale utente

MSI

MSI R7850 series Manuale utente

DVS

DVS Atomix HDMI Manuale utente

Aztech

Aztech VGS3D-AGP Manuale utente

Advoli

Advoli TB4 Standard Manuale utente

ELSA

ELSA ERAZOR III LT Manuale utente

Gigabyte

Gigabyte GV-R7500L Manuale utente

Themis

Themis TGA-7000 PMC Manuale utente

EMS

EMS XtremeRGB-Ex1 Manuale utente

Nvidia

Nvidia Quadro Workstation Manuale utente

Pioneer

Pioneer PDA-5003 Manuale utente

QDI

QDI N2 Manuale utente

NEC

NEC N8116-48 Manuale utente
