Matsusada Precision Xpg Series Manuale utente

Rev. 0.4

MODEL XPｇ Series

Instruction Manual

B/N124.9.004 *124.9.004*

Matsusada Precision

Note

◆No part of this publication may be reproduced, stored in a retrieval system, or transmitted,

in any form, or by any means, mechanical, electronic, photocopying, recording, or

otherwise, without the prior written permission of Matsusada Precision.

◆

No patent liability is assumed with respect to the use of the information contained herein.

Moreover, because Matsusada Precision is constantly striving to improve its high-quality

products, the information contained in this manual is subject to change without notice.

Every precaution has been taken in the preparation of this manual. Nevertheless,

Matsusada Precision assumes no responsibility for errors or omissions.

Neither is any liability assumed for damages resulting from the use of the information

contained in this publication.

Trademarks

◆Company names and product names in this document are the trademarks or registered

trademarks of their respective companies.

Warranty

◆For details, refer to the following website.

https://www.matsusada.com/support/manufacturer_warranty.html

Matsusada Precision

For Safe Use of the Product

◆Introduction

The product generates high-voltage and high-energy.

Therefore, wrongly handling or operating the product may result in death or serious injury and maybe

property damage as well. In order to use the product safely, read the instruction manual thoroughly before

use to understand how to use and operate it properly.

Please note that we will not be held responsible for any damage or loss caused by not following the

warnings, cautions, and procedures described in the manual.

Keep the manual with you so that you can read it whenever you want.

◆Symbols

Symbols are used in the manual and product, which indicate precautions to be observed for safe use.

Understand these symbols first and then read the manual thoroughly.

Some symbols below are not used in products.

Indicates a potentially hazardous situation, which, if not avoided, may

result in serious injury or death.

Indicates a potentially hazardous situation, which, if not avoided, may result

in minor or moderate injury or in property damage.

Indicates danger/warning/caution. Refer to

the instruction manual when this symbol

appears on the unit.

Frame or chassis terminal

Indicates the possible danger of electric

shock under specific conditions, which

may result in serious injury or death.

Ground terminal

High Temperature Caution:

Indicates the possible danger of injury by

high temperature under specific

conditions.

Power ON

Indicates general prohibitions, including

warnings.

Power OFF

Indicates what must be followed.

Standby

Protective earth terminal (ground terminal

for preventing electric shock)

Bistable push button switch

Indicates the possible danger of death if

you drink it and burns or blindness if it

attaches.

Bistable push button switch

OFF

Indicates the possible danger of exposure

to radiation.

Alternative Current

Matsusada Precision

Understand the risks.

The Product generates high-voltage and high-energy.

The product is designed for electrical engineers or the equivalents who install, wire, and operate it.

Read the instruction manual thoroughly before use and familiarize yourself with the proper use and

danger of the product.

Make sure to allow only specific people to handle the product.

Make sure to allow only the following people to handle the product:

1. who are electrical engineers or the equivalents and have already familiarized themselves with the

proper use and danger of the product, or

2. who are electrical engineers or the equivalents and have already been trained by the

above-mentioned people, or

3. who work under the supervision of the above-mentioned people.

If people other than those listed above install, wire, or operate the product, it may cause electric

shock, burnout, or injury.

Do not open or remove the case or panel of the product.

Do not disassemble, repair, or modify the product by yourself. High-voltage is applied to the inside of it.

Otherwise, it may cause electric shock, fire, or malfunction.

Moreover, if you do it, the safety and functions are not covered with the warranty.

The product does not suit to install and use in places where children may be present.

The product is designed to be installed in places such as factories or laboratories. Do not install and use it

where children may be present.

Make sure to ground it.

When the product has a protection ground terminal or GND terminal, make sure to ground it.

When the AC line input of it is an inlet type, connect the attached power cable or a power cable suitable for

your area to an outlet with the ground. Otherwise, it may result in electric shock or fire.

Regarding power cable

When a power cable is enclosed or attached to the product, do not use it for other products.

When no power cable is enclosed with the product, prepare the power cable suitable for the usage

environment and area by yourself.

Regarding the connection of power cable

Electrical engineers or the equivalents who have already been familiarized with the proper use and danger

of the product should connect the power cable to the AC input by referring to the instruction manual.

Regarding products that have acquired the safety standard, check the page describing the over-voltage

categories too.

Do not process or damage power cables

It may result in electric shock or fire.

Regarding the input voltage

Check the page describing the input terminals and input voltage in the instruction manual.

Do not provide any voltage out of the specifications.

iii

Matsusada Precision

Regarding the fuse

The product builds in a protective fuse. In the case where a fuse holder is arranged outside of the product,

you can replace it by yourself. Refer to the instruction manual to replace it.

In the case where a fuse holder is not arranged outside of the product, you cannot replace it by yourself.

In this case, do not open the case or panel of the product and contact us.

The product is designed for indoor use.

Use the product indoors only, not outdoors. Even indoors, do not use it if there is a possibility of water

leakage, flooding, or snow covering.

Regarding operating temperature and humidity

Use the product within the range of the specifications describing in the instruction manual.

Do not use it in a place where the ambient temperature exceeds the specified range or a closed place.

Do not install the product in places where condensation may occur.

Otherwise, insulation deteriorates and it may cause electric shock, fire, or malfunction.

Do not place anything on top of the product.

Otherwise, they may fall or tumble from it.

Do not put anything into the product.

Do not put foreign objects such as metal or liquid into the product through the air inlets, air outlets, or other

openings. Otherwise, it may result in electric shock, fire, or malfunction.

Operate the product with the right hand.

Use only your right hand to operate the product and keep your left hand away from it, which can reduce

the risk of electric current flowing through the left hand to the vital organs of the body in the event of an

electric shock.

Do not touch the wiring/load connected to the output and any terminals/connectors during the

operation or just after turning output off.

Very high-voltage is on the terminals and connectors during the operation and even just after the output is

turned off. Touching them may result in serious injury or death by electric shock.

The terminals here mean all terminals like input and output terminals and terminals for communications

and remote controls.

Turn off the product before touching the wiring/load connected to the product and any

terminals/connectors on the product and cut it off from the AC input.

Before touching the terminals/connectors and wiring/load, turn off the product and unplug the AC input

cable from the outlet or turn off the AC input breaker. Then, check there is no voltage remained using a

tester.

Since the output and sense terminals are connected to condensers in it, there is high-voltage remained on

them even just after it is turned off.

In order to avoid electric shock, ground the terminals to discharge using a short-circuit grounding

apparatus and check the voltage again.

The terminals here mean all terminals like input and output terminals and terminals for communications

and remote controls.

Matsusada Precision

Level the product out to use for good heat dissipation.

Do not install the product upside down or sideways. If not, the inner heat dissipation will be insufficient.

It may result in smoke or fire due to components deterioration.

Do not install the product in a place where cold air directly blows to it.

It may result in electric leakage or burnout due to condensation.

Do not install the product in a place where it is exposed to corrosive gases or liquids.

It may result in smoke or burnout due to components deterioration.

Do not install the product in a dusty place.

Accumulating dust in the air inlet will make hard to cool it down it, it may result in malfunction.

In that case, remove dust immediately.

Do not block the air inlet and outlet.

Secure 30 cm space at least around the openings.

If they are blocked, the product cannot show the rated performance due to the internal temperature

increase. Moreover, components deteriorate and it may result in smoke or fire.

Remove wiring to and from the product when work like welding near it is done.

Do not wipe the equipment with a dust cloth wet with chemicals (thinner or the like) or water.

Otherwise, it may result in an electric shock, electric leakage, or burnout due to water getting inside.

Regarding fan replacement

When products equip a fan, it has a lifetime. It will be worn out and deteriorated with the time passed and

its operation may become unstable. Also, its lifetime greatly varies depending on the usage environment

such as temperature, humidity, dust. It requires to be replaced at regular intervals to extend the lifetime.

For the replacement, contact us.

(It requires a replacement charge separately. Do not replace it by yourself, as there is a risk of electric

shock.)

For Safe Use of the Product ⅰ

CONTENTS ⅴ,ⅵ

１Introduction 1

１－１ Introduction 1

１－２ Unpacking the POWER SUPPLY 1

１－３ Installation conditions 1

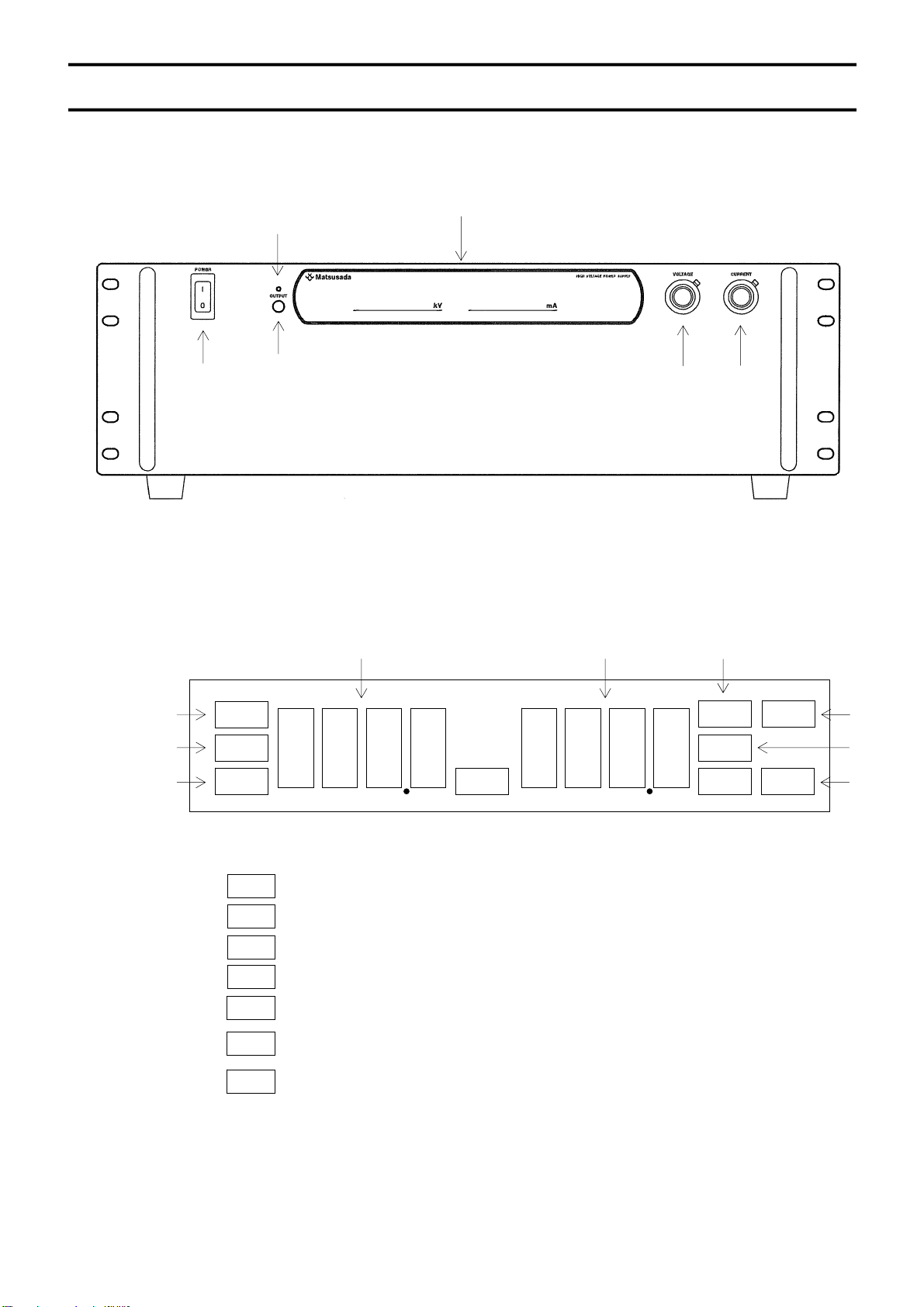

２Exterior View diagram 2

２－１ Front Panel 2

２－２ Details of Meter 2

２－３ Rear Panel 3

３Connection 4

３－１ Connection of GROUND 4

３－２ Connection of X-ray tube 4

３－３ Connection of HV connector 5

３－４ Connection of AC input cable 6

４Operation 7

４－１ Operation 7

４－２ Setting of filament limit 8

４－３ Protection 9

4-3-1 Blackout Protection 9

4-3-2 Over Voltage Protection (O.V.P.) 9

4-3-3 Over Current Protection (O.C.P.) 9

4-3-4 Over Temperature Protection(OT) 9

4-3-5 External voltage source limit 9

4-3-6 Filament protection 9

CONTENTS

５Advanced Operation 10

５－１ Introduction 10

５－２ Function of TB1 interface connector 10

５－３ Changing internal control (INT)/external control (EXT) 11

５－４ External voltage control 12

5-4-1 Voltage control by external voltage 12

5-4-2 Anode current control by external voltage 12

５－５ Remote switch ON/OFF(LS) 12

５－６ Door switch（LD）= Interlock 13

５－７ Anode current monitor, Anode voltage monitor 14

5-7-1 Anode current monitor 14

5-7-2 Output voltage monitor 14

５－８ Output status signal 14

５－９ Remote reset 15

６Option 16

６－１ 100V input voltage(L(100V)) 16

６－２ Dual Filament (LDf) 16

６－３ Interlock/Blackout protection remote reset(LT1) 16

１ Introduction

1Introduction

１－１ Introduction

Thank you very much for your purchase of our product HIGH VOLTAGE POWER SUPPLY. We have done

our best for the quality control of the unit.

Please handle this unit properly according to this instruction manual so that you can use the full performance

of this unit safely for long.

We have carefully prepared this instruction manual, but if you find any doubtful or

unclear point or any omission, please kindly contact us shortly.

１－２ Unpacking the POWER SUPPLY

When unpacked the unit, you will please check the following accessories are enclosed with power supply

main body.

〈Accessories〉

・ AC input cord (1 pc)

・ Instruction manual (1 pc)

・ D-sub connector for interface(TB1) (1) * Attached on TB1 on rear panel

〈Initial Inspection〉

Before start operating, please check the panel and chassis for any apparent trace of impact such as a

dent. If any failure is found, contact the carrier and the manufacturer

１－３ Installation conditions

Warning

This unit is the high voltage power supply. Observe the safety precautions and operate correctly,

or an electric shock or a fatal accident may be caused.

Observe the following precautions in operating and inspecting this power supply, and use the unit

properly.

・ Install the power supply unit horizontally when use.

・ The top and side surfaces are the cooling air supply and exhaust openings. The power supply must be

arranged with adequate space and good ventilation.

・Do not put any object on the power supply unit.

・Do not operate the power supply in a dusty area or in corrosive gas environment.

・Do not use any substitute for the parts in the internal circuits or do not modify them without permission.

・This power supply is designed to a 19 inch rack. The chassis should be supported by the guide in

mounting. Never support it with the front panel mounting hole only.

・The front panel handle is used to change the direction of the power supply or pull out the power supply

mounted onto the rack. Do not use the handle with bearing the whole weight of the power supply on the

handle.

・Carefully handle the power supply with giving no impact in carrying. It is dangerous for a person to carry

the power supply alone due to the heavy weight of approx. 20kgs. Two persons or more should hold to

carry or a cart should be used to carry.

・Contact us for repair. The power supply should be repaired by Matsusada Precision.

！



CAUTION

！



MUST

！



MUST

２－１ Front Panel

２－２ Details of Meter

①

ＯＴ Inside over temperature.

②

ＬＤ Interlock is effective.

③

ＥＸＴ Remote mode.

④

ＳＦ Setting of focus size is small focus. (only –LDf option unit)

⑤

ＯＶＰ Over Voltage Protection is effective.

⑥

ＦＵＣ Insufficient filament current.

⑦

ＯＣＰ Over Current Protection is effective.

⑧ Anode voltage digital meter.

⑨ Anode current digital meter.

２ Exterior View diagram

① POWER ON/OFF switch ④Meter

② OUTPUT ON/OFF switch ⑤Anode voltage setting dial

③ OUTPUT ON LED ⑥Anode current setting dial

Fig.２－１ Front panel

Fig.２－２ Details of Meter

ＯＴ

ＬＤ

ＥＸＴｋＶｍＡ OCP

FUC

①

②

③

⑧ ⑨

⑤

⑥

⑦

① ②

③ ④

OVPSF

④

⑤ ⑥

Indice

Altri manuali Matsusada Precision Alimentazione elettrica

Matsusada Precision

Matsusada Precision DRK Series Manuale utente

Matsusada Precision

Matsusada Precision DOP Series Manuale utente

Matsusada Precision

Matsusada Precision DOKF Series Manuale utente

Matsusada Precision

Matsusada Precision PVCE Series Manuale utente

Matsusada Precision

Matsusada Precision EQ Series Manuale utente

Matsusada Precision

Matsusada Precision VOL Series Manuale utente

Matsusada Precision

Matsusada Precision CD Series Guida all'installazione

Matsusada Precision

Matsusada Precision RE Series Manuale utente

Matsusada Precision

Matsusada Precision CO Series Manuale utente

Matsusada Precision

Matsusada Precision AMT Series Manuale utente

Matsusada Precision

Matsusada Precision PSS2en-DCPS Manuale utente

Matsusada Precision

Matsusada Precision R4K-36 Series Manuale utente

Matsusada Precision

Matsusada Precision R4GT Series Manuale utente

Matsusada Precision

Matsusada Precision EGD Series Guida all'installazione

Matsusada Precision

Matsusada Precision PVCE Series Manuale utente

Matsusada Precision

Matsusada Precision DOSF Series Manuale utente

Matsusada Precision

Matsusada Precision AK Series Manuale utente

Matsusada Precision

Matsusada Precision VOL Series Manuale utente

Matsusada Precision

Matsusada Precision DOEF Series Manuale utente

Matsusada Precision

Matsusada Precision XR Series Manuale utente

Matsusada Precision

Matsusada Precision PZJ Series Manuale utente

Matsusada Precision

Matsusada Precision PZJ Series Manuale utente

Matsusada Precision

Matsusada Precision PKTS Series Guida all'installazione

Matsusada Precision

Matsusada Precision PRKT Series Manuale utente

Manuali Alimentazione elettrica popolari di altre marche

Monacor

Monacor PS-12CCD Manuale utente

VOLTIMA

VOLTIMA MagicBox 15 Manuale utente

Agilent Technologies

Agilent Technologies 6032A Manuale utente

Miller

Miller Auto Deltaweld 452 Manuale utente

BCP

BCP PUOUBK Foglio di istruzioni

HC 2210 Manuale utente

Puls

Puls CT5.241 Manuale utente

OCZ

OCZ ZX1250W Manuale utente

iseg

iseg ECH 238 Manuale utente

Power

Power XXL A Series Manuale utente

Agilent Technologies

Agilent Technologies 6631B Manuale utente

Renogy

Renogy PHOENIX 300 Manuale utente

HP 6200B Manuale di servizio

Epson

Epson Stylus Scan 2500 Manuale operativo

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Manuale utente

Puls

Puls MiniLine ML50.100 Manuale utente

Puls

Puls AS-Interface SLA4.100 Manuale utente

Kenwood

Kenwood PS-60 Manuale utente
