Maxcom MM820 Plus Manuale utente

User manual

GSM Mobile phone

Maxcom MM820 Plus

Led light (Battery level low)

Led light (New message)

Led light（flashes you have missed calls）

Led light（flashes the Clock is working）

English

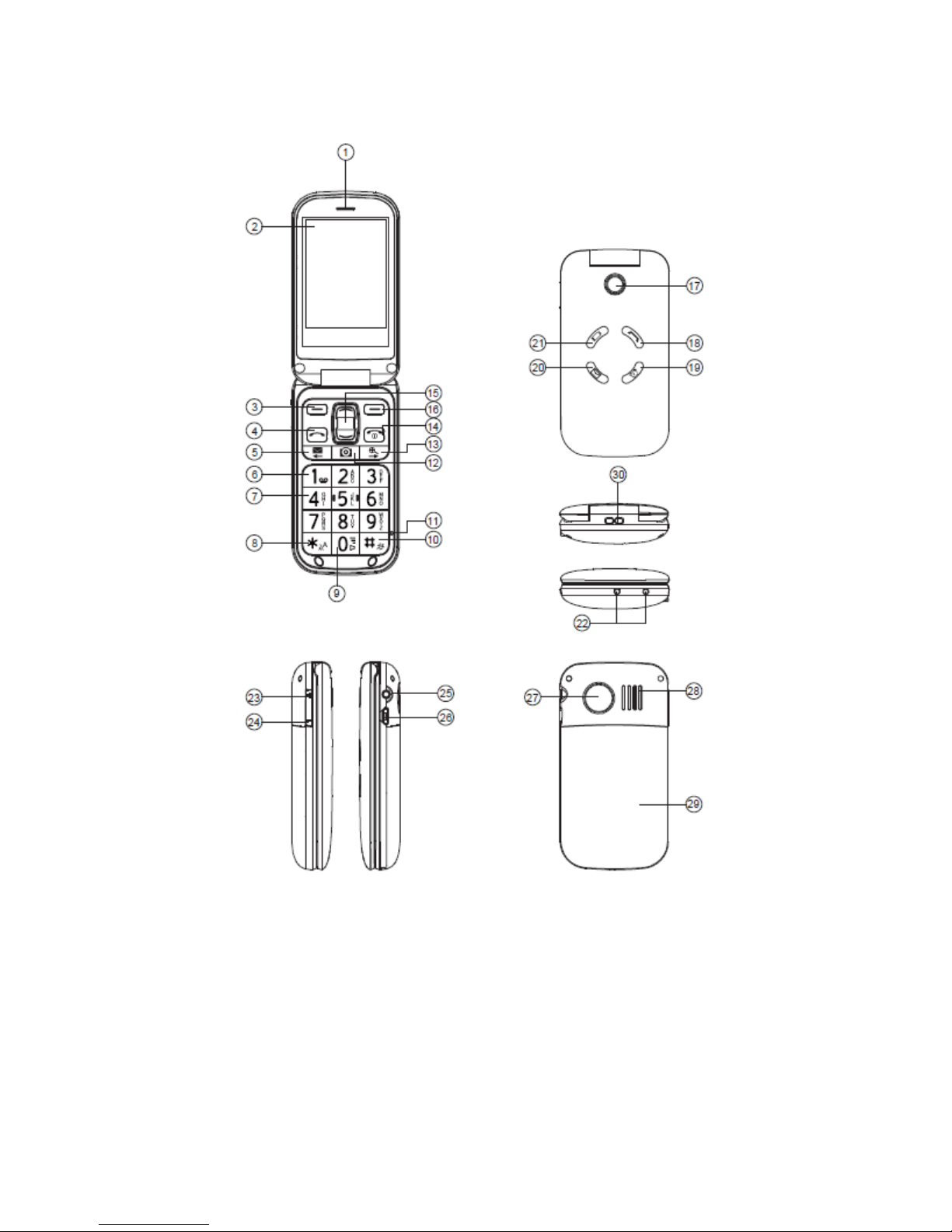

1. Receiver

2. LCD display

3. Left soft key

4. Call key

5. SMS shortcut key/Menu click

6. Voice mail key

7. Numeric Keypad

8. Star key/input method swift

9. Handsfree key

10. Silent mode key

11. Mic

12. Camera

13. Magnifier/Menu button

14. End call/Power on/off

15. Navigation keys Up & Down

16. Left Soft key

17. Camera

18. Led light (New call)

19. Led light (clock)

20. Led light (New message)

21. Led light (Battery level low)

22. Charging contacts, for use with charging stand (not included)

23. Volume Up

24. Volume down

25. Headset socket

26. Charging socket/usb socket

27. SOS emergency call key

28. Speaker

29. Battery door

30. Lanyard socket

In process of the Sub-Menu, the SMS shortcut key equals to

the Left Navigation Key, while the magnifier shortcut key

equals to the Right Navigation key

Contents

Installation

stalling the SIM card and battery

Charging

Phone indicators

Operation

Activating the one

Making a call

Making a call from the Phonebook

Receiving a call

Volume control

Displaysymbols

Additionalfunctions

Call options

Call waiting

Call information

Call log

Phonebook

Silent mode

Headset

SOS calls

Emergency Call key

Alarm

Calendar

Calculator

Text input

SMSmessaging

Creating and sending SMS

Incoming SMS (Inbox)

Outgoing SMS (Outbox)

Settings

Time and date

User setup

Tone settings (rings & tones)

Blocking functions

Emergency

Speed dial

Call setup

Messages

Spell support

Network setup

Services

Security settings

Safetyinstructions

Troubleshooting

Careandmaintenance

Warranty and technical data

Installation

Warning!

Turn off the phone and disconnect the charger before removing the battery cover

Installing the SIMcard and battery

The SIM card holder is located behind the battery.

1：Remove the batteries cover by pressing it carefully down and sliding away from

the emergency call key.

2：Remove the battery: if it is already installed.

3：Press lightly on the cardholder and carefully slide it towards the emergency call

key.

4：The SIM card holder can now be folded into an upright position.

5：Placing the SIM-card on the marked area of the compartment. Make sure that

the SIM card’s contacts are facing downwards and that the cut-off corner is placed

accordingly with the marked area. See picture. Take care not to scratch or bend the

contacts on the SIM card.

6：Fold the SIM-card holder down and carefully slid it away from the emergency call

key until it “clicks” into place.

7：Insert the battery by sliding it into the battery compartment with the contacts

facing towards the emergency call key.

8：Replace the battery cover until it “clicks” into place.

Charging

Warning!

Only use batteries, charger and accessories that have been approved for use with

this particular model. Connecting other accessories may be dangerous and may

invalidate the phone’s type approval and guarantee.

Whenthe battery is running low is displayed and a warning signal is heard.

To charge the battery, connect the mainsadapter to the wall socket and to the

charging socket .

is displayed briefly when the charger is connected to the phone, and

when it is disconnected.

The battery charge indicator will be animated while charging. It takes

approximately 3 hours to fully chargethe battery.

is displayed when charging is completed.

Note!

Full battery capacity will not be reached until the battery has been charged 3–4

times.

The ambient temperature must be in the range 0 °C to +40 °Cwhen charging.

Batteries degrade over time, which means that call time and standby time will

normally decrease with regular use.

Phone indicators

When flashes you have a new message or a missed call.

When flashes the batteries is running out

When flashes you have missed calls

When flashes the Clock is working

Operation

Activating the phone

Press and hold the red button on the phone to turn it on/off .The following

messages may be displayed:

SIM card missing or incorrectly inserted.

SIM card damaged or not valid.

If the SIM card is valid but protected with a PIN code (Personal Identification

Number), PIN: is displayed. Enter the PIN code and press OK. Delete with Clear.

Note!

If PIN and PUK codes were not provided with your SIM card, please contact

your network operator.

Trials: # shows the number of PIN attempts left. When no more attempts

remain, SIM blocked is displayed. The SIM card must now be unlocked with the

PUK code (Personal Unblocking Key).

1. Enter the PUK code and confirm with OK.

2. Enter a new PIN code and confirm with OK.

Changing the language time and date

On first use, the phone language, time and date must be set. The default

language is determined by the SIM card. See Settings on how to change language,

time and date.

If the operator supports automatic time/date setting, you might get a question

upon installation if you want to update to the suggested time .Press Yes to accept

or No to reject the suggested time.

Making a call

Enter the phone number. Delete with Clear.

Press to dial. Press Abort to cancel dialing.

Press to end the call.

Note!

When making international calls, press * twice for the international prefix

"+".Before the country code（instead of 00 similar）for best operation。

Making a call from the phonebook

1：Press Name to open the phonebook.

2：Use the arrow keys / to scroll through the phonebook or quick search

by pressing the key correspondingto the first letter of the entry, see Text input.

3：Press Call to dial the selected entry or press Back to return to standby mode.

Receiving a call

Press to answer, or press Silent to switch off the ring signal and then Reject to

reject the call (busy signal). Alternatively, press to reject the call directly.

Press to end the call.

See also Call options.

Volume control

Use the side keys +/–to adjust the sound volume during a call. The volume level is

indicated on the display.

Display symbols

Additional functions

Call options

During a call the soft key 1 give access to additional functions:

Options (left soft key)

A menu with the following options is displayed:

Hold

single call

Holdthe current call

End

single call

End the current call (same as )

Newcall

Call another number (three-party call)

Phonebook

Search thephonebook

Msg

centre

Write or read SMSmessages

nd access File

manager

Mute

Disable the microphone(mute)

SPKon (right soft key)

Activates hands free mode, which allows you to speak without holding the phone.

Speak clearly into the microphone at a maximum distance of 1 meter (3 feet) Use

the side keys +/–to adjust the loudspeaker volume.

Press SPK off to return to normal mode.

Note!

The hands free function allows only one person at a time to talk. Switching

between talk/listen is triggered by the sound of the person talking. Loud noises

(music, etc.) in the background may interfere with the hands free function.

1 Softkeys have multiple functions. The current key function is shown above the

soft key on the display.

Call waiting

An alert tone will be heard if there is an incoming call while talking. To put the

current call on hold and answer the incoming call, press Options.

This service must be activated, see Settings/Call setup.

Call information

During a call, the called or calling phone number and the elapsed call time is

displayed. If the identity of the caller is withheld, Unknown is displayed.

Call log

Answered, missed, and outgoing calls are saved in a combined call log . 20 calls of

each type can be stored in the log. For multiple calls related to the same number,

only the most recent call is saved.

Retrieving and dialing

1：Press .

Alternatively press Menu, scroll to and press OK.

2：Use the arrow keys / to scroll through the call list.

= Incoming call

= Outgoing call

= Missed call

3：Press to dial the number or press Options for the following settings:

View

Show details for the selected call

Delete

Delete the call

Deleteall

Delete all calls in the call log

Save

Save the number in the Phonebook
