Maxcom BRV111 Manuale utente
VoIP ATA BRV111,BRV102
Quick Installation Guide
Installation & Setup
zLAN Connection
Connect an Ethernet cable from your PC's Ethernet port to the LAN port of the VoIPATA.
zWAN Connection
Connect an Ethernet cable from the router to the WAN port of the VoIPATA.
zVoIP Connection
Connect the telephone to PHONE port and your PSTN line to LINE port.
Power Adapter Connection
Connect the power adapter to the power inlet.

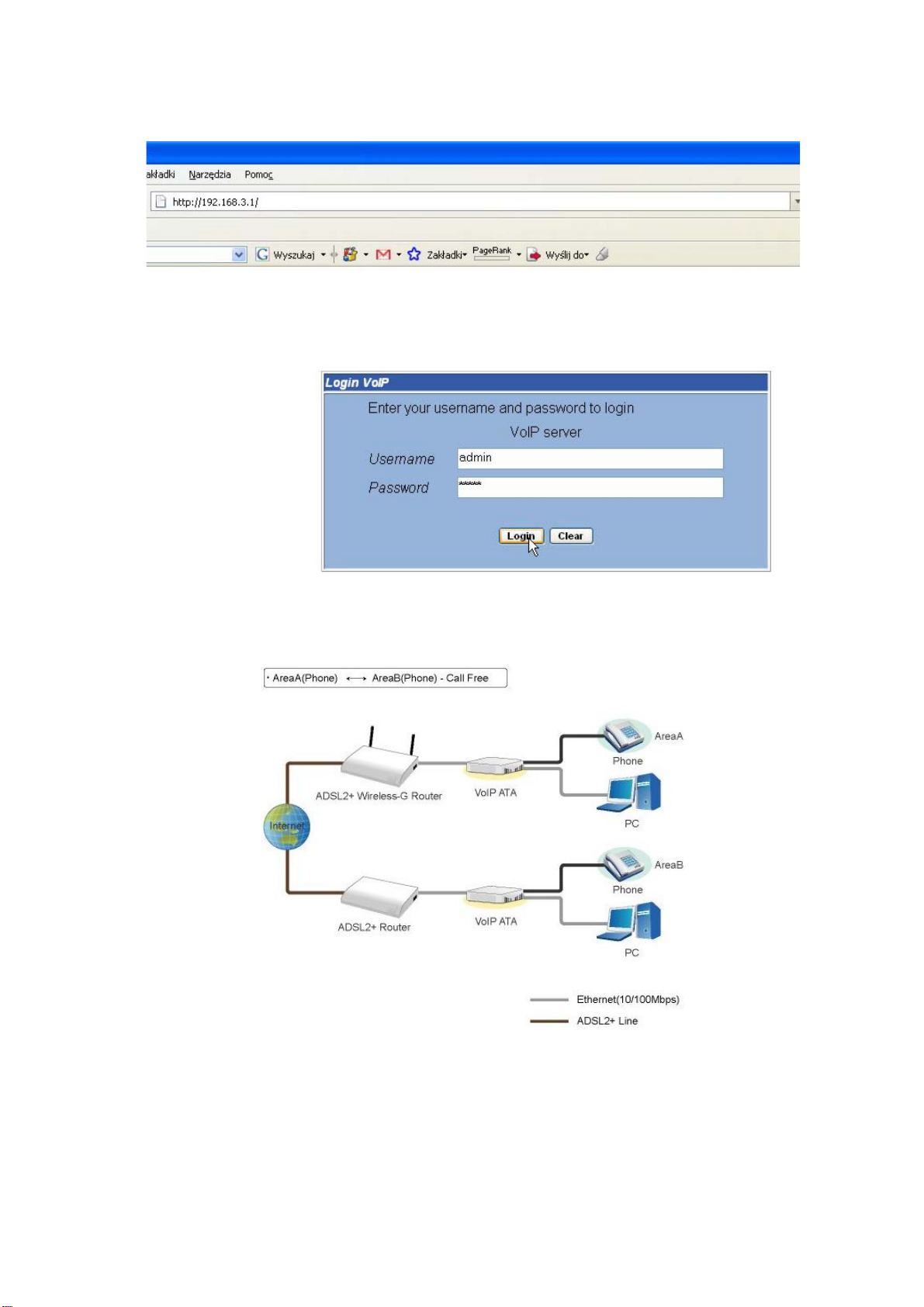

Configuring VoIP ATA with Web Browser
Open web browser and type http://192.168.3.1 in the browser's address box. This number is the default IP
address for this device.
A user name and password prompt will appear. The username is admin and password is admin.
Optional
Check your device rear panel, the
alternative could be as follows:
PHONE (FXS): Connect to the
Telephone (model BRV102)
LINE (FXO): Connect o PSTN Line
(model BRV111)
VoIP Application
FXS – FXS
---- For more details, please refer to our manual.
Browse the User's Manual
1. Insert the CD into your CD-ROM, and the CD will be display with Auto-Run.
2. Manual by PDF format.
*optional
There are three models for VoIPATA:
1) one FXS(PHONE) port & one FXO(LINE) port (BRV111)
2) two FXS(PHONE) ports (BRV102)
You can check the package content for which one you bought.
MAXCOM Sp. z o.o.
ul. Towarowa 23a
43-100 Tychy
tel.: 032 327 70 89
fax: 032 327 78 60
www.maxcom.pl
