MAXDATA PLATINUM Manuale utente

MAXDATA PLATINUM Server Board

User Manual

Contents

MAXDATA PLATINUM Server Board

ContentsContents

Description

...............................................................

...............................

Server Board Features

...............................................................

..............................................

Back Panel Connectors

...............................................................

.............................................

Processor

...............................................................

Memory

...............................................................

...

PCI Riser Slots

...............................................................

........................................................

Video

...............................................................

.......

SCSI Controller

...............................................................

.......................................................

Network Controller

...............................................................

.................................................

NIC Connector and Status LEDs

...............................................................

........................

Keyboard and Mouse

...............................................................

..............................................

RJ-45 Serial Port

...............................................................

.....................................................

ACPI

...............................................................

.......

System Management

...............................................................

.............................................

Baseboard Management Controller

...............................................................

...................

Field Replaceable Units and Sensor Data Records

...........................................................

System Event Log

...............................................................

..............................................

Platform Event Management

...............................................................

..................................

Emergency Management Port

...............................................................

................................

EMP and Serial Over LAN

...............................................................

..................................

Intel

Server Management

...............................................................

.....................................

Security

...............................................................

....

Intrusion Switch Monitoring

...............................................................

...............................

Software Locks

...............................................................

..................................................

Using Passwords

...............................................................

...............................................

Secure Mode

...............................................................

......................................................

Summary of Software Security Features

...............................................................

...........

Server Board Installations and Upgrades

..........................................

Tools and Supplies Needed

...............................................................

....................................

Cautions

...............................................................

...

Memory

...............................................................

...

Replacing the Back up Battery

...............................................................

................................

POST and BIOS Setup Utilities

............................................................

Hot Keys

...............................................................

Power-On Self-Test (POST)

...............................................................

....................................

Temporarily Changing the Boot Device Priority

...............................................................

The Adaptec SCSI Select Utility

...............................................................

..............................

When to Run the Adaptec SCSI Select Utility

...............................................................

....

Running the SCSI Select Utility

...............................................................

..........................

Configuring the Adaptec AIC-7902 SCSI Adapter

.............................................................

BIOS Setup

...............................................................

.............................................................

If BIOS Setup Is Inaccessible

...............................................................

.............................

Starting Setup

...............................................................

....................................................

Setup Menus

...............................................................

......................................................

Contents

Configuration Software and Utilities

..................................................

Server Configuration Wizard

...............................................................

...................................

Direct Platform Control (DPC) Console

...............................................................

...................

DPC Console Modes of Operation

...............................................................

.....................

Running the DPC Console

...............................................................

..................................

Using the System Setup Utility

...............................................................

..........................

Creating SSU Diskettes

...............................................................

......................................

Running the SSU

...............................................................

................................................

Working with the SSU Interface

...............................................................

........................

Customizing the SSU Interface

...............................................................

..........................

Setting Boot Device Priority

...............................................................

...............................

Setting Passwords and Security Options

...............................................................

................

Setting the Administrator Password

...............................................................

..................

Setting the User Password

...............................................................

................................

Setting Security Options

...............................................................

....................................

Viewing the System Event Log

...............................................................

..........................

Viewing FRU Information

...............................................................

...................................

Viewing Sensor Data Records

...............................................................

............................

Managing the Server Remotely

...............................................................

..............................

How to Set Up Remote LAN Access

...............................................................

.................

How to Set Up Remote Modem or Serial Access

............................................................

How to Set Up Paging Alerts

...............................................................

.............................

How to Set Up LAN Alerts

...............................................................

.................................

Installing a Service Partition (Optional)

...............................................................

...............

Saving and Restoring the System Configuration

...............................................................

....

Saving a Configuration

...............................................................

.......................................

Loading a Saved Configuration

...............................................................

...........................

Using the Intel

Server Management

...............................................................

....................

Installing Intel

Server Management

...............................................................

..................

Solving Problems

...............................................................

...................

Resetting the System

...............................................................

.............................................

Initial System Startup

...............................................................

..............................................

Checklist

...............................................................

.............................................................

Running New Application Software

...............................................................

........................

Checklist

...............................................................

.............................................................

After the System Has Been Running Correctly

...............................................................

......

Checklist

...............................................................

.............................................................

More Problem Solving Procedures

...............................................................

.........................

Verifying Proper Operation of Key System Lights

.............................................................

Confirming Loading of the Operating System

...............................................................

....

Specific Problems and Corrective Actions

...............................................................

..............

Power Light Does Not Light

...............................................................

...............................

No Characters Appear on Screen

...............................................................

.......................

Characters Are Distorted or Incorrect

...............................................................

................

System Cooling Fans Do Not Rotate Properly

...............................................................

...

Diskette Drive Activity Light Does Not Light

...............................................................

.....

CD-ROM Drive Activity Light Does Not Light

...............................................................

....

Problems with Application Software

...............................................................

..................

Bootable CD-ROM Is Not Detected

...............................................................

...................

Problems with Network

...............................................................

..........................................

MAXDATA PLATINUM Server Board

Technical Reference

...............................................................

.......................

Server Board Jumpers

...............................................................

............................................

Diagnostic LEDs

...............................................................

.....................................................

POST Error Codes and Messages

...............................................................

..........................

BIOS Recovery Beep Codes

...............................................................

...................................

Bootblock Error Beep Codes

...............................................................

..................................

Regulatory and Integration Information

.....................................................

Product Regulatory Compliances

...............................................................

............................

Product Safety Compliance

...............................................................

................................

Product EMC Compliance

...............................................................

..................................

Product Regulatory Compliance Markings

...............................................................

..............

Electromagnetic Compatibility Notices

...............................................................

...................

FCC (USA)

...............................................................

..........................................................

Europe (CE Declaration of Conformity)

...............................................................

..............

Contents

Figures

Server Board Connector and Component Locations

.........................................................

Back Panel Connectors

...............................................................

......................................

J5A2 Jumper Block for DSR Signal

...............................................................

..................

Installing Memory

...............................................................

.............................................

Replacing the Back up Battery

...............................................................

.........................

Jumper Locations

...............................................................

.............................................

Tables

Server Board Features

...............................................................

........................................

Rear Serial 2 Port Adapter Pin-out

...............................................................

....................

Software Security Features

...............................................................

..............................

Hot Keys

...............................................................

...........................................................

SCSISelect Navigation Keys

...............................................................

.............................

Adaptec Main Menu

...............................................................

.........................................

Menu for each SCSI Channel

...............................................................

...........................

Exit Menu

...............................................................

.........................................................

Keyboard Commands

...............................................................

.......................................

On-Screen Options

...............................................................

...........................................

11.

Configuration Jumper

...............................................................

.......................................

12.

Post Codes

...............................................................

.......................................................

13.

Standard POST Error Messages and Codes

...............................................................

.....

14.

Extended POST Error Messages and Codes

...............................................................

....

15.

BIOS Recovery Beep Codes

...............................................................

............................

16.

Bootblock Error Beep Codes

...............................................................

............................

MAXDATA PLATINUM Server Board

DescriptionDescription

Server Board Features

Table 1. Server Board Features

Feature

Description

Processors

Dual processor slots supporting Intel

Xeon™ processors in an INT3/FCPGA Socket

604 package

Chipset

Intel

chipset E7501:

Supports 533 MHz Front Side Bus (FSB)

MCH memory controller (Northbridge)

ICH3 I/O controller (Southbridge)

P64H2 64-bit I/O hub

Memory

Six dual inline memory module (DIMM) slots support:

• DDR 266 compliant, ECC, registered, 72-bit, 168-pin, DIMMs

• From 256 MB to 12 GB of memory

Graphics

Integrated onboard ATI RAGE XL PCI SVGA controller

Video Memory

8 MB SDRAM of video memory

PCI bus

Two PCI riser slots capable of supporting either of the following configurations:

• 1U configuration: one full-length, full-height 64-bit PCI riser slot and one Low Profile

(LP) 64-bit PCI riser slot

• 2U configuration: three full-length, full-height 64-bit PCI riser slots and three LP 64-bit

PCI riser slots

Network

Dual on-board 10/100/1000 Network Interface Controller (NIC)

System I/O

One PS/2 keyboard/mouse port (6 pin DIN connectors)

One VGA video port (15 pin connector)

Two external USB ports, internal connector providing two additional USB

One external serial port (RJ-45), one internal COM 1 header

One external SCSI port (SCSI server board only), one internal

Two NIC ports (RJ-45)

Form Factor

Server ATX form factor

Description

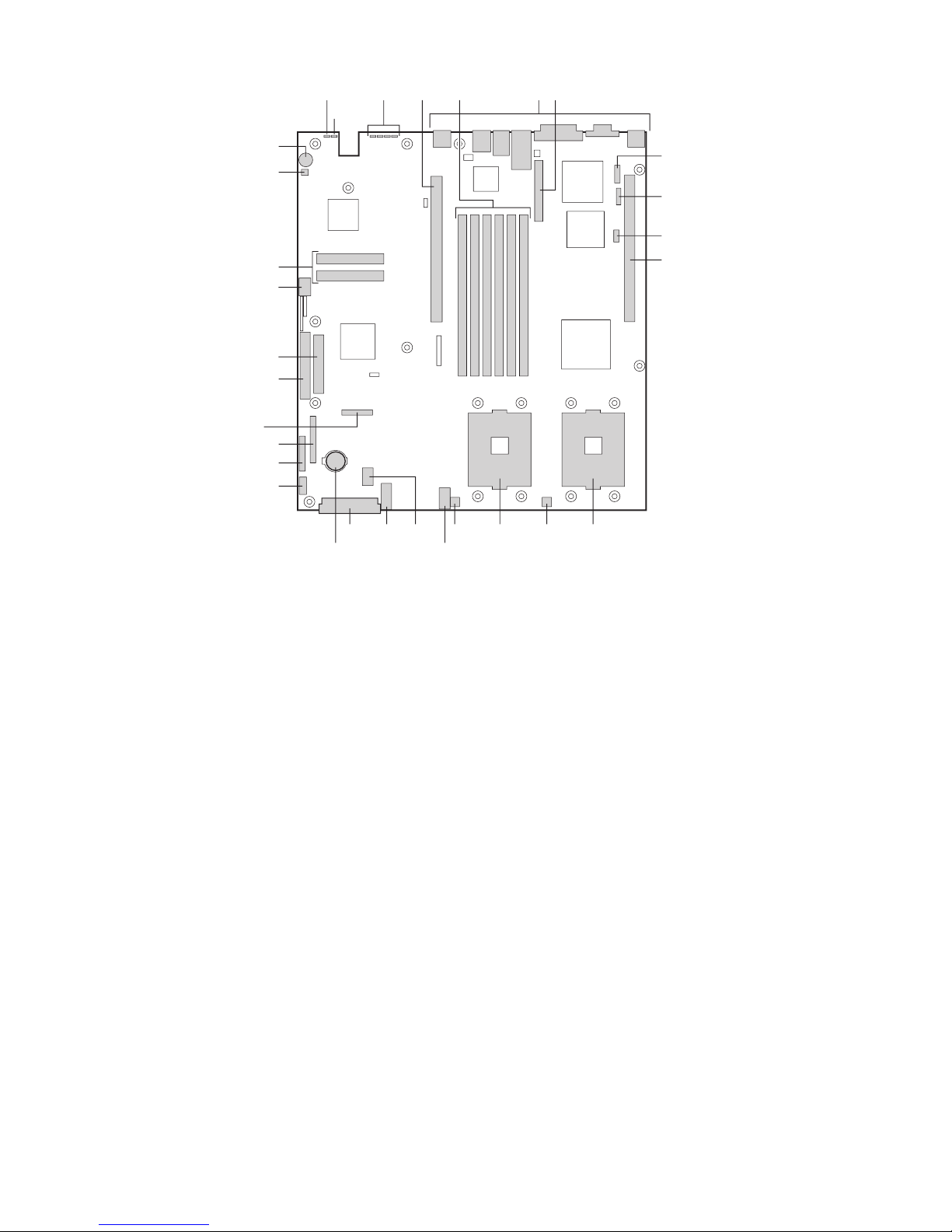

Figure 1. Server Board Connector and Component Locations

System status LED

Auxiliary signal connector

ID LED

Sys fan 1 connector

Diagnostic LEDs (POST code)

Sys fan 2 connector

64-bit PCI riser slot for PCI-X bus B

(full height)

Main power connector

DIMM slots

Battery

I/O ports

Power supply signal connector

SCSI channel B connector (SCSI version only)

ATX front panel connector

COM 1 serial header

SSI front panel connector

ICMB connector

Floppy/FP/IDE connector

IPMB connector

ATA/IDE connector

64-bit PCI riser slot for PCI-X bus C

(low profile) Radios enabled. Modular

ROM-B card support is provided via

the riser card (SCSI only)

Floppy drive connector

Secondary processor socket

AA.

USB 2 & 3 connector

Secondary processor fan connector

BB.

ATA-100 connectors (ATA version only)

Primary processor socket

CC.

Hard Disk Drive LED header

Primary processor fan connector

DD.

Speaker



  



   

































MAXDATA PLATINUM Server Board

Back Panel Connectors

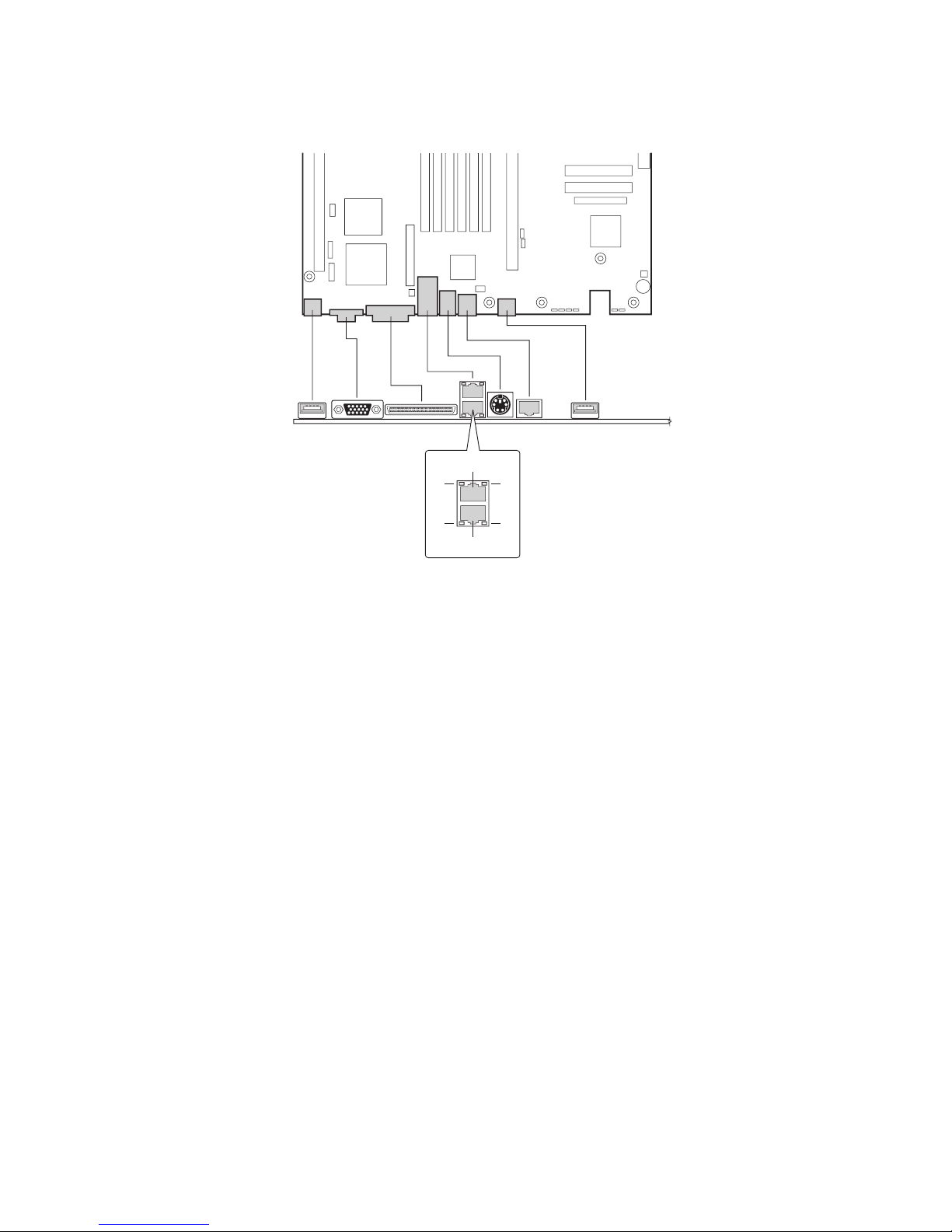

Figure 2. Back Panel Connectors

USB 0 connector

Video connector

SCSI channel A connector (SCSI server board only)

NIC 2 RJ-45 connector

Status LED

Speed LED

NIC 1 RJ-45 connector

Status LED

Speed LED

PS/2 keyboard/mouse connector

RJ-45 serial port

USB 1 connector

 

















Description

Processor

The MAXDATA PLATINUM Server Board accommodates one or two Intel

Xeon™ proces-

sors with 512 k cache in the INT3/FCPGA Socket 604 package. This processor uses the .13

micron technology.

Memory

The system board has six 168-pin DIMM slots each supporting 72-bit ECC registered DDR

DIMMs (DDR 200 or DDR 266 compatible). Memory is partitioned in three banks. You may

install a minimum of 256 MB (128 MB x 2) and as much as 12 GB. Memory must be installed

in pairs, starting with bank 1 (slots 1B and 1A).

The controller automatically detects, sizes, and initializes the memory array, depending on

the type, size, and speed of the installed DIMMs, and reports memory size and allocation

to the server via configuration registers.

PCI Riser Slots

The server board has two PCI riser slots. Riser slot B provides the following features:

•

184-pin, 5 volt keyed, 64-bit expansion slot connector

•

Support for either a 1-slot or a 3-slot PCI riser card

•

Support for both full size and low profile PCI cards

Riser C provides the following features:

•

184-pin, 5 volt keyed, 64-bit expansion slot connector

•

Support for either a 1-slot or a 3-slot PCI riser card

•

Support for only low profile PCI cards

•

Radios Enabled for use with zero channel RAID cards (SCSI version only)

Video

The MAXDATA PLATINUM Server Board uses an ATI RAGE XL PCI graphics accelerator

with 8 MB of video SDRAM. The embedded SVGA video subsystem supports:

•

Resolutions up to 1600 x 1200 under 2D and 1024 x 768 under 3D

•

CRT and LCD monitors up to 100 Hz vertical refresh rate

The server board supports disabling of the onboard video through the BIOS setup menu or

when a plug in video card is installed in any of the PCI slots.

SCSI Controller

The SCSI

version of the server board includes an embedded Adaptec AIC-7902W controller

providing dual Ultra 320 Low Voltage Differential (LVD) SCSI channels.

The SCSI bus is terminated on the server board with active terminators that cannot be

disabled. The onboard device must always be at one end of the bus. The device at the other

end of the cable must also be terminated. LVD devices generally do not have termination

built-in and need to have a termination source provided. Non-LVDs devices generally are

terminated through a jumper or resistor pack on the device itself.
