SunPower
Drive
Wall mounted
EV Charger
Safety & Installation Instructions
549549 Revision A
Published October 2023
This document is valid for installing the SunPower Drive wall mounted EV Charger including:
• DRIVE-EVSE-1-AC-P7-L1-T5-MR-INT
• DRIVE-EVSE-1-AC-P22-L3-T5-R-INT
• DRIVE-EVSE-1-AC-P22-L3-2SS-R-INT
This document describes the mounting, installation, commissioning, conguration, operation,
troubleshooting and decommissioning of the products, as well as the operation of the
product user interface. The enclosed documentation is an integral part of this product. Keep
the documentation in a convenient place for future reference and comply with all provided
instructions.
Illustrations in this document are reduced to the essential information and may deviate from
the real product.
For the latest version please refer to
www.sunpower.maxeon.com/int/InstallGuideDrive
Contents are subject to change without notice.
Maxeon Solar Technologies, Ltd.
sunpower.maxeon.com
© 2023 Maxeon Solar Technologies, Ltd. All rights reserved. | 549549 Revision A - October 2023
Specications included in this document are subject to change without notice 2
1.0 Copyright, Trademarks, and Disclaimer 4
1.1. Copyright 4
1.2. Trademarks 4
1.3. Disclaimer 4
2.0 Safety and Usage Instructions 5
2.1. General safety 5
2.2. Disposal 5
2.3. Summary of safety symbols on the equipment 6
3.0 Technical Parameters 7
3.1. Product Model 7
3.2. Technical Specications 7
3.3. Warranty, Services, Certications and Compliance 8
4.0 Product Overview 9
4.1. Appearance Overview 9
4.2. Storage of charging cable and connector 9
4.3. LED status Indicators 10
5.0 Installation 11
5.1. Preparation for installation 11
5.1.1. Installation tools 11
5.1.2. Supply 12
5.2. Unpacking list 13
5.3. Wall mounting 14
5.4. Post-installation inspection 19
5.4.1. Inspection 19
6.0 Commissioning 20
6.1. Safety instructions before commissioning 20
6.2. Connectivity settings 21
6.2.1. Network Priority Settings 22
6.2.2. Peak Controller 22
6.2.3. 4G conguration 23
6.2.4. Ethernet conguration 23
6.2.5. Wi-Fi conguration 24
6.3. Download and Install the SunPower One App 25
6.4. Activate SunPower Drive in the SunPower One App 25
© 2023 Maxeon Solar Technologies, Ltd. All rights reserved. | 549549 Revision A - October 2023
Specications included in this document are subject to change without notice 3
6.5. Instruct the End User to activate their SunPower One account 26
6.6. Installer access to Monitoring Platform 26
7.0 Maintenance 27
7.1. Routine Maintenance 27
8.0 Troubleshooting 28
8.1. The Charging station cannot be powered ON 28
8.2. The Charging station is connected to the vehicle but charging
doesn’t get recognized by the EV 28
8.3. Input Overvoltage is observed 29
8.4. Not fully charged, report that the battery is full or the
connection is unsuccessful 29
9.0 Customer Support 29
10.0 Appendix Peak Controller 30
10.1. Peak Controller 30
10.2. Specied Use 30
10.3. Description 31
10.4. Installation 32
© 2023 Maxeon Solar Technologies, Ltd. All rights reserved. | 549549 Revision A - October 2023
Specications included in this document are subject to change without notice 4
1.0 Copyright, Trademarks, and Disclaimer
1.1. Copyright
All rights reserved. The disclosure, duplication, distribution and editing of this document, or
utilization and communication of the content are not permitted, unless authorized in writing. All
rights, including rights created by patent grant or registration of a utility model or a design, are
reserved.
1.2. Trademarks
SUNPOWER, SUNPOWER DRIVE, and SUNPOWER RESERVE are registered trademarks in
different jurisdictions. Visit https://corp.maxeon.com/trademarks for more information.
1.3. Disclaimer
• This document has been subject to rigorous technical review before being published. It
will subsequently be revised at regular intervals. Any modications or amendments will be
included in the future. Content of this document is compiled for information purposes only.
• Although Maxeon has put its best efforts to keep the document as precise and up-to-date,
Maxeon shall not assume any liability for defects and damages which may result from the
usage of information contained herein.
• In no event will Maxeon be liable for direct, indirect, special, or consequential damages
(incl. loss of prots) resulting from any errors or omissions in this manual. All obligations of
Maxeon are stated in the relevant contractual agreements. Maxeon reserves the right to
revise this document from time to time.
• Any deviation to the products including, but not limited to, customer-specic modications
(like placing stickers, SIM cards or the usage of different colors), hereafter referred to as
’Customization’, can alter the nal product’s user experience, appearance, quality and / or
lifespan.
• Maxeon is not liable for any damage to or caused by the product Customization.
• Contact your dealer for more information on Customization versus the Standard product.
© 2023 Maxeon Solar Technologies, Ltd. All rights reserved. | 549549 Revision A - October 2023
Specications included in this document are subject to change without notice 5
2.0 Safety and Usage Instructions
2.1. General safety
SunPower Drive equipment is intended exclusively for charging Electric Vehicles (EV). To ensure
proper usage of the charging station (hereinafter can be referred to as Electric Vehicle Supply
Equipment / EVSE or the Charger), the instructions in this manual must always be complied
with. Installation, Commissioning, Maintenance and Replacement of this equipment shall only
be performed by a qualied electrician.
This device must not be repaired.
All applicable local, regional and national regulations must be complied with during the
installation, use, maintenance and replacement of this device.
SunPower cannot be held responsible in the event of non-compliance with the instructions in
this document and in the documents to which it refers.
The service instruction must be observed throughout the lifetime of this device.
Operation of this product is prohibited in the following situations:
• In the vicinity of explosives or highly ammable substances
• If the product is in close proximity to water sources
• If the product as a whole or individual components of the product are visibly damaged
• Risks on operation by children or individuals not properly assessed associated with using
this product
2.2. Disposal
In accordance with the European Directive 2002/96/EC, Waste Electrical and Electronic
Equipment (WEEE) and its implementation in national law, the electrical devices
including charge points which are used must be collected separately and recycled in an
environmentally responsible manner. We recommend that you return your used device
to your dealer or obtain information regarding a local, authorised collection and disposal
system. Failure to comply with this EU Directive may result in a negative impact on the
environment.
© 2023 Maxeon Solar Technologies, Ltd. All rights reserved. | 549549 Revision A - October 2023
Specications included in this document are subject to change without notice 6
Waste disposal, which indicates electrical and electronic waste.
This symbol is located on the product, in the instruction manual or
on the packaging, indicating that the electrical and electronic
equipment and its materials can be reused based on their markings.
By reusing old equipment materials and other
forms of reuse, you can make a signicant
2.3. Summary of safety symbols on the equipment
“Electric hazard”, which indicates danger.
Failure to pay attention to the procedures, practices or improper
implementation may cause injuries or death. Only after the conditions
referred to are fully understood and fullled, can the operation
accompanied by the “Electric hazard” symbol be performed.
CAUTION
HAZARD
Attention: Extensive safety information is available in the relevant sections of this document.
The safety instructions are intended to ensure proper practical usage. If these safety
regulations and instructions are not complied with, the user may expose herself / himself to the
risk of electric shock, re and / or severe injuries.
“Caution”, which indicates a hazard.
Failure to pay attention to the procedures, practices or improper
implementation may cause product damage. Only after the conditions
referred to are fully understood and fullled, can the operation
accompanied by the “Caution” symbol be performed.
TIP
TIP provides information for the optimal installation and operation of the
product.
© 2023 Maxeon Solar Technologies, Ltd. All rights reserved. | 549549 Revision A - October 2023
Specications included in this document are subject to change without notice 7
3.0 Technical Parameters
Suitable for all vehicles complying with IEC 62196-2.
3.1. Product Model
Power Model No. Connector Remarks
7.4 kW
Single Phase
DRIVE-EVSE-1-AC-
P7-L1-T5-MR-INT Type 2 Tethered, 5m Emergency stop button;
MID meter
22 kW
Three Phase
DRIVE-EVSE-1-AC-
P22-L3-T5-R-INT Type 2 Tethered, 5m Emergency stop button
22 kW
Three Phase
DRIVE-EVSE-1-AC-
P22-L3-2SS-R-INT Type 2 Shutter Socket Emergency stop button
3.2. Technical Specications
Technical Specications
Electrical 7.4 kW | 1P 22 kW | 1P/3P Cable 22 kW | 1P/3P
Socket
Nominal Charging
Power 7.4 kW 7.4 kW / 11 kW / 22 kW
Nominal Charging
Voltage 230 VAC ±10% 230 / 400 VAC ±10%
Nominal Frequency /
Range 50 / 60 Hz 50 / 60 Hz
Rated Output Current 32 A 32 A
Interconnection Single Phase Single / Three Phase
Grid type TN-S, TN-C, TN-C-S,
TT TN-S, TN-C, TN-C-S, TT
Metering MID-certied energy
meter Onboard
Mechanical
Weight Approx. 5.4 kg Approx. 7.5 kg Approx. 5.4 kg
Dimensions (HxWxD) 409 x 282 x 148 mm
Charging Outlet 5 m tethered cable with
Type 2 connector (IEC 62196-2)
Shutter Socket
(IEC 62196-2)
Charging Protocol Mode 3 (IEC 61851-1)
Enclosure IP Rating IP 55 IP 54
© 2023 Maxeon Solar Technologies, Ltd. All rights reserved. | 549549 Revision A - October 2023
Specications included in this document are subject to change without notice 8
Technical Specications
Enclosure Impact
Rating IK 10
Mounting Wall Mounting
Communication Ethernet / LAN, 4G, Wi-Fi, OCPP 1.6J
Status indication LED Indicator
Environmental
Operating Temperature -30°C to 50°C
Humidity 5% to 95%
Altitude ≤2000m above sea level
Additional
Protection
Overcurrent, Overvoltage, Undervoltage, Residual current
(Type A 30 mA AC + 6 mA DC), Over temperature, Ground fault,
Integrated surge protection
Optional accessories
Peak Controller
(Dynamic load balancing kit, please refer to Appendix for
more information)
3.3. Warranty, Services, Certications and Compliance
Warranties 3-year product warranty
Monitoring & Services
SunPower One platform access with companion app for com-
missioning, warranty registration
Mobility services provided through partnership with ev.energy
Certications &
Compliance IEC 61851-1, IEC 61851-21-2, LVD 2014/35/EU, RED 2014/53/EU, CE
© 2023 Maxeon Solar Technologies, Ltd. All rights reserved. | 549549 Revision A - October 2023
Specications included in this document are subject to change without notice 9

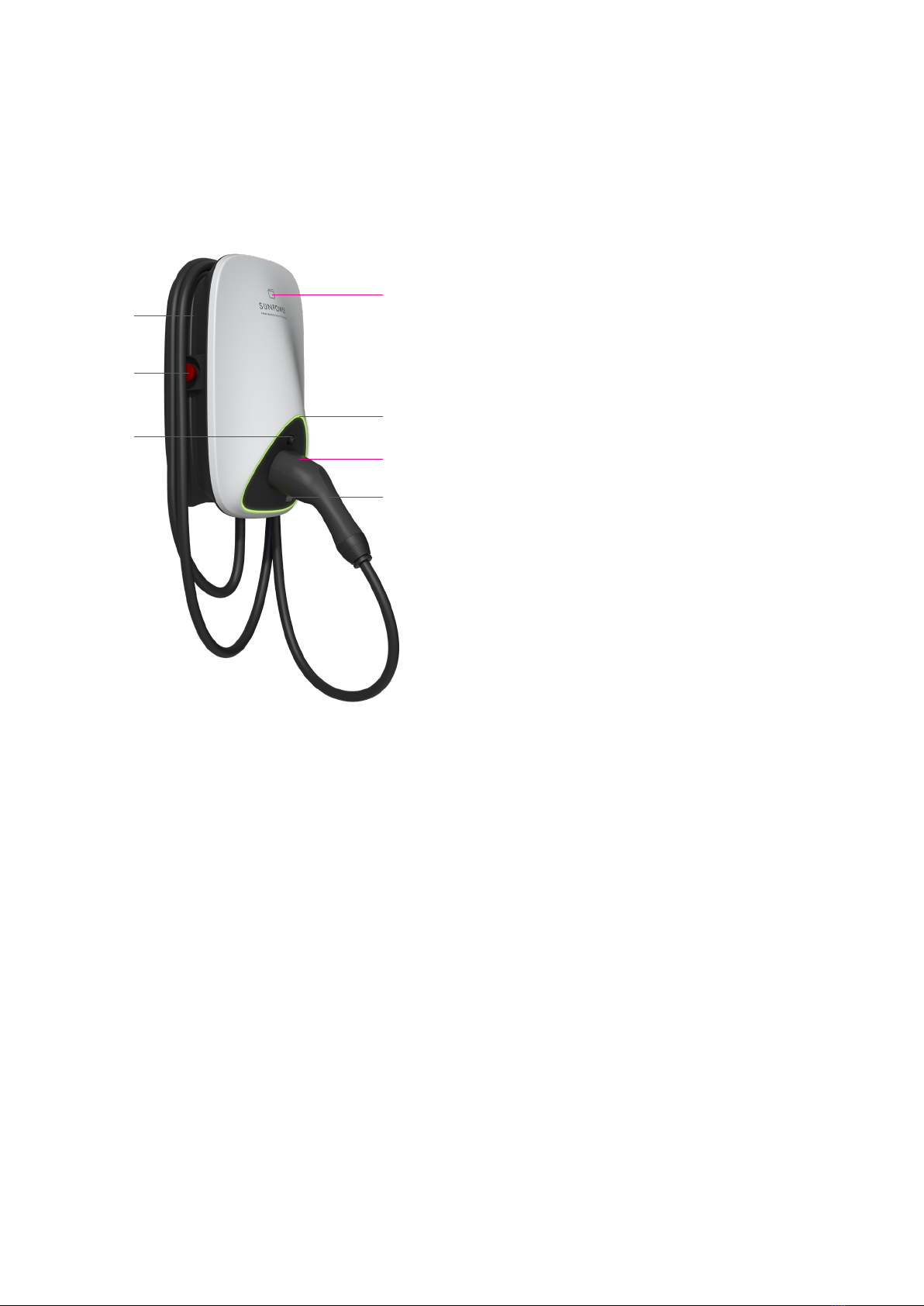

4.0 Product Overview
4.1. Appearance Overview
A Cable winding trough
B Emergency stop button
C Charging connector unlock button
DRFID card reader
ELED Status Indicator
FCharging connector
G Charge Point ID (CPID) QR Code
A
B
C
E
F
G
D
4.2. Storage of charging cable and connector
When the charging station is not used, the charging cable should be rolled up and put back into
the cable winding through in position [A], and the charging connector should be inserted into
the designated position [F] for safe storage.
Figure 1 Product appearance overview
