General Description
The USBTO232 is an adapter board that converts a
PC’s USB port into a standard COM port. A COM port is
also known as the standard serial port that uses
Recommended Standard 232 (RS-232).
The USBTO232 is included with selected Maxim EV kits
and EV systems that were originally designed for the
PC COM port and later updated to also support the
USB port. Data sheets for EV kits and EV systems that
can use the USBTO232 have been updated to reflect
compatibility and also provide ordering information.
Use of the USBTO232 in applications other than those
EV kits specified by Maxim is not supported.
Important: Before using the USBTO232, see the
Quick
Start
section of this data sheet to correctly install the
USB driver for the appropriate Windows®operating
system.
Features
USB Powered
USB Driver for Windows 98SE/2000/XP Operating
Systems
USB and I/O Power LED Indicators
Two GPIO LED Indicators
USB Cable Included
8-Pin Signal Header
Proven PCB Layout
Fully Assembled and Tested
USBTO232
USB-to-COM Port Adapter Board User Guide
________________________________________________________________
Maxim Integrated Products
1
Ordering Information
19-0677; Rev 0; 11/06
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
+
Denotes lead-free and RoHS compliance.
PART PC
INTERFACE
OPERATING SYSTEMS
SUPPORTED
USBTO232+ USB Windows 98SE/2000/XP
Component List
Windows is a registered trademark of Microsoft Corp.
DESIGNATION QTY DESCRIPTION
C1 1
0.01µF ±10%, 50V X7R ceramic
capacitor (0603)
TDK C1608X7R1H103K
C2, C3 2
47pF ±5%, 50V COG ceramic
capacitors (0603)
TDK C1608C0G1H470J
C4–C8, C11,
C12 7
0.1µF ±10%, 16V X7R ceramic
capacitors (0603)
TDK C1608X7R1C104K
C9 1
4.7µF ±10%, 6.3V X5R ceramic
capacitor (0603)
TDK C1608X5R0J475K
C10 1
1µF ±10%, 6.3V X5R ceramic
capacitor (0603)
TDK C1608X5R0J105K
D1 1 Red LED (0603)
Panasonic LNJ208R8ARA
D2 1
Green LED (0603)
Stanley Electric BG1111C-TR
Panasonic LNJ314G8TRA
FB1 1
40Ω@ 100MHz, 1.5A ferrite bead
(0805)
Steward MI0805K400R-10
H1 1 8-pin header
JU1, JU2, JU3 3 3-pin headers
DESIGNATION QTY DESCRIPTION
P1 1
USB type B right-angle female
receptacle connector
Assmann AU-Y1007-R
P2 1
Short DB9 right-angle male
receptacle connector (without
cable-locking screws)
R1, R2 2 270Ω±5% resistors (0603)
(use lead-free parts only)
U1 1 USB-to-UART converter
FTDI FT232RL (28-pin SSOP)
U2 1 MAX213EEAI+ (28-pin SSOP)
— 3 Shunts
— 1 USBTO232+ PCB
— 1 USB high-speed A-to-B 6ft cable
Note: Indicate the Maxim EV kit that you are using when con-
tacting this component supplier.
SUPPLIER PHONE WEBSITE
TDK 847-803-6100 www.component.tdk.com
Component Supplier
USBTO232
2 _______________________________________________________________________________________
Quick Start
The following instructions are for installing USB drivers
and the EV kit software. Once the USB drivers and EV
kit software have been installed, refer to the
Quick Start
section of the appropriate EV kit data sheet for EV kit-
specific instructions.
Recommended Equipment
•USBTO232 board (USB cable included)
•Maxim EV kit (or EV system) with a COM port PC
connection
•Corresponding EV kit data sheet
•User-supplied PC with a USB port
Note: In the following sections, software-related items
are identified by bolding. Text in bold refers to items
directly from the EV kit software. Text in bold and
underlined refers to items from the Windows
98SE/2000/XP operating system.
Procedure
1) Visit the Maxim website (www.maxim-ic.com/evkit-
software) to download the latest version of the EV
kit software that supports USB. Save the EV kit soft-
ware to a temporary folder and uncompress the file,
if it is a .zip file.
2) Install the EV kit software on your computer by run-
ning the INSTALL.EXE program inside the tempo-
rary folder. The program files are copied to
C:\Program Files\MAXxxxxx and icons are creat-
ed in the Windows Start | Programs menu.
3) Uncompress the USB driver file copied into
C:\Program Files\MAXxxxxx after the software is
installed. If you are using Windows 98SE, uncom-
press the USB_Driver_98_ME_V1.09.zip file. If you
are using Windows 2000/XP, uncompress the
USB_Driver_XP_2K_V2.00.zip file. Uncompress
the contents of the .zip file into C:\Program
Files\MAXxxxxx.
4) Verify that the following USBTO232 jumpers are in
the default positions:
JU1: (1-2)
JU2: (2-3)
JU3: (2-3)
5) Connect the included USB cable from the PC’s USB
port (Type A) to the Type B USB connector on the
USBTO232 board.
6) Verify that the red VCC power LED (D1) lights up.
Also verify that the green VCCIO power LED (D2)
lights up.
7) Go to the appropriate USB
Driver Installation
sec-
tion in this data sheet for the version of Windows
you are using and return to step 8 when finished.
For example, if you are using Windows XP, go to
the
Windows XP USB Driver Installation
section.
Windows XP: Page 3
Windows 2000: Page 11
Windows 98SE: Page 25
8) Connect the USBTO232 board to the EV kit (or EV
system) by connecting the male DB9 connector on
the USBTO232 board to the female DB9 connector
on the EV kit.
9) Refer to the
Quick Start
section of the appropriate EV
kit data sheet for further EV kit-specific instructions.
Detailed Description of Hardware
The USBTO232 is an adapter board that converts a
PC’s USB port into a standard COM port. The
USBTO232 board has three configurable jumpers: JU1,
JU2, and JU3. Jumper JU1 is the I/O supply selection
(see Table 1), jumper JU2 is the USB power-supply
indicator (see Table 2), and jumper JU3 is the 3.3V
power-supply indicator (see Table 3).
Table 1. I/O Supply Selection (VCCIO)
*
Default position.
Table 2. USB Power-Supply Indicator
(VCC–D1)
*
Default position.
Table 3. 3.3V Power-Supply Indicator
(VCC30–D2)
*
Default position.
JUMPER SHUNT POSITION DESCRIPTION
1-2* VCCIO = VCC = 5V
JU1 2-3 VCCIO = VCC30 = 3.3V
JUMPER SHUNT POSITION DESCRIPTION
1-2 General-purpose LED
connected to CBUS0
JU2
2-3* Indicates USB power present
when red LED (D1) is lit
JUMPER SHUNT POSITION DESCRIPTION
1-2 General-purpose LED
connected to CBUS1
JU3
2-3*
Indicates regulated 3.3V
power present when green
LED (D2) is lit
USB-to-COM Port Adapter Board User Guide
USBTO232
USB-to-COM Port Adapter Board User Guide
_______________________________________________________________________________________ 3
Windows XP USB Driver Installation

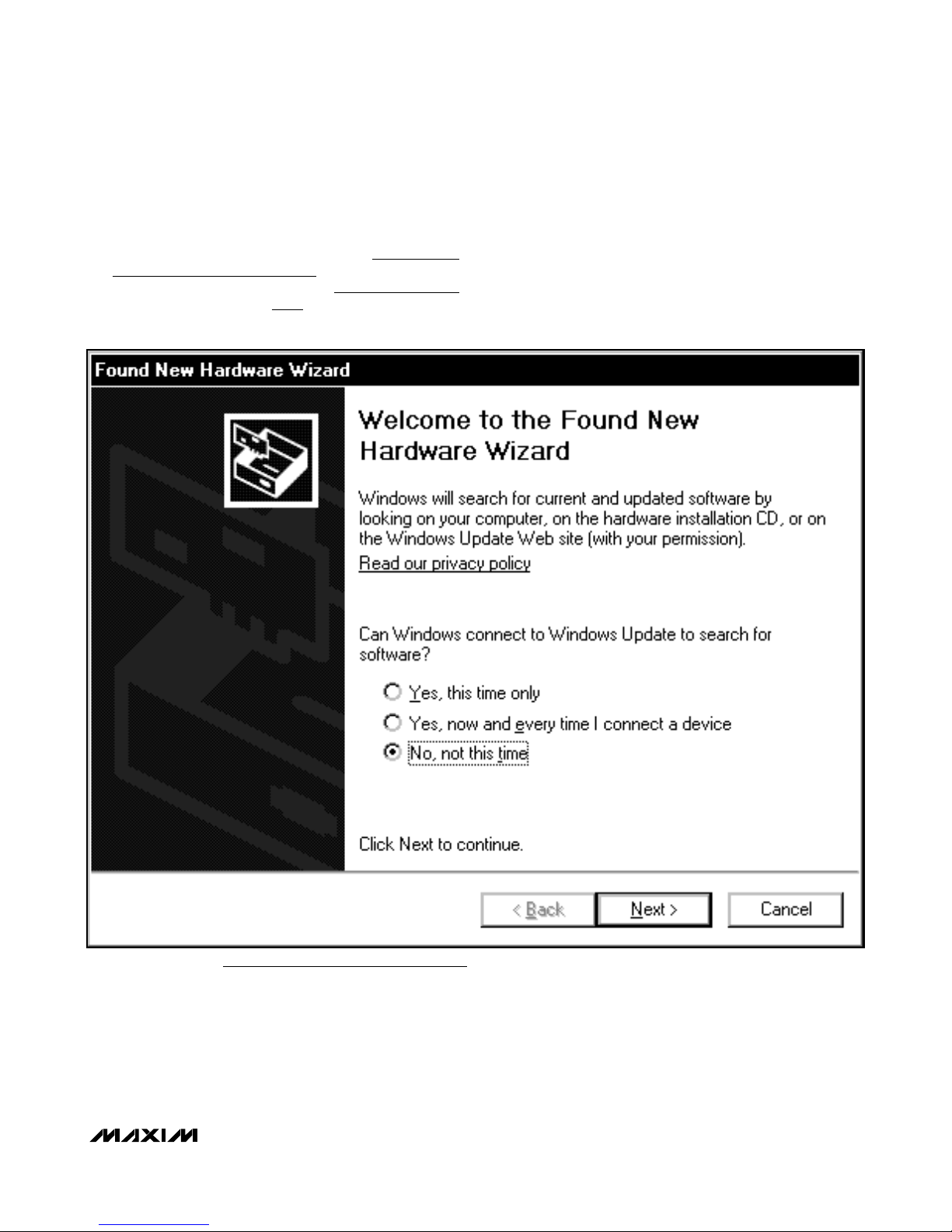

1) Once the USBTO232 board is connected to the PC
for the first time in Windows XP, a Found New
Hardware Wizard | Welcome window appears, as
shown in Figure 1. Choose the No, not this time
selection and press the Next button to get started. If
you do not see a window that is similar to the one
described above after 30 seconds, remove the USB
cable from the USBTO232 board and reconnect it.
Administrator privileges are required to install the USB
device driver on Windows 2000/XP.
Figure 1. Windows XP: Found New Hardware Wizard |Welcome Window
USBTO232
2) A Found New Hardware Wizard | FTDI FT8U2XX
Device window (Figure 2) appears next. This win-
dow asks What do you want the wizard to do?.
Choose the Install from a list or specific location
(Advanced) option and press the Next button.
Figure 2. Windows XP: Found New Hardware Wizard | FTDI FT8U2XX Device Window
USB-to-COM Port Adapter Board User Guide
4 _______________________________________________________________________________________
_______________________________________________________________________________________ 5
3) At the Found New Hardware Wizard | Search
Options window (Figure 3), choose the Search for
the best driver in these locations option and
check the Include this location in the search
checkbox. Press the Browse button and navigate
to the path: C:\Program Files\MAXxxxxx (where
xxxxx represents the Maxim IC part number on the
EV kit being evaluated). Press the Next button
when finished.
USBTO232
USB-to-COM Port Adapter Board User Guide
Figure 3. Windows XP: Found New Hardware Wizard | Search Options Window
USBTO232
USB-to-COM Port Adapter Board User Guide
6 _______________________________________________________________________________________

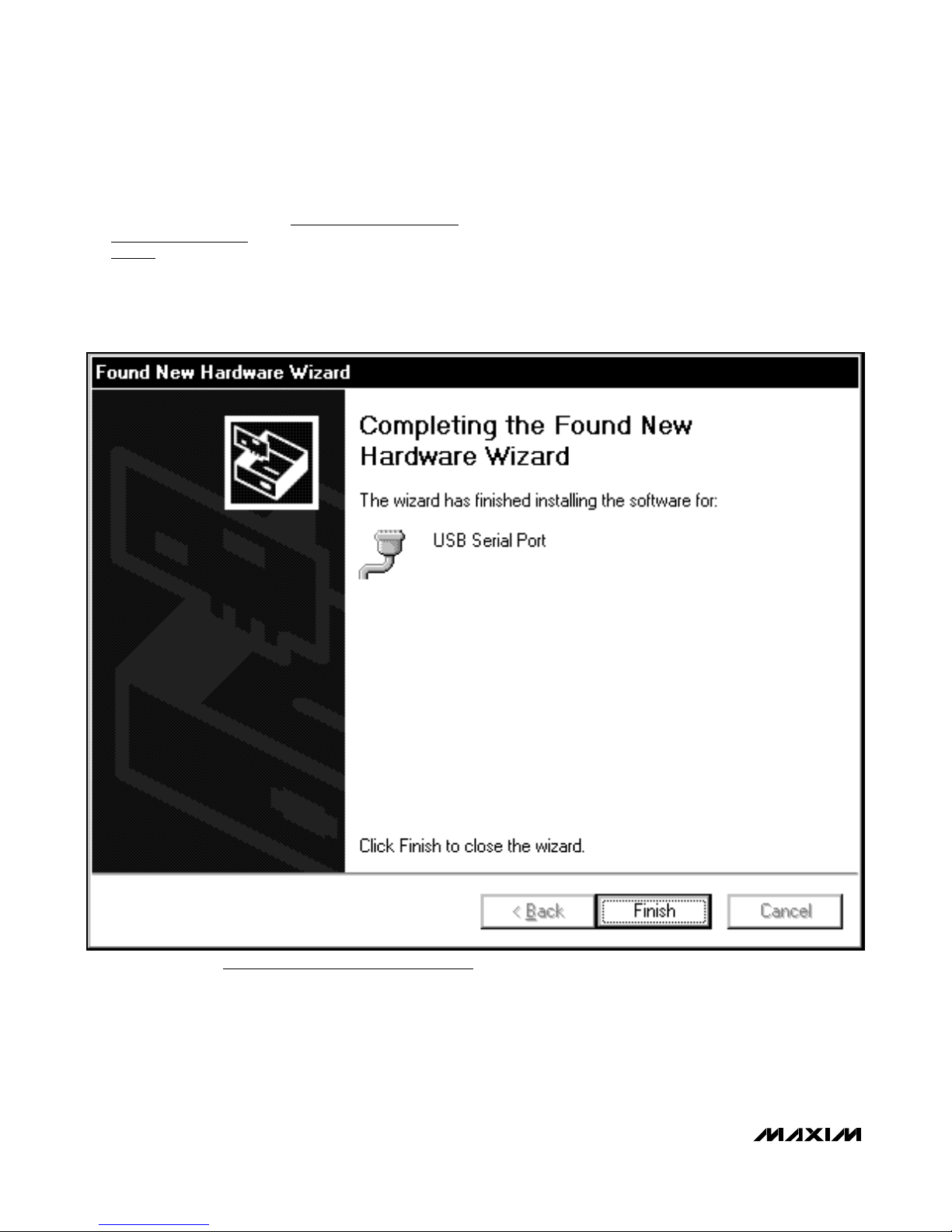

4) The Found New Hardware Wizard | Complete win-
dow appears (Figure 4). Press the Finish button.
Figure 4. Windows XP: Found New Hardware Wizard | Complete Window
USBTO232
USB-to-COM Port Adapter Board User Guide
_______________________________________________________________________________________ 7
5) A Found New Hardware Wizard | Welcome win-
dow appears again (Figure 5). Choose the No, not
this time selection and press the Next button.
Figure 5. Windows XP: Found New Hardware Wizard | Welcome Window
USBTO232
6) The next window is the Found New Hardware
Wizard | USB Serial Port window (Figure 6). This
window asks What do you want the wizard to
do?. Choose the Install from a list or specific
location (Advanced) option and press the Next
button.
USB-to-COM Port Adapter Board User Guide
8 _______________________________________________________________________________________
Figure 6. Windows XP: Found New Hardware Wizard | USB Serial Port Window
7) At the Found New Hardware Wizard | Search
Options window (Figure 7), choose the Search for
the best driver in these locations option and
check the Include this location in the search
checkbox. Press the Browse button and navigate
to the path: C:\Program Files\MAXxxxxx. Press
the Next button when finished.
USBTO232
USB-to-COM Port Adapter Board User Guide
_______________________________________________________________________________________ 9
Figure 7. Windows XP: Found New Hardware Wizard | Search Options Window
USBTO232
8) The next window is the Found New Hardware
Wizard | Complete window (Figure 8). Press the
Finish button.
9) When finished, return to step 8 of the USBTO232
Quick Start
section.
USB-to-COM Port Adapter Board User Guide
10 ______________________________________________________________________________________
Figure 8. Windows XP: Found New Hardware Wizard | Complete Window
