PIR-600 passive infrared sensor with novel and beautiful style, perfect
streamline can be easily installed. It is designed to detect human
movement indoor. Adopted advanced fuzzy logic chip and intelligent
analysis distinguish signal between body movement and interference
to minimize false alarms. The built-in buzzer remind you low battery
state and event of tamper alarm, which ensure your safety.
1. Detection Window
2. LED Indicator
3. Learning Button
4. Clip
5. Battery Compartment
6. Zone Jumper
7. Buzzer
8. Tamper Switch
9. Infrared Sensor
Infrared Sensor: Detects the infrared rays released by human body motion.
Please do not touch the surface and keep it clean.
Once the case is opened ,the tamper switch will be triggered, Tamper Switch:
generating an alarm signal.
Status Indicator
LED Flashed Once:
Movement is detected.
LED flashes 5 times, and buzzer beeps 5 times:
Power on, Tamper alarm, low battery indication.
If it's in low battery state,
please replace it immediately.
Features
Printed in China
2015 V 1.0
PIR Motion Detector
User Manual
Specifications:
Power Supply: DC 3V (AA 1.5V LR6 Battery x 2pcs)
Standby Current: ≤80uA
Alarm Current: ≤12mA
Detection Area: 7-8m/110°
Wireless Transmit Distance: ≤80 m (in open area without interference)
Wireless RF Frequency: 315MHz/433MHz(±75KHz)
Temperature/Humidity: -10°C-55°C/≤80% (Non-condensing)
Detector Dimensions (LxWxH): 90*52*36.5mm
Bracket Dimensions (LxWxH): 48*26*29mm

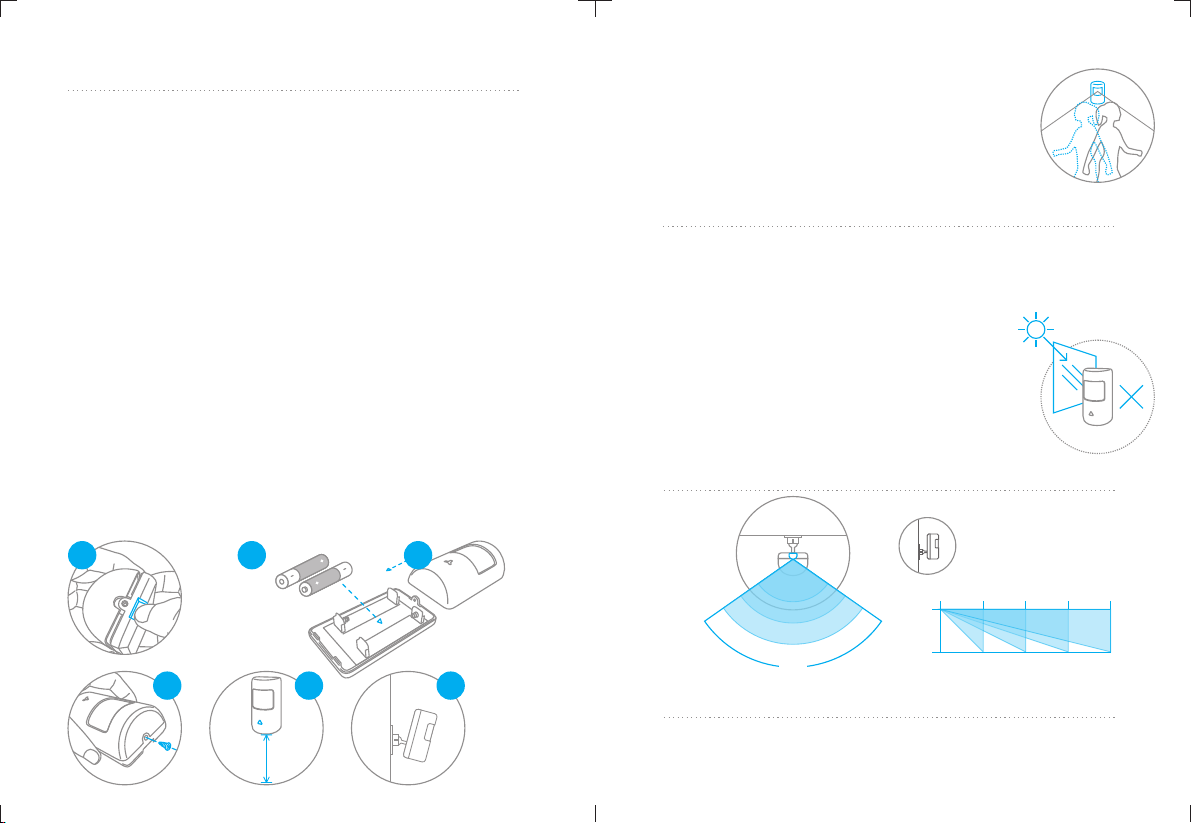

Installation & Walk Test
1
4
3
2
6
2.0~2.2m
5
1. The motion detector should be installed in entry or exit which
intruder can easily enter.
2. The detector is more sensitive to cross-movement than to direct
movement. The performance of the detector is optimal when detection
direction is across the walking direction of intruders.
3. Press the clip, insert the battery properly, and then close the cover.
4. Using screws to fix the bracket of detector on the wall, attach the
detector to the bracket.
5. Keep LED indicator at the right direction. The fixing height is about
2~2.2m from the ground.
6. Adjust installation height or bracket to change the detection
distance and angle.
Walk Test:
1. When the power is on, the LED indicator flashes five times
and buzzer beeps five times to enter working state.
2. Walk across detection area and watch the LED indicator to
make sure it flashes once when detecting the movement.
After one detection, it will detect once every one minute.
1. Avoid mounting the detector close to places where heat
changes fast or air stream flows frequently.
(ie. Air conditioner, tube light, oven, waver, refrigerator etc.)
2. Avoid it facing to window which can be easily interfered by
complicated environment. (ie. sunlight, crowds, or flowing
cars etc.)
3. The product can reduce the possibility of
accident, but the user is advised to take all
necessary precautions for the safety and the
protection of the property.
Notice
When the power is on, the LED indicator flashes 5 times, and buzzer
beeps 5 times to enter testing mode. In this state, every movement
will trigger the detector and activate the alarm signal. Detector enters
working mode after 20 detections.
Working Mode:
In this state, the detector enters sleeping mode to save power after
first detection. If there's no movement within 4 minutes, the detector
goes back to the working state. If there's detection occurs within
4 minutes, the time detector goes back to working state will be added
accordingly.
Installation:
Testing Mode:
110°
2m 4m 6m 8m
0m
0m
2m
Detection Area
Side View
Top View
Connecting P.I.R. Motion Detector to Control Panel
The new-bought P.I.R. motion detector should be enrolled
to the control panel before use. For specified operation,
please refer to the manual of alarm system.
