Maxwell Volcan MGBWA070 Manuale utente
MGBWA070
MGBWA090
MGBWA0100
Volcan Series
Thank you for choosing "ENERGY" gas boiler,a wall hung boiler of the latest generation with elegant
style and advanced technology.
L1PB series is a high-efficiency boiler for heating and domestic hot water production,running on natural
gas, LPG or Artificial coal gas.
Thanks to the microprocessor control and adjustment system with advanced self-diagnosis,unit
operation is for the most part automatic.The power for heating is automatically governed by the control
system.The power for hot water is automatically and continually governed to ensure the fast delivery
and comfort under all operating conditions.
All you need to do is just set the temperature of the room and set the desired outlet temperature for the
hot water.The intelligent system will do it for you.
We hope you can enjoy the comfortable and safety experience our boiler brings you.
1. The gas pipeline of the device must be airproofing, only gas-pipe installation qualified
company can do it.
2. If there is any defect in the installation of exhausted air discharging system, it will be
possible for the exhaust regorging, incompletely burning or even CO toxicosis and
explosion. When the flue is installed, please check it carefully and keep it position.
3. The device is with system release valve and tap water release valve. If the water
pressure of system and water supply is exceeded, water will be discharged from the water
releasing port. So a pipe needs to be installed to the port, in order to protect your living
environment.
4. In the condition of freezing possible condition, if the device is not used or it can not be
repaired in time, please discharge all the system water(there should be a water
discharging valve in the lowest point of water pipe system)
5. If there is something wrong with the power supply cord, only the manufacturer, or after
service department or some qualified technician can change it to avoid the danger occur.
6. This device should be installed with smallest service port.
Product Characteristics........................................................... 03 - 06
Technical Parameter..................................................................................... 04
Inside structure of gas boiler................................................................. 05 - 06
For Users' Manipulation.............................................................07-14
Safty and Caution Instruction........................................................................ 07
water filling................................................................................................... 08
Affusion, and Drainage...................................................................................08
Circuit digram of boiler................................................................................. 10
User manual........................................................................................... 11 - 13
Malfunction display and solutions.................................................................. 14
For Installation and maintenance........................................15 - 22
Unpacking, Inspection and Acceptance...................................................... 15
The connection of the water system............................................................. 17
Installation of gas pipe and coaxial flue gas pipe......................................... 18
Heating system............................................................................................... 20
Domestic hot water system..............................................................................21
Heating comfortably
Adjusting the burning efficiency which makes the
heating more comfortable. Apart from the
radiator,Household air conditioning system and
floor radiating heating system can match the
boiler.
Excellent Domestic hot water
Supply
13.5Kg/m water flow can meet your daily demand.
Equipped with the latest intelligent temperature
system ,the boiler could adjust the temperature of
water even in frequent change of water pressure
conditions and low pressure conditions.
Optional heat water tank can supply hot water for
several rooms.
Low noise, quick installation and easy operation.
Winter/Summer-mode Switch button, set the
heating and domestic hot water temperature at
your request.
Propotional switch can adjust the flame in order to
control the temperature of heating system water
and domestic water.
Temperature of water flow display,malfunction
code display.
Safety valve will open automatically to release
pressure to protect the the boiler from damage
when the water pressure reaches to 0.3 Mpa.
Temperature extremes protection.The boiler will
terminate the working program when overheated
or a temperature sensor malfunction, occurs.
Negative-pressure hermetically firing Jess
indoor oxygen consumption.
The boiler will stop working automately when the
inlet tube and outlet tube is blocked. Only when
malfunction is solved could the boiler be
restarted. Ionization flame monitoring device will
work to shut down the operation in case the
ignition failure occurs at the beginning or during
the process of combustion.
Freezing protection.If the temperature of water
in heating system drops below 8 centigrade
degree,the circulation pump will begin to work
and will not stop until the temperature of water
raises to 10 centigrade. When the temperature
drops to 5 centigrade, the heating system will
work until it reaches 30 centigrade. In certain
conditions, the freezing protection function may
be effected when the difference of temperature
between surroundings and that of pipeline is
overlarge.
Model MGBWA070 MGBWA090 MGBWA0100
Gas type Natural gas, LPG, Artificial coal gas
Rated input capacity (Btu/h) 70.000 90.000 100,00
Rated output capacity (Btu/h) 63.000 81.000 93.300
Min. input capacity for heating (Btu/h) 36.000 38.000 38.000
Min. output capacity for heating (Btu/h) 32.000 34.200 35.800
Min. input capacity for hot water (Btu/h) 33.000 33.500 33.500
Min. output capacity for hot water (Btu/h) 27.600 27.600 27.600
AFUE (%) 90 90 93,3
Working pressure of heating system 7~43 7~43 7~43
Max. heating water temperature (Fº) 194 194 194
Adjustment range of heating water temperature (Fº) 86~176 86~176 86~176
Rated electric power (W) 125 125 125
Electrical protection (IP) X4D X4D X4D
Expansion tank volume (L) 6 6 8
Expansion tank prelead (PSI) 14,5 14,5 14,5
2
Heating area (square Ft ) 500~1650 650~2200 850~2700
Power supply 110V/60Hz 110V/60Hz 110V/60Hz
Reference Natural Gas (12T) consumption (gom) 4~8.5 5.4~11.4 6.3~13.3
Lpg (20Y) (Lb/h) 1.65~3.45 2.2~4.6 2.55~5.4
Net weight (Lb) 80 83 88
TOTAL LENGTH OF THE LOOP CIRCUIT FT 230 230 230
PHISICAL SIZE 29X18X10 29X18X10 29X18X13
BURNERS (# ORIFICE) 9 12 14
PUMP MAX HEAT FT 16 16 19
CONNECTION PIPE BOILER 3/4 3/4 3/4
CONNECTION GAS
HEATING SYSTEM
3/4 3/4 3/4
Model MGBWA070 MGBWA090 MGBWA0100
Max. working pressure (PSI) 100 100 100
Min. working pressure (PSI) 7,25 7,25 7,25
Hot water capacity with ∆ t=45 F (Lb/min) 23 30 35
Hot water temperature adjustment range ( ±3 Fº) (Fº) 86~140 86~140 86~140
Min. hot water flow for starting (Lb/min) 5,5 5,5 5,5
Limited flow (Lb/min) 22 22 22
Natural gas (PSI) 0,3 0,3 0,3
LPG (PSI) 0,4 0,4 0,4
Artificial Coal Gas (PSI) 0,15 0,15 0,15
CONNECTION PIPE DOMESTIC HOT WATER
DOMESTIC HOT WATER SYSTEM
1/2 1/2 1/2
Model MGBWA070 MGBWA090 MGBWA0100
Max. working pressure (PSI) 100 100 100
Min. working pressure (PSI) 7,25 7,25 7,25
Hot water capacity with ∆ t=45 F (Lb/min) 23 30 35
Hot water temperature adjustment range ( ±3 Fº) (Fº) 86~140 86~140 86~140
Min. hot water flow for starting (Lb/min) 5,5 5 1/2 5 1/2
Limited flow (Lb/min) 22 22 22
Natural gas (PSI) 0,3 0,3 0,3
LPG (PSI) 0,4 0,4 0,4
Artificial Coal Gas (PSI) 0,15 0,15 0,15
1. Cold water inlet
2. Gas valve
3. Hot water temperature sensor
4. Water button
5. Burner
6. Electrode for ignition
7. Electrode for flame detection
8. Heat Exchanger
9. Distributor
10. Fan
11. Smoke sampling
12. Air sampling
13. Flow limited loop
14. Valve of air pressure difference
15. Heating water temperature sensor
16. Limited temperature sensor
17. Expansion tank
18. Automatic air venting valve
19. Pump
20. Safe valve
21. Automatic bypass-valve
22. Water venting valve
G . Gas inlet
U. Hot water inlet
E. Cold water inlet
R. Heating water inlet
M. Heating water outlet
06
1.Cold water inlet
2.
Hot water temperature sensor
3. Automatic bypass-valve
4.
Heating water temperature sensor
5.
electromagnetism three way valve
6. Gas valve
7. Burner
8. Electrode for ignition
9.
Electrode for flame detection
10.
Limited temperature sensor
11. Heat Exchanger
12. Distributor
13. Fan
14. Smoke sampling
15. Air sampling
16. Flow limited loop
17.
Valve of air pressure difference
18. Expansion tank
19. Safe valve
20. Plate heat exchanger
21. Water pressure switch
22.
Automatic air venting valve
23. Water button
24. Pump
25. Water venting valve
G . Gas inlet
U. Hot water inlet
E. Cold water inlet
R. Heating water inlet
M. Heating water outlet

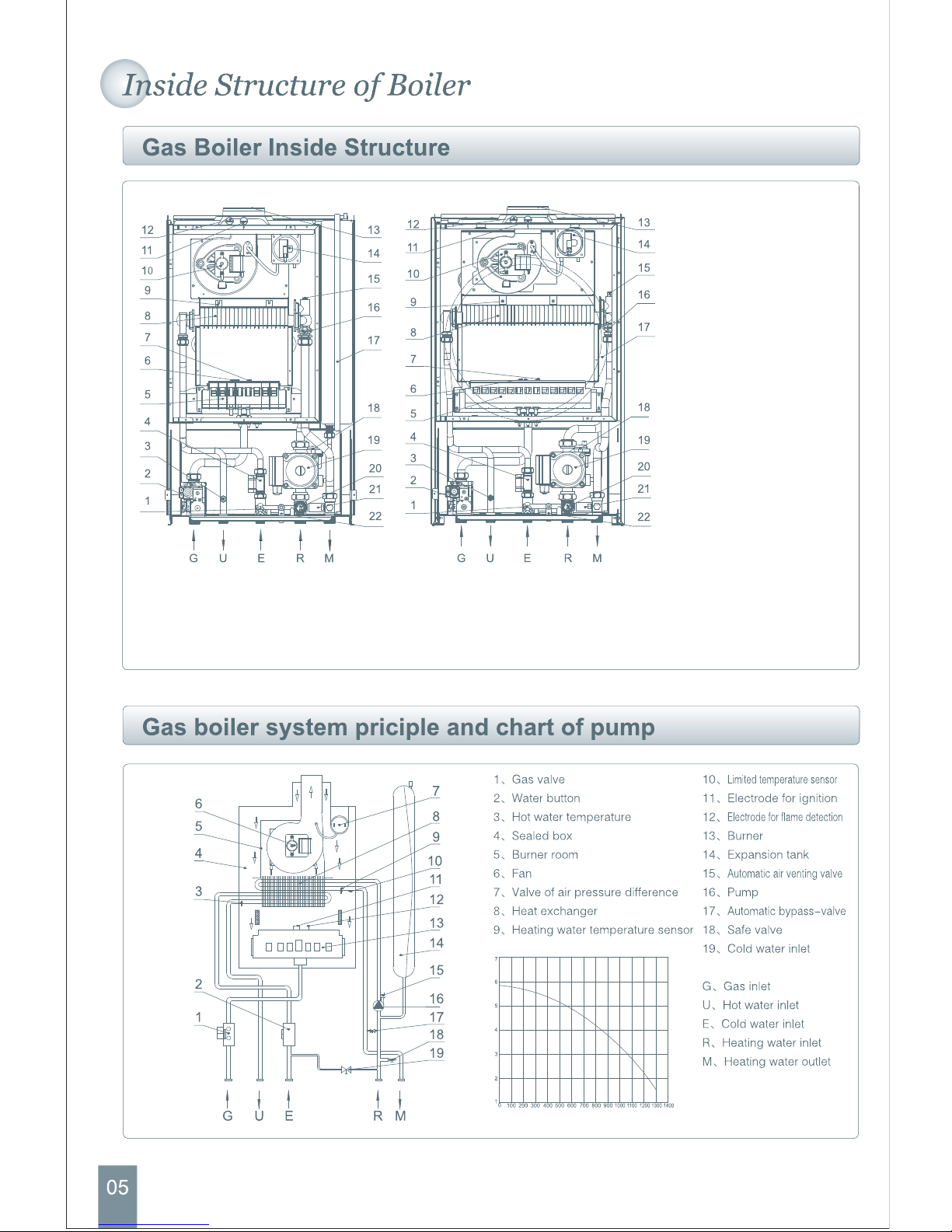

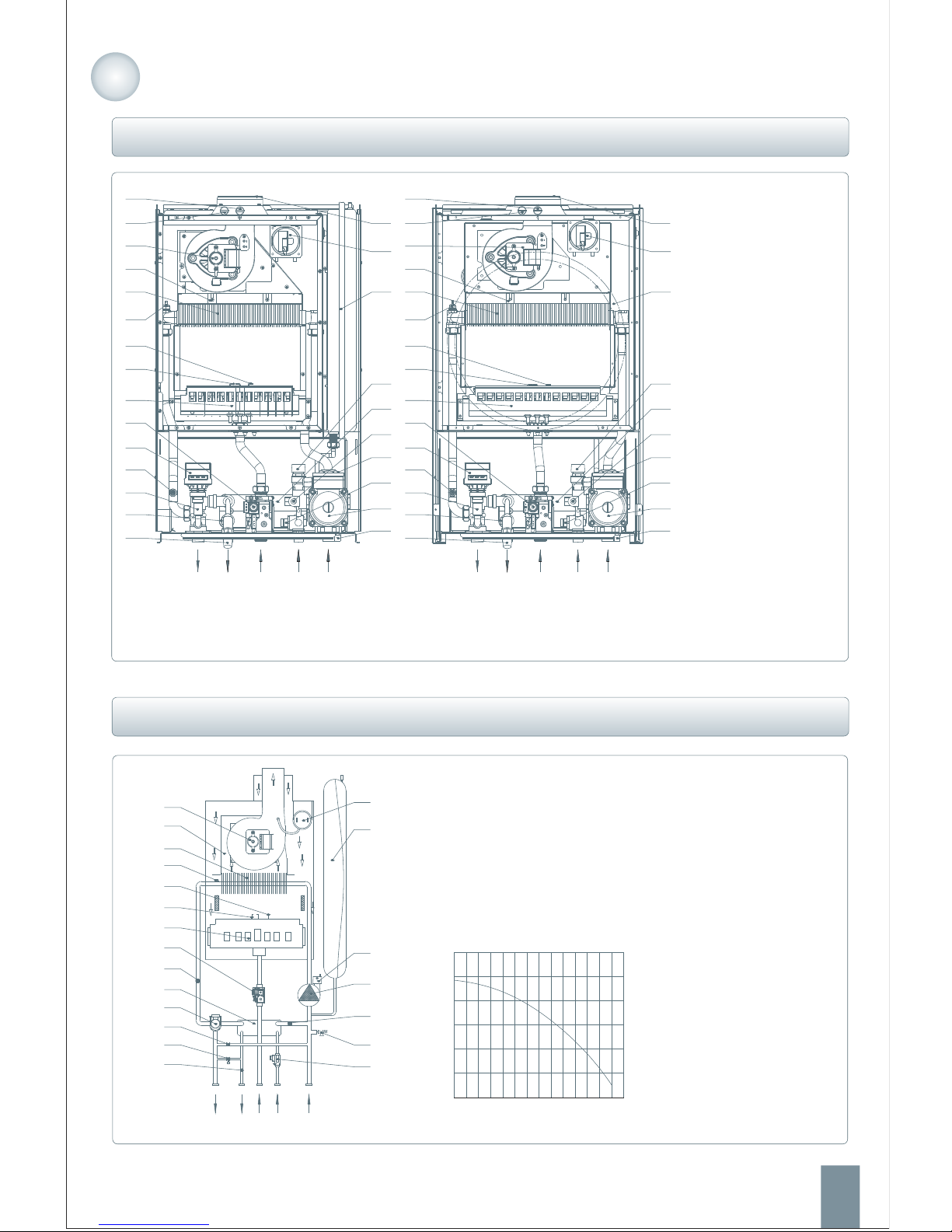

Gas Boiler Inside Structure
Gas boiler system priciple and chart of pump
Inside Structure of Boiler
1、Hot water temperature
2、Cold water inlet
3、
Automatic bypass-valve
4、Electromagnetism three way valve
5、Plate heat exchanger
6、Heating water temperature sensor
7、Gas valve
8、Burner room
9、Electrode for ignition
10、
Electrode for flame detection
11、Limited temperature sensor
12、Heat exchanger
13、Burner room
14、Fan
15、
Valve of air pressure difference
16、Expansion tank
17、
Automatic air venting valve
18、Pump
19、Water pressure switch
20、Safe valve
21、Water button
G、Gas inlet
U、Hot water inlet
E、Cold water inlet
R、Heating water inlet
M、Heating water outlet
7
6
5
4
3
2
10100 200 300 400 500 600 700 800 900
10001100 120013001400
M U G E R
15
16
17
18
19
20
21
24
25
23
22
14
13
12
11
10
9
8
6
5
4
3
2
1
7
M U G E R
16
17
18
19
20
21
24
25
23
22
15
14
13
12
11
10
9
8
6
5
4
3
2
1
7
M RGU E
12
13
14 15
16
17
18
19
20
21
11
10
9
8
7
6
5
2
4
1
3
Total Head(mH20)
Discharge (Kg/h)
I Water stored in the boiler cannot be used for
drinking or cooking, Just for daily use.
Gas type must be in conformity to type on the tag.
Please use the AC 110V/60Hz with supplied
plug.To keep safety, the boiler should have earth
connection.
Have the boiler serviced by a qualified authorized
service technician.
Please keep ventilation at times when the boiler
works.
Switch off the power and gas valve when the
boiler in malfunction, check the manual
instructions or inform the professional engineer for
repairing.
Check the water pressure meter frequently when
the pressure is too low.the boiler may stop
working and show malfunction code on
screen.Refill water and keep the pressure
between 0.1— 0.12Mpa(1— 2 bar).
To avoid freezing in cold weather, keep switch on
and gas supply going.
Turn off the electric power and cut off gas supply
when you don't use for a long time.Drain water out
of the boiler completely to avoid damage of
freezing.
The boiler should be connected with the heating
system including a gas pipeline and an outlet.
Boiler and burnet must be installed and serviced
only by qualified heating installer/service
technician. Failure to comply with the manual
could result in severe personal injury or property
damage.
The safety equipment and the automatic
regulating devices of the boiler are forbidden to be
changed on your own.
Do not install the boiler outside the house.
Switch off the power and gas supply when
cleaning the boiler.
Keep the boiler away from combustible materials,
esp. plastic materials.
Do not block the vent outlet and inlet by using
cotton or paper.
If there is gas smell or combustion smell,please
do not turn on the electronic devices,such as
power switch,telephone.Follow the instructions
below:
• open the window
• Switch off the gas supply
• Notify the technician.
Do not wet the electronic outlet and boiler. Children
and disabled people should not be allowed to
use the boiler
Keep the packing material of boiler from
children,which could be dangerous for children. Do
not pull, cut or curve the power cord.
Before affusion, turn on the automatic air vent
valve on the circulation pump and the air-vent
valve at the end of the heating system.
Fill softened water into the preset position for
affusion on the pipe of heating system.Observe
the pressure meter on the operation panel,stop
filling in water when the pressure reaches
between 0.1-.12Mpa(1—1.12 bar)
Turn on the boiler (do not turn on the gas
valve),then the pump start working.when the
pressure drops to 1 bar, turn off the boiler.
Keep on filling softened water in until the meter
hands points to 0.1-0.12(1-1.2 bar). Restart the
boiler(do not open the gas valve),the pump will
start running.when the pressure drops again,
Repeat the above steps until the pressure keeps
steadily at 0.1—0.12 Mpa(1—1.2 bar).
Turn off the air vent valve on the end of the
heating system.
Caution:As the air cannot be exhaused from the
boiler completely at first affusion.the remaining air
may go with steam into the water pressure detection
system,which may result in the lace-water-protection
system running-Refill the water until the pressure
reaches to 0.1 -0.12Mpa(1 -1.2 bar).Turn the "reset "
button,restart until the system operate steadily.
The boiler is equipped with a manual valve for
affusion and refilling water.Add water when the
water pressure is below 0.1Mpa(1 bar) during the
operation.
Switch off the power supply of the boiler.
Check to make sure there is no water leakage
from the heating system.
Turn the Affusion/refilling water valve in an
anticlockwise direction.
Observe the water pressure metre, till water
pressure reaches 0.1-0.12Mpa(1—1.2 bar),turn
the affusion/refilling in a clockwise direcition,and
close the valve.
Restart the boiler.
Check the heating system pressure regularly.The
boiler pressure metre hand should be pointed at
the 1-1.2 bar. If the pressure is less than 1 bar(cold
boiler),refilling the water by affusion valve on the
bottom of the boiler.
Caution
Turn off the refilling valve after the Refilling
finished,If the pressure of the heating system goes
up to 3 bar,the safety valve will be opened.Please
contact the technician.
Questo manuale è adatto per i seguenti modelli
2
Indice
